Schneider RPM12/22/32/42 Power Relay With Base
Regular price
Dhs. 67.00 AED
Regular price
Dhs. 84.00 AED
Sale price
Dhs. 67.00 AED
Unit price
per
Shipping calculated at checkout.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Couldn't load pickup availability

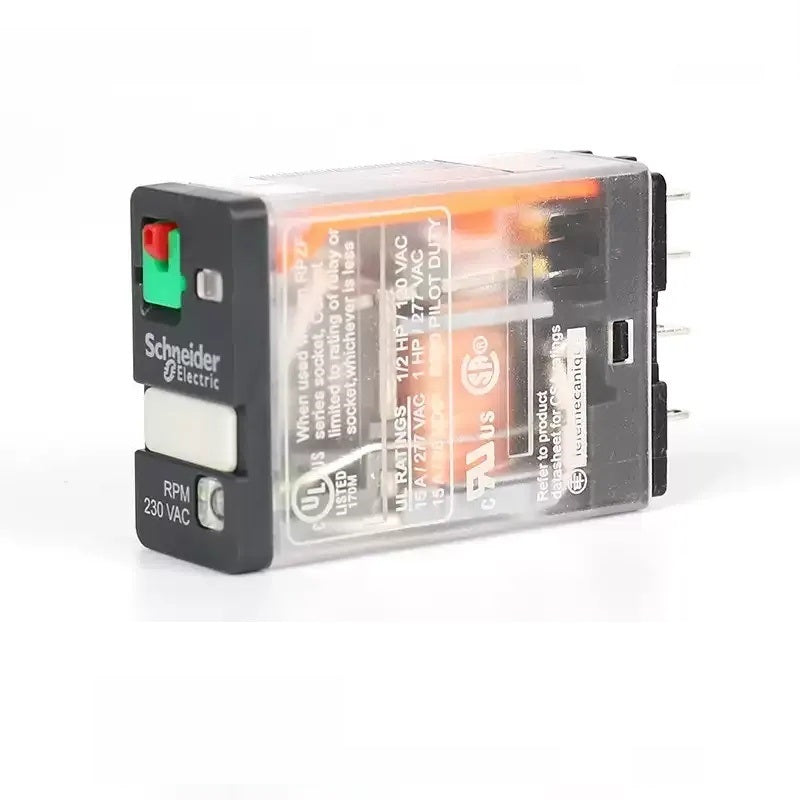

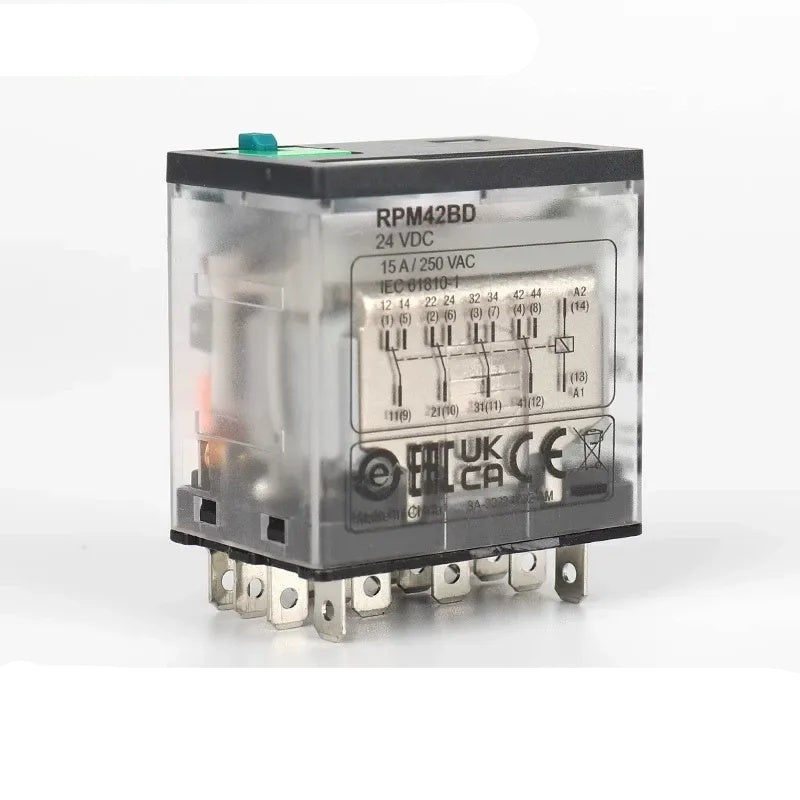

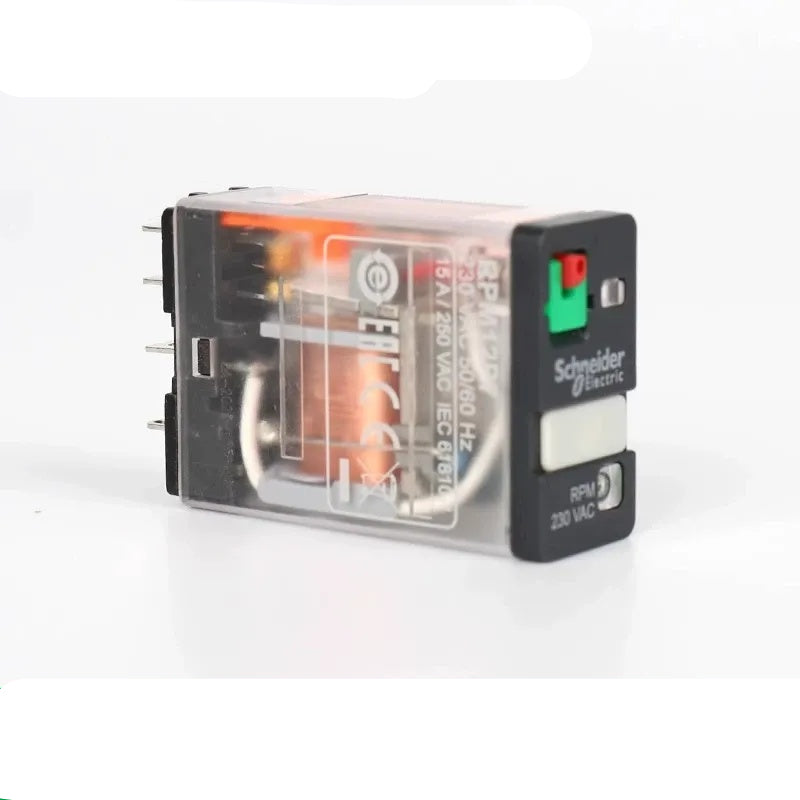

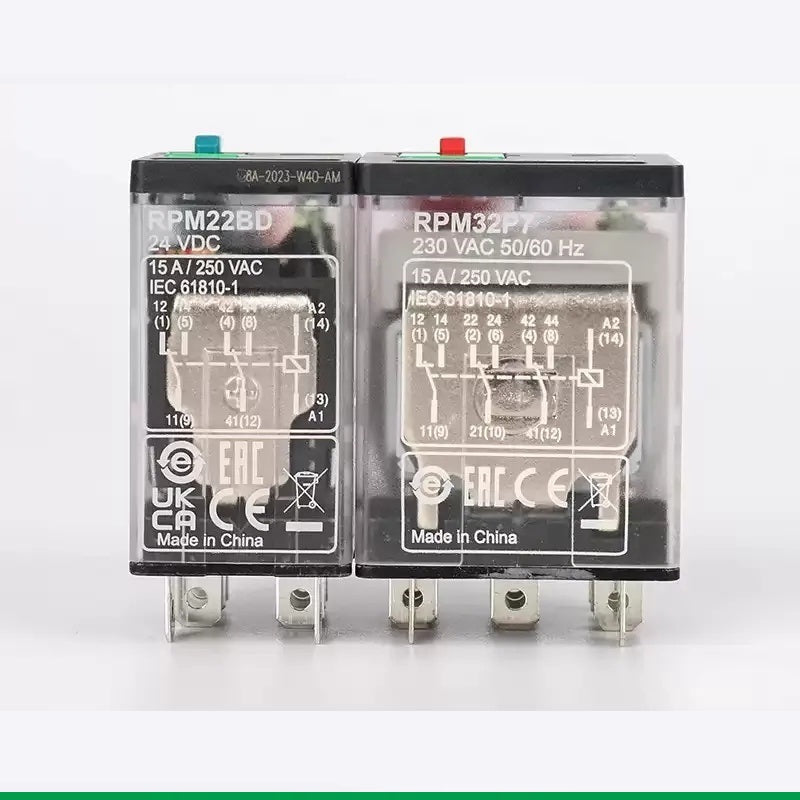

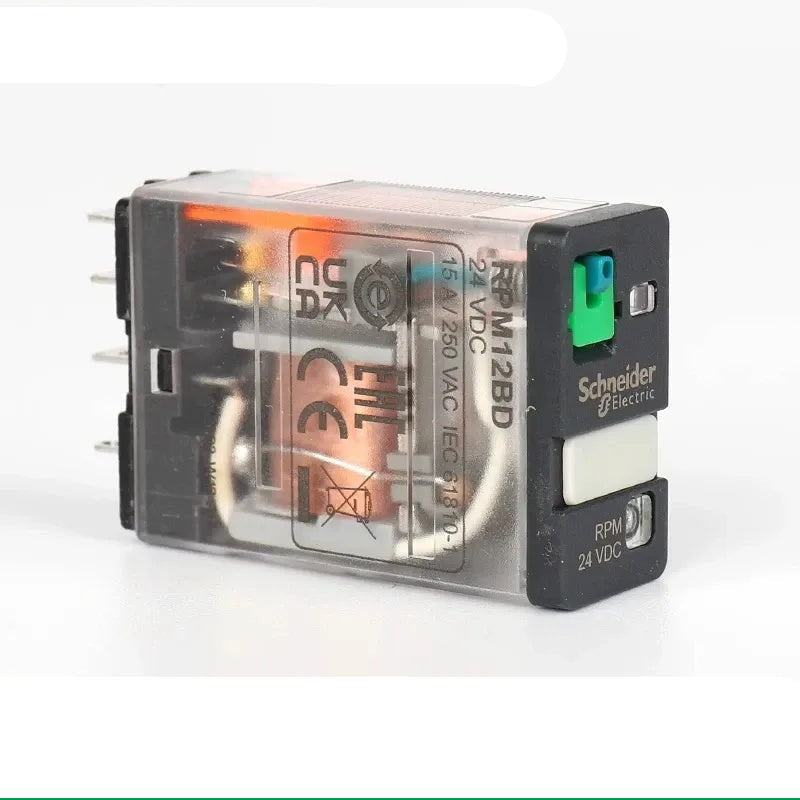

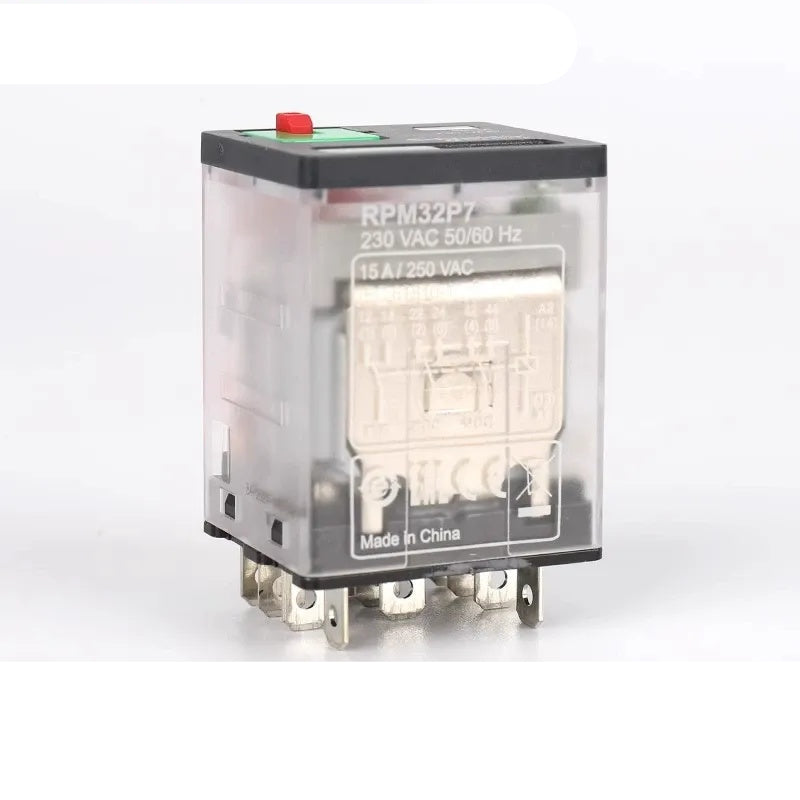

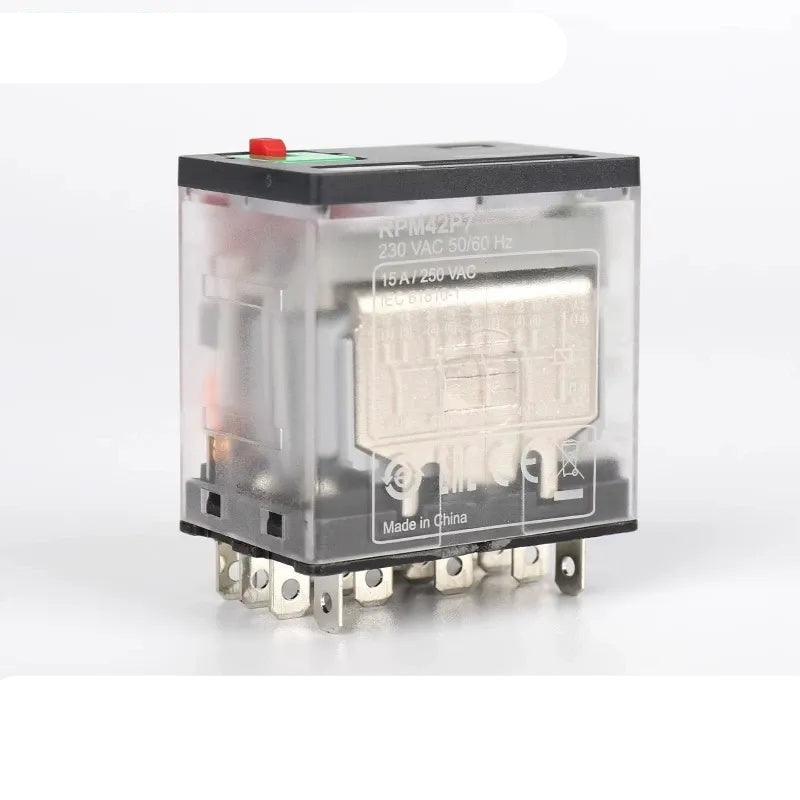

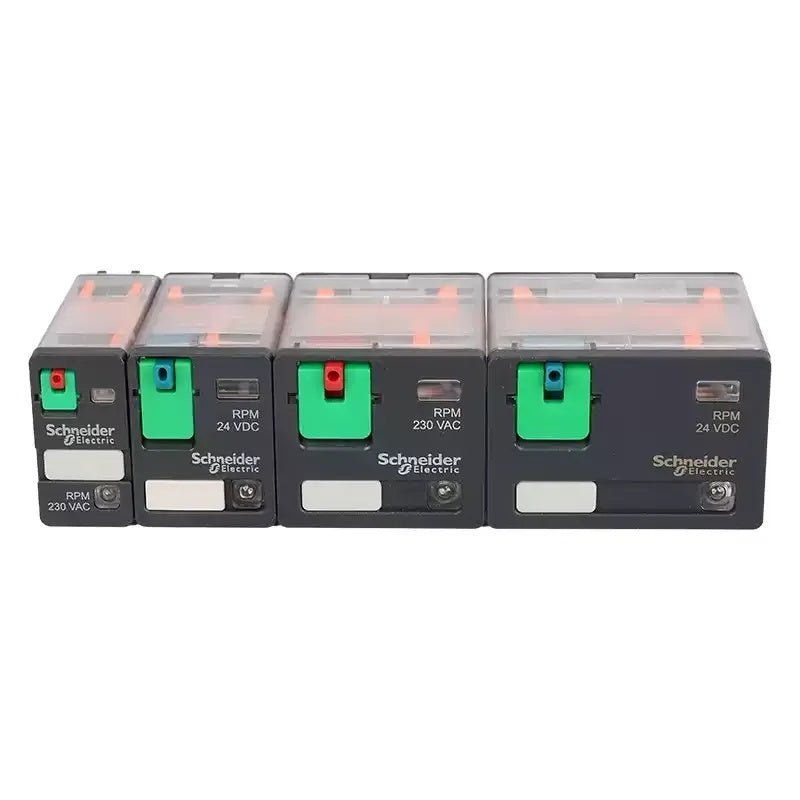

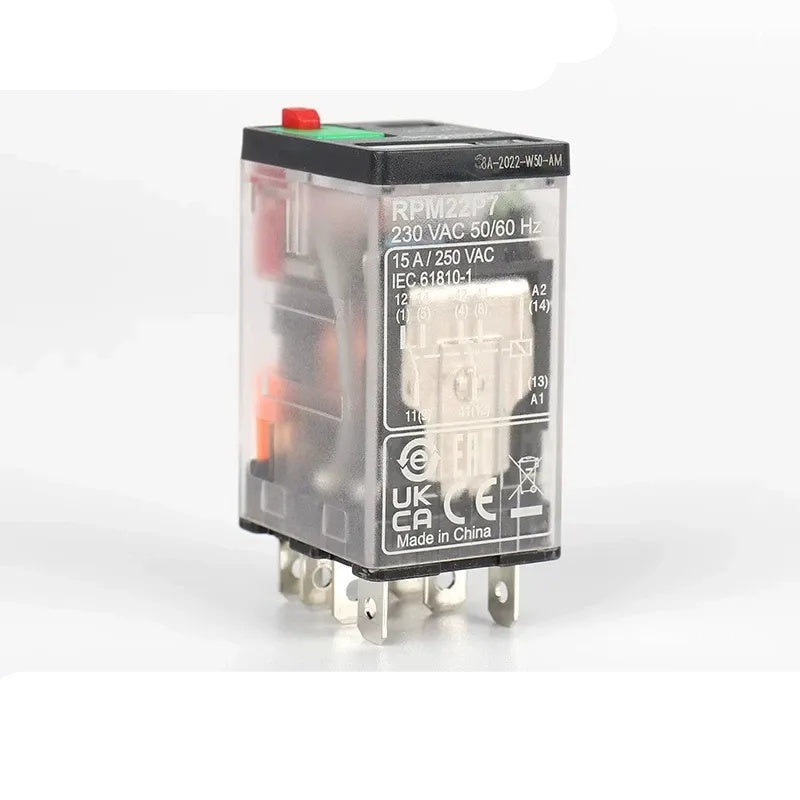

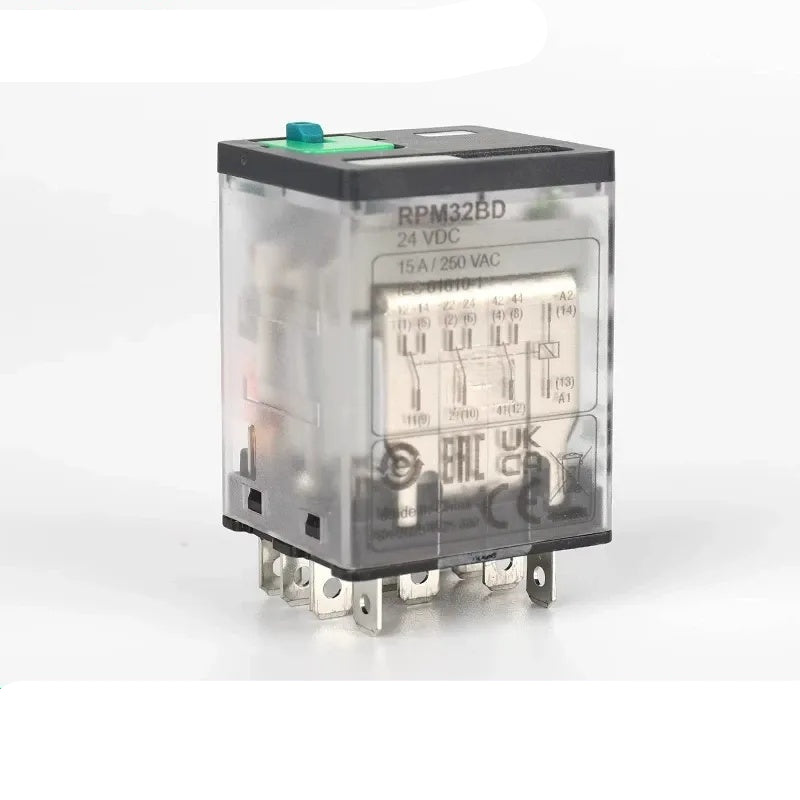

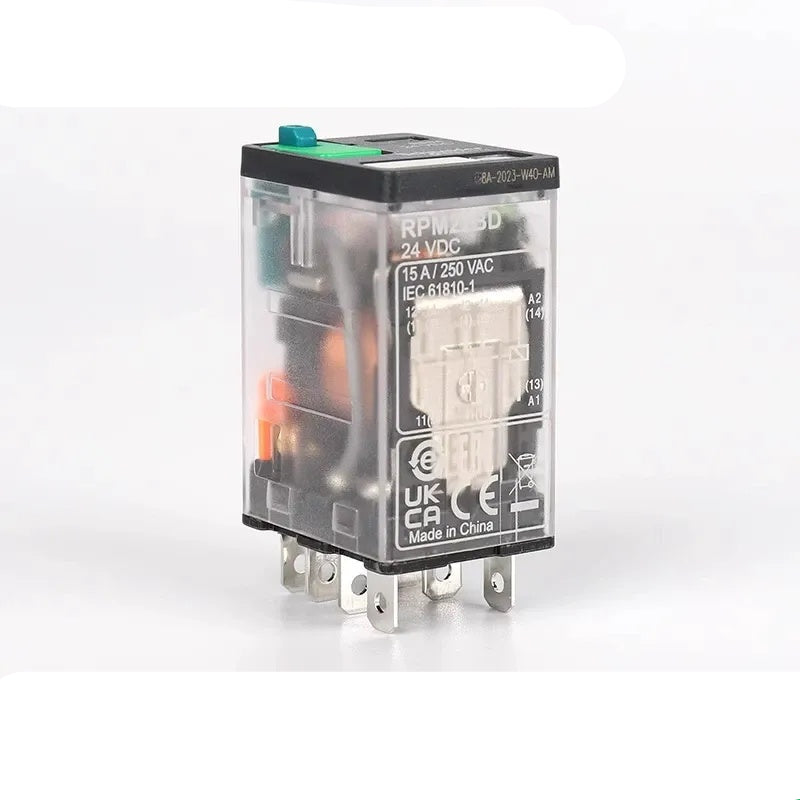

Schneider RPM12BD/RPM22P7/RPM32BD/RPM42P7 Power Relay, 15A, 1NO1NC to 4NO4NC, DC24V/AC230V, with RPZF1/RPZF2/RPZF3/RPZF4 Socket
Product Description
The Schneider RPM Series Power Relay is a high-performance industrial relay designed for heavy-duty control applications. With a 15A rated current, multiple contact configurations, and a robust plug-in design, it delivers reliable switching performance for motor control, power distribution, and automation systems.
Core Features
- High Power Rating: 15A contact rating, suitable for high-current industrial control circuits.
- Multiple Contact Configurations: 1NO1NC, 2NO2NC, 3NO3NC, and 4NO4NC options to match different application needs.
- Dual Coil Voltage Options: Available in DC24V (BD) and AC230V (P7) coil versions.
-
User-Friendly Design:
- Test button for manual operation testing
- Mechanical status indicator window
- Lockable test button for maintenance safety
- Optional LED status indicator (model-dependent)
- Modular Compatibility: Works seamlessly with RPZF series sockets (RPZF1/RPZF2/RPZF3/RPZF4) and optional protection/timer modules.
- Durable Construction: Designed for long-term use in industrial environments, with anti-interference capability and reliable contact performance.
Technical Specifications
| Model Series | RPM12** | RPM22** | RPM32** | RPM42** |
|---|---|---|---|---|
| Contact Configuration | 1NO1NC | 2NO2NC | 3NO3NC | 4NO4NC |
| Rated Current | 15A | 15A | 15A | 15A |
| Coil Voltage | DC24V/AC230V | DC24V/AC230V | DC24V/AC230V | DC24V/AC230V |
| Compatible Socket | RPZF1 | RPZF2 | RPZF3 | RPZF4 |
| Features | Test button, mechanical indicator | Test button, mechanical indicator | Test button, mechanical indicator | Test button, mechanical indicator |
| Mounting Type | Plug-in (DIN rail/panel mount via socket) | Plug-in (DIN rail/panel mount via socket) | Plug-in (DIN rail/panel mount via socket) | Plug-in (DIN rail/panel mount via socket) |

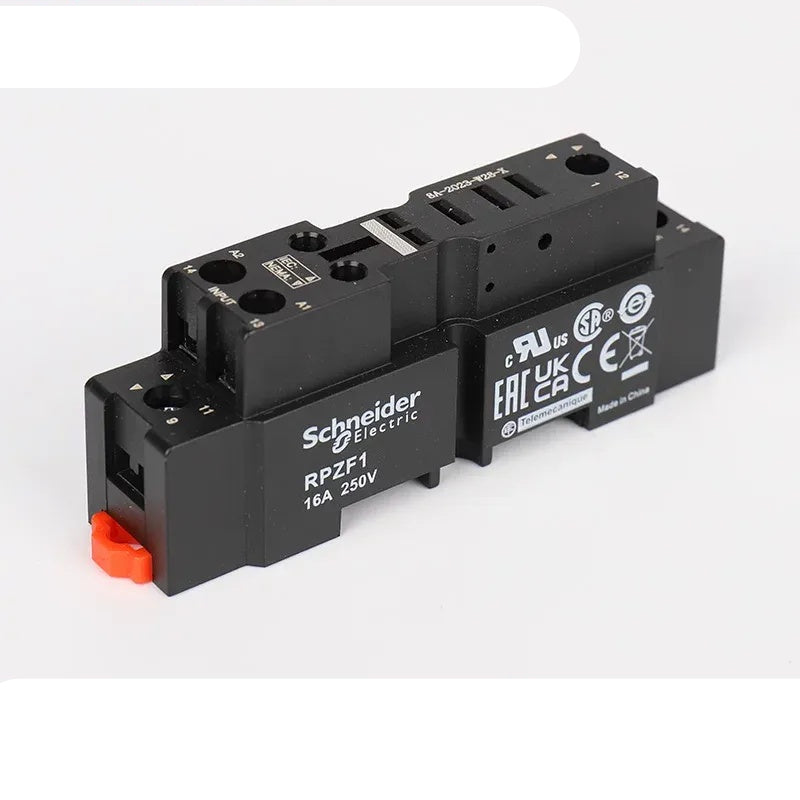

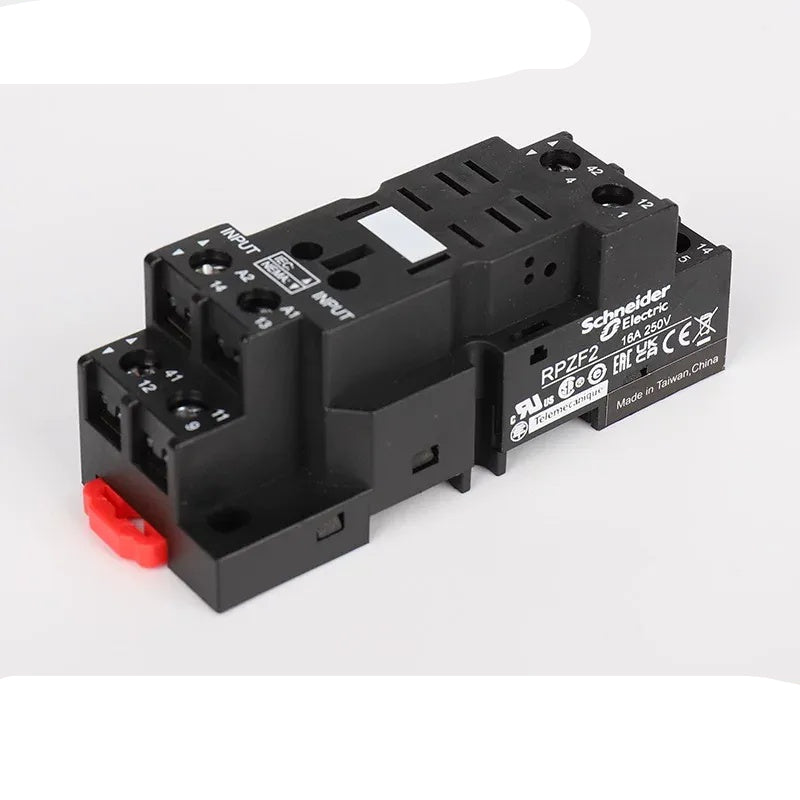

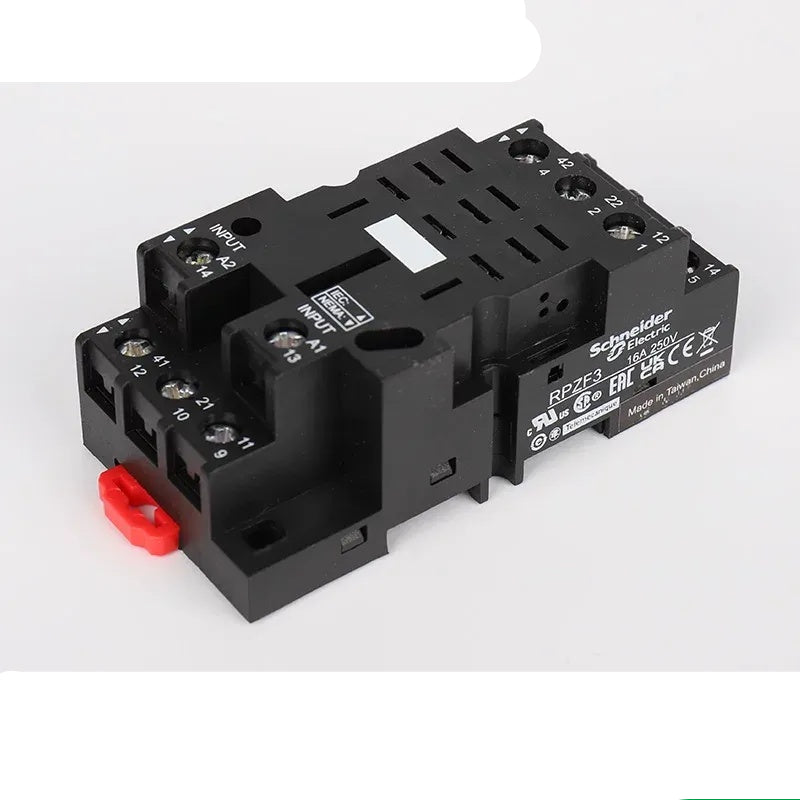

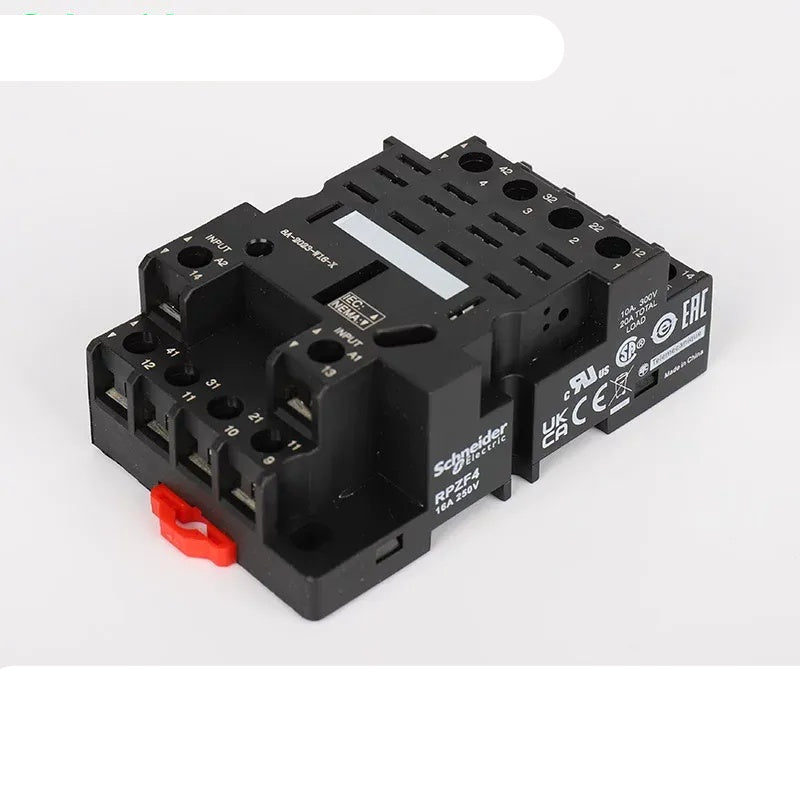

RPZF Socket Features
- Mixed Terminal Design: Combines coil and contact wiring terminals for flexible installation.
- Screw Terminal Connection: Secure wiring with screw-type terminals.
- DIN Rail Mounting: Compatible with standard DIN rails for control cabinet installation.
- Module Compatibility: Supports additional protection modules (diode, RC circuit) and timer modules.
Wide Applications
Ideal for motor control, lighting control, power distribution cabinets, industrial automation equipment, PLC systems, and other high-current switching applications.
DATA SHEET
| ITEM | VALUE |
|---|---|
| Product Type | Power Relay / Plug-in Electromagnetic Relay / Industrial Control Relay |
| Brand | Schneider Electric |
| Series | RPM Series |
| Models | RPM12BD/RPM12P7, RPM22BD/RPM22P7, RPM32BD/RPM32P7, RPM42BD/RPM42P7 |
| Contact Configuration | 1NO1NC, 2NO2NC, 3NO3NC, 4NO4NC |
| Rated Current | 15A |
| Coil Voltage | DC24V, AC230V |
| Compatible Sockets | RPZF1, RPZF2, RPZF3, RPZF4 |
| Features | Test Button, Mechanical Status Indicator, Lockable Test Function, Optional LED Indicator |
| Mounting Type | Plug-in (DIN Rail / Panel Mount via Socket) |
| Socket Type | Mixed Terminal Socket with Screw Connections |
| Application Scenarios | Motor Control, Lighting Control, Industrial Automation, PLC Control, Power Distribution |
