Schneider Resi9 iDPNN Vigi+ RCBO 1P+N 10A~32A 30MA Type A

Schneider Resi9 Series 1P+N 10-32A 6kA 30mA Type A Vigi+ Mini RCBO with Overload, Short Circuit & Earth Leakage Protection

Product Description

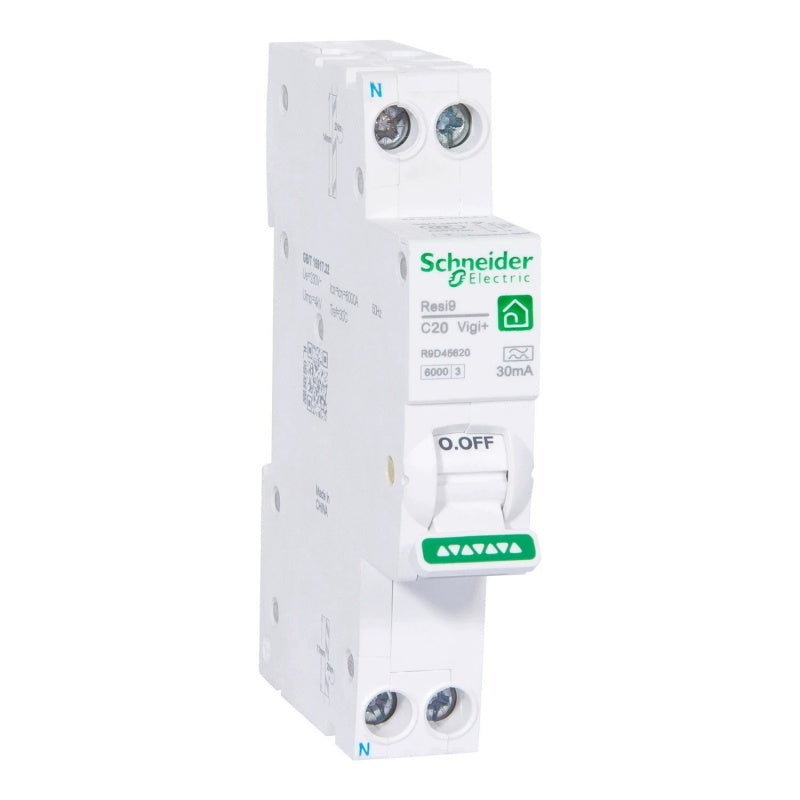

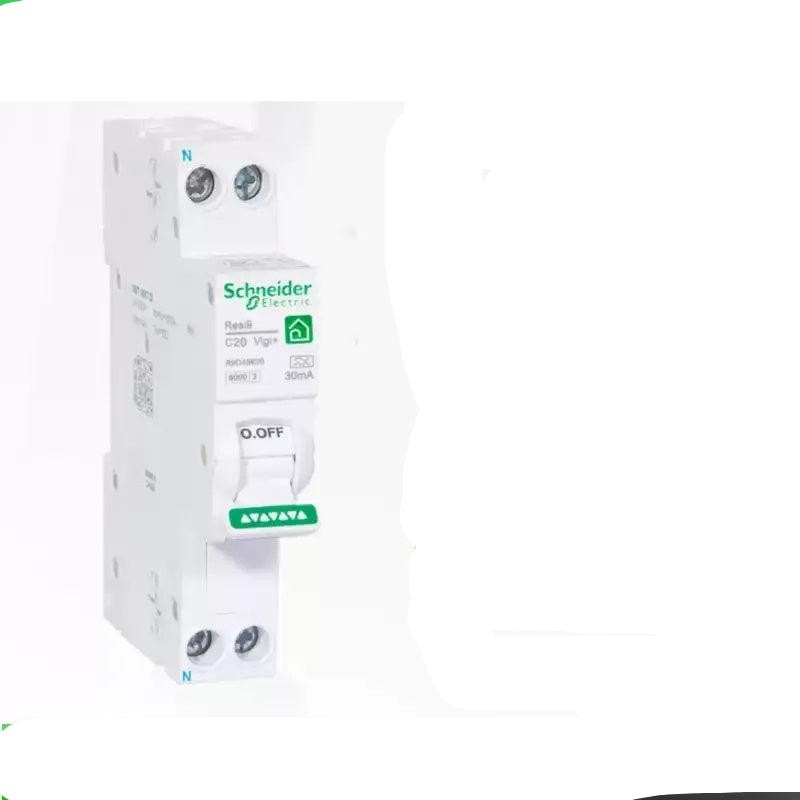

Schneider Resi9 iDPNN Vigi+ / iDPNa Vigi+ series Residual Current Circuit Breaker with Overcurrent Protection (RCBO) combines the functions of an MCB (Miniature Circuit Breaker) and an RCD (Residual Current Device) in one compact 18mm-wide module. Designed for AC 230V residential and light commercial distribution systems, it provides integrated protection against overload, short-circuit and earth leakage faults, meeting IEC/EN 61009-1 and GB/T 16917.1 standards.

• Pole Configuration: 1P+N (1 protected pole + neutral pole)
• Rated Current Options: 10A / 16A / 20A / 25A / 32A
• Rated Breaking Capacity: 6kA
• Residual Operating Current: 30mA (for enhanced personal protection against electric shock)
• Trip Curve: C curve (standard for general household/light commercial circuits)
• Type: Class A Electronic (protects against AC residual currents and pulsating DC residual currents)
• Rated Voltage: 230V AC 50/60Hz
• Mounting: DIN rail mounting (35mm standard rail)

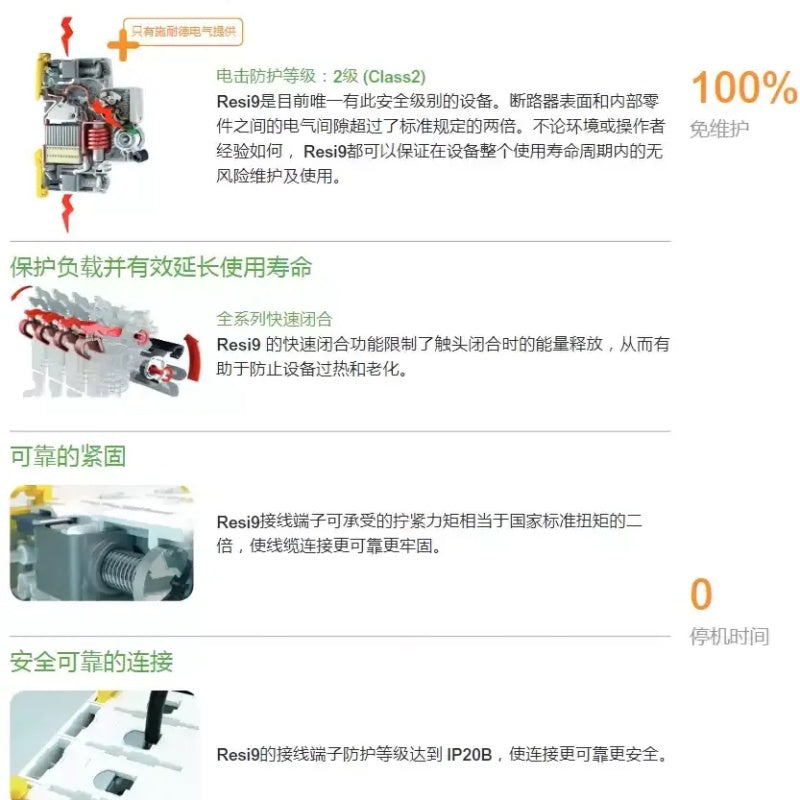

• Additional Functions: Isolation function, fault indication, fast closing mechanism
• Overload Protection: Prevents overheating and fire hazards caused by excessive continuous current.
• Short-Circuit Protection: Instantly trips to interrupt dangerous high-fault currents.
• Earth Leakage Protection (30mA): Provides supplementary protection against direct contact electric shock and protects against indirect contact faults.
• Isolation Function: Visible contact separation for safe maintenance and repair work.
