Schneider Electric

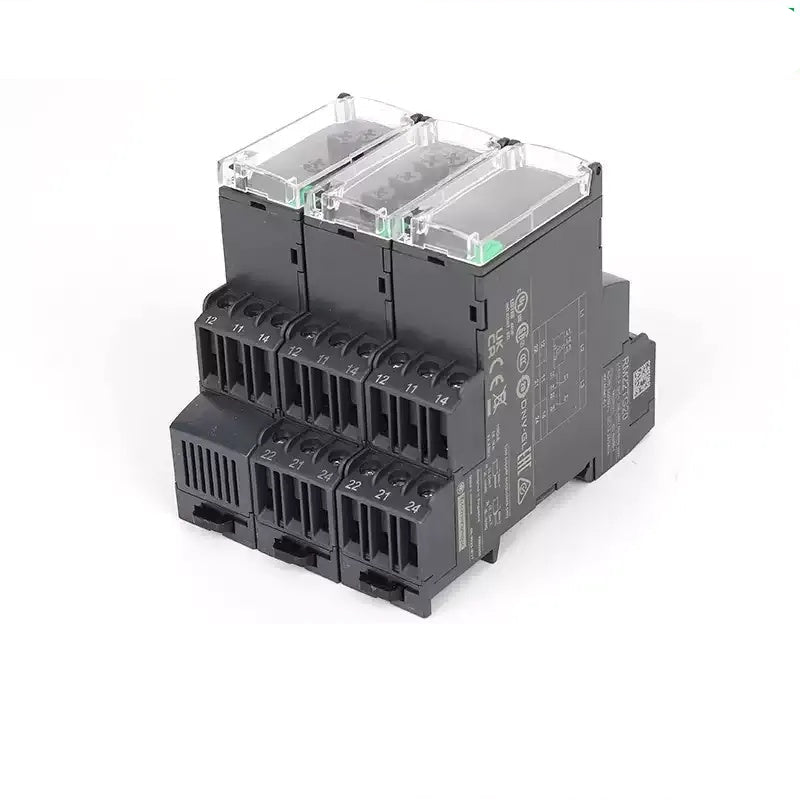

Schneider RM22TG20 3-Phase Monitoring Relay

Dhs. 277.00 AED
Dhs. 277.00 AED
Sale Sold out
Shipping calculated at checkout.
Model NO.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

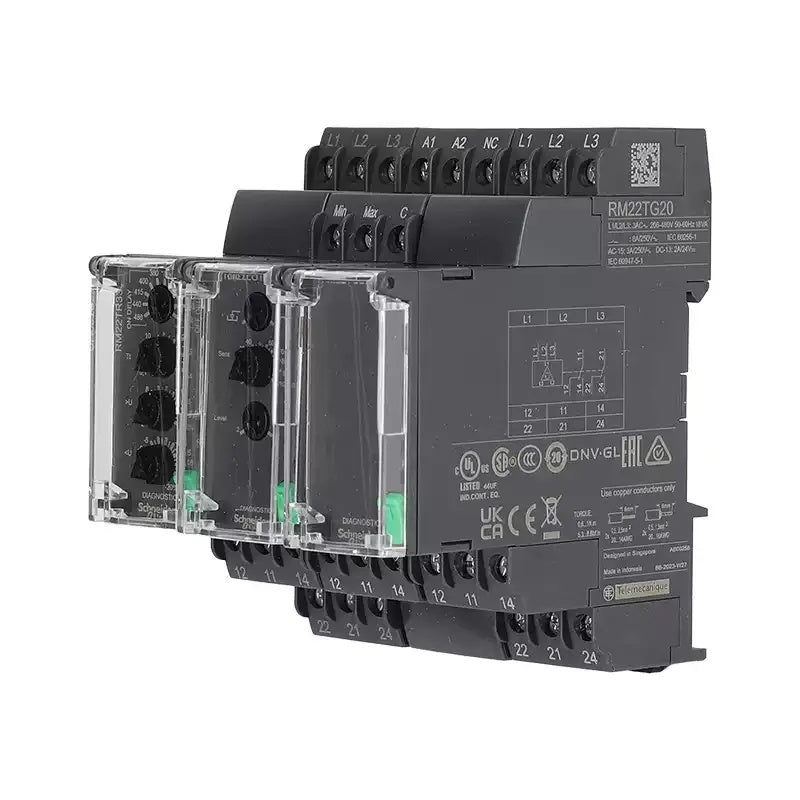

Schneider RM22TG20 3-Phase Monitoring Relay, RM22TR33 Phase Loss/Over/Under Voltage, RM22LG11MR Liquid Level Control Relay, 208-480VAC

Product Description


The Schneider RM17/RM22 Series Harmony Control Relays are compact, DIN rail-mountable monitoring relays designed for industrial power system protection and control. These relays provide reliable monitoring of 3-phase voltage, phase sequence, phase loss, over/under voltage, and liquid levels, ensuring stable operation of motors, pumps, and other critical equipment.

Core Features by Model

Model Primary Functions Voltage Range Key Features

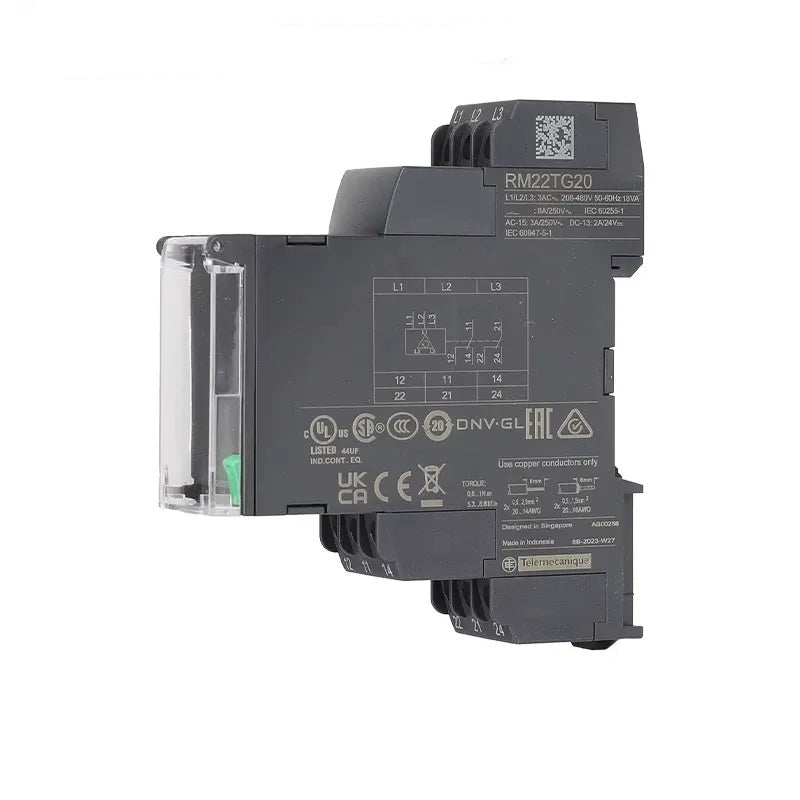

RM22TG20 3-phase monitoring (phase sequence, phase loss) 208-480V AC Simple, cost-effective phase monitoring, 2CO 8A contacts

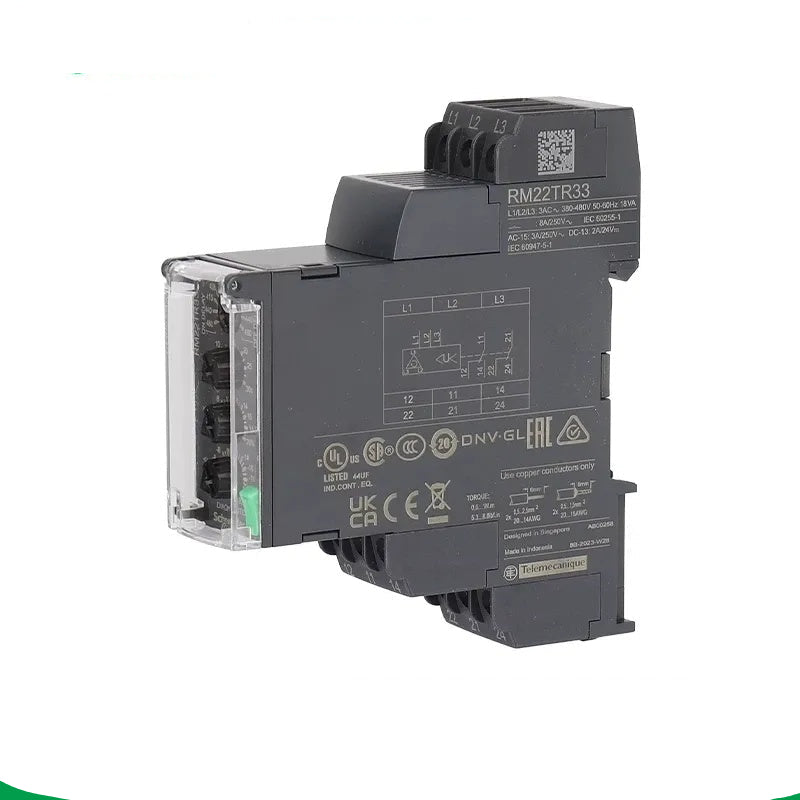

RM22TR33 3-phase phase loss, over/under voltage monitoring 380-480V AC Adjustable voltage thresholds, phase unbalance detection, 2CO 8A contacts

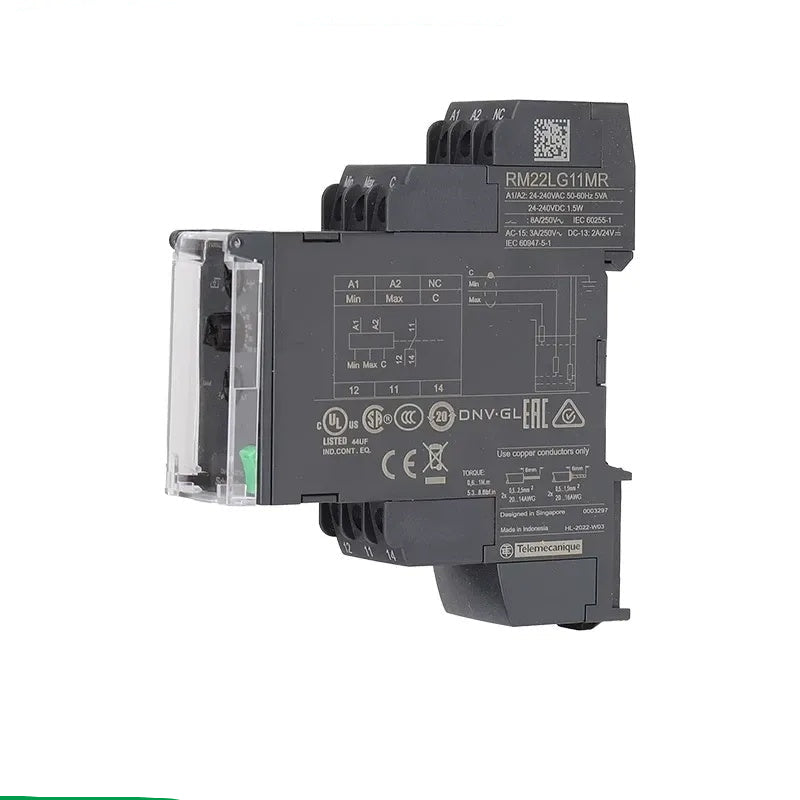

RM22LG11MR Liquid level control relay 24-240V AC/DC Universal voltage input, automatic level control for pumps/tanks

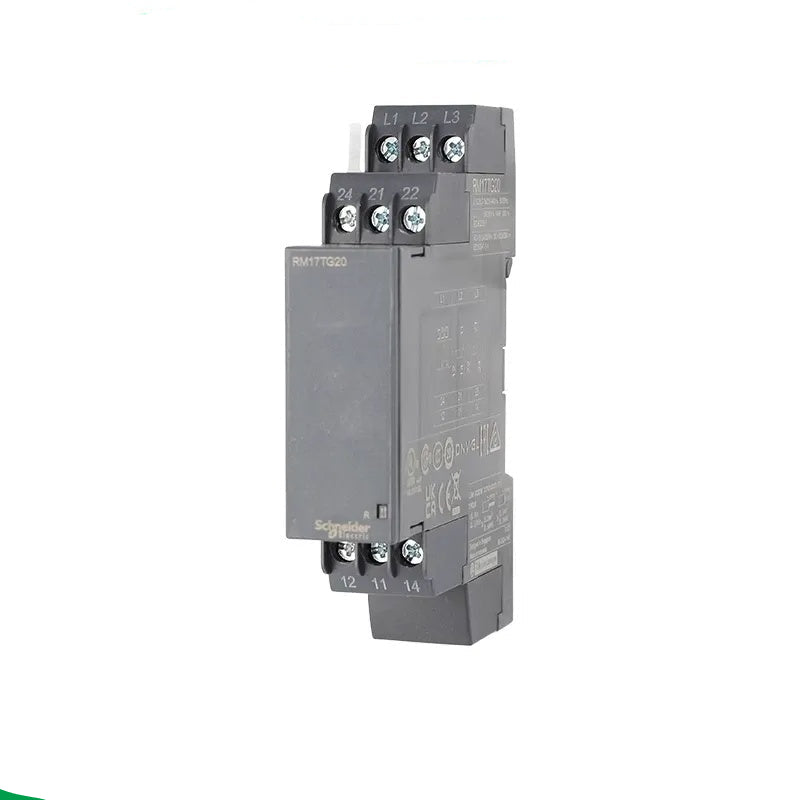

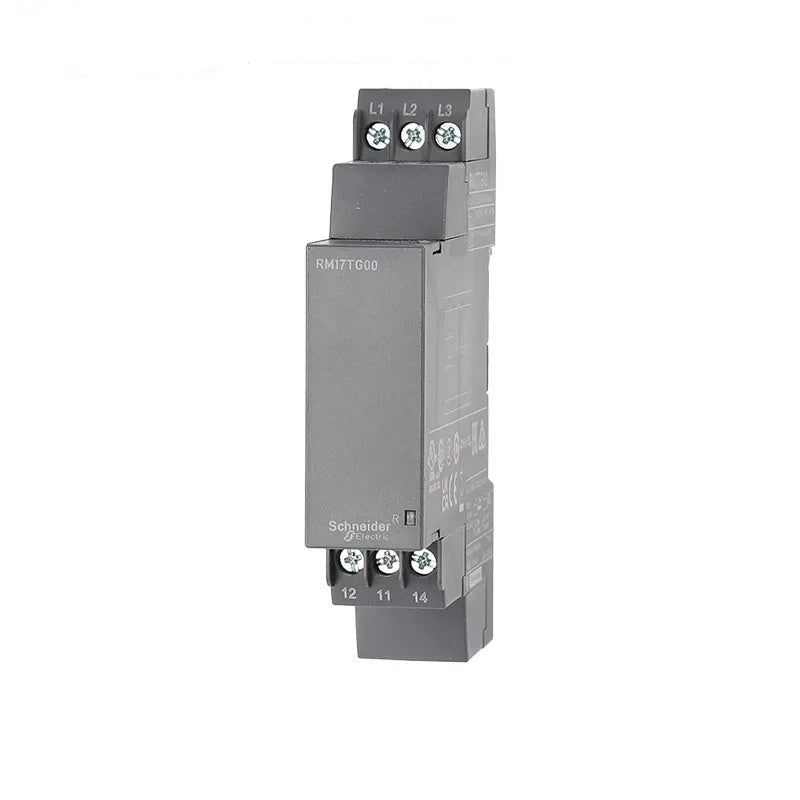

RM17TG00/RM17TG20 3-phase monitoring (phase sequence, phase loss) 208-480V AC Compact design, basic phase protection for light-duty applications


 Common Features

  • DIN Rail Mounting: Compact form factor (RM22 series) and ultra-compact design (RM17 series) for easy installation in control cabinets.
  • Adjustable Settings: Most models include potentiometers for setting voltage thresholds, unbalance levels, and time delays (0.1-30s).
  • Status LEDs: Visual indication of power, output status, and fault conditions (phase loss, over/under voltage) for quick troubleshooting.
  • Diagnostic Button: Test function to simulate fault conditions and verify relay operation.
  • Wide Operating Range: Suitable for global industrial power grids, with models covering 200-480V AC and 24-240V AC/DC.

Applications

  • Motor phase sequence protection (prevent reverse rotation)
  • Phase loss and voltage anomaly protection for pumps, compressors, and industrial machinery
  • Liquid level control for water tanks, sewage systems, and chemical processing
  • Emergency power switching and power quality monitoring

DATA SHEET

ITEM VALUE
Product Type Monitoring Relay / Control Relay / Phase Sequence Relay / Liquid Level Relay
Brand Schneider Electric
Series RM17 Series / RM22 Series
Models RM22TG20, RM22TR33, RM22LG11MR, RM17TG00, RM17TG20
Functions Phase Sequence Monitoring, Phase Loss Detection, Over/Under Voltage Protection, Liquid Level Control, Phase Unbalance Detection
Voltage Range 208-480V AC (RM22TG20/TR33, RM17TG00/TG20), 24-240V AC/DC (RM22LG11MR)
Output Contacts 2CO (Changeover), 8A rated
Mounting Type DIN Rail Mount
Features Adjustable Settings, Status LEDs, Diagnostic Test Button, Compact Design
Application Scenarios Motor Protection, Pump Control, Power Quality Monitoring, Industrial Automation, Liquid Level Control
