Ratchet Self-Locking Keyless Drill Chuck 0.8-10mm /1.5-13mm

Name: Ratchet Self-Locking Keyless Drill Chuck 0.8-10mm /1.5-13mm
Brand: electrical center b2c
Price: 62.0 AED
Availability: InStock

Dhs. 62.00 AED

Sale Sold out

Shipping calculated at checkout.

Product variants

Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

Quantity

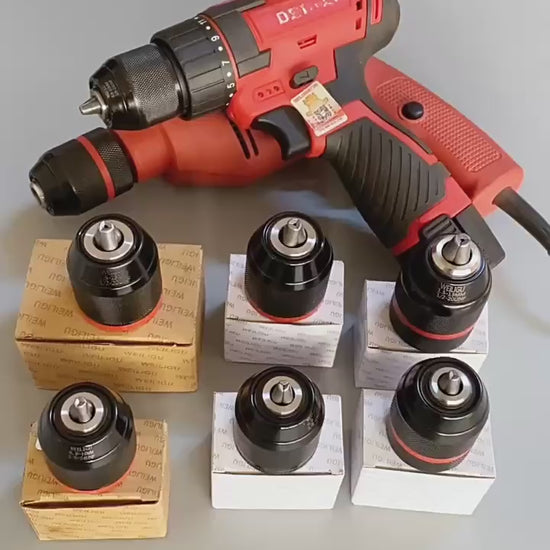

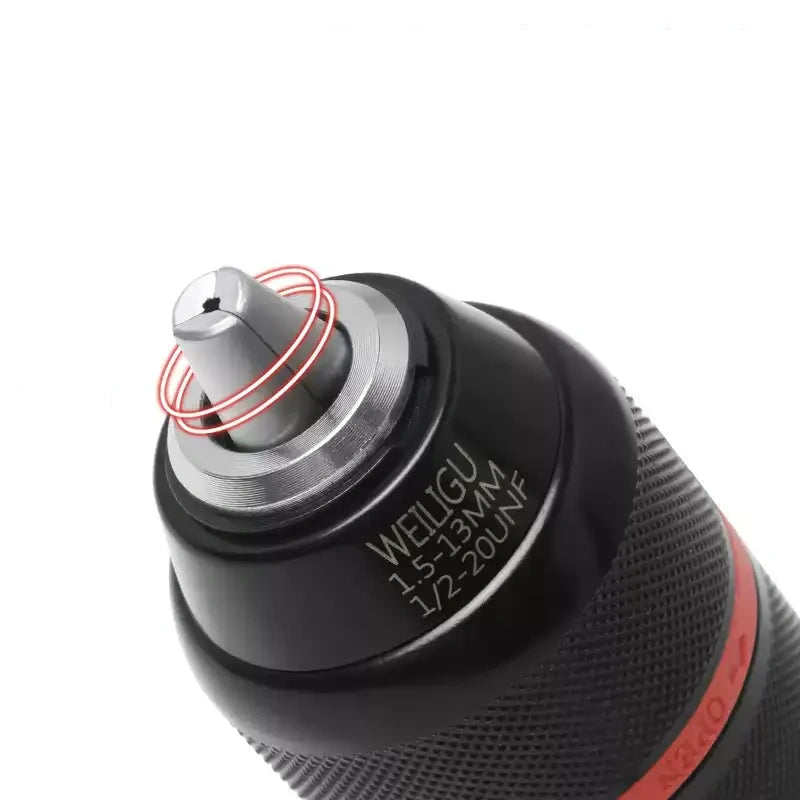

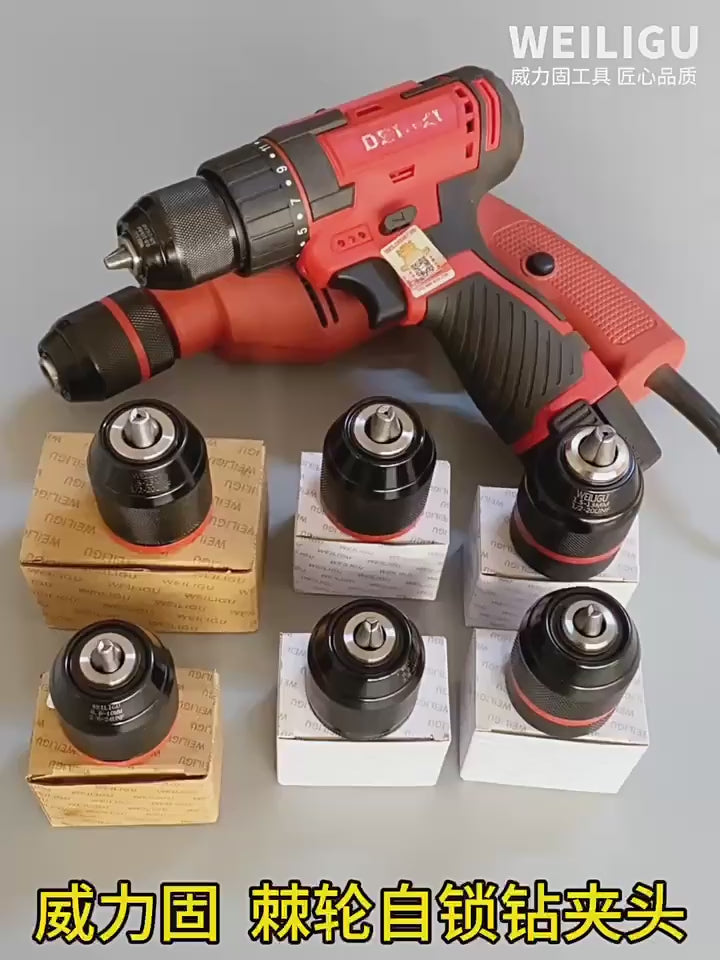

Ratchet Self-Locking Keyless Drill Chuck 0.8-10mm /1.5-13mm 3/8-24UNF 1/2-20UNF Quick Change Adapter for Corded/Cordless Drill

All metal ratchet self-lock keyless drill chuck, 0.8~10mm &1.5~13mm clamping range, 3/8"-24UNF /1/2"-20UNF female thread, anti-jam upgraded design, fits corded hand drill & cordless impact drill for quick drill bit replacement.

Core Points

✅ Ratchet Auto Self-Locking Structure: No chuck key needed, twist shell to lock/unlock bits; built-in ratchet gear for firm auto-clamping, anti-loose during high-speed drilling.

✅ All High-Strength Steel Build: Full alloy steel body with precision CNC machining, wear-resistant & impact-proof, inner damping layer reduces vibration in heavy-duty use.

✅ High Concentricity 3-Jaw Chuck: Synchronized three-claw self-centering, high bite tightness, effectively avoid bit wobble & slipping for smooth precise drilling.

✅ Multiple Styles & Thread Options: Hand-tight / Ratchet lock, full black/red-black color options; 3/8/1/2 standard UNF thread + M10×1.5 for angle grinder conversion, two clamping sizes cover common drill bits.

✅ Anti-Jam Upgraded Version: Optimized internal structure to prevent jaw stuck from metal dust, longer service life for frequent industrial use.

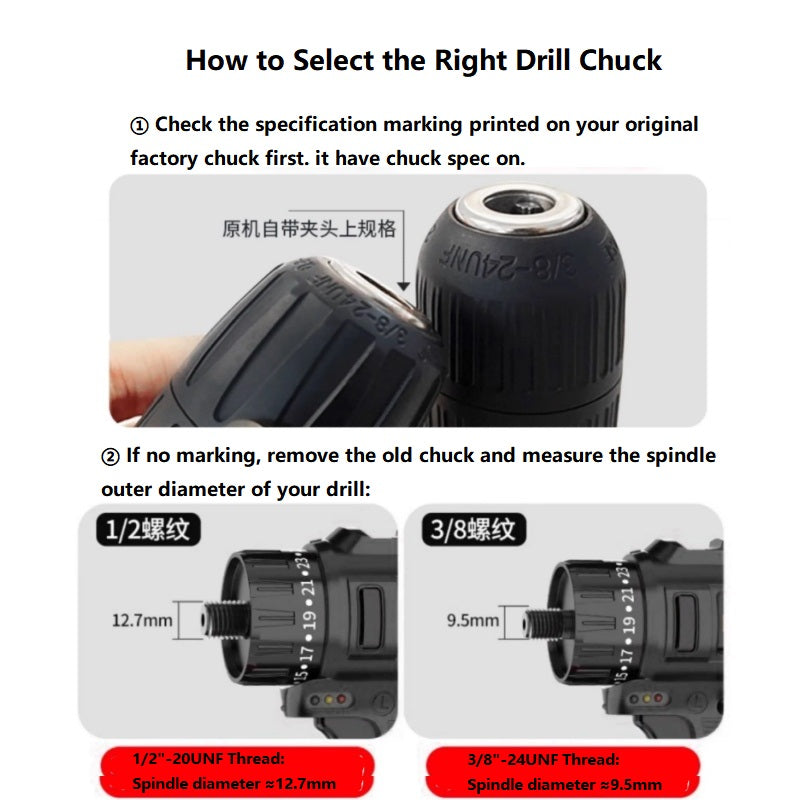

Thread Selection Guide

Common internal thread options: 3/8"-24UNF & 1/2"-20UNF

Spindle diameter ≈9.5mm → choose 3/8"-24UNF thread chuck
Spindle diameter ≈12.7mm → choose 1/2"-20UNF thread chuck

Single/Double Shell Chuck Matching Rule for Cordless Drill

Cordless drill with spindle lock: compatible with both single-shell & double-shell keyless chucks
Cordless drill without spindle lock: only fit double-shell keyless chucks

Specification

Item	Specifications
Product Name	Ratchet Self-Locking Keyless Drill Chuck
Inner Thread Spec	3/8"-24UNF /1/2"-20UNF / M10×1.5(Angle Grinder Special)
Clamping Range	0.8~10mm / 1.5~13mm

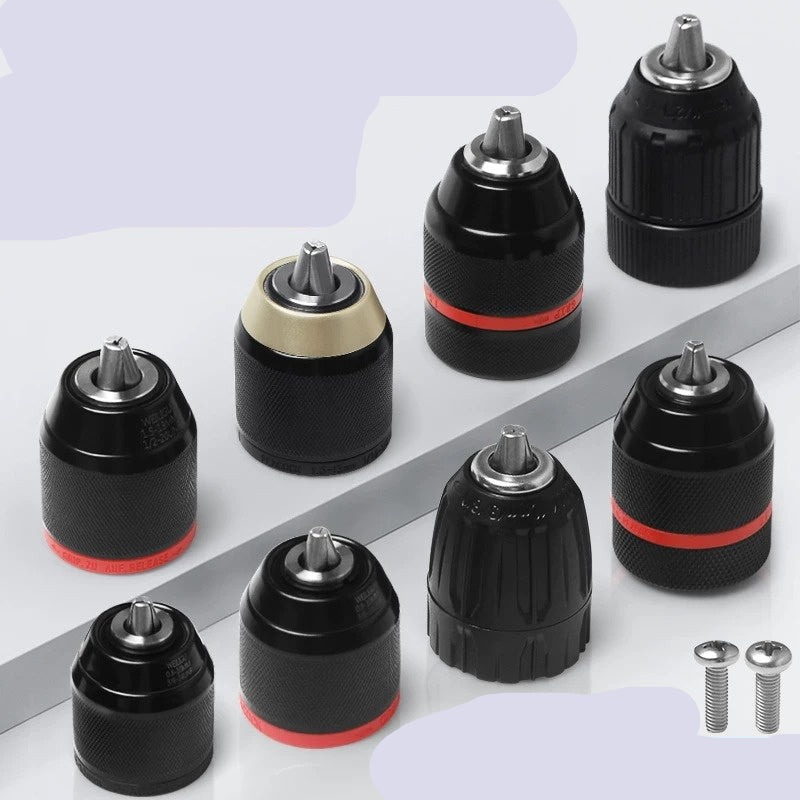

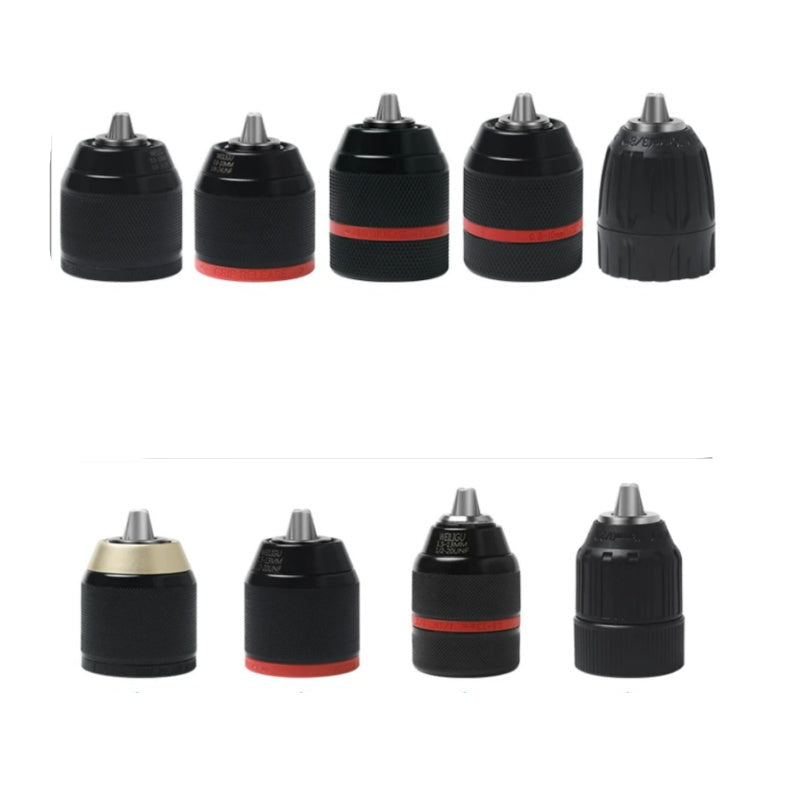

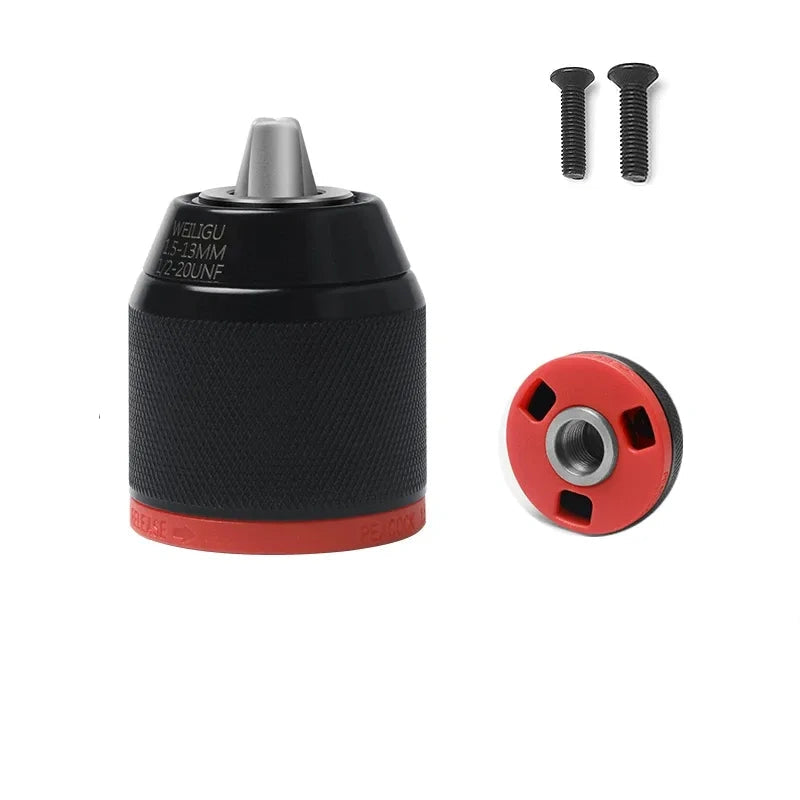

Style Option	Hand-tight Self-lock / Ratchet Self-lock(Single Set/Double Set); Full Black / Red-Black two-tone
Upgrade Feature	Anti-jam improved structure for stuck-proof operation
Material	High Carbon Alloy Steel Full Metal Housing, built-in shock absorption cushion
Core Structure	3-Jaw self-centering design, ratchet auto-lock mechanism
Applicable Tool	Corded Electric Hand Drill, Cordless Lithium Drill, Angle Grinder(M10 thread model)

Unique Item No. Coding Rule

Coding logic:

[Thread] - [Structure Type] - [Feature] - [Clamp Range]

Thread Code:

T38 = 3/8"-24UNF
T12 = 1/2"-20UNF
M10 = M10*1.5 Angle Grinder Adapter

Structure Code:

HT = Hand-Tight
RS = Ratchet Single Sleeve
RD = Ratchet Double Sleeve
DR = Double Sleeve No Ratchet

Extra Feature Code (blank if standard):

FB = Full Black
HD = Heavy-Duty
RF = Reinforced

Clamp Range Code:

R0810 = 0.8–10mm
R1513 = 1.5–13mm

Full Item No. + Full Name Matching Table

Item No.	Full Product Name

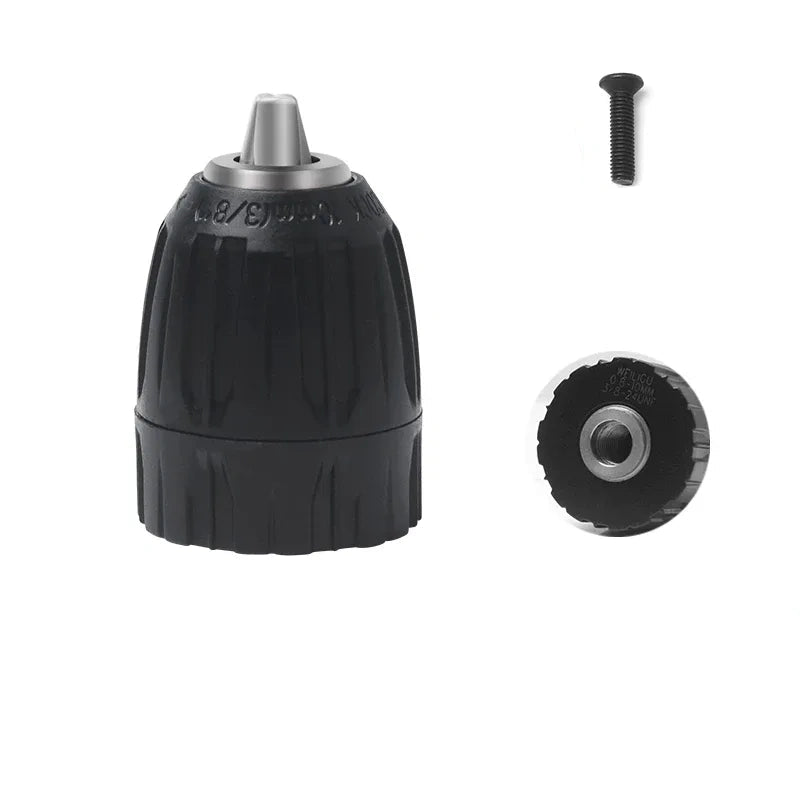

T38-HT-R0810	3/8"-24UNF Hand-Tight Self-Locking Chuck (0.8–10mm)

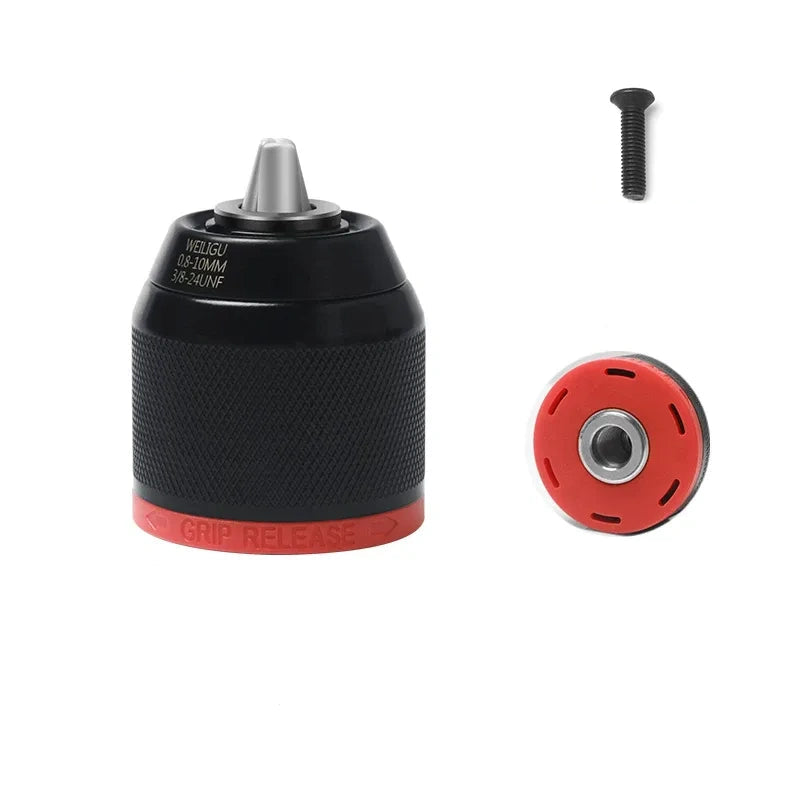

T38-RS-R0810	3/8"-24UNF Ratchet Self-Locking Single Sleeve Chuck (0.8–10mm)

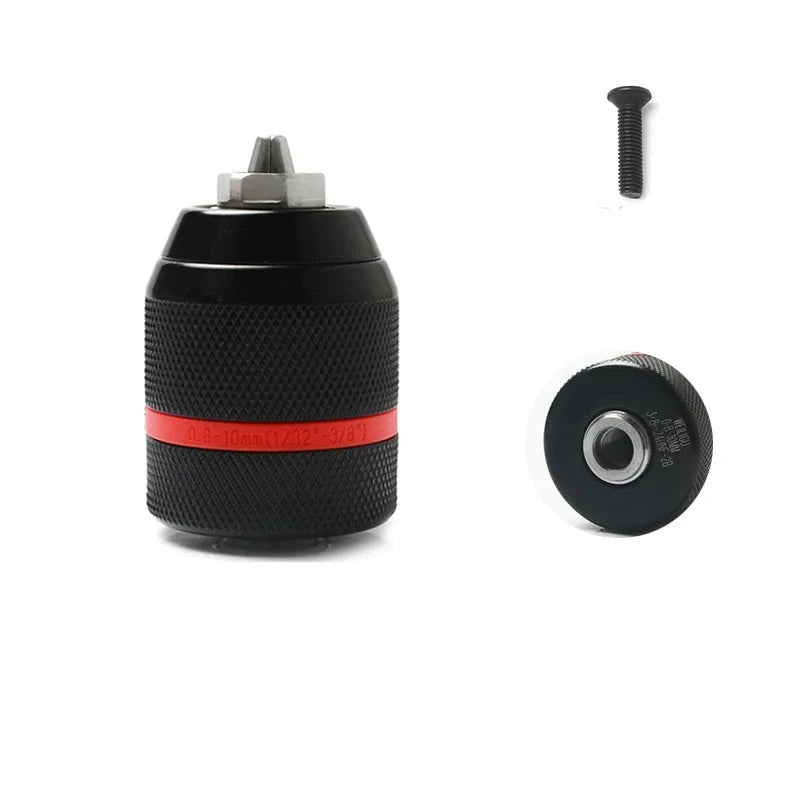

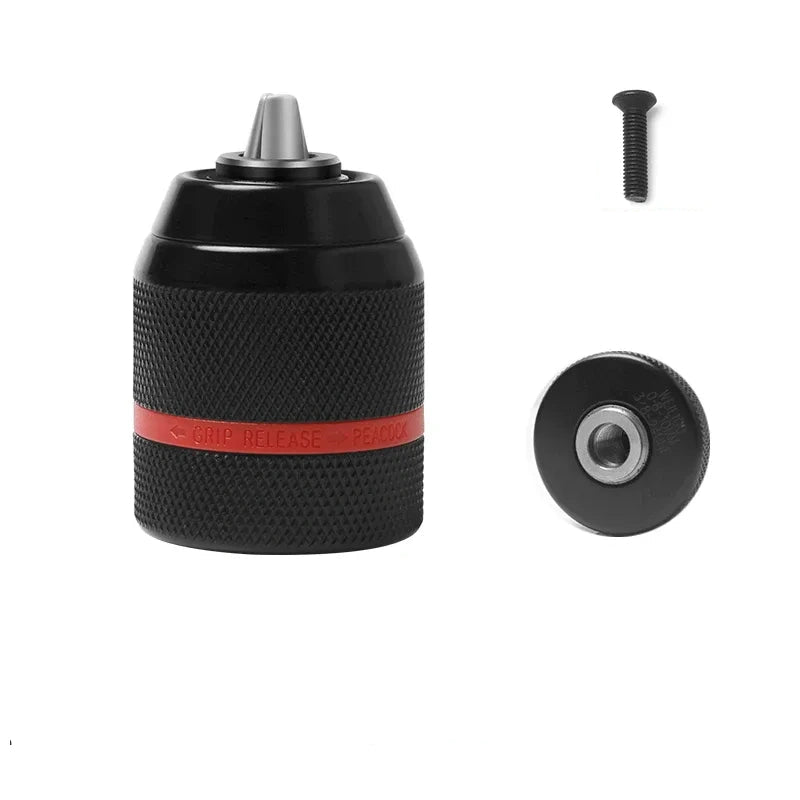

T38-RD-R0810	3/8"-24UNF Ratchet Self-Locking Double Sleeve Chuck (0.8–10mm)

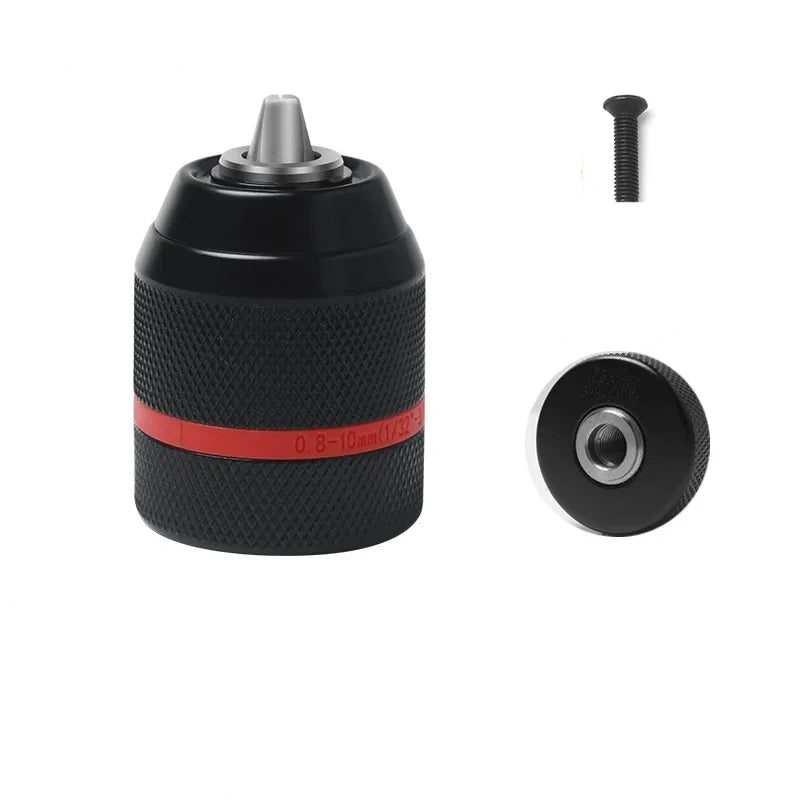

T38-DR-R0810	3/8"-24UNF Self-Locking Double Sleeve Chuck (No Ratchet) (0.8–10mm)

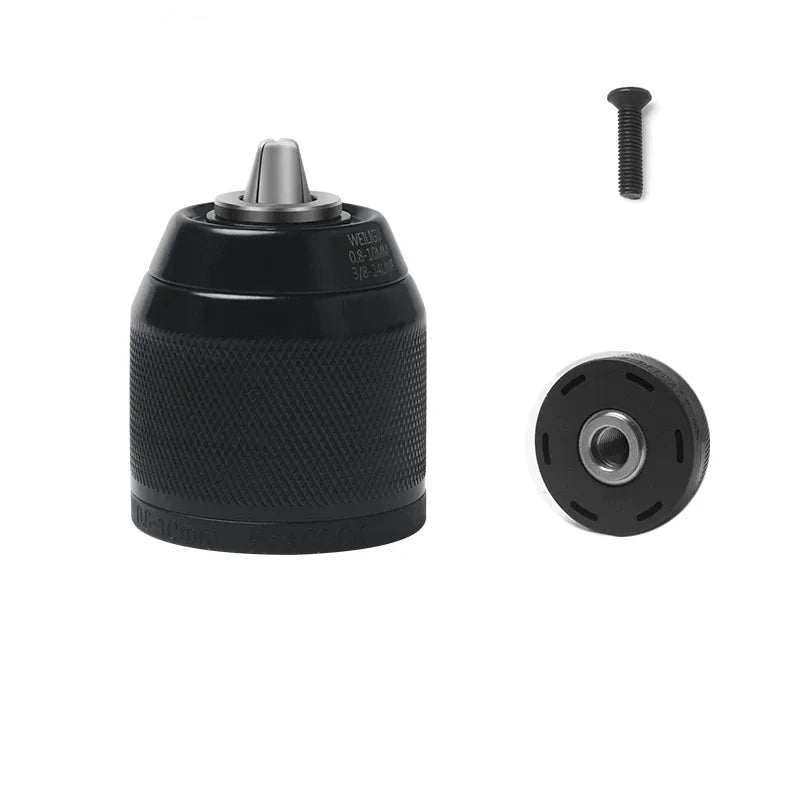

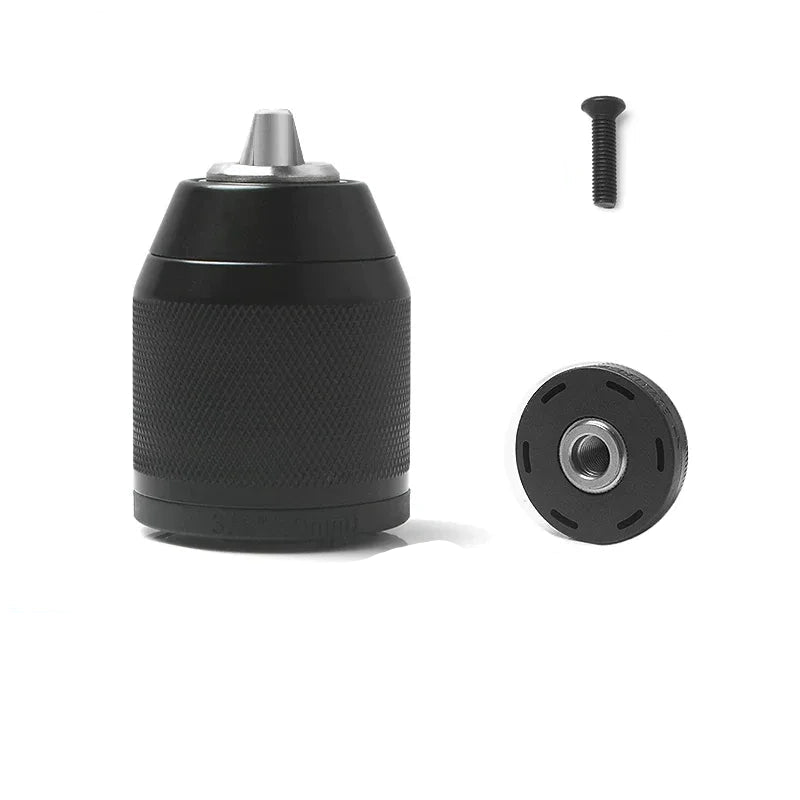

T38-RS-FB-R0810	3/8"-24UNF Full Black Ratchet Self-Locking Single Sleeve Chuck (0.8–10mm)

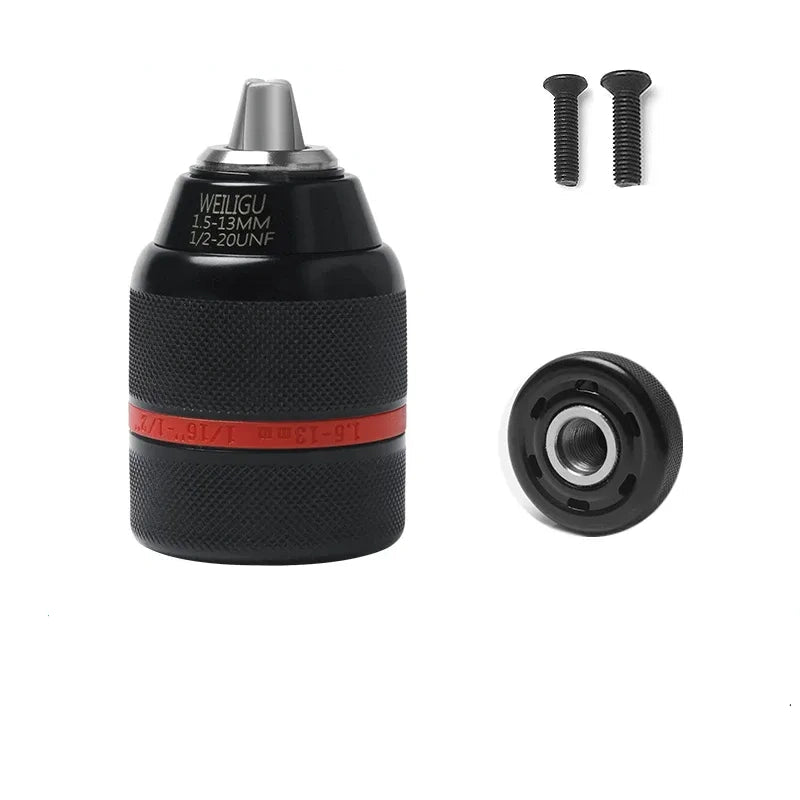

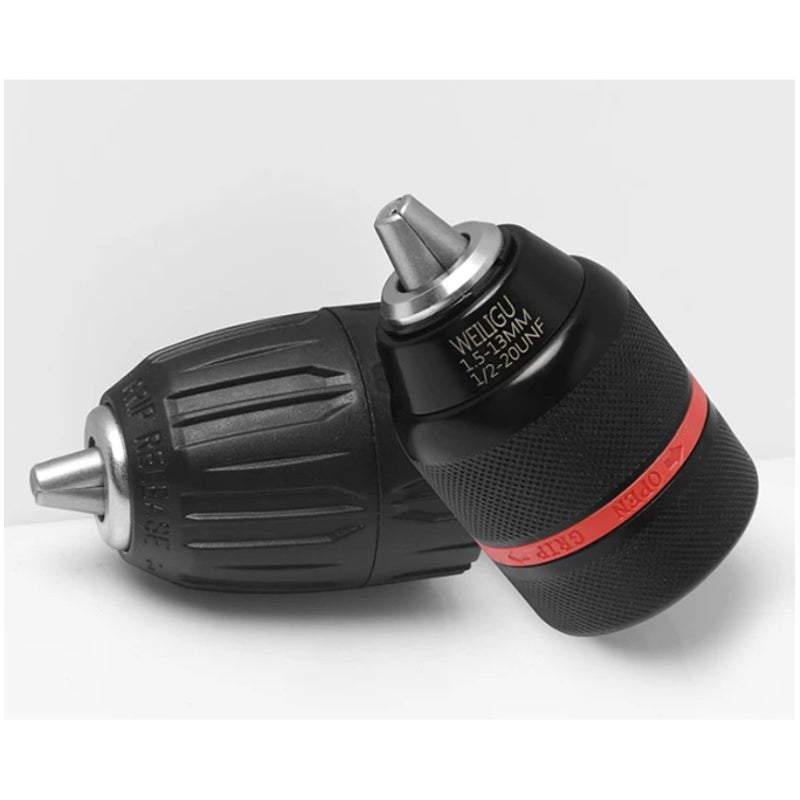

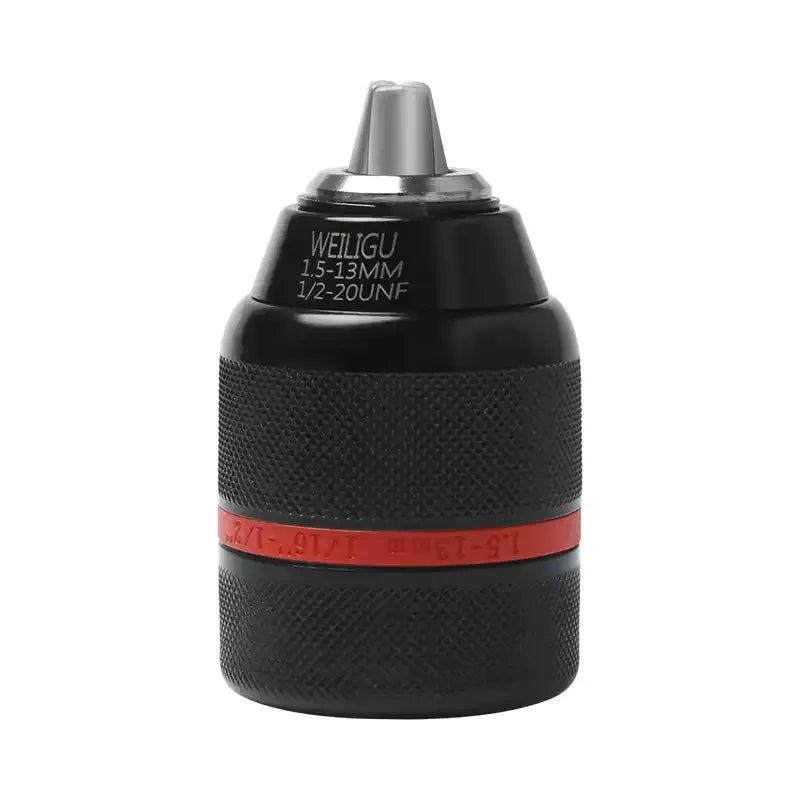

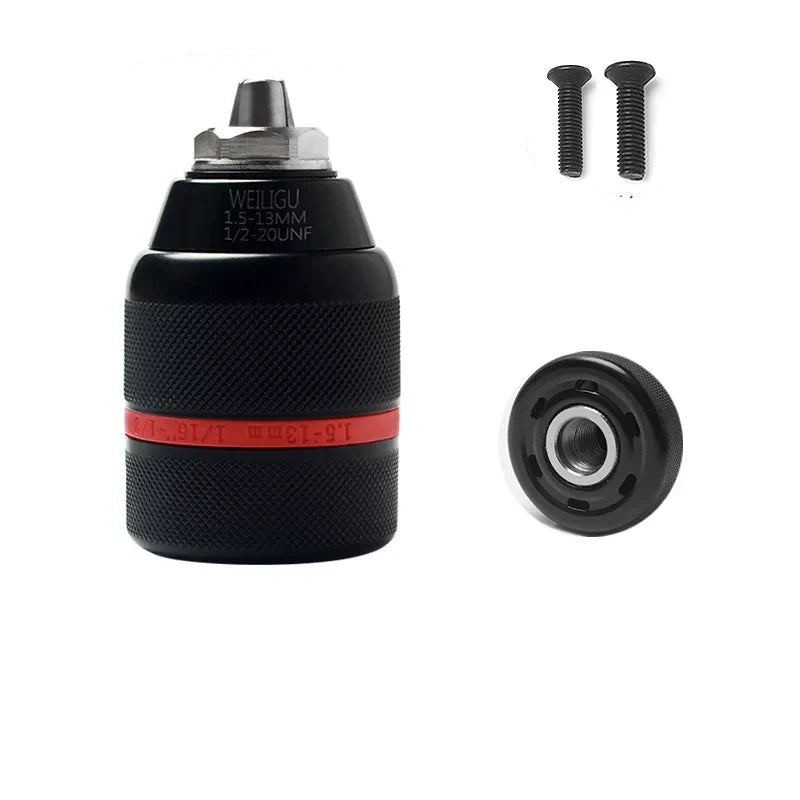

T12-RD-R1513	1/2"-20UNF Ratchet Self-Locking Double Sleeve Chuck (1.5–13mm)

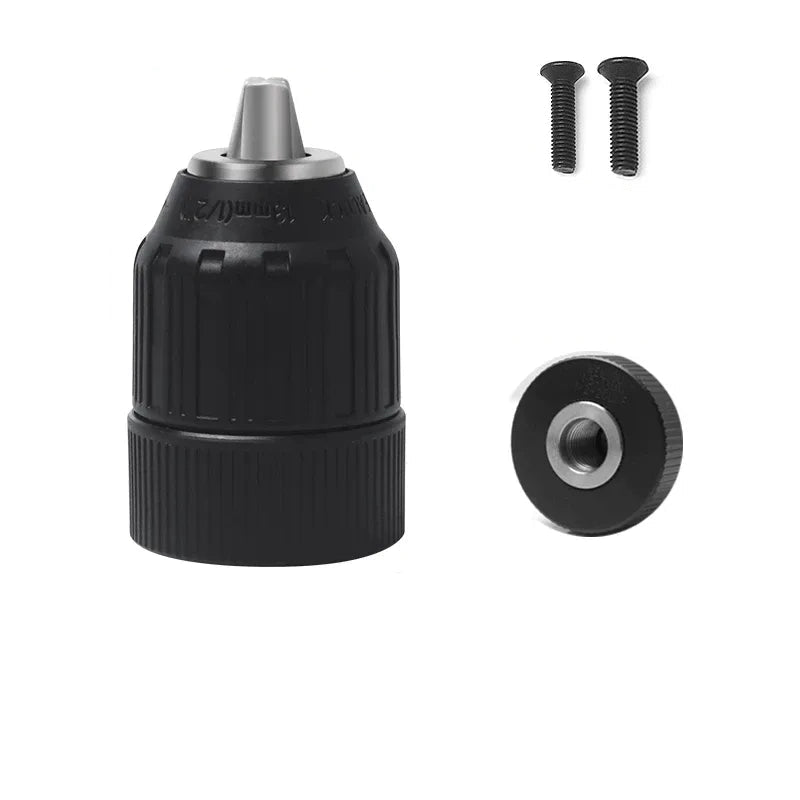

T12-HT-R1513	1/2"-20UNF Hand-Tight Self-Locking Chuck (1.5–13mm)
T12-RS-R0810	1/2"-20UNF Ratchet Self-Locking Single Sleeve Chuck (0.8–10mm)

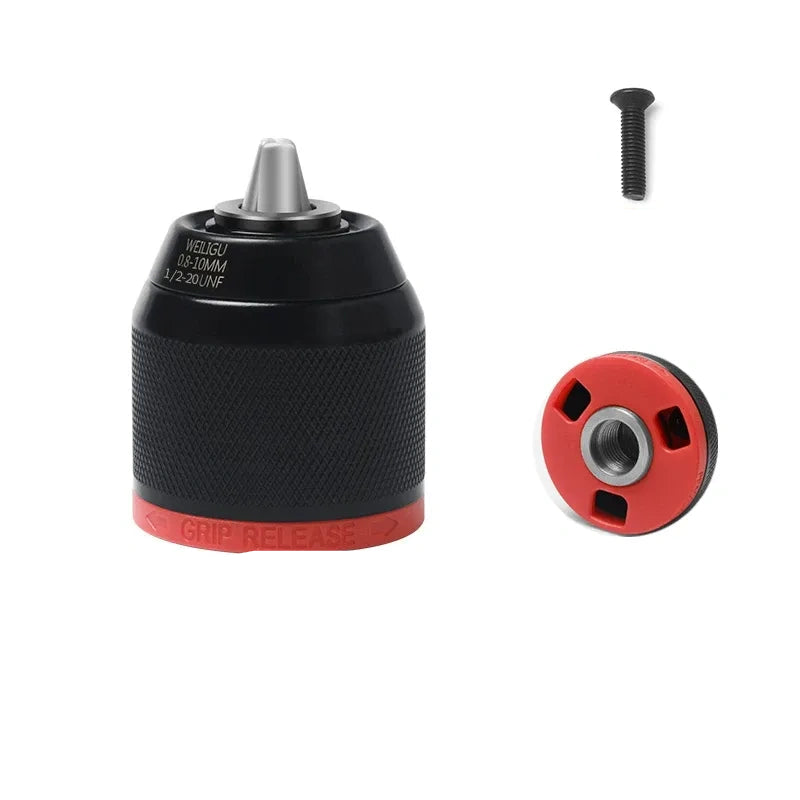

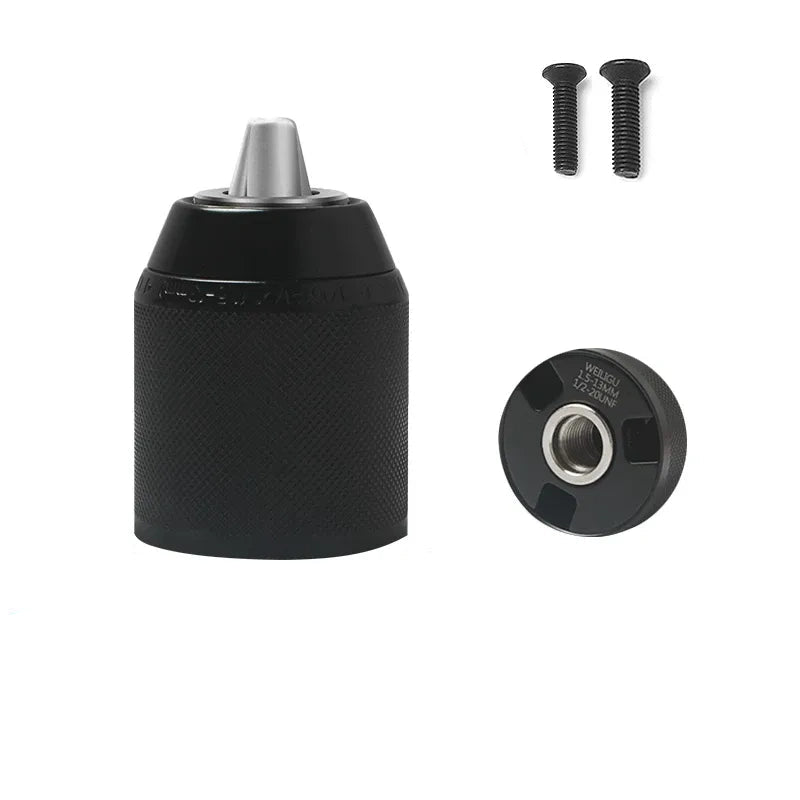

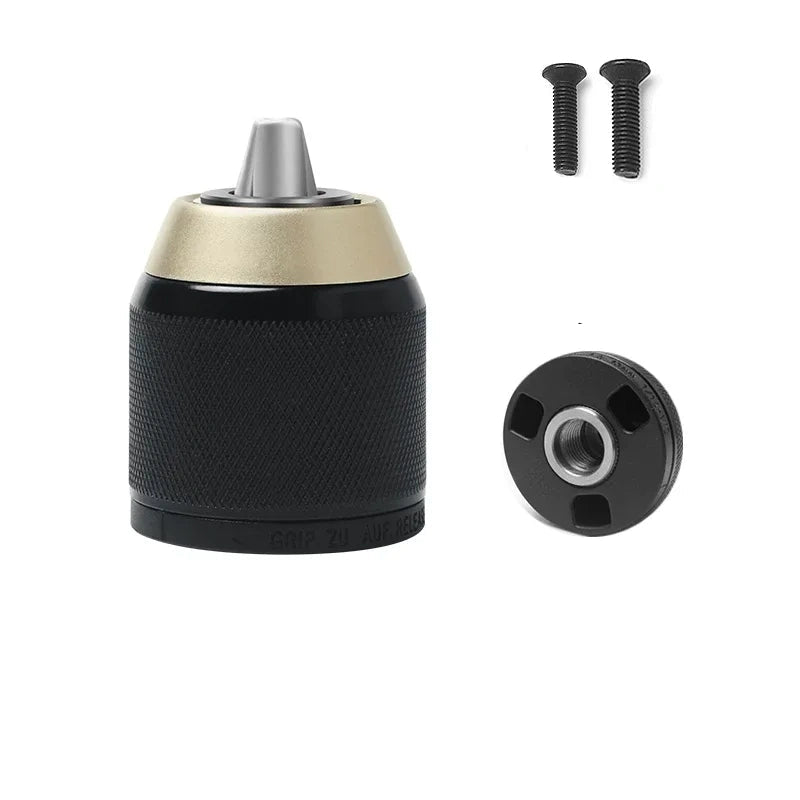

T12-RS-FB-R1513	1/2"-20UNF Full Black Ratchet Self-Locking Single Sleeve Chuck (1.5–13mm)
T38-RD-HD-R0810	3/8"-24UNF Heavy-Duty Ratchet Self-Locking Double Sleeve Chuck (0.8–10mm)

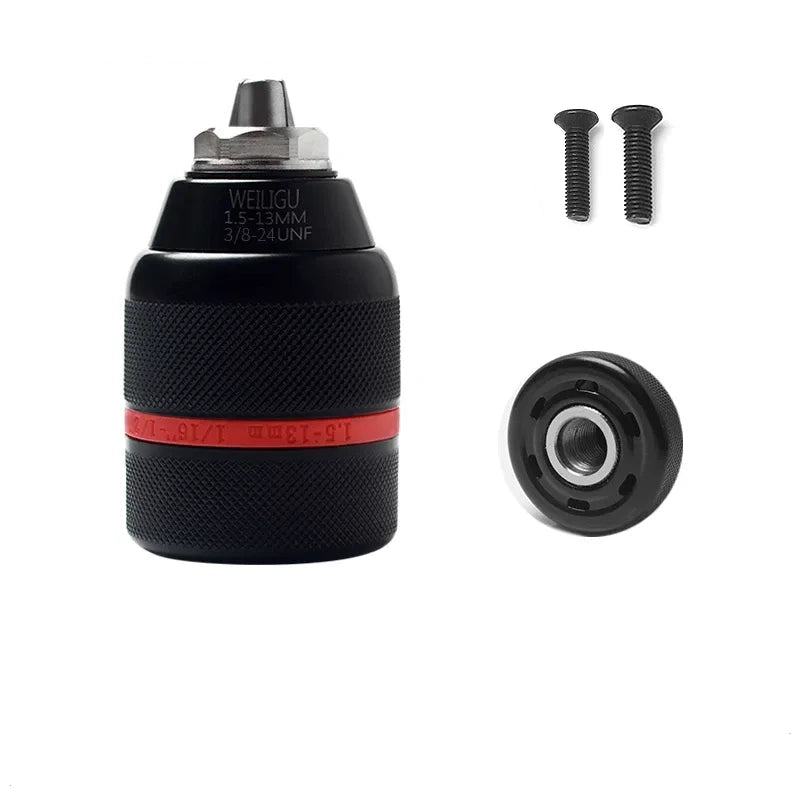

T38-RD-HD-R1513	3/8"-24UNF Heavy-Duty Ratchet Self-Locking Double Sleeve Chuck (1.5–13mm)
T12-RS-RF-R1513	1/2"-20UNF Reinforced Ratchet Self-Locking Single Sleeve Chuck (1.5–13mm)
T38-RS-RF-R0810	3/8"-24UNF Reinforced Ratchet Self-Locking Single Sleeve Chuck (0.8–10mm)

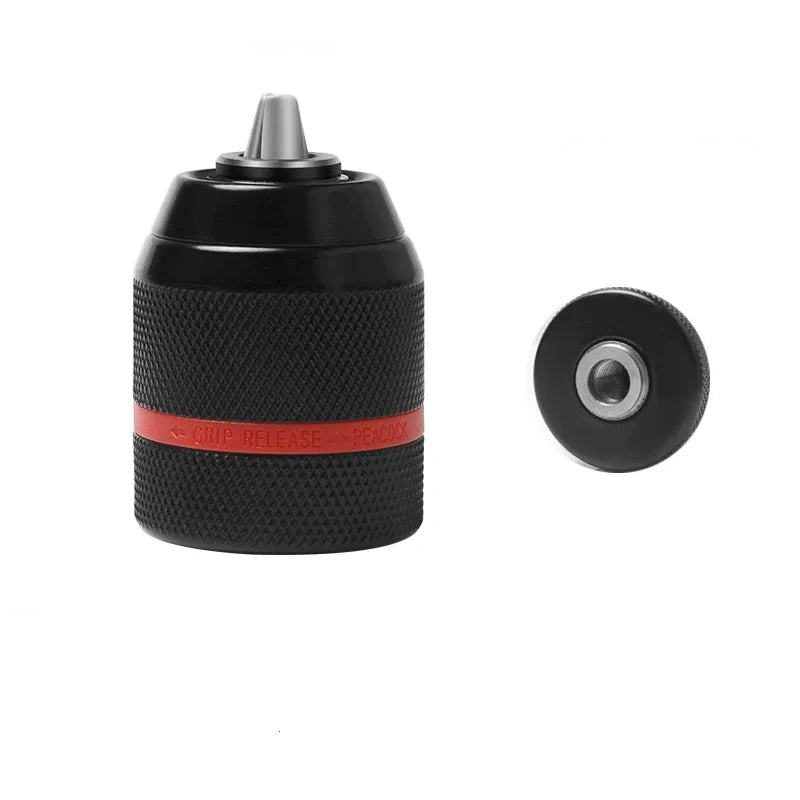

M10-R0810	M10*1.5 Angle Grinder Converter Chuck (0.8–10mm)
