CHINT JR36 Seires Thermal Overload Relay 0.45A~160A
Regular price
Dhs. 63.00 AED
Regular price
Dhs. 79.00 AED
Sale price
Dhs. 63.00 AED
Unit price
per
Shipping calculated at checkout.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Couldn't load pickup availability

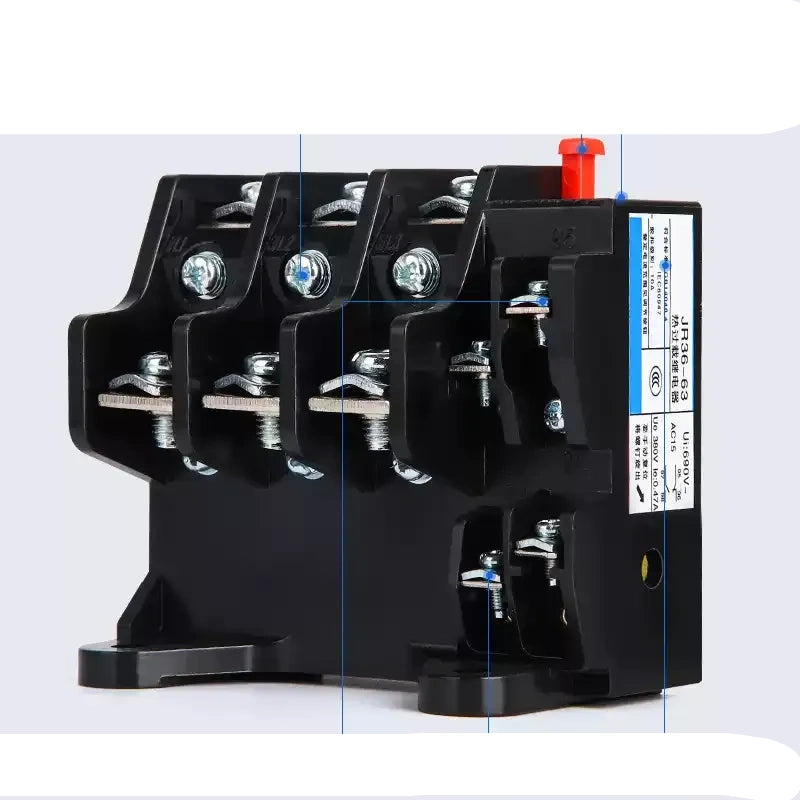

JR36 Series Thermal Overload Relay, 0.45A-160A, Motor Overload & Phase Loss Protector, 660V/690V
Product Description
Product Name: JR36 Thermal Overload Relay
Series: JR36-20 / JR36-63 / JR36-160
Adjustable Current Range: 0.45A?€?160A (Multiple models available)
Rated Voltage: Up to 660V/690V, 50Hz
Contact Material: Silver Alloy
Trip Class: 10A
Auxiliary Contacts: 1NO + 1NC
Reset Mode: Manual / Automatic switchable
Features: Overload & Phase Loss Protection, adjustable setting current, test/stop buttons
Key Features:
- Reliable protection against motor overload, phase loss, and stalling for AC motors.
- Wide adjustable current range (0.45A?€?160A) to match various motor power ratings.
- Dual reset mode (manual/automatic) with dedicated test and stop buttons for easy maintenance.
- Silver alloy contacts for high conductivity and long service life.
- Compact design, easy to install in combination with contactors or as standalone units.
- Flame-retardant insulating housing, suitable for industrial control panels and motor circuits.
Applications:
Motor overload protection, pump control, conveyor systems, HVAC equipment, industrial machinery, and automation control panels.
DATA SHEET
| Attribute | English |
|---|---|
| Product Type | Thermal Overload Relay |
| Series | JR36-20, JR36-63, JR36-160 |
| Current Range | 0.45A-160A (Multiple adjustable ranges) |
| Rated Voltage | 660V / 690V, 50Hz |
| Contact Material | Silver Alloy |
| Trip Class | 10A |
| Auxiliary Contacts | 1NO + 1NC |
| Reset Mode | Manual / Automatic |
| Protection Functions | Overload & Phase Loss Protection |
| Features | Adjustable Current, Test/Stop Buttons, Compact Size |
| Housing Material | Flame-Retardant Insulating Material |
| Application | Motor Control, Industrial Automation, HVAC, Pumps, Conveyors |
CHINT JR36 Series Thermal Overload Relay 0.45A~160A
1. Model & Matching Contactor Parameter Table (Item No. = MPN)
All units: 3P bimetallic, 1NO+1NC aux contact, switchable auto/manual reset, match CJX2 / CJT1 contactors
| MPN / MODEL NO. | Item No. | Adjustable Current Range | Matching Contactor |
|---|---|---|---|
| JR36-20/0.45 | JR36-20/0.45 | 0.32 ~ 0.45A | CJX2-09~25, CJT1-10~20 |
| JR36-20/0.68 | JR36-20/0.68 | 0.45 ~ 0.68A | CJX2-09~25, CJT1-10~20 |
| JR36-20/1.0 | JR36-20/1.0 | 0.68 ~ 1.0A | CJX2-09~25, CJT1-10~20 |
| JR36-20/1.6 | JR36-20/1.6 | 1.0 ~ 1.6A | CJX2-09~25, CJT1-10~20 |
| JR36-20/2.4 | JR36-20/2.4 | 1.6 ~ 2.4A | CJX2-09~25, CJT1-10~20 |
| JR36-20/3.5 | JR36-20/3.5 | 2.4 ~ 3.5A | CJX2-09~25, CJT1-10~20 |
| JR36-20/5.0 | JR36-20/5.0 | 3.5 ~ 5.0A | CJX2-09~25, CJT1-10~20 |
| JR36-20/7.2 | JR36-20/7.2 | 5.0 ~ 7.2A | CJX2-09~25, CJT1-10~20 |
| JR36-20/11 | JR36-20/11 | 6.8 ~ 11A | CJX2-09~25, CJT1-10~20 |
| JR36-20/16 | JR36-20/16 | 10 ~ 16A | CJX2-18~25, CJT1-20 |
| JR36-20/22 | JR36-20/22 | 14 ~ 22A | CJX2-25, CJT1-20 |
| JR36-63/32 | JR36-63/32 | 20 ~ 32A | CJX2-32~40, CJT1-40 |
| JR36-63/45 | JR36-63/45 | 28 ~ 45A | CJX2-40, CJT1-40 |
| JR36-63/63 | JR36-63/63 | 40 ~ 63A | CJX2-50~65, CJT1-60 |
| JR36-160/85 | JR36-160/85 | 53 ~ 85A | CJX2-80~95, CJT1-100 |
| JR36-160/120 | JR36-160/120 | 75 ~ 120A | CJX2-100, CJT1-100 |
| JR36-160/160 | JR36-160/160 | 100 ~ 160A | CJT1-150 |
Model Code Rule
JR36-[Frame Size]/[Max Adjust Current]
- Frame 20: Small frame, max 22A
- Frame 63: Medium frame, max 63A
- Frame 160: Large frame, max 160A
