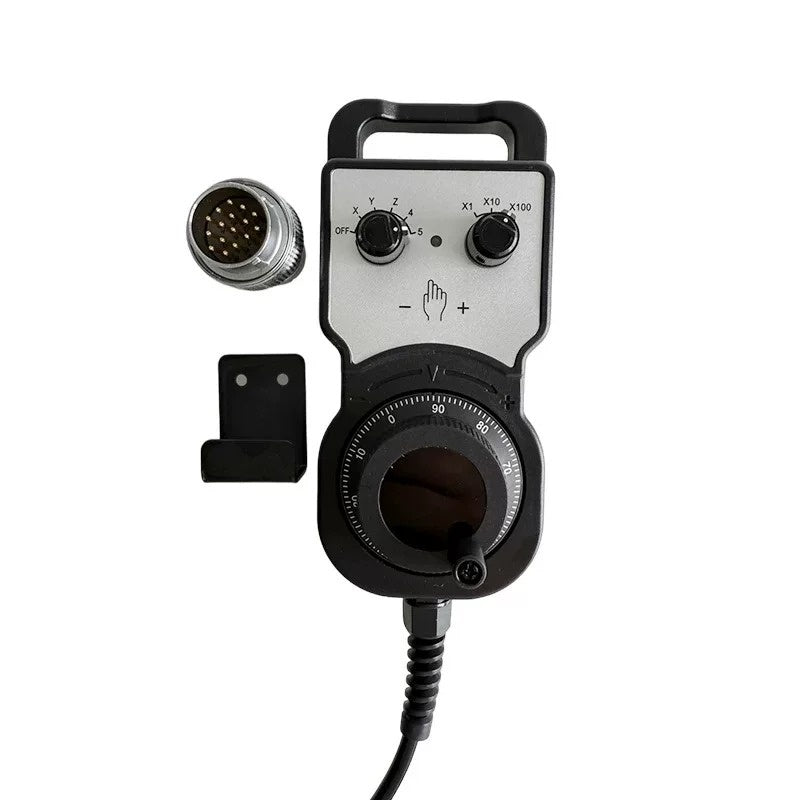

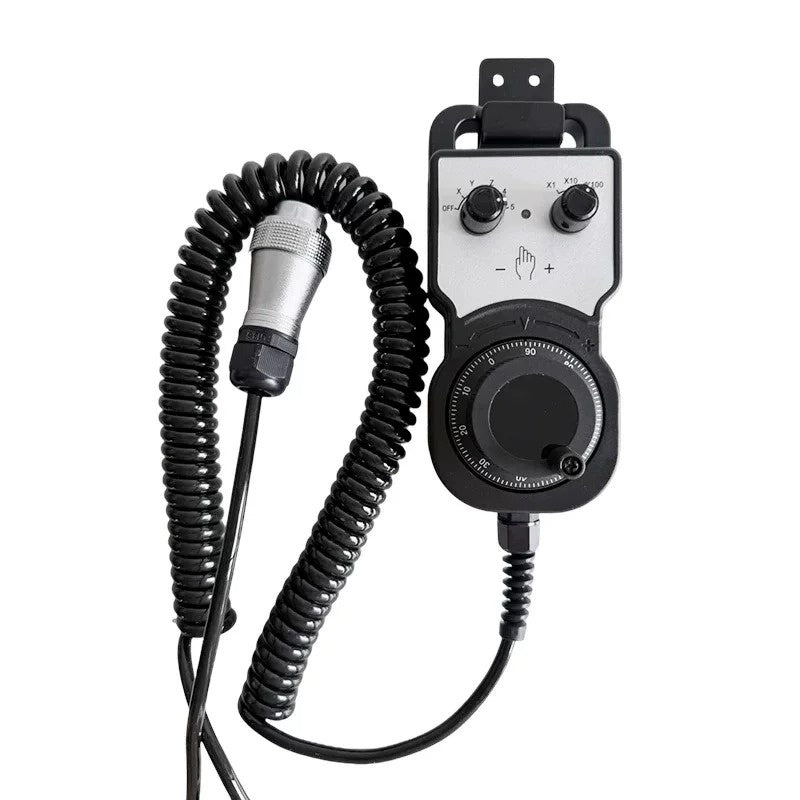

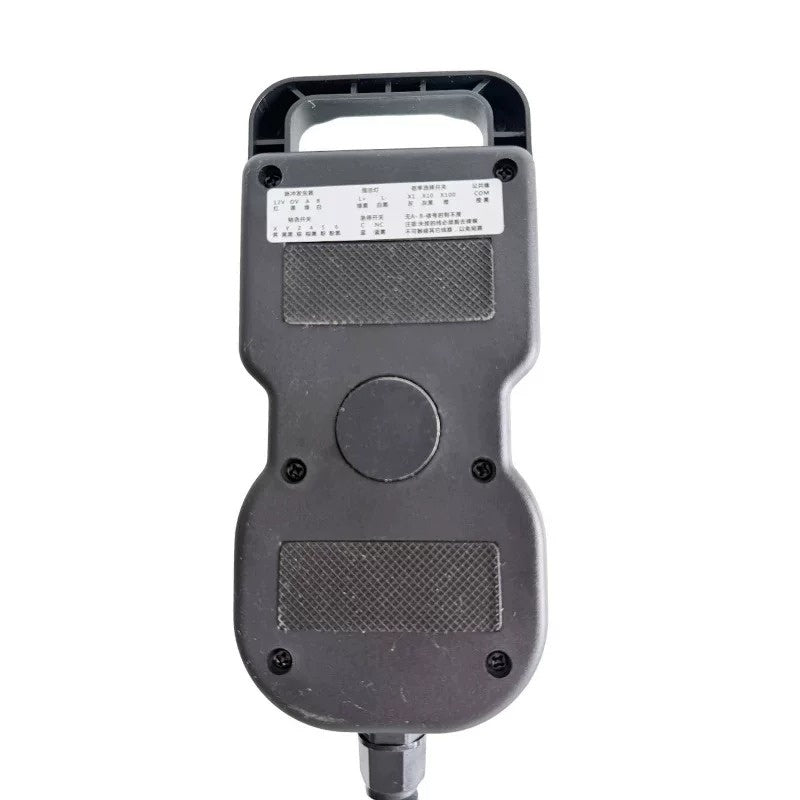

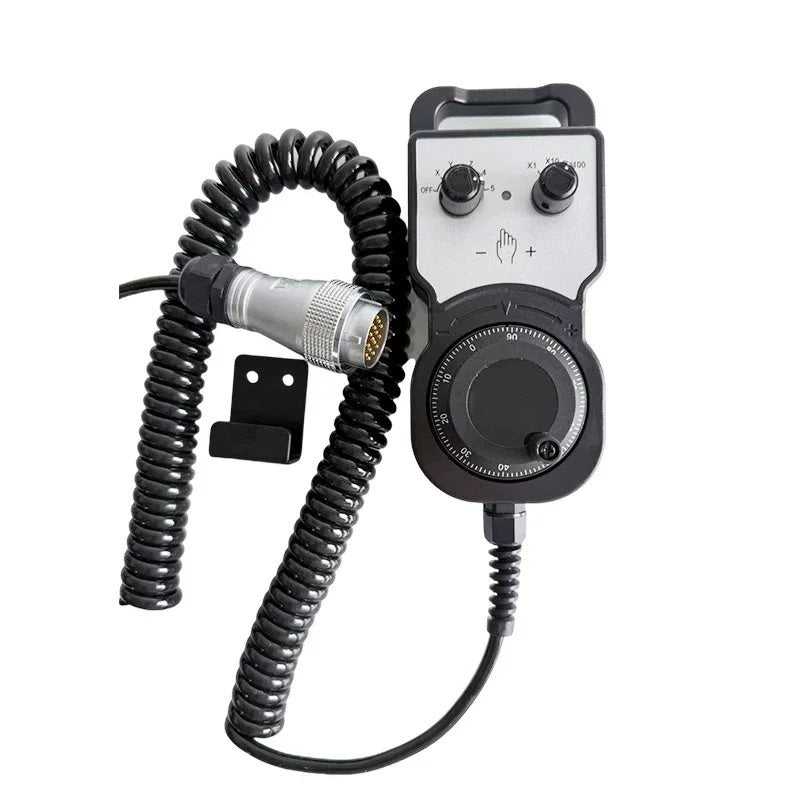

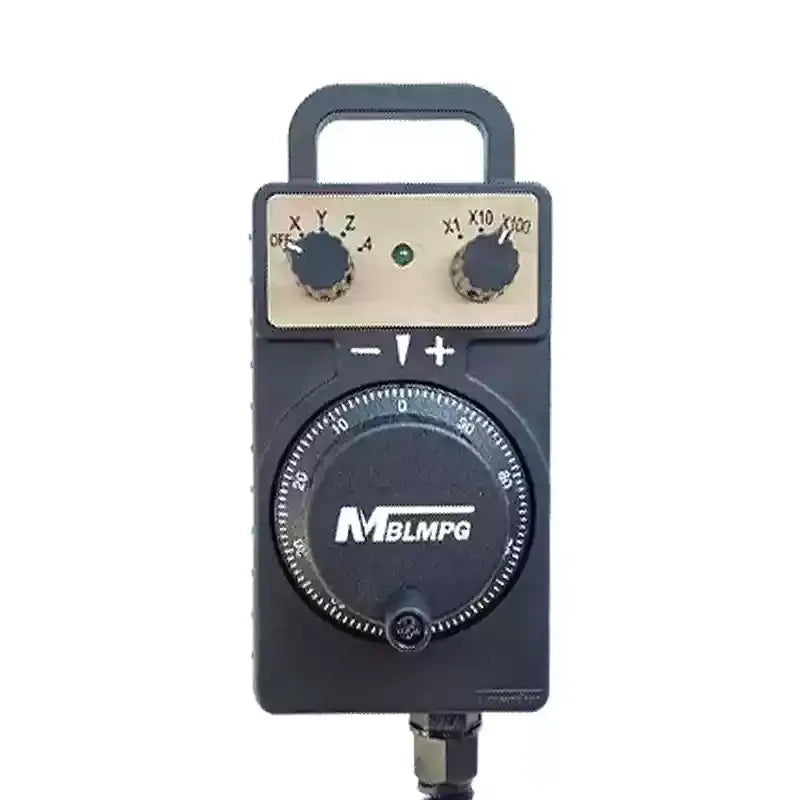

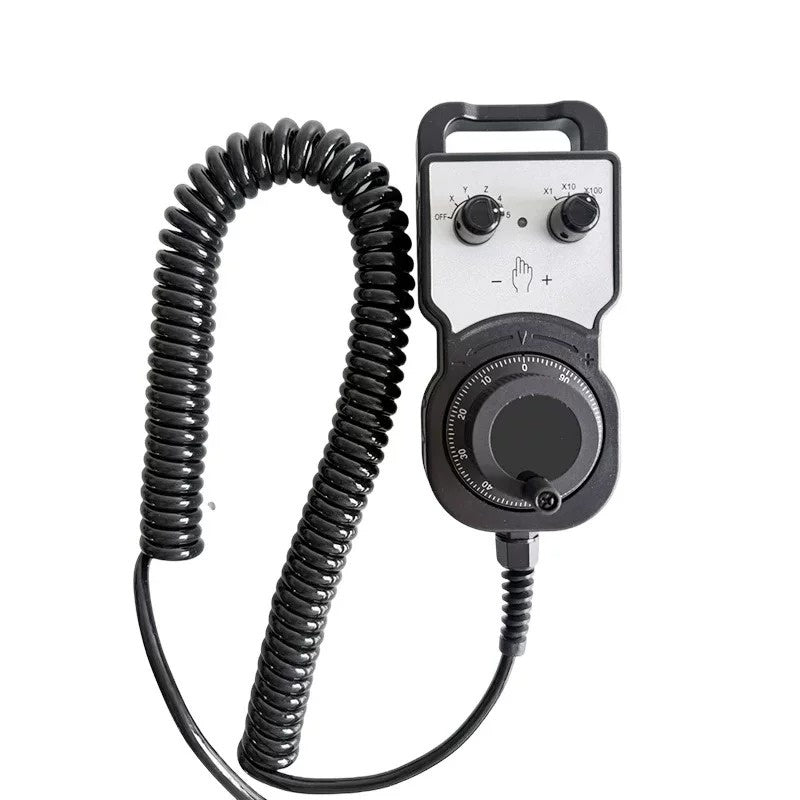

NEMICON Electronic Handwheel MPG Manual Pulse Generator for CNC Machining Center
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Couldn't load pickup availability
NEMICON Electronic Handwheel MPG Manual Pulse Generator, CNC Pulse Encoder Handwheel Compatible with Taikan Machining Center, Supports Mitsubishi Fanuc Siemens GSK Huazhong CNC System
This NEMICON electronic handwheel (MPG / Manual Pulse Generator) is a direct replacement for CNC machining centers, compatible with Taikan machine panels.
Support multiple mainstream CNC controllers: Mitsubishi, Fanuc, Siemens, GSK, Huazhong, KND, Newker, Weihong, etc.
Available axis selection: 4-axis, 5-axis,6-axis,7-axis,8-axis,9-axis,10-axis,11-axis,12-axis.

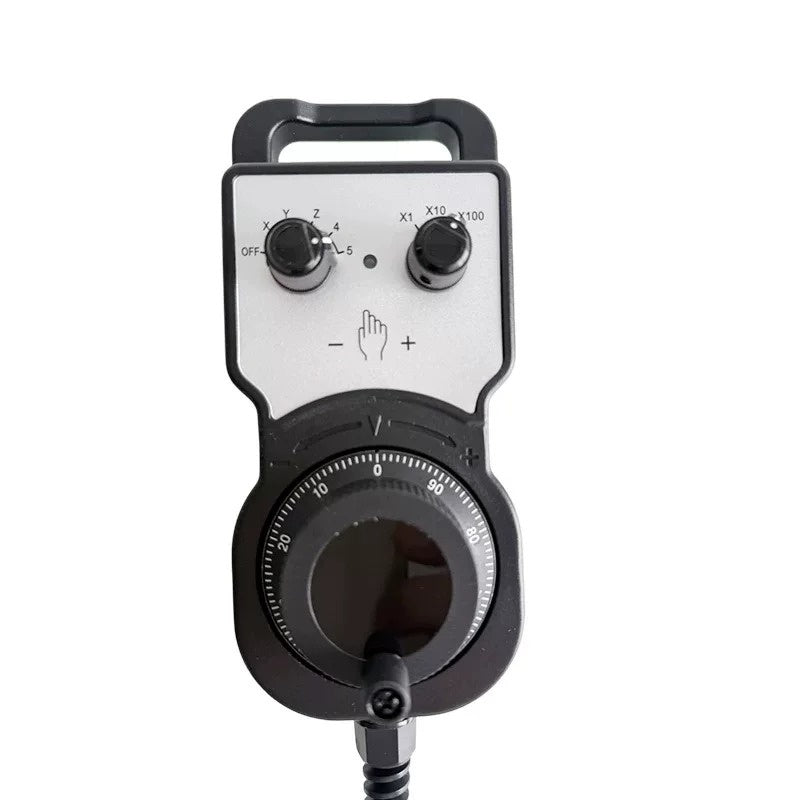

Equipped with X1/X10/X100 multiplication selector, emergency stop switch, status indicator light.
Differential signal output (A, B, A-, B-) supports stable long-distance transmission.
Working voltage: 5V standard; partial system supports 12V/24V.
Suitable for CNC milling machine, machining center, engraving machine, CNC router.
Specification
| Attribute Name | Content |
|---|---|
| Brand | NEMICON (内密控) |
| Product Name | CNC Electronic Handwheel MPG Manual Pulse Generator |
| Alternative Name | Manual Pulse Generator, CNC Pulse Handwheel, MPG Handwheel |
| Applicable Machine | CNC Machining Center, CNC Milling Machine, Engraving Machine, Taikan Machine Tool |
| Compatible CNC System | Mitsubishi, Fanuc, Siemens, GSK, Huazhong, KND, Weihong, Syntec, LNC, Newker, Baoyuan |
| Axis Option | 4-axis, 5-axis, 6-axis,7-axis,8-axis,9-axis,10-axis,11-axis,12-axis |
| Magnification Gear | X1, X10, X100 |
| Signal Type | Differential Signal (A, B, A-, B-) |
| Supply Voltage | 5V (Standard); Optional 12V / 24V |
| Function | Axis Selection, Multiplier Switch, Emergency Stop, Working Indicator |
| Feature | Shock-resistant, stable pulse output, direct replacement for machine panel handwheel |
| Application Industry | CNC Machine Tool, Automation, Machinery Processing |
Wiring follows standard MPG pin definition: VCC, 0V, Phase A, Phase B, A-, B-, COM common terminal, axis select signal, multiplier switch, emergency stop circuit. Unused wires must be insulated to avoid short circuit.
