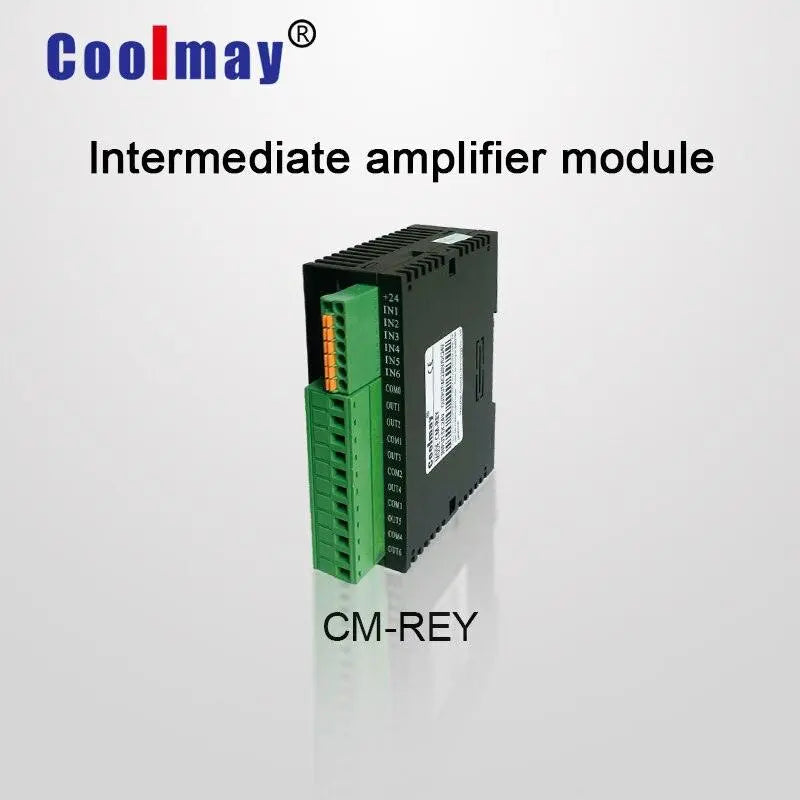

Multi function Amplifier module CM-REY

Dhs. 159.00 AED
Dhs. 274.00 AED Dhs. 159.00 AED
Sale Sold out
Shipping calculated at checkout.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

SPECIFICATIONS

Multi function Amplifier module CM-REY

Range: 430-450Mhz

Output type: NPN

Output points: 6I/6O

Origin: CN(Origin)

Motor Type: Stepper Motor

Installation: Standard rail , NS35/7.5

Input voltage: 88-264VAC or 125-373VDC

Input type: NPN

Dimension: 90*60*32mm

Connection mode: 5.08 pluggable terminal

Certification: CE

Brand Name: Coolmay

Amplification module

CM-MOS

CM-SSR

CM-REY

Transistor amplification module

Solid state

amplificationmodule

Intermediate

amplifier module


Installation

Standard guide rail’s installation,can be installed on NS35\7.5or NS32 guide slot

Dimension

89.5*79*32.5mm

Connection mode

5.08 pluggable terminal

Input voltage

88-264VAC or 125-373VDC( withstand 300VAC surge input for 5s without damage)

Input type

NPN

Working voltage

DC12~30V

AC100~250V

DC/AC0~250V

Output current

5A

5A

15A

Max. Output current

10A

10A

16A

Output method

MOS

Zero-crossing trigger

Relay tip

Output points

6I/6O

Output type

NPN

Protection method

optoelectronic isolation,FWD protction

optoelectronic isolation,RC absorption circuit

Relay-isolated, 400V piezoresistor

Detail info refer

to

< Coolmay Amplifier User Manual>
