BMNTL Mini Electric Linear Actuator With Encoder, 12V DC 120N Micro Reciprocating Telescopic Rod, 10-250mm Stroke

mini linear actuator with encoder, position feedback actuator

Product Description

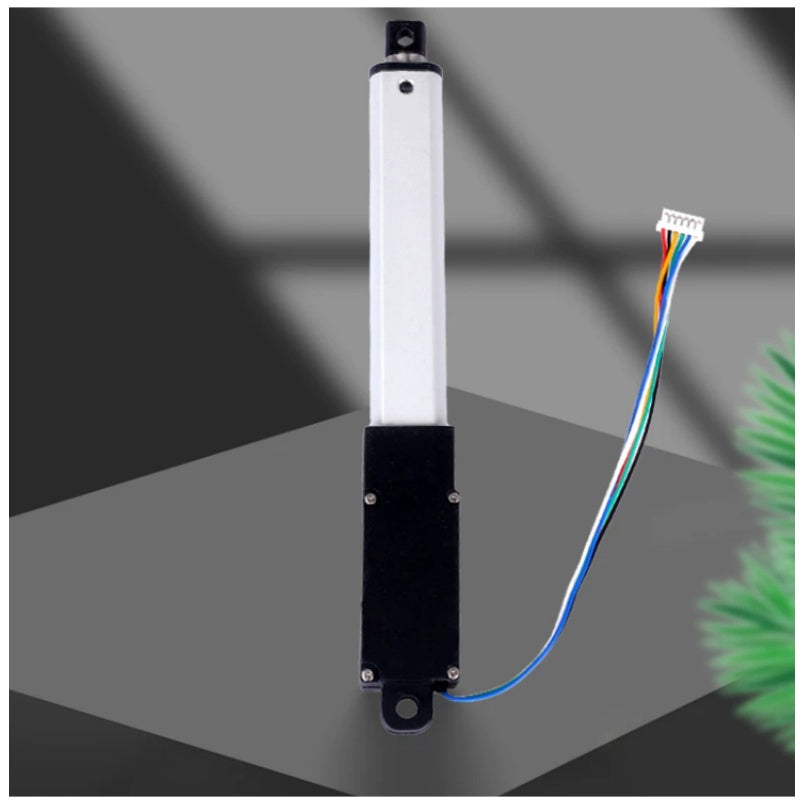

This BMNTL mini linear actuator is equipped with an encoder for precise position feedback control. Powered by 12V DC, it delivers max 120N thrust with adjustable speed 4-8mm/s. Standard stroke 10mm to 250mm in stock, longer stroke available for custom order.

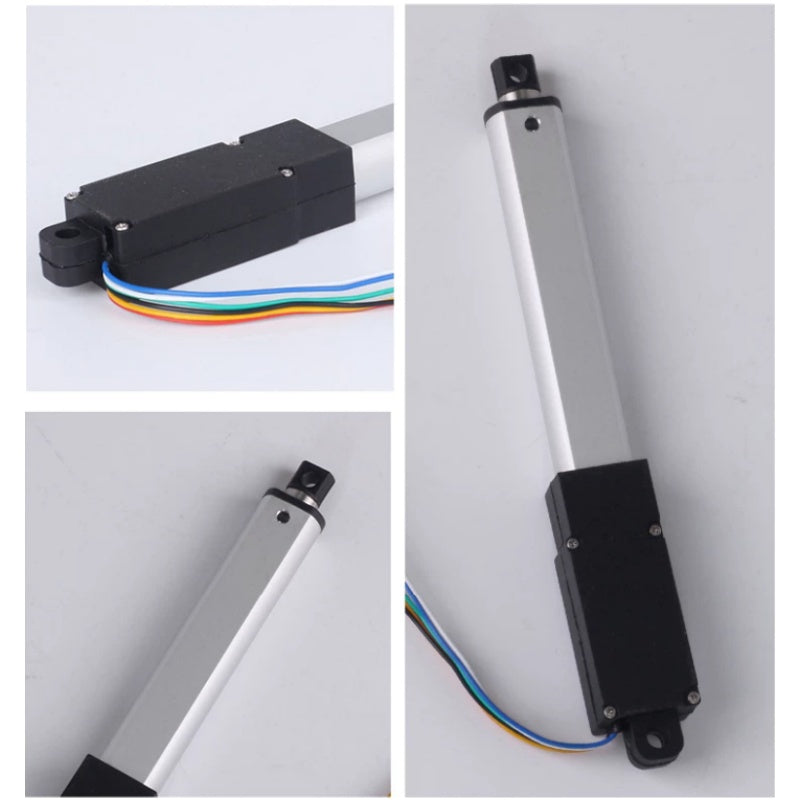

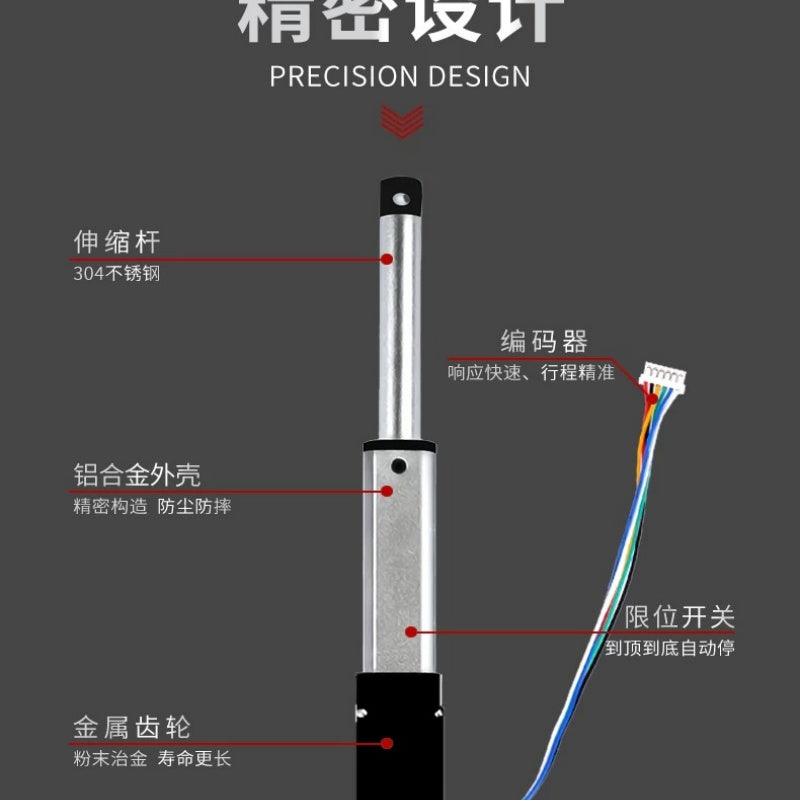

Constructed with aluminum alloy and plastic, compact lightweight structure. Built-in limit switches for end-of-stroke protection, stops immediately once power cuts off. Wide working temperature range: -26℃ ~ +85℃.

Duty cycle: 10% (2 mins working, 18 mins rest). Ideal for small automation, robotics, smart home, DIY prototype projects that require position monitoring and accurate reciprocating motion. 1-year warranty & lifetime technical support offered.

Key Features

✅ Built-in encoder for position feedback and precise control

✅ 12V DC power supply, max thrust 120N, speed 4~8mm/s

✅ In stock stroke:10-250mm, longer stroke customizable

✅ Built-in limit switch, power-off stop & overload end protection

✅ Aluminum alloy + plastic housing, wide temperature tolerance -26℃~+85℃

✅ Intermittent use, duty cycle 10%

✅ 1-year warranty with lifetime technical support

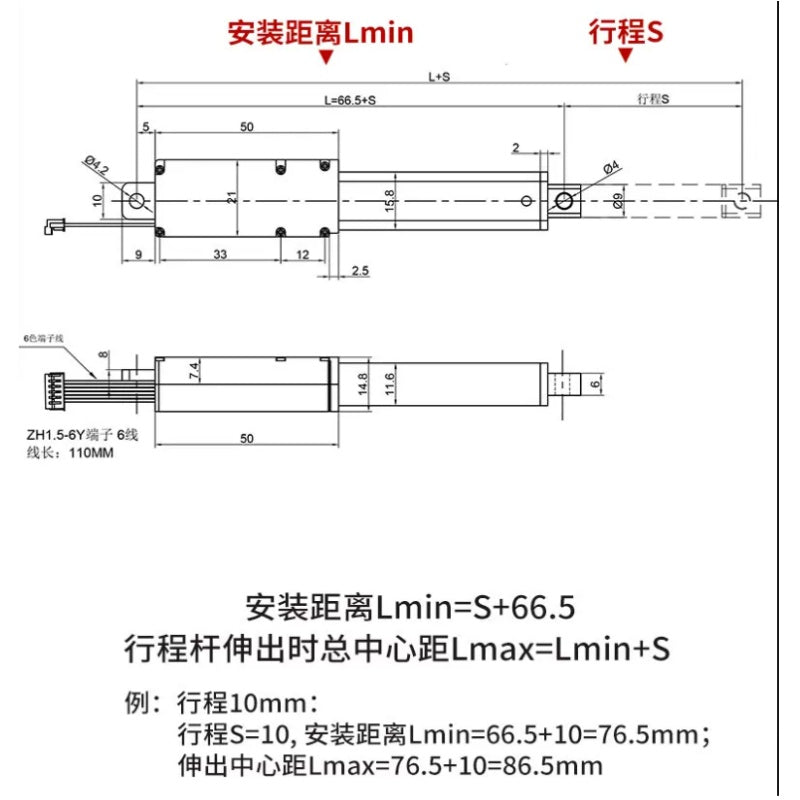

Specification

FAQs

Q1: What is special about this BMNTL linear actuator?

A1: It comes with an encoder, which provides real-time position feedback to realize precise position control, different from ordinary linear actuators without position detection.

Q2: What is the rated voltage and max thrust?

A2: Rated voltage DC12V, maximum thrust 120N, speed range 4-8mm/s.

Q3: What stroke options are available?

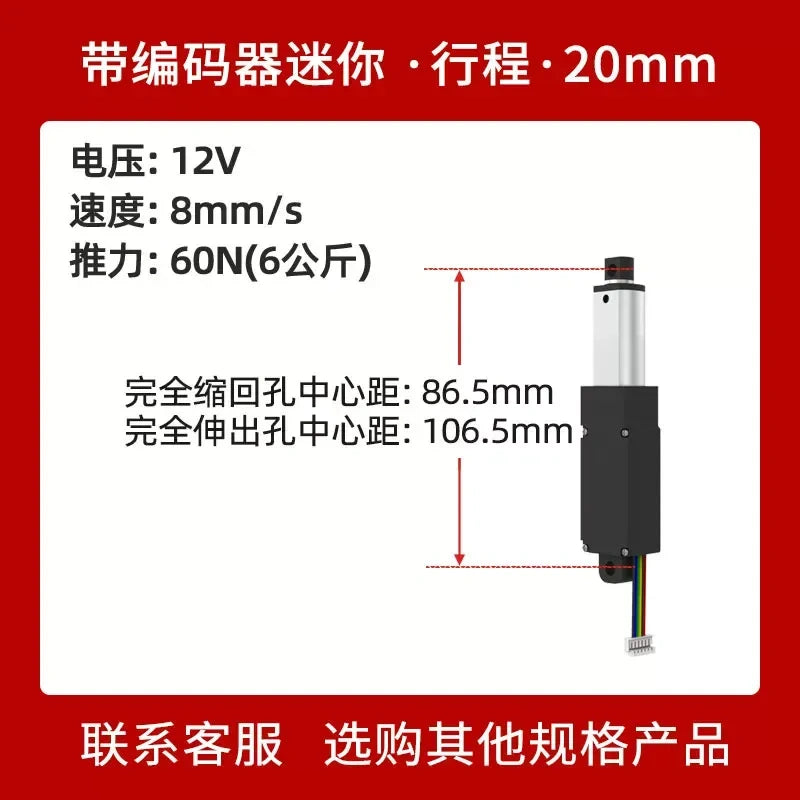

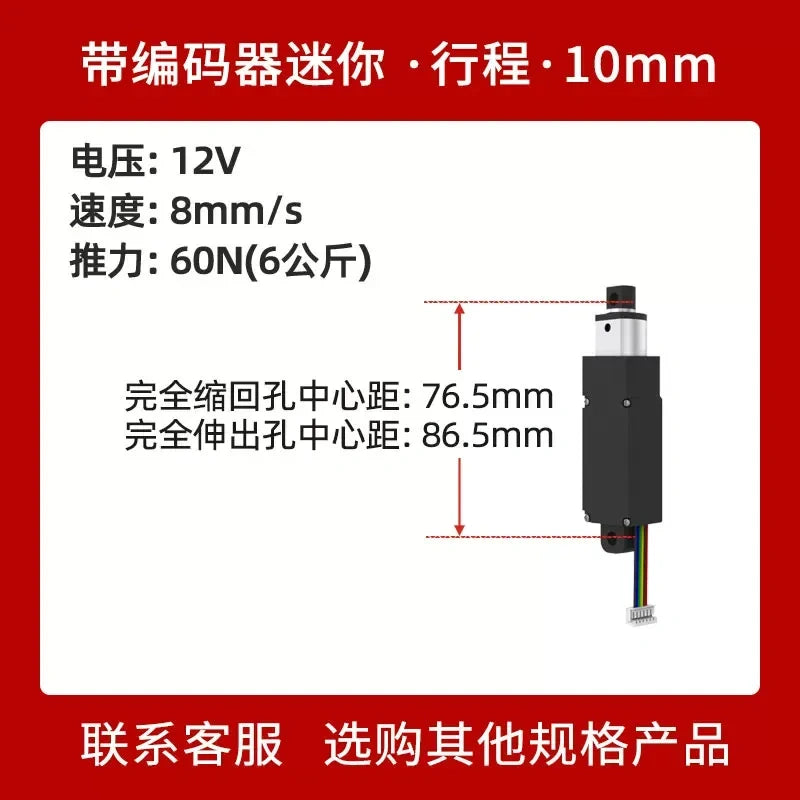

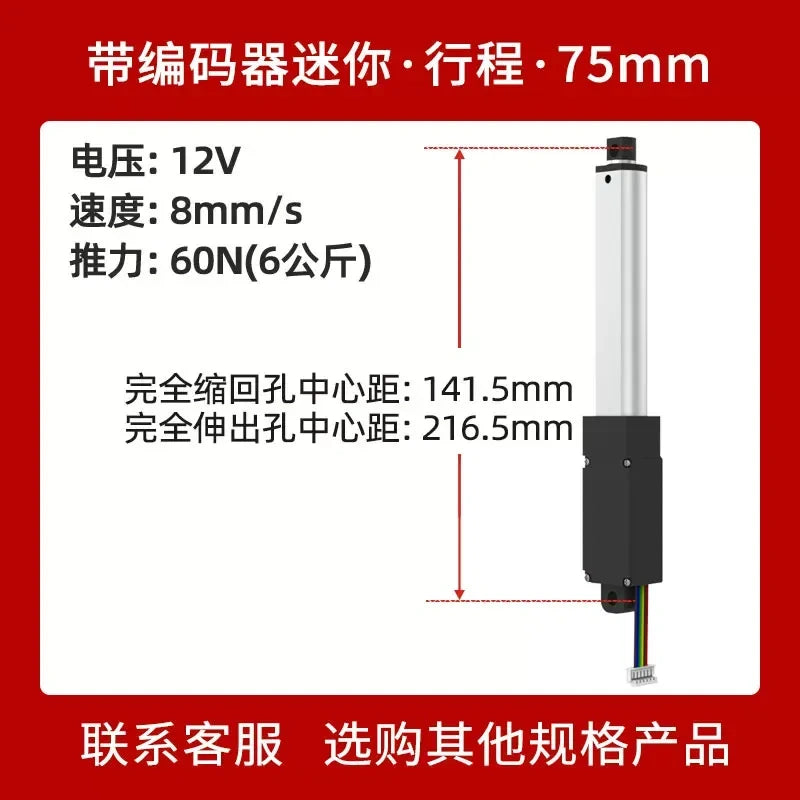

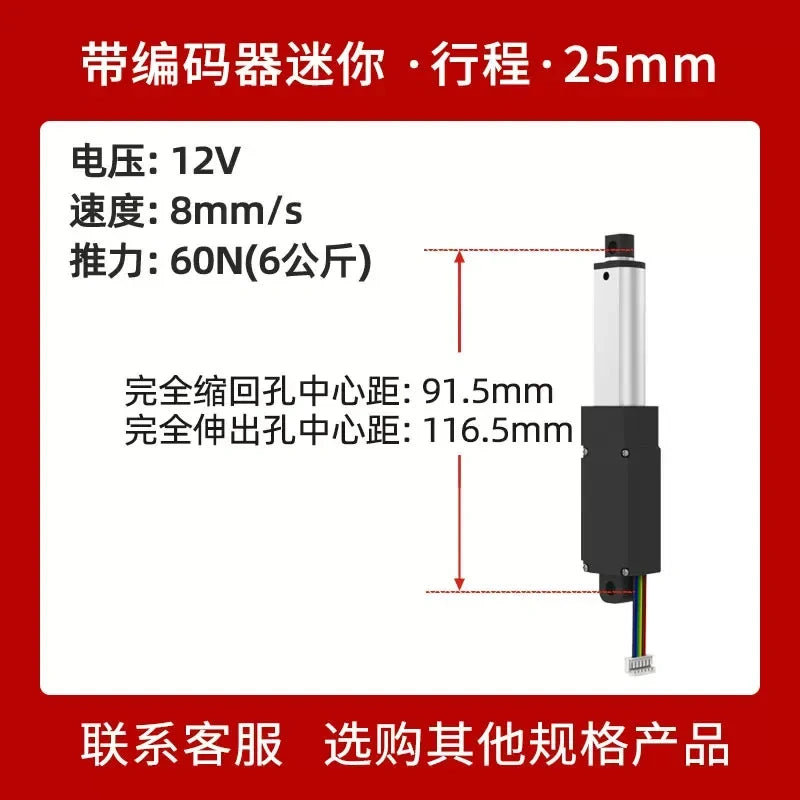

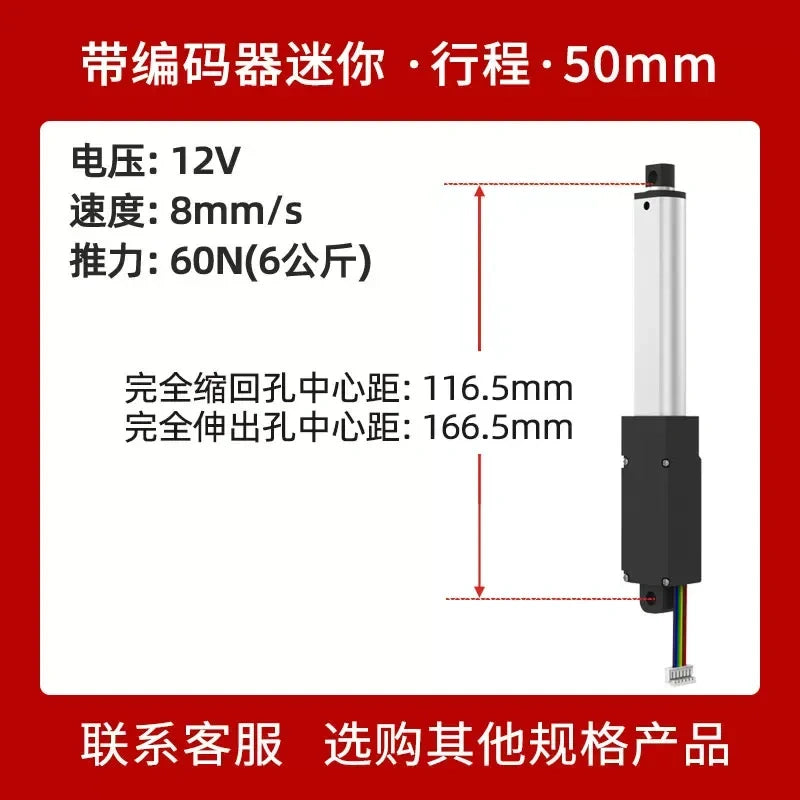

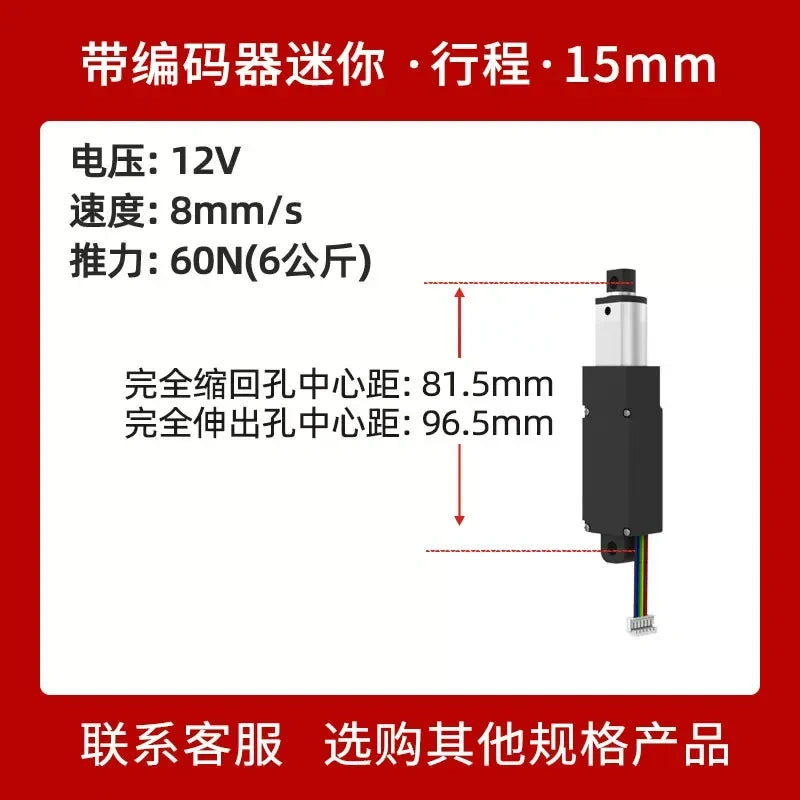

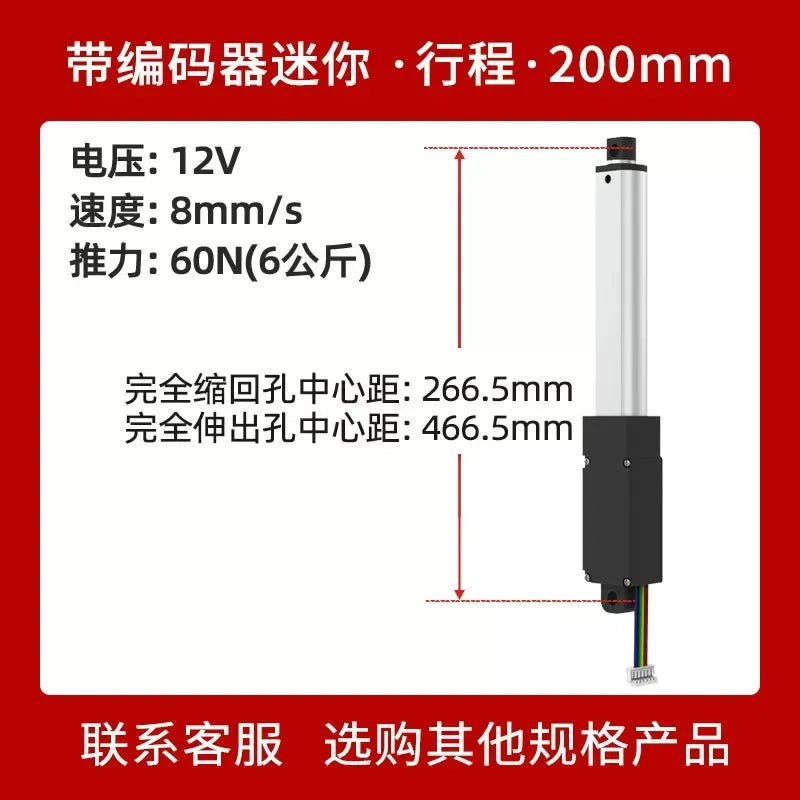

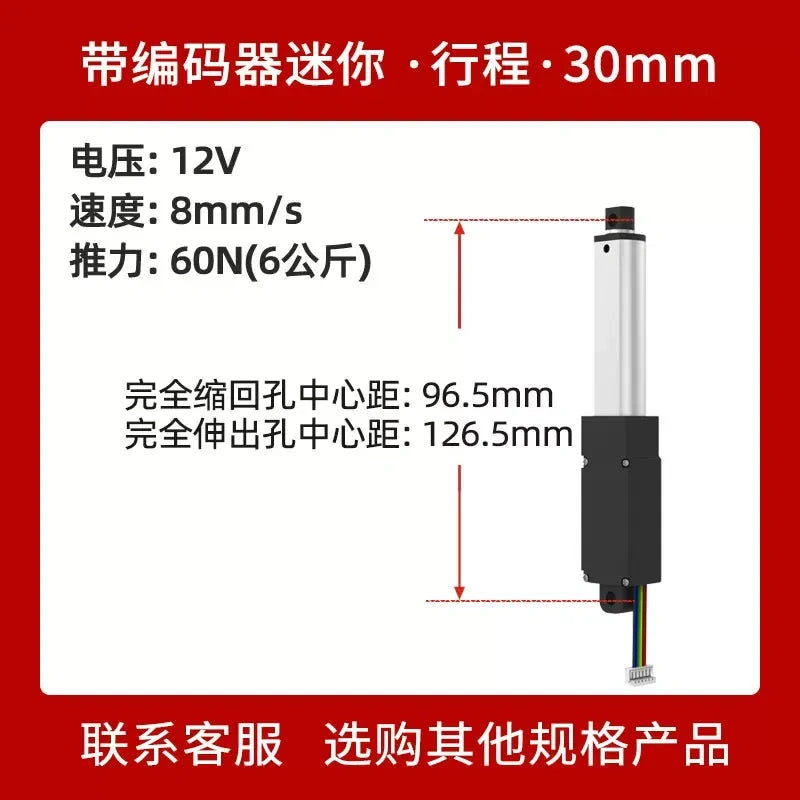

A3: Standard in-stock stroke:10mm,15mm,20mm,25mm,30mm,50mm,75mm,100mm,125mm,150mm,200mm,250mm. Longer stroke can be customized.

Q4: What protection function does it have?

A4: Built-in limit switches. It will stop automatically when reaching the end of stroke, and stops immediately once power cuts off, to protect the motor.

Q5: What is the duty cycle? Can it work continuously?

A5: Duty cycle is 10%, recommended working rule: work 2 minutes then rest 18 minutes. Continuous long-time operation is not allowed, to avoid motor burnout.

Q6: What material is the actuator?

A6: Aluminum alloy + plastic, compact and lightweight.

Q7: What is the working temperature range?

A7: -26℃ ~ +85℃, fits most indoor and mild outdoor environments.

Q8: What after-sales service do you provide?

A8: 1-year warranty, lifetime technical support and free manual maintenance service.

Q9: What projects is this encoder linear actuator suitable for?

A9: Perfect for projects requiring position feedback: small automation equipment, robot mechanism, smart home devices, DIY prototype development, reciprocating push-pull positioning tasks.
