LS Electric

LS UA/AU-100 Auxiliary Contact Block (1a1b)

Dhs. 71.00 AED
Dhs. 71.00 AED
Sale Sold out
Shipping calculated at checkout.
Model NO.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

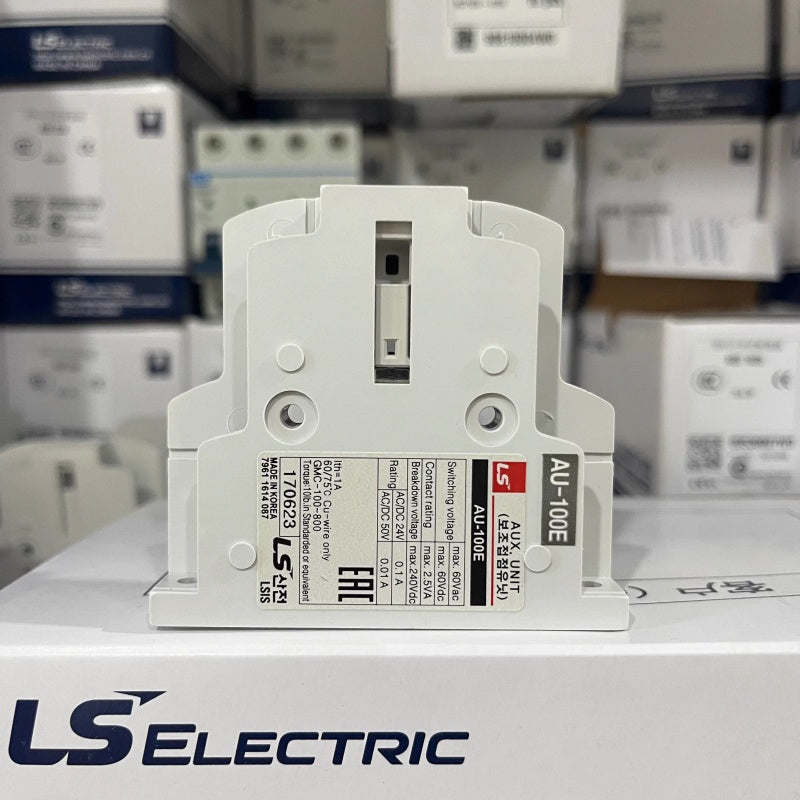

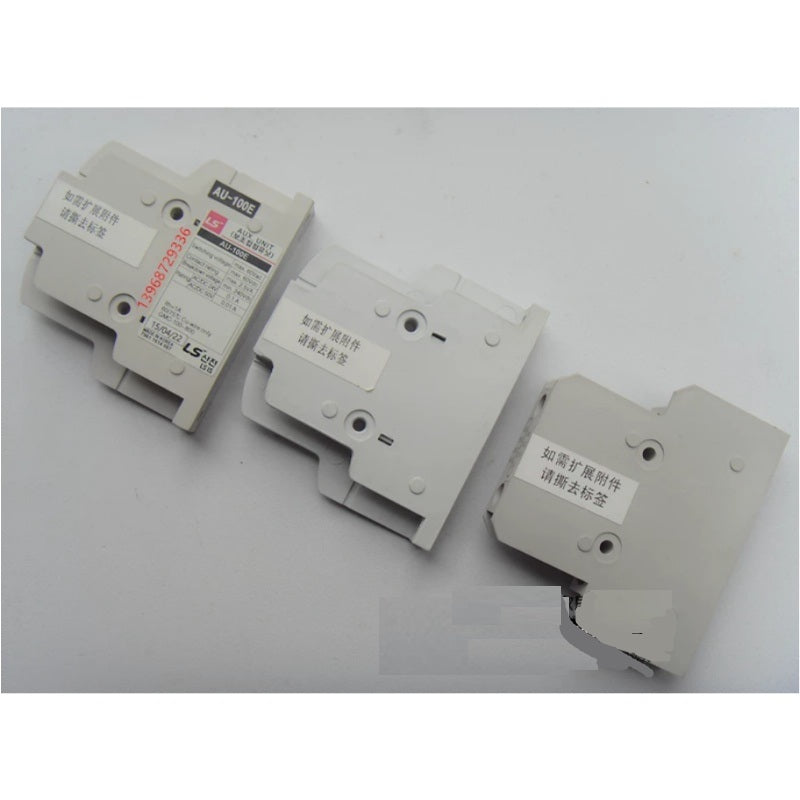

LS UA-100 / AU-100 / AU-100E Auxiliary Contact Block (1a1b), Side Mount for Large Frame MC/GMC Contactors

1. 核心概述 (Overview)


The LS Electric UA-100 / AU-100 / AU-100E Auxiliary Contact Blocks are specialized side-mount accessories designed for large-frame LS MC/GMC series contactors (GMC-125, GMC-150, up to GMC-600). These contact blocks provide a 1 normally open (NO) + 1 normally closed (NC) (1a1b) configuration to expand control circuit capabilities, enabling status feedback, interlocking, and PLC signal transmission for high-power motor control and industrial automation systems.

2. 关键特性 (Key Features)


  • 1a1b Contact Configuration: Standard 1NO + 1NC auxiliary contacts for dual signal output, suitable for control and feedback circuits.
  • Side-Mount Design: Optimized for side installation on large contactors, preserving front-panel wiring space while expanding control functions.
  • Multi-Generation Compatibility:
    • UA-100: New version for modern large-frame contactors
    • AU-100: Original legacy version for older GMC series contactors
    • AU-100E: Enhanced version with improved contact performance and durability

  • High-Current Rated Contacts: Silver alloy contacts with stable performance under industrial control circuit conditions, suitable for long-term use in high-cycle applications.
  • IEC/GB Compliant: Meets IEC 60947-5-1 and GB 14048.5 standards for low-voltage control components.
  • Quick Snap-In Installation: Tool-free mounting for fast assembly on compatible contactors, reducing panel wiring time.

3. 型号解析 (Model Decoding)


表格
Model Code Core Interpretation
UA-100 New-generation auxiliary contact block (1a1b)
AU-100 Legacy auxiliary contact block (1a1b)
AU-100E Enhanced auxiliary contact block (1a1b)
1a1b Contact configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
Compatible Contactors LS GMC/MC series large-frame contactors (GMC-125, GMC-150, GMC-600, etc.)

4. 典型应用 (Applications)

  • High-power motor control (pumps, compressors, industrial machinery)
  • Forward/reverse and star-delta control circuits for large motors
  • PLC feedback and status indication in industrial automation systems
  • Building automation and power distribution control panels
  • Heavy-duty conveyor and crane control system.

DATA SHEET

Attribute Value
Brand LS Electric / LS 产电
Series UA/AU-100 Series Auxiliary Contact Block
Product Type Contactor Auxiliary Contact Block
Models UA-100 (New), AU-100 (Legacy), AU-100E (Enhanced)
Contact Configuration 1a1b (1NO + 1NC)
Mounting Type Side Mount (for large-frame contactors)
Compatible Contactors LS GMC/MC Series Large-Frame Contactors (GMC-125, GMC-150, GMC-600, etc.)
Rated Control Voltage AC 230V/400V, DC 24V/110V/220V
Rated Operational Current 6A (AC-15), 1A (DC-13)
Standards Compliance IEC 60947-5-1, GB 14048.5, EN 60947-5-1
Certifications CE, CCC, RoHS
Application Large Motor Control, Industrial Automation, PLC Feedback, Power Distribution Control
