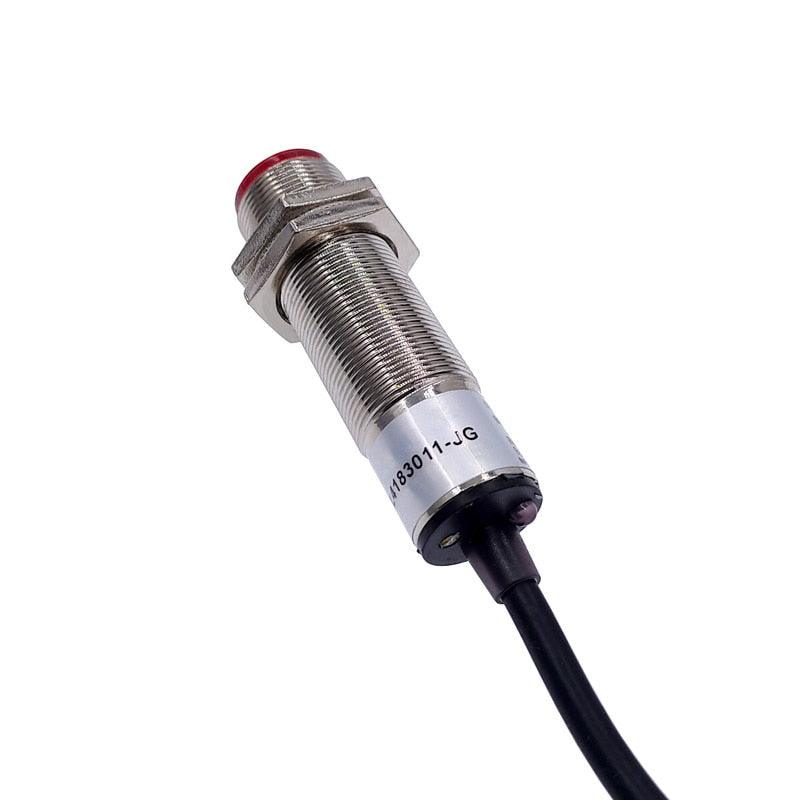

L4183011-JG Photoelectric laser beam Sensor Photoelectric switch Infrared

SPECIFICATIONS

L4183011-JG Photoelectric laser beam Sensor Photoelectric switch

Infrared Obstacle Avoidance 5-30cm Detection Range Adjustable

Warranty: 1year

Switch Type: Photoelectric Switch

Origin: CN(Origin)

Model Number: L4183011-JG

Material: aluminium alloy

Item Type: Switches

Is Smart Device: No

Features: Photoelectric switch

Product Type: Laser mirror reflection photoelectric switch

Detection objects: opaque objectsOutput mode: NPN/PNP/ normally open/normally closedShell material: brass nickel plated

Diffusion Angle: straight line

Operating voltage: 10-30VDC

Power consumption: below 1.5W

Operating current: 90-200mASwitching frequency: 50-60Hz

Circuit protection: reverse connection protection short circuit protection surge protectionResponse time: 2MS

DATA SHEET DOWNLOAD
