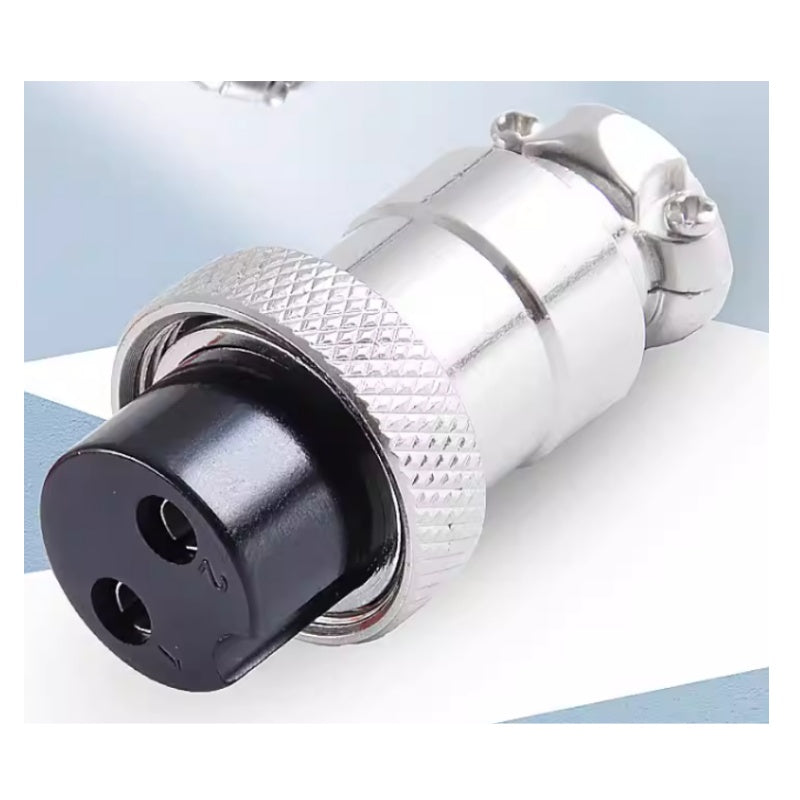

GX20 Docking Type Aviation Connector Plug Socket

Dhs. 39.00 AED
Dhs. 39.00 AED
Sale Sold out
Shipping calculated at checkout.
Model NO.
Config.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

GX20 Docking Type Aviation Connector Plug Socket, 2-12 Pin, Silver-Plated Copper

Product Overview


The GX20 series docking type aviation connector is a high-performance industrial electrical connection solution, designed for reliable power and signal transmission in automation equipment, CNC machinery, and control systems. Featuring silver-plated pure copper contacts, premium V0 flame-retardant PPS insulation, and a secure docking design, this connector delivers exceptional conductivity, corrosion resistance, and long service life. With its wide wire gauge compatibility and dustproof, rustproof construction, it ensures stable, vibration-resistant connections in harsh industrial environments, making it ideal for industrial wiring, equipment modification, and precision instrument connections.

DATA SHEET

中文属性 英文属性（工业标准） PARAMETER
产品名称 Product Name GX20 Series Docking Type Aviation Connector Plug & Socket
产品型号 Model Number GX20 (2-12 Pin/Core available)
芯数 Pin Configuration 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 Core
额定电流 Rated Current 5-10A
触点材质 Contact Material Pure Copper (Silver-Plated, Anti-Oxidation, High Conductivity)
绝缘材质 Insulator Material Premium PPS (V0 Flame Retardant, Self-Extinguishing)
接线方式 Termination Solder
配线规格 Wire Gauge Compatibility 0.75-22mm²
适配线缆外径 Compatible Cable Outer Diameter Φ10.5-26mm
特性 Key Features Dustproof, Rustproof, Corrosion Resistant, High Temperature Resistant
防火等级 Flame Retardant Rating V0
应用场景 Application Industrial Automation, CNC Machinery, Control Panels, Signal/Power Transmission

Core Features

  1. Silver-Plated Pure Copper Contacts

    High-purity solid copper contacts with silver plating provide excellent electrical conductivity, low contact resistance, and superior corrosion/oxidation resistance, boosting transmission speed by 45.9% for faster, more stable signal and power transmission.
  2. Premium V0 Flame-Retardant PPS Insulation

    High-performance PPS insulator with V0 flame retardant rating, self-extinguishing, and excellent insulation performance, ensuring safety in high-load industrial environments and preventing short circuits.
  3. Secure Docking Design

    Reliable male-female docking mechanism with a secure lock, preventing accidental disconnection during operation, even under heavy vibration.
  4. Wide Wire Gauge Compatibility

    Compatible with wire gauges from 0.75mm² to 22mm², and cable outer diameters from Φ10.5mm to Φ26mm, suitable for various power and signal transmission applications.
  5. Dustproof, Rustproof & Corrosion Resistant

    Robust construction with anti-corrosion treatment, ensuring long-term reliability in harsh industrial, outdoor, and humid environments.
  6. Easy Installation & Maintenance

    Simple solder termination and user-friendly docking design, making installation, removal, and maintenance quick and convenient.

How to Choose the Right Connector

  1. Select Pin Count Based on Wire Quantity: For example, 3 wires require a 3-pin connector.
  2. Check Wire Cross-Sectional Area: Ensure the wire gauge (0.75-22mm²) matches the connector's compatibility.
  3. Measure Cable Outer Diameter: Confirm the cable outer diameter (Φ10.5-26mm) fits the connector's cable gland.

Application Scenarios

  • Industrial automation equipment, CNC machinery, and production lines
  • Electrical control panels, power distribution systems, and signal transmission
  • Medical equipment, precision instruments, and audio-visual devices
  • Automotive modification, aerospace, and industrial robotics
  • Outdoor and harsh environment electrical systems (vibration-resistant, corrosion-resistant)

Important Notes

  • Pin Selection: Choose the correct pin count based on your wiring and current requirements.
  • Soldering: Use appropriate soldering techniques for reliable connections.
  • Temperature: Operate within the specified temperature range for optimal performance.
  • Safety: The V0 flame-retardant PPS insulator ensures safety in high-temperature environments.
