GM1024-N10 Micro DC Gear Motor DC 3V 6V

Dhs. 81.00 AED
Dhs. 81.00 AED
Sale Sold out
Shipping calculated at checkout.
Motor Voltage
Reduction Ratio
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

CHF-GM1024-N10 Micro DC Gear Motor DC 3V 6V High Torque Metal Gear Reduction Motor

Attribute Details
Product Name Micro DC Gear Reduction Motor
Model CHF-GM1024-N10
Brand Chihai Motor
Rated Voltage DC 3V / 6V
Motor Type DC Gear Motor (Metal Gear)

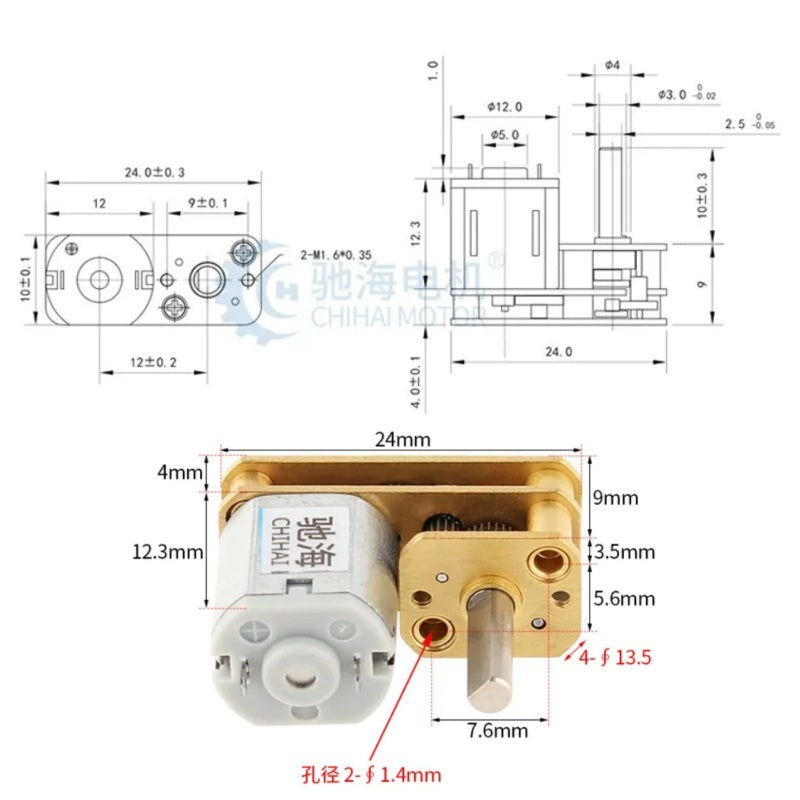

Shaft Diameter 3mm D-Shape Shaft
Shaft Length 10mm
Gear Ratio 1:50 / 1:100 / 1:150 / 1:200 / 1:350 / 1:500
Feature High Torque, Low Speed, Speed Controllable, Reversible, Metal Gear
Max Power 0.12W (3V 07 Type) / 0.42W (3V 92 Type) / 0.35W (6V 07 Type)
Weight ~10g
Application Smart Robots, Robotic Arms, Smart Furniture, Lenses Focusing System, Mini Pan-Tilt
Customization Support Custom Gear Ratio, Wire Length
Supply Type Factory Direct Wholesale, OEM/ODM Available



This is the CHF-GM1024-N10 micro DC gear reduction motor from Chihai Motor, designed for low-voltage, compact applications. It supports DC 3V and 6V power supply, with multiple gear ratios (1:50 to 1:500) for different speed and torque requirements.

The motor features a 3mm D-shape shaft (10mm length) and metal gear construction, ensuring durability and stable performance. It supports speed control and forward/reverse rotation, making it ideal for small projects like smart robots, robotic arms, smart furniture, camera pan-tilts, and lens focusing systems.

There are three versions available:

  • DC 3V 07 Type (0.12W, 10000rpm): Low power, suitable for light-load, battery-powered devices
  • DC 3V 92 Type (0.42W, 22000rpm): Higher speed & torque, for medium-load applications
  • DC 6V 07 Type (0.35W, 21000rpm): Balanced performance for standard DC 6V projects

Note: Avoid stalling the motor for long periods, as this may cause damage not covered by warranty. Always use a power supply matching the rated voltage.
