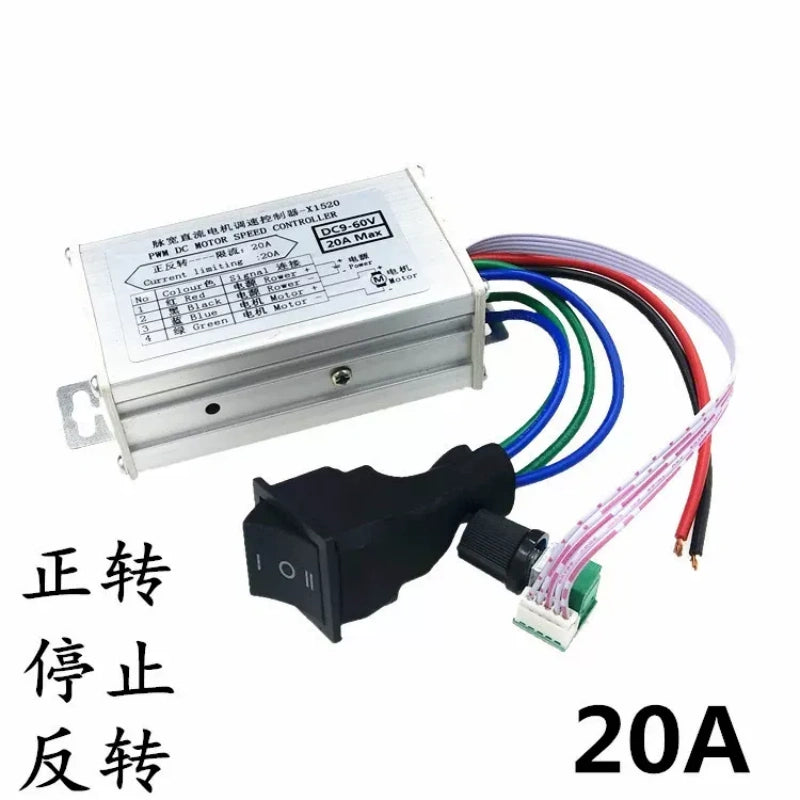

  • DC motor Speed Controller 20A 9-60V Reversible PWM Control Forward/Reverse Switch.
  • DC motor Speed Controller 20A 9-60V Reversible PWM Control Forward/Reverse Switch.
  • DC motor speed controller,20A PWM motor governor with forward&reverse function,brushed dc motor speed control,9v-60v motor regulator
  • DC motor speed controller,20A PWM motor governor with forward&reverse function,brushed dc motor speed control,9v-60v motor regulator
1 11

electrical center b2c

PWM DC Brushed Motor Speed Controller 9V-60V 10A/20A/30A

Dhs. 78.00 AED
Dhs. 57.00 AED Dhs. 78.00 AED
Sale Sold out
Shipping calculated at checkout.
Model NO.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

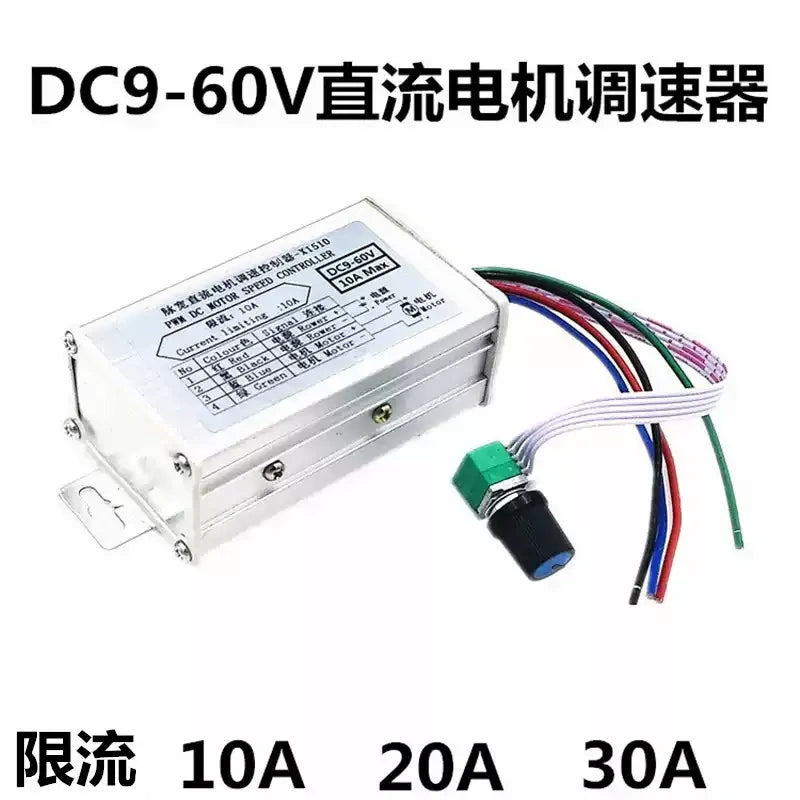

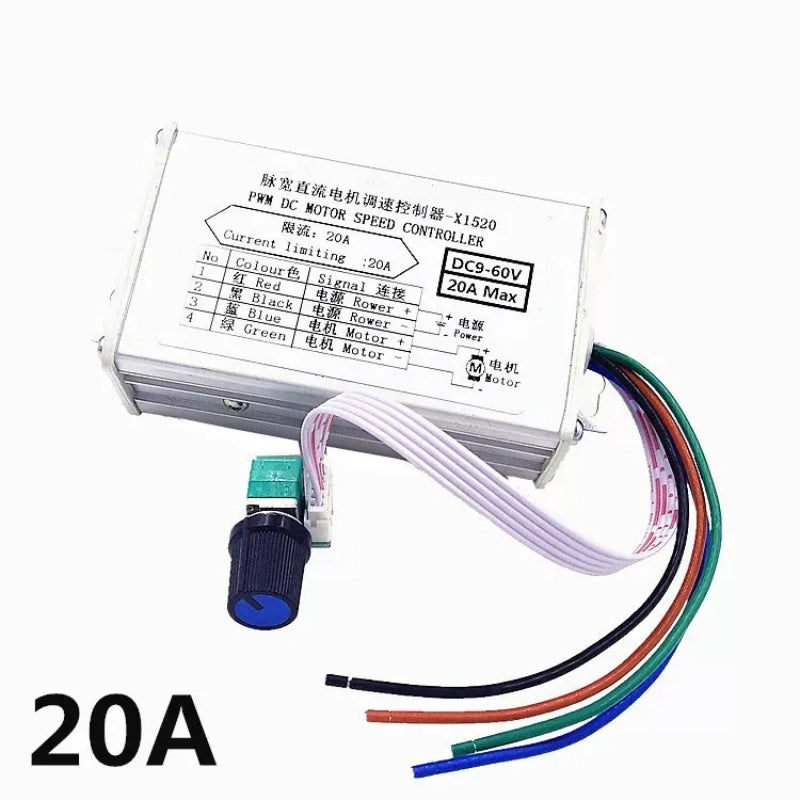

PWM DC Brushed Motor Speed Controller 9V-60V 10A/20A/30A Current Limiting Motor Governor with Metal Shell Potentiometer Speed Regulation Switchable Power

Product Introduction

This PWM DC motor speed regulator supports wide input voltage DC 9V~60V, available in 10A/20A/30A three current specifications, exclusively for Brushed DC Motor, NOT applicable for e-bike brushless motor. Adopts 15KHz high-frequency PWM current-limiting control, linear output voltage under rated load, continuously adjustable speed range from 0% to 100% via built-in potentiometer with ON/OFF power switch. Robust full metal aluminum casing improves heat dissipation and shock resistance, fixed wiring via outgoing cables, compact dimension 90×52×36mm with 104mm mounting hole spacing, approx net weight 155g per unit.

Important Warm Reminder

  1. Not compatible with electric vehicle motors.
  2. Input DC voltage must match motor’s rated voltage.
  3. DO NOT connect to AC220V household mains power, input needs strict positive & negative polarity differentiation.

Core Specifications

  • Input Voltage: DC 9V~60V
  • Control Frequency: 15KHz
  • Speed Range: 0%~100% stepless adjustable
  • Regulation Mode: Current limiting PWM control
  • Speed Control: Rotary Potentiometer with integrated power switch
  • Compatible Motor: Brushed DC Motor Only
  • Housing: All-metal aluminum enclosure

Specification

Attribute Item Content
Product Name PWM DC Brushed Motor Speed Controller
Brand OEM/ODM Available

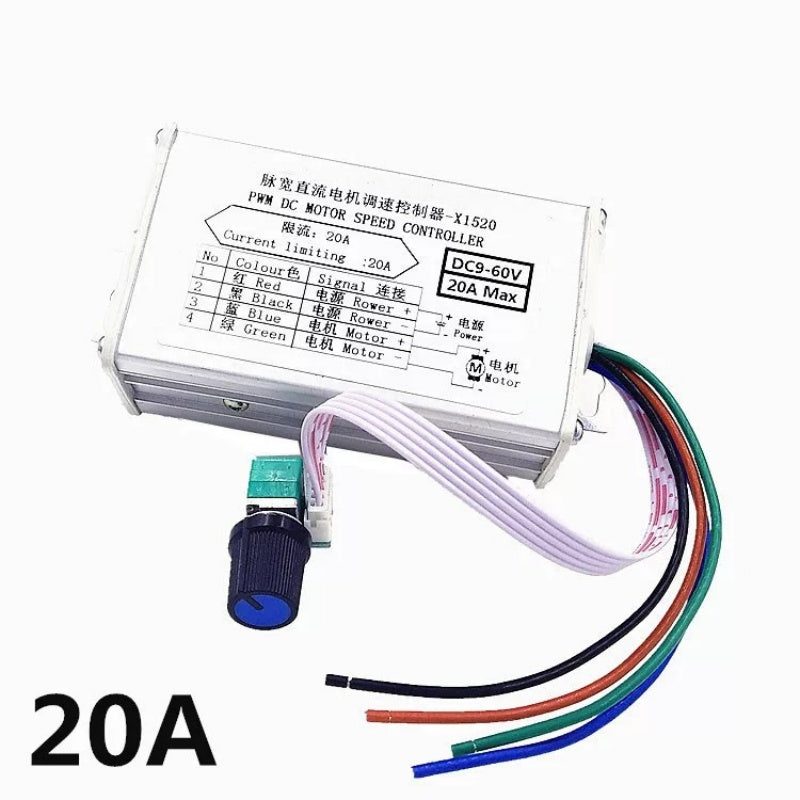

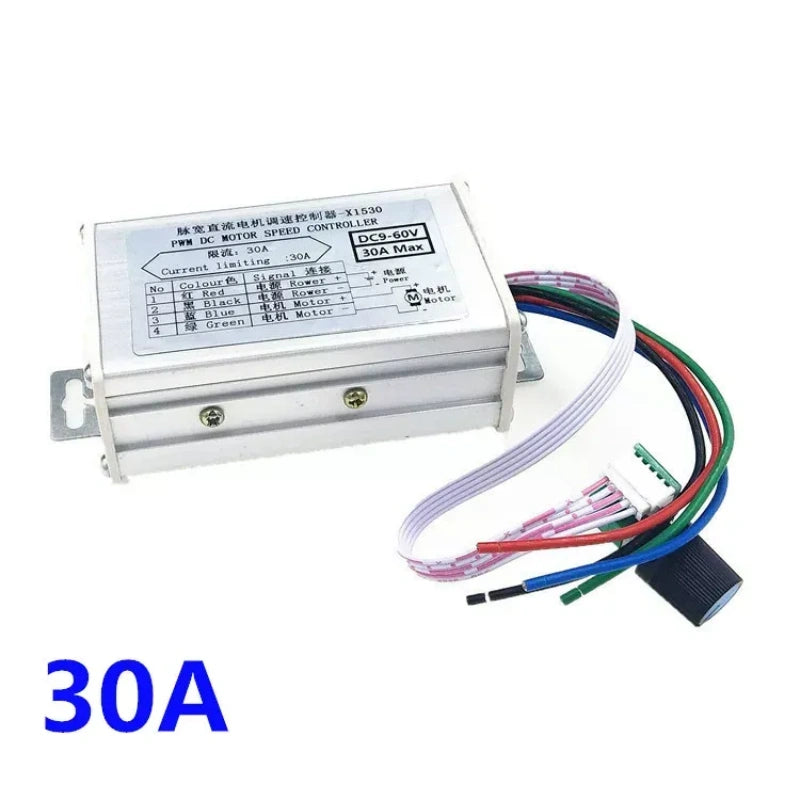

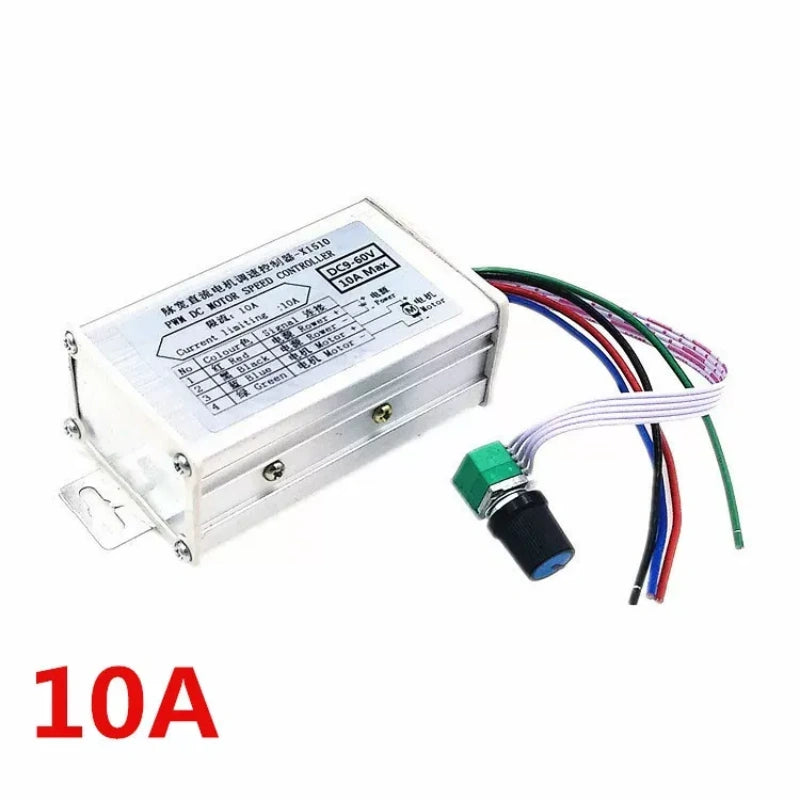

Model X1510(10A)/X1520(20A)/X1530(30A)
Input Voltage DC9V~60V(9/12/24/36/48/60V Universal)
Rated Current 10A / 20A / 30A
Control Type PWM Current Limiting Speed Regulation
Control Frequency 15KHz
Speed Adjustment 0%~100% Potentiometer control
Power Switch Potentiometer with built-in power ON/OFF switch
Applicable Motor Brushed DC Motor
Shell Material Aluminum Metal Housing

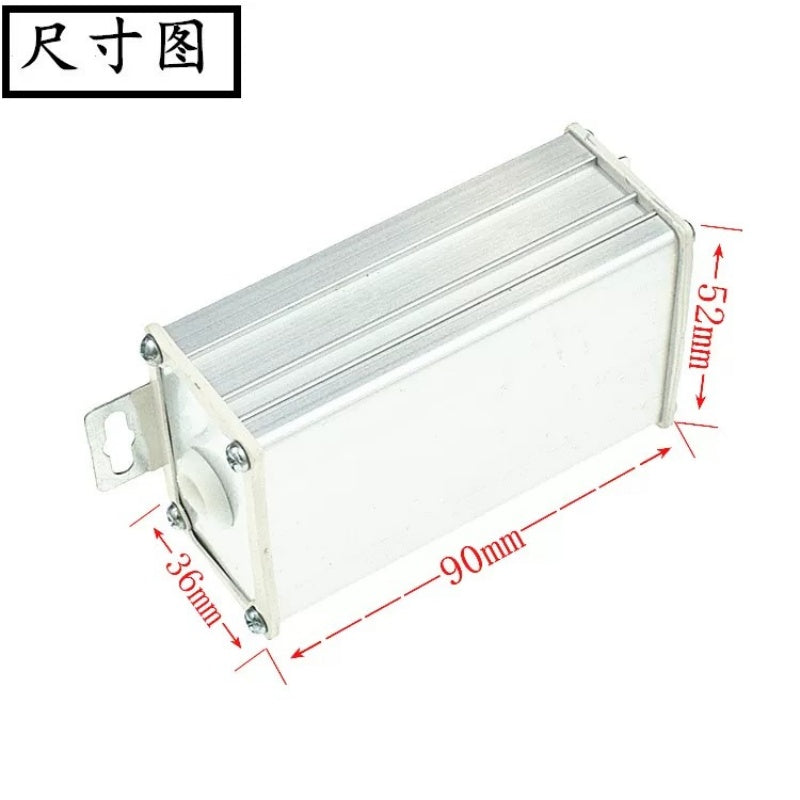

Product Size 905236mm(L×W×H)

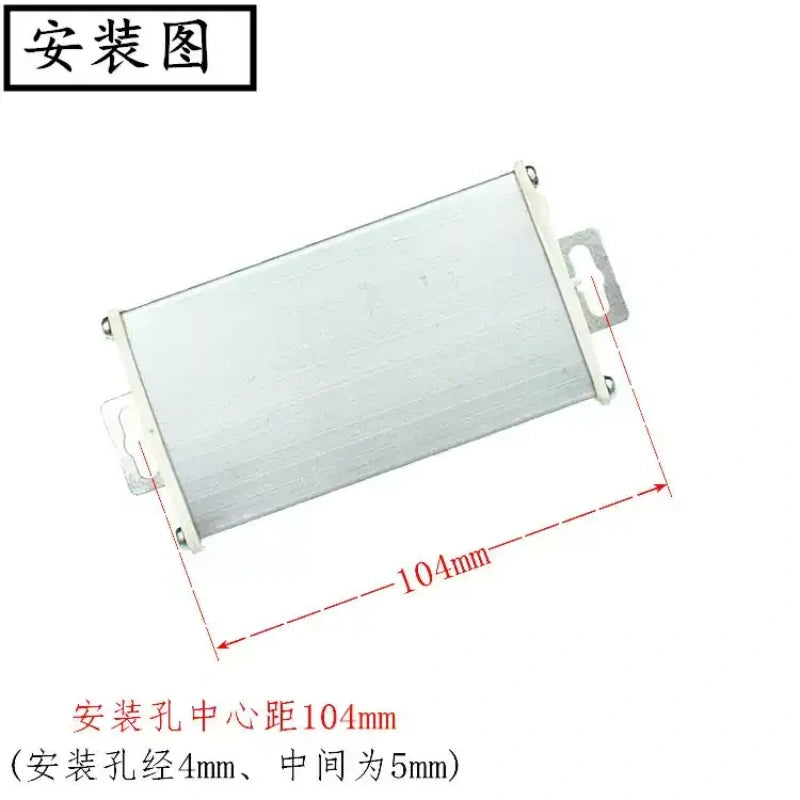

Mounting Center Distance 104mm
Net Weight 155g
Key Feature Load Linear Output, Current Limit Protection
Restriction Not for E-bike BLDC Motor, No AC220V Input
