CHINT ELECRTIC

CHNT Kunlun NXR‑25 NXR‑38 NXR‑100 Thermal Overload Relay 0.4‑100A

Dhs. 70.00 AED
Dhs. 70.00 AED
Sale Sold out
Shipping calculated at checkout.
Model NO.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

Thermal Overload Relay

CHNT Kunlun NXR‑25 NXR‑38 NXR‑100 Thermal Overload Relay 0.4‑100A,Phase‑Loss Motor Protection,1NO+1NC Aux Contact,Manual/Auto Reset,Compatible with NXC Series AC Contactor

Full Product Description

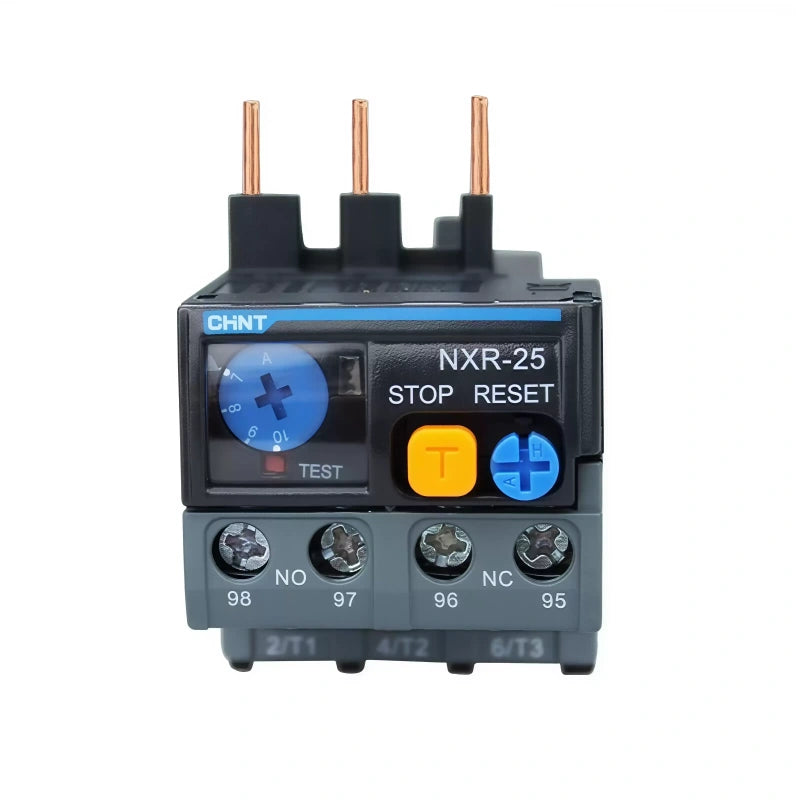

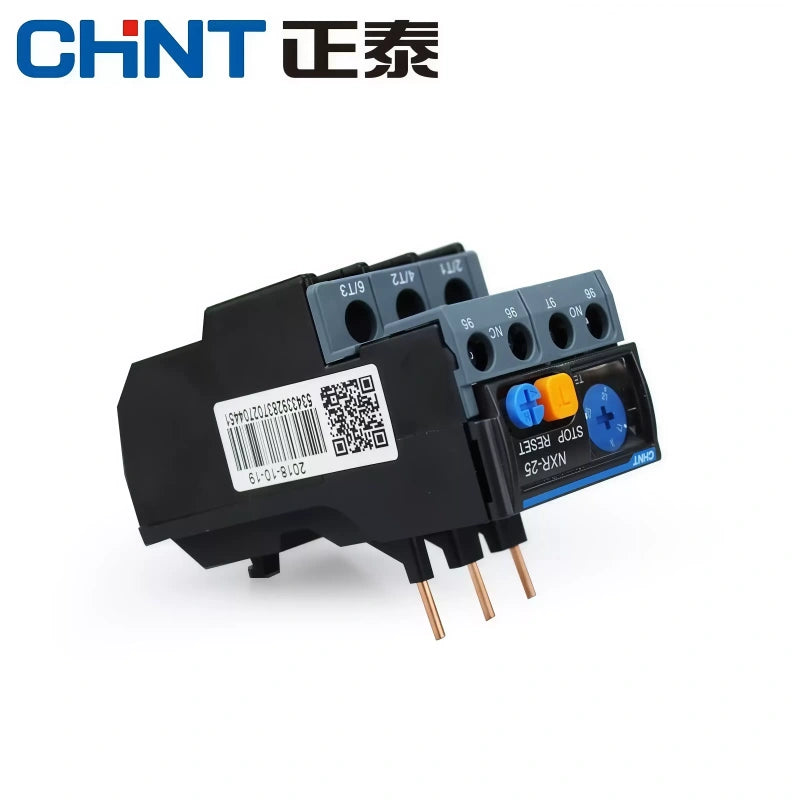

CHNT Kunlun NXR series thermal overload relay offers overload and phase‑unbalance / phase‑loss protection for three‑phase AC motors. Plug‑in assembly for CHNT NXC series contactor, also supports independent DIN‑rail mounting正泰电器.
✅ Complete Frame Options: NXR‑25(25A frame), NXR‑38(38A frame), NXR‑100(100A frame), wide adjustable setting current 0.4A‑100A.

✅ Dual‑mode Reset: Manual reset / automatic reset selectable for different site requirements.

✅ **1NO+1NC isolated auxiliary contact, for alarm interlock signal circuit.

✅ **Built‑in Trip indicator, TEST test button and STOP button for on‑site commissioning & maintenance.

✅ **Ambient temperature compensation, stable tripping performance under varying workshop temperature.

✅ **Protection function: Motor overload protection + phase‑loss / phase‑unbalance protection, prevent motor burning.

✅ **Certified to IEC 60947‑4‑1, Trip Class 10A, rated voltage up to 690V AC 50/60Hz.

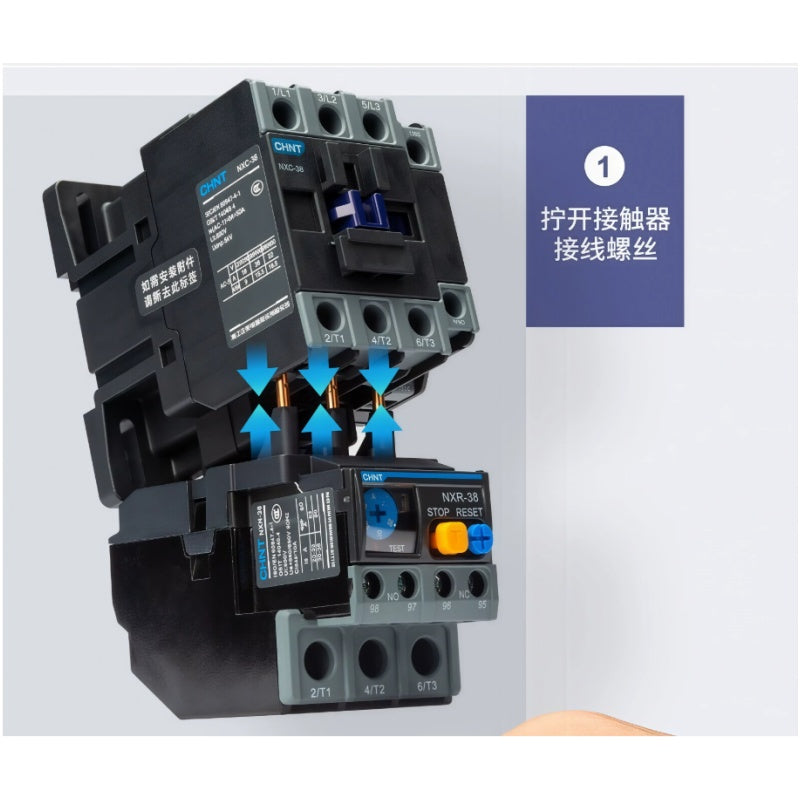

Compatibility: Direct plug‑in fit CHNT NXC series AC contactor.
Typical Application: Water pump, fan, conveyor, compressor, machine tool, 3‑phase motor control cabinet.

Available Variants (From picture)

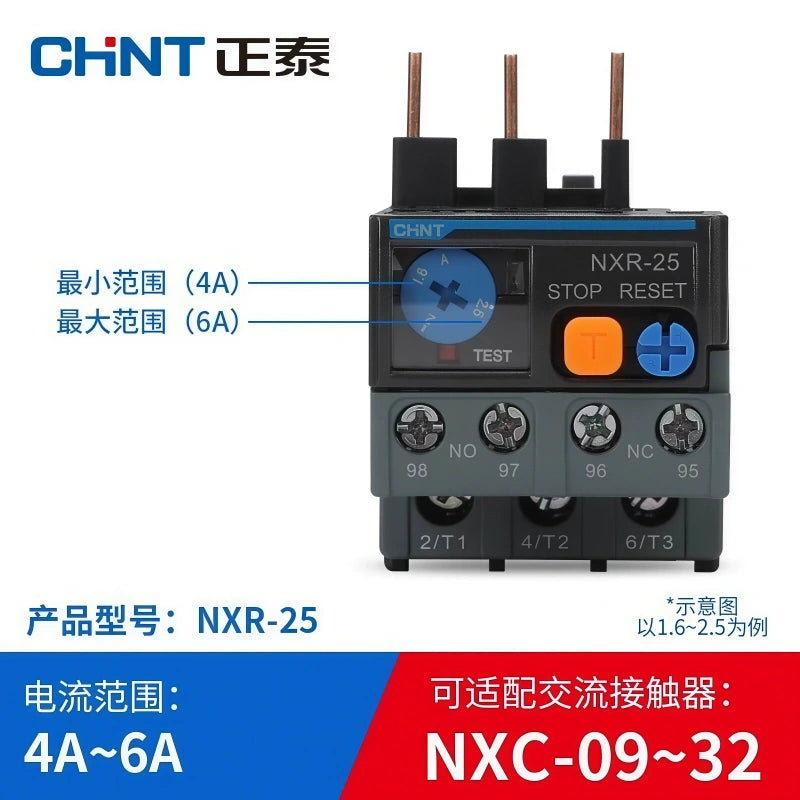

NXR‑25 Frame

0.4‑0.63A / 0.63‑1A / 1‑1.6A / 1.25‑2A /1.6‑2.5A /2.5‑4A /4‑6A /5.5‑8A /7‑10A /9‑13A /12‑18A /17‑25A

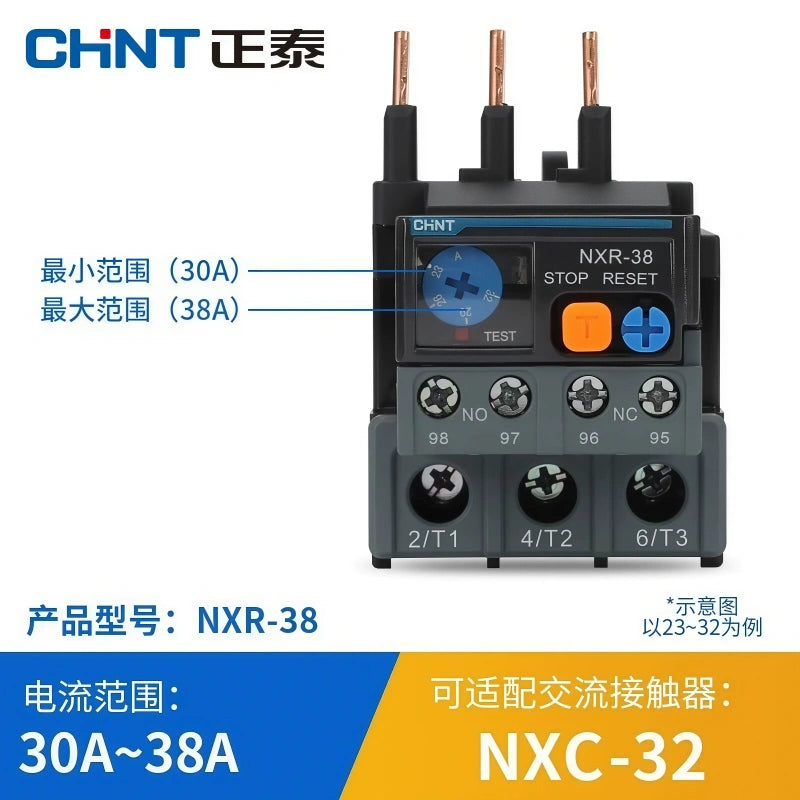

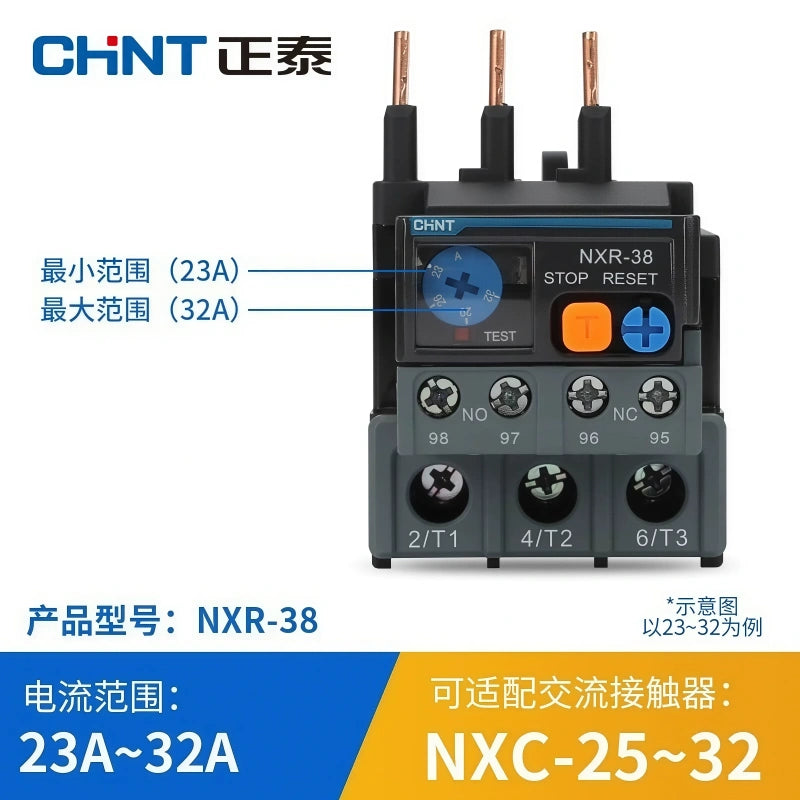

NXR‑38 Frame

23‑32A /30‑38A

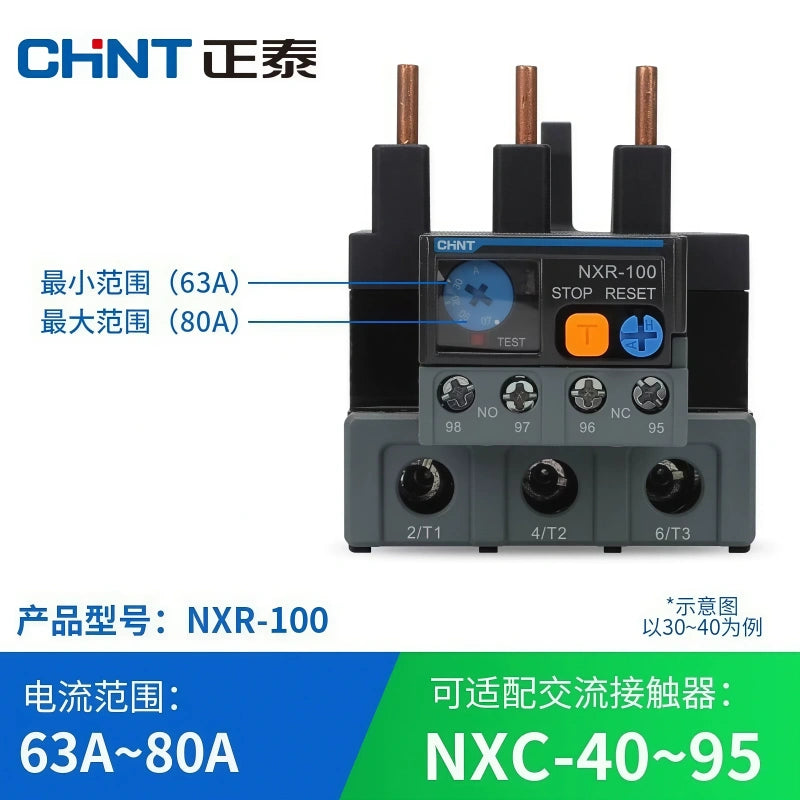

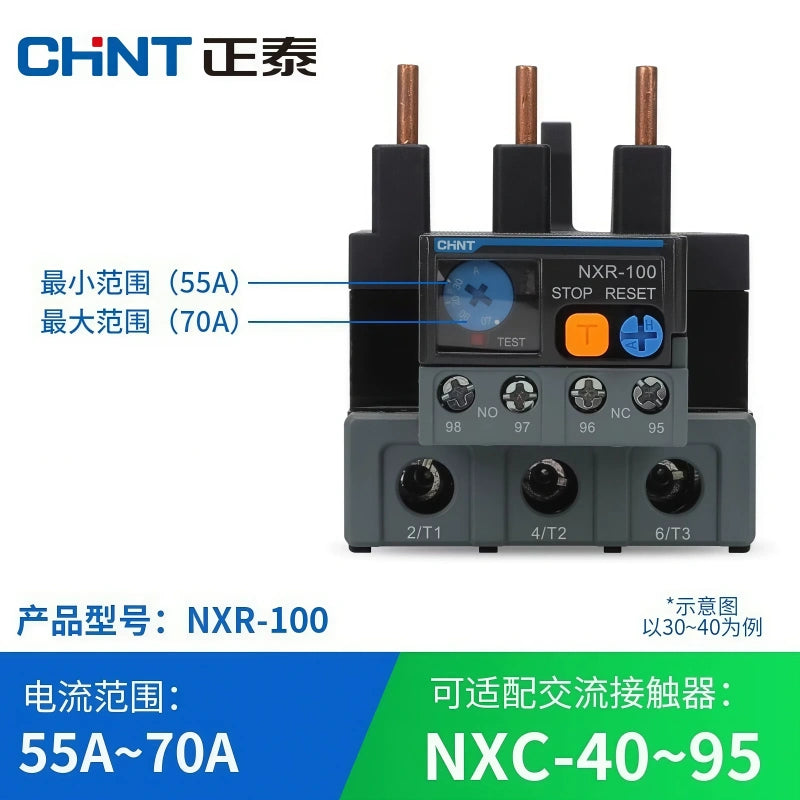

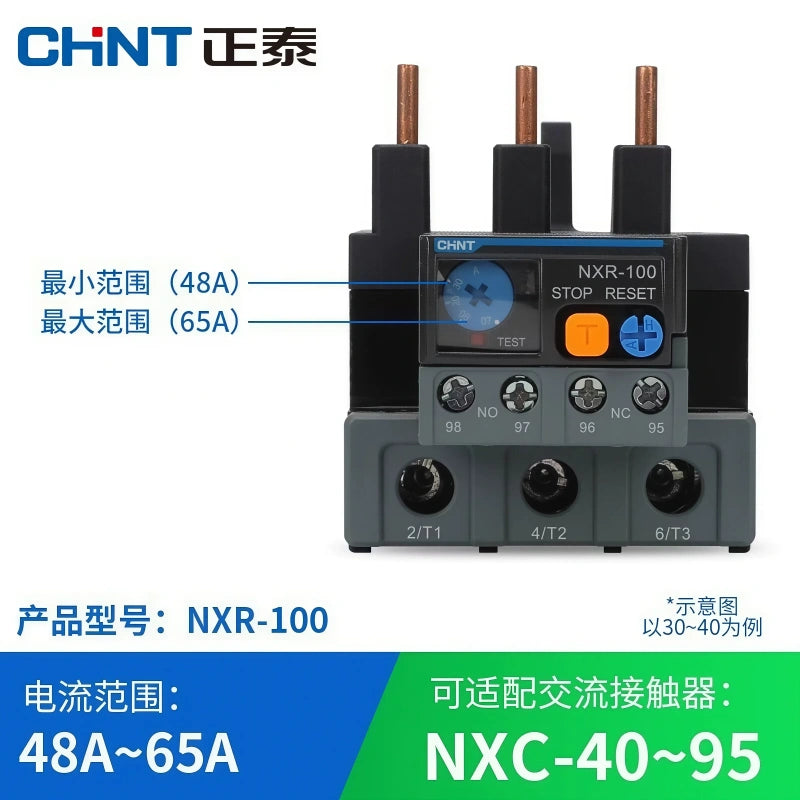

NXR‑100 Frame

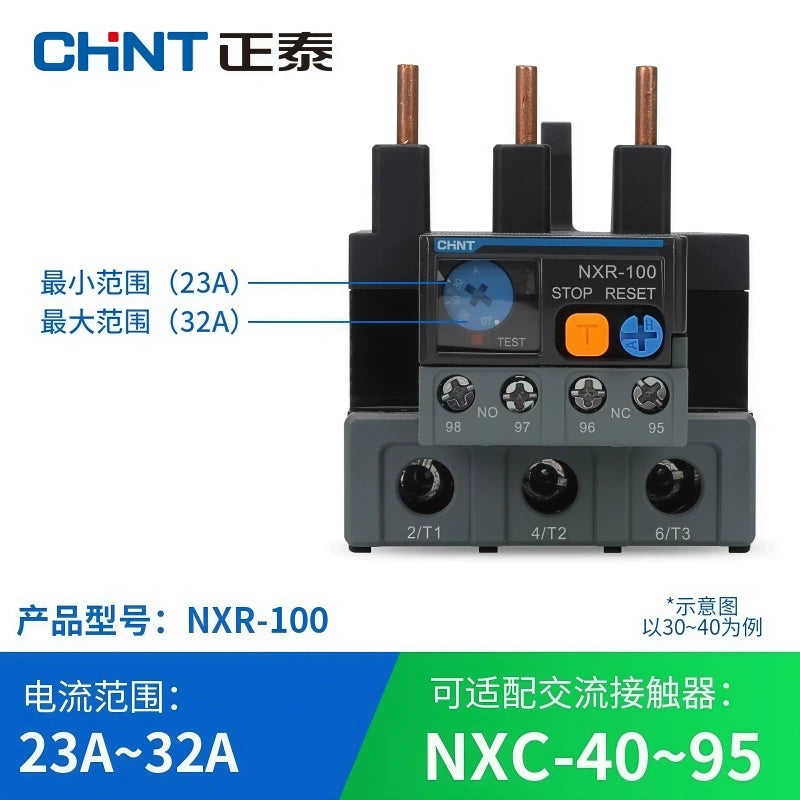

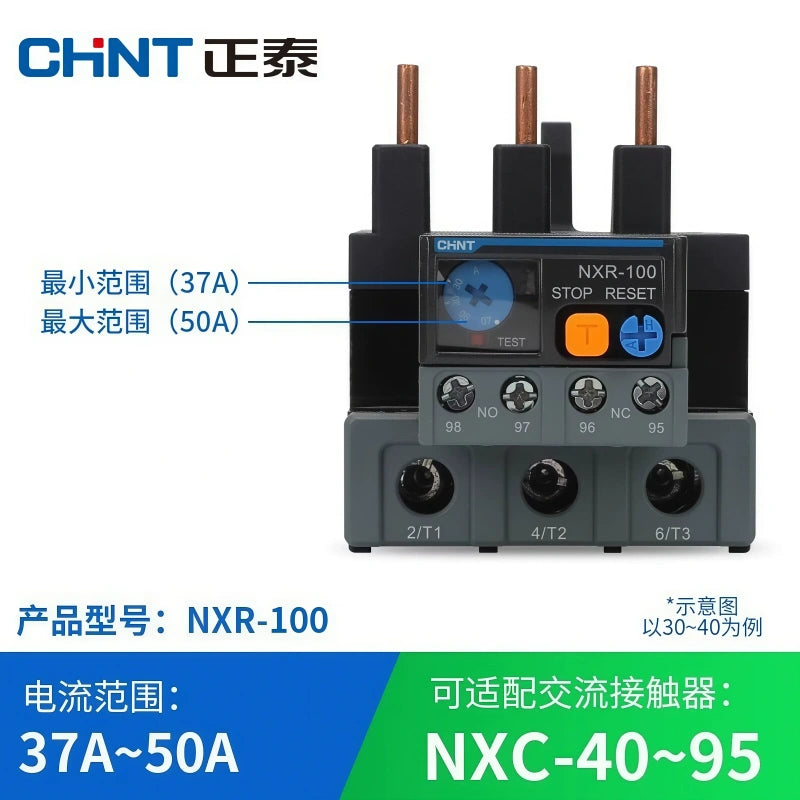

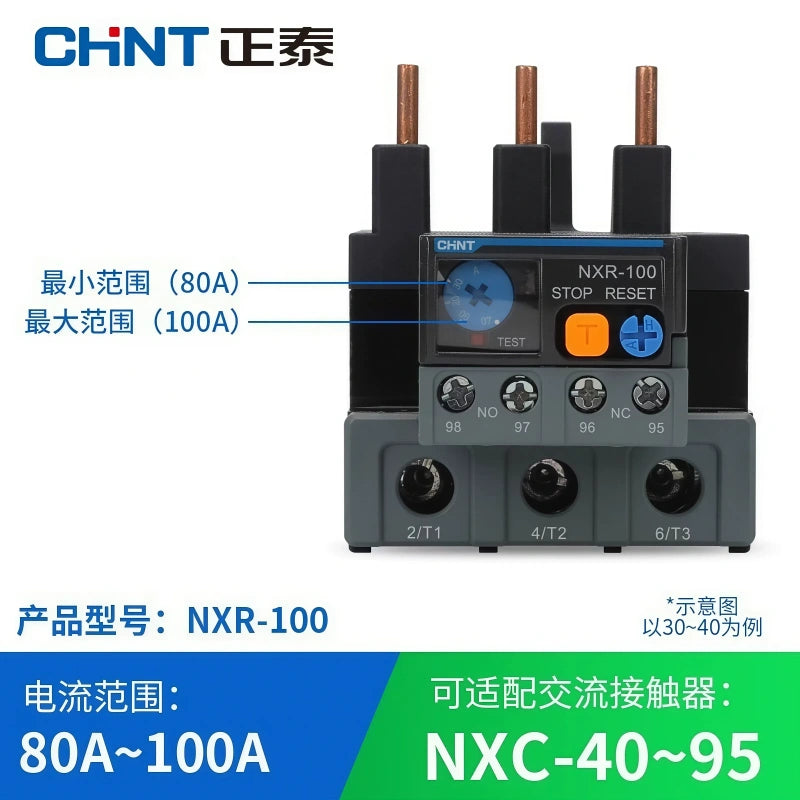

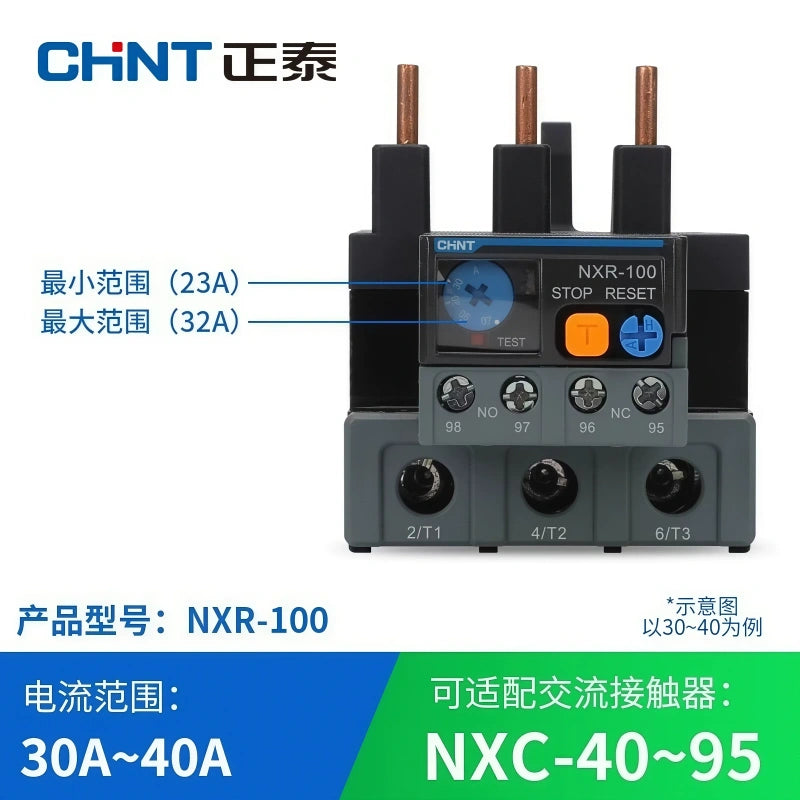

23‑32A /30‑40A /37‑50A /48‑65A /55‑70A /63‑80A /80‑93A /80‑100A
⚠️ Important Order Reminder: 3 different frame sizes (NXR‑25 / NXR‑38 / NXR‑100) and multiple adjustable‑current ranges. Please confirm frame model + setting current range before placing order. This relay only provides overload & phase loss protection; short‑circuit protection requires separate fuse or MCCB.

Specification

Attribute Content
Product Name CHNT Kunlun NXR‑25 / NXR‑38 / NXR‑100 Thermal Overload Relay
Brand CHNT
Model NXR‑25, NXR‑38, NXR‑100
Frame Rated Current 25A /38A /100A
Setting Current Range 0.4‑100A (multi‑ranges variants)
Rated Operational Voltage Up to 690V AC 50/60Hz
Trip Class 10A
Auxiliary Contact 1NO + 1NC
Reset Mode Manual / Automatic Reset Selectable
Protection Overload Protection,Phase‑Loss / Phase‑Unbalance Protection
Features Temperature Compensation,Trip Indicator,TEST & STOP Button
Compatible Contactor CHNT NXC Series AC Contactor
Mounting Plug‑in fit NXC contactor or independent DIN‑rail installation
Standard IEC 60947‑4‑1, GB/T 14048.4
Application 3‑Phase Motor,Water Pump,Fan,Compressor,Machine Tool,Motor Control Cabinet
