CHNT JCUK Series DIN Rail Terminal Block 2.5N-35N Earth/Fuse Terminal

Original CHNT JCUK modular DIN rail terminal block series, full specifications: standard N-type(2.5N/3N/5N/6N/10N/16N/35N), JD earth ground type, RD fuse holder type, DK/K5 double-layer type & accessory end partition baffles. Suitable for 2.5/4/6/10/16/35mm² copper wire, rated current from 24A~125A, max rated voltage 1000V, 50/60Hz AC. Shell made of high flame retardant PA66 nylon with high tensile toughness, anti-break clamping foot structure; install on standard TH35 DIN rail, compliant with IEC60947-7-1 & GB/T14048.7 standard. Widely used in distribution cabinet, PLC control box, industrial equipment wiring, household electrical project wire connection & branch split.

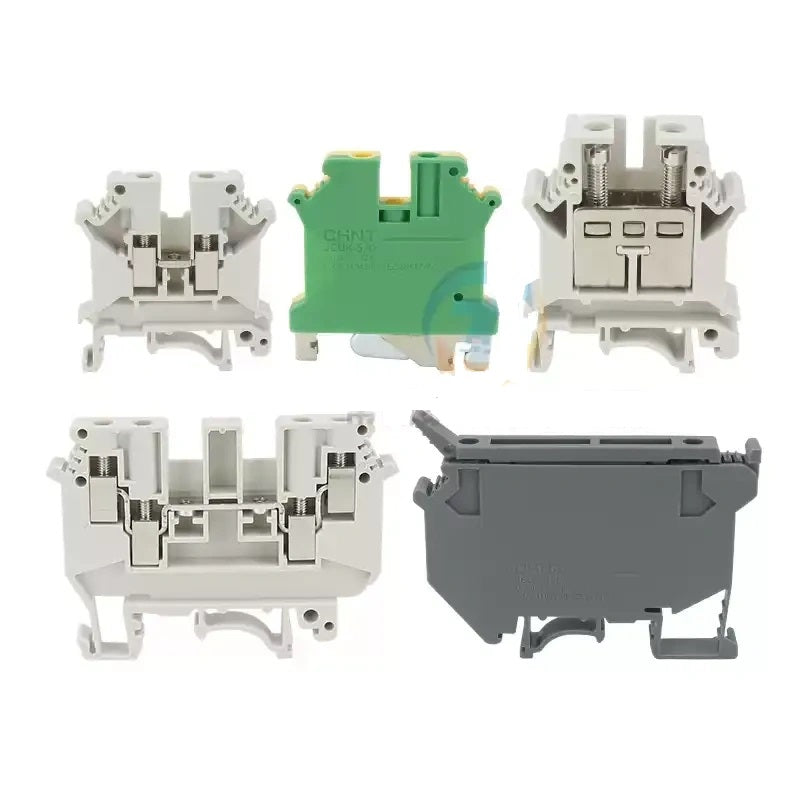

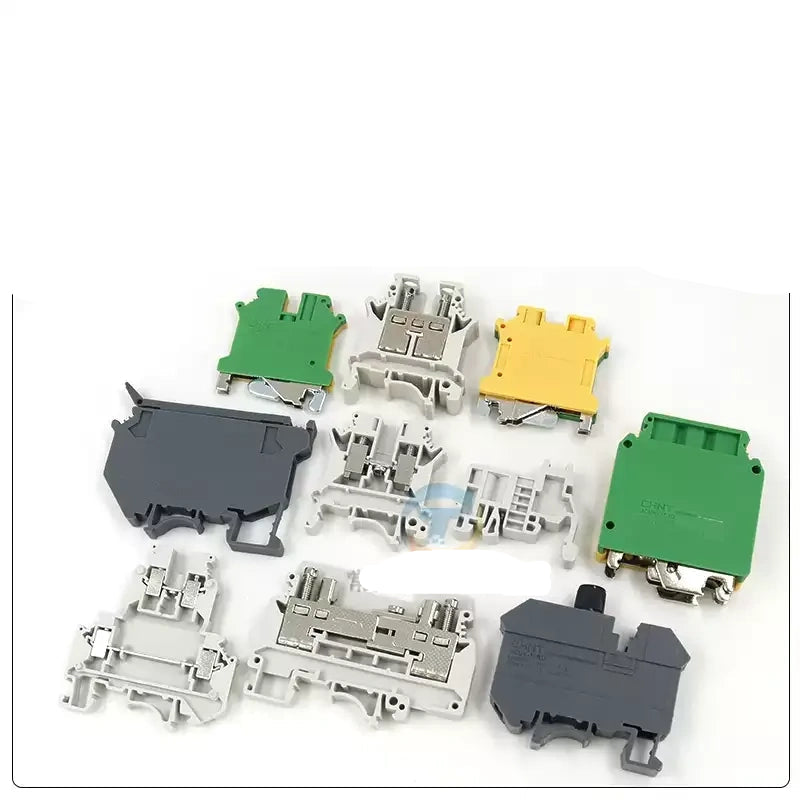

• Complete Product Range:Full lineup including standard, earth ground, fuse, double-layer terminal & matching end baffles, cover wire size 2.5~35mm² to satisfy diversified wiring design.
• Premium PA66 Flame-retardant Shell:New raw material PA66 nylon housing, fireproof high-temperature resistant, excellent bending toughness without terminal foot fracture.

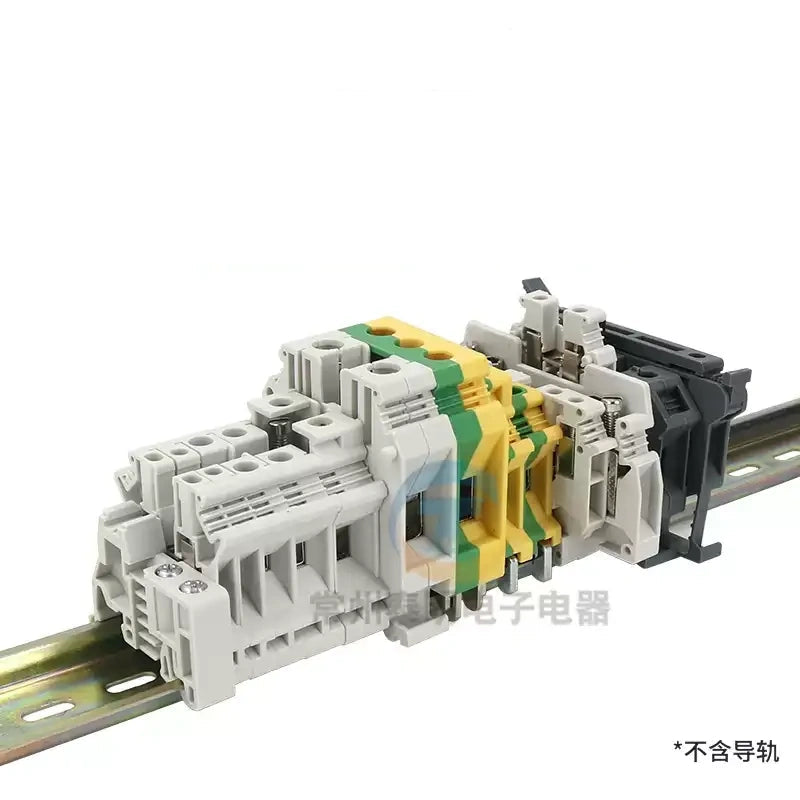

• Standard DIN Rail Installation:Universal TH35 rail snap-on design, quick assemble and disassemble inside electrical cabinet, neat wiring layout.
• Strict International Standard:Certified per IEC60947-7-1 & national GB standard, stable electrical performance up to 1000V rated voltage.
• Multi-scenario Application:Ideal for industrial PLC cabinet, household distribution box, pump/motor control equipment, new energy equipment wire splitting and connection.

Specification

属性类目	参数详情
Brand	CHNT 正泰
Model Series	JCUK DIN Rail Terminal Block

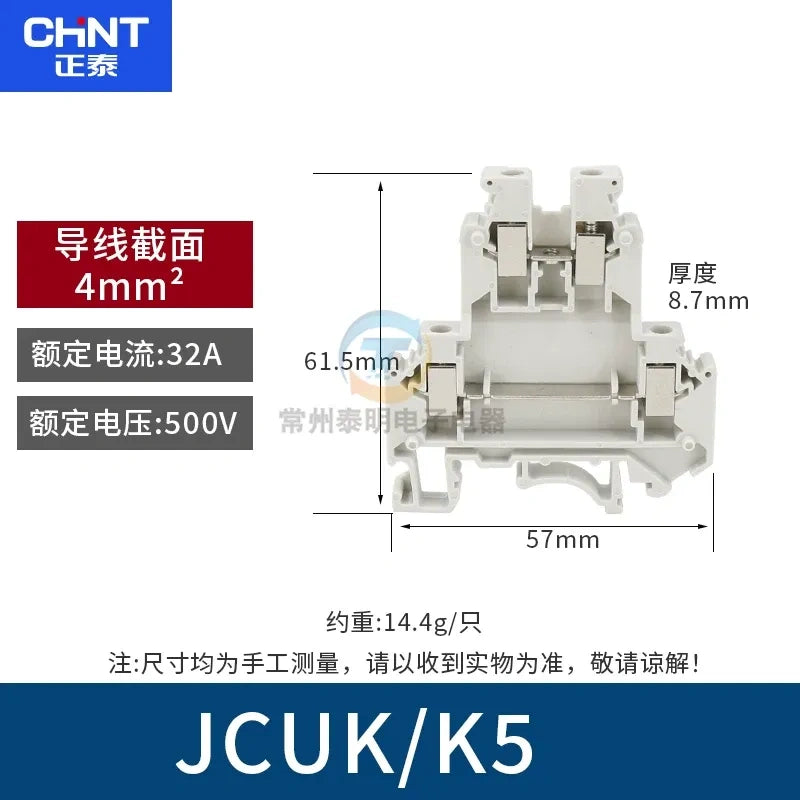

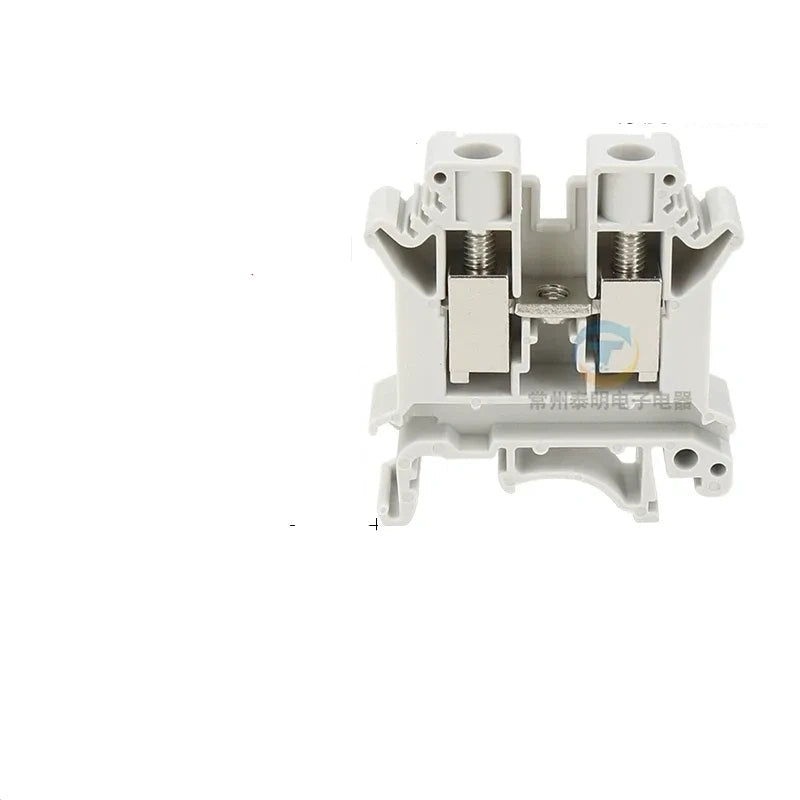

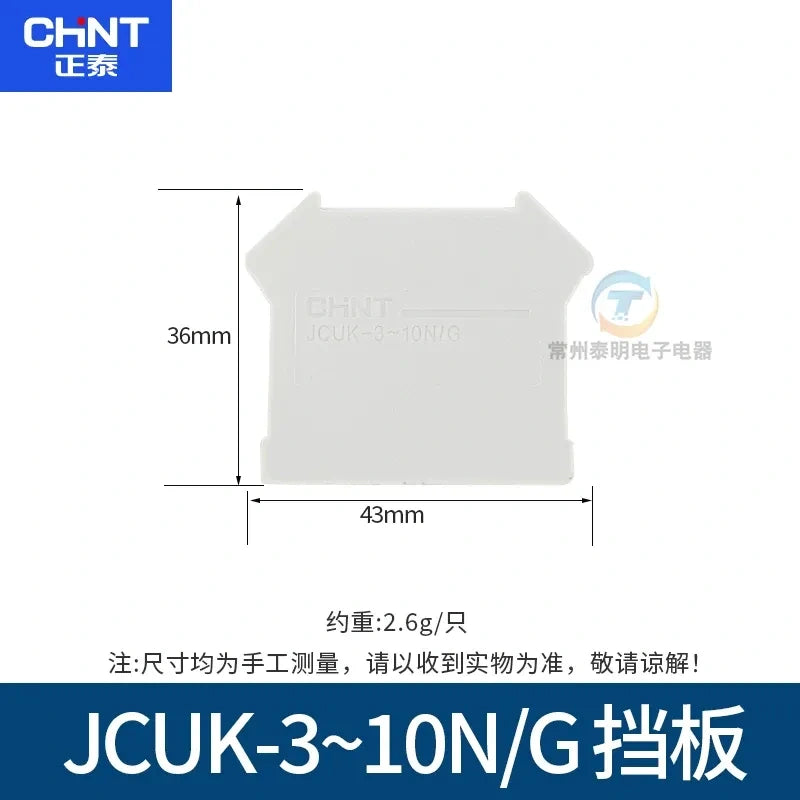

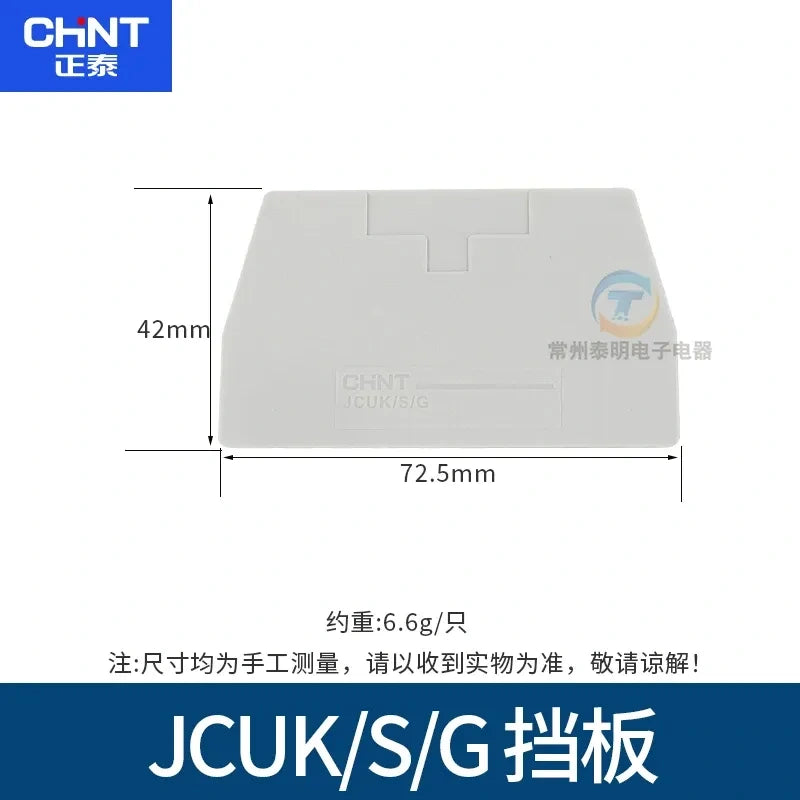

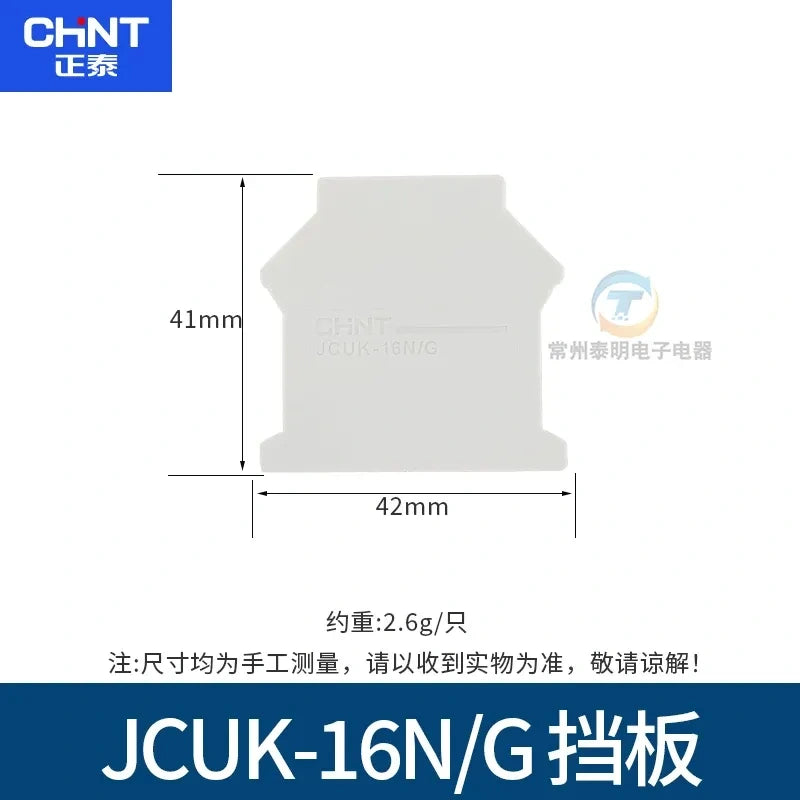

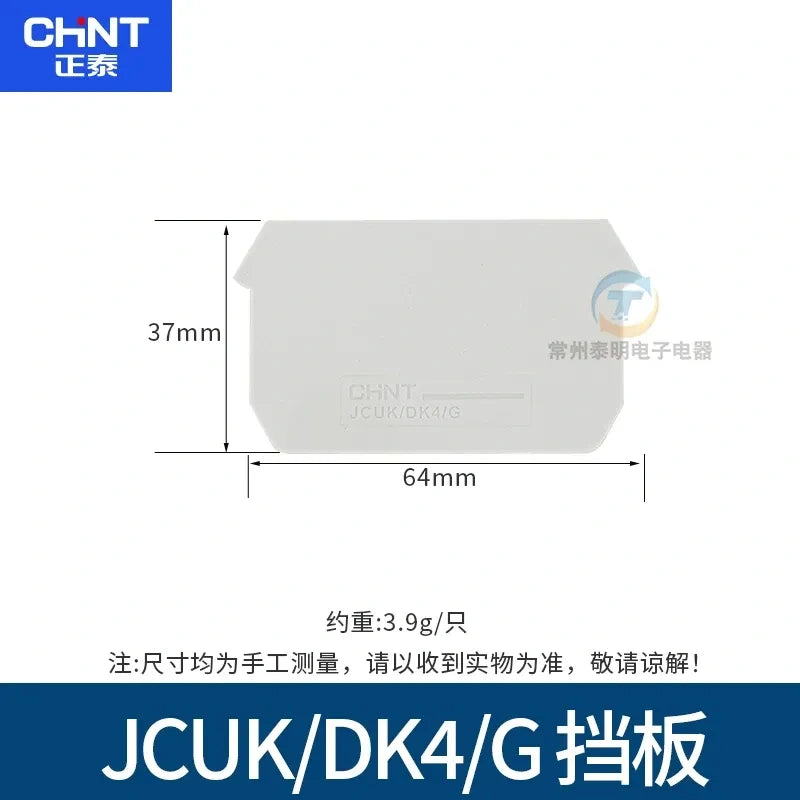

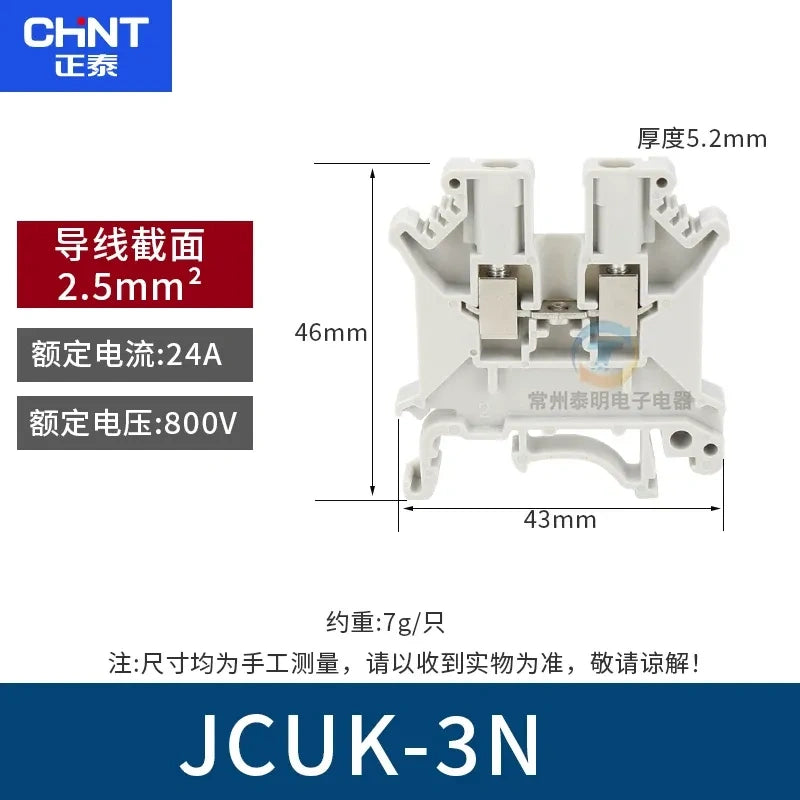

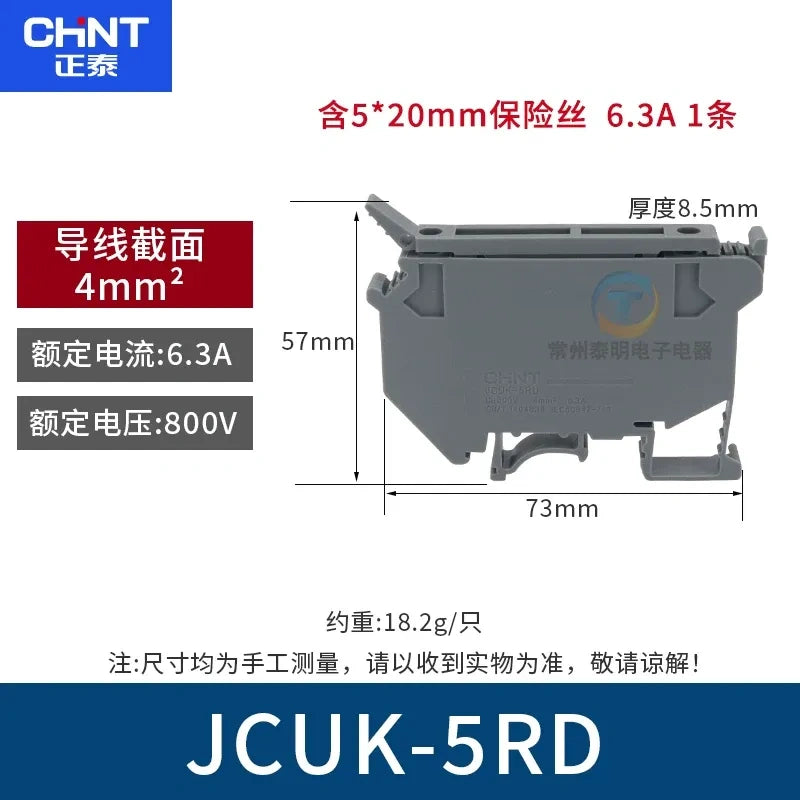

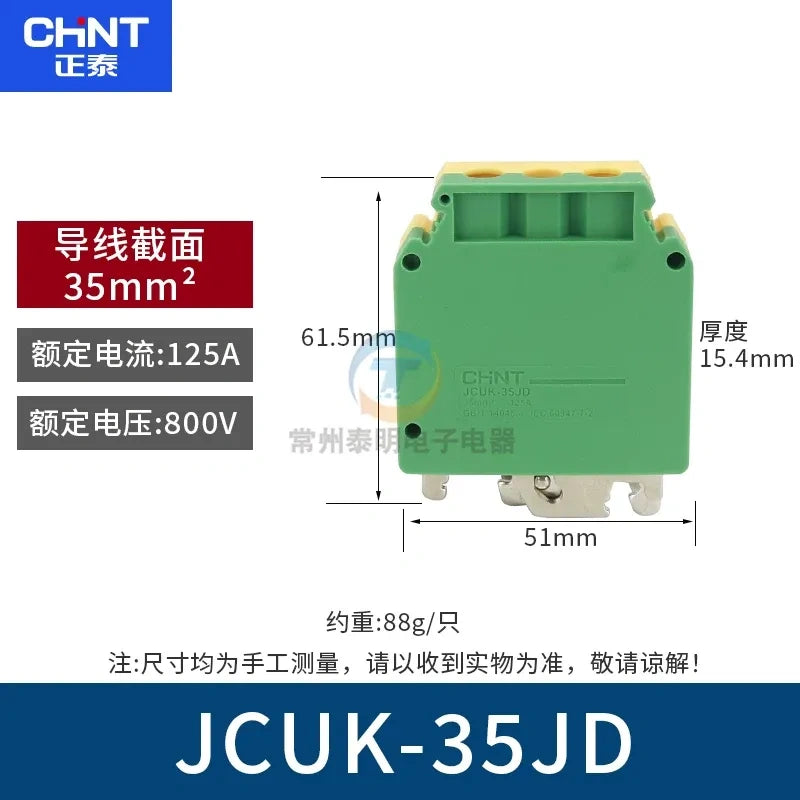

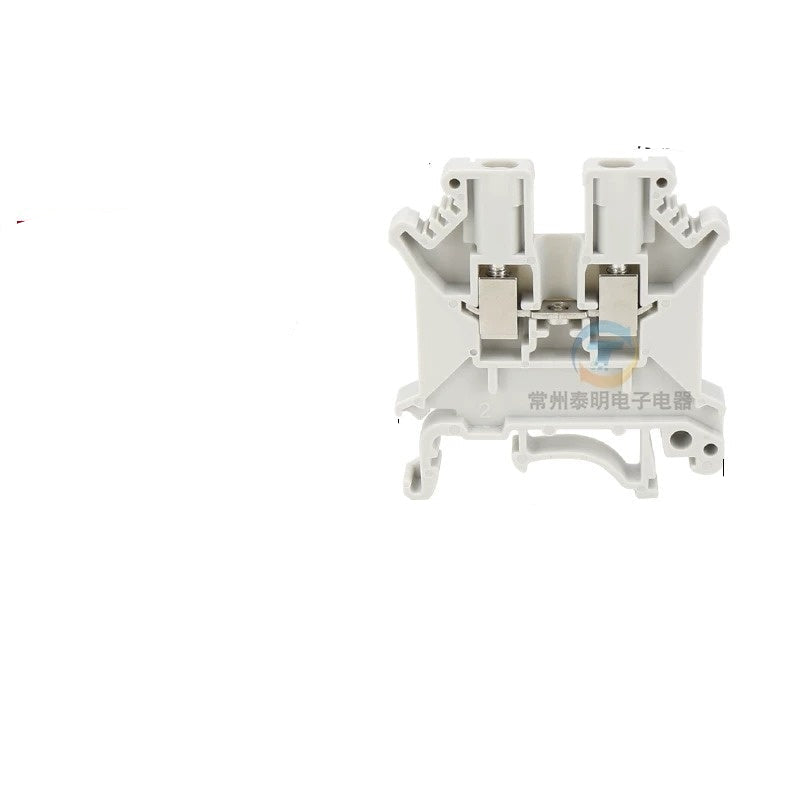

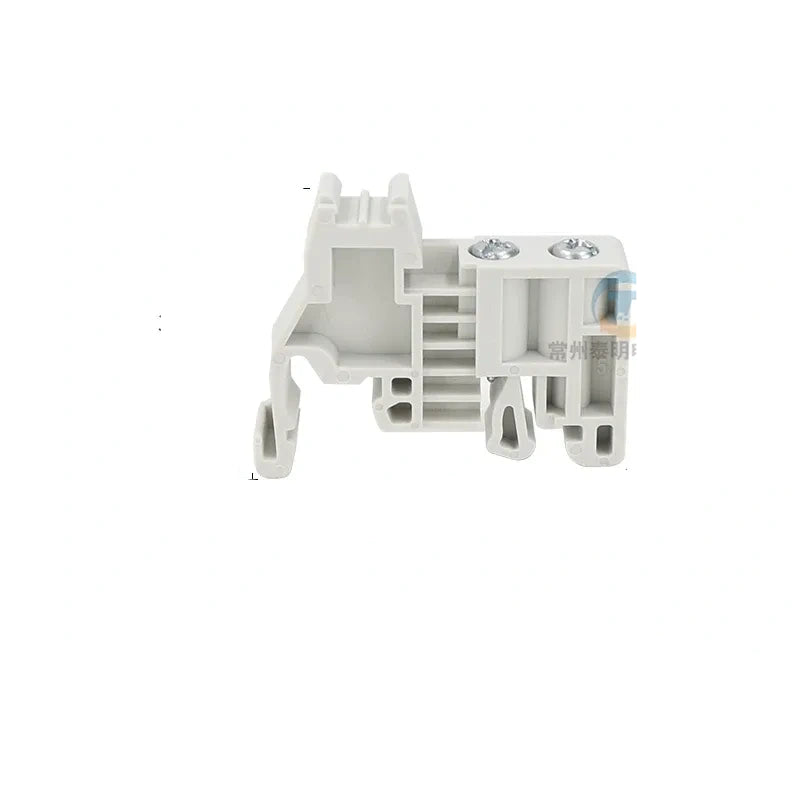

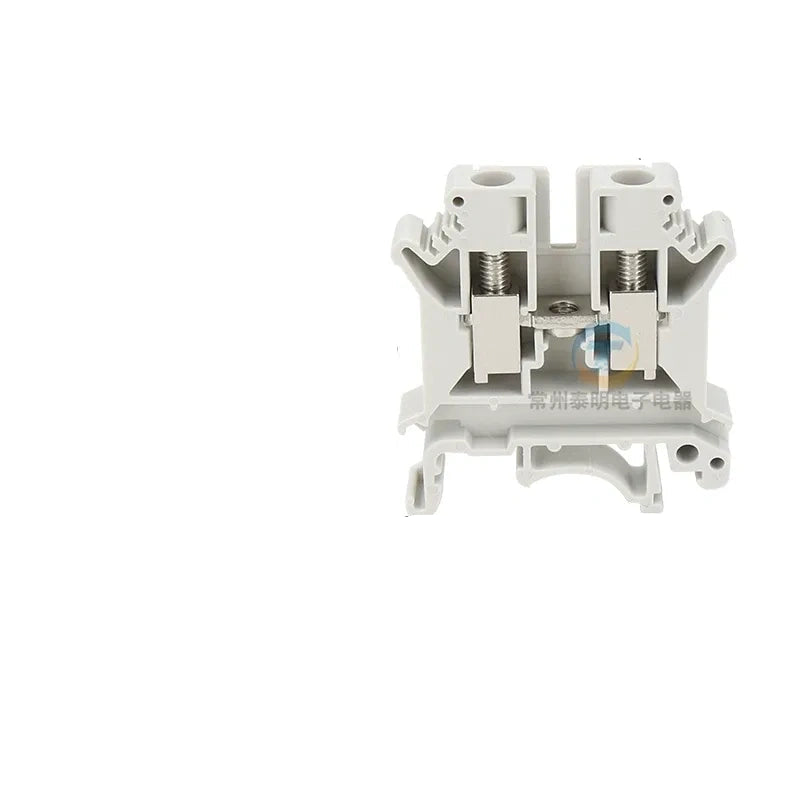

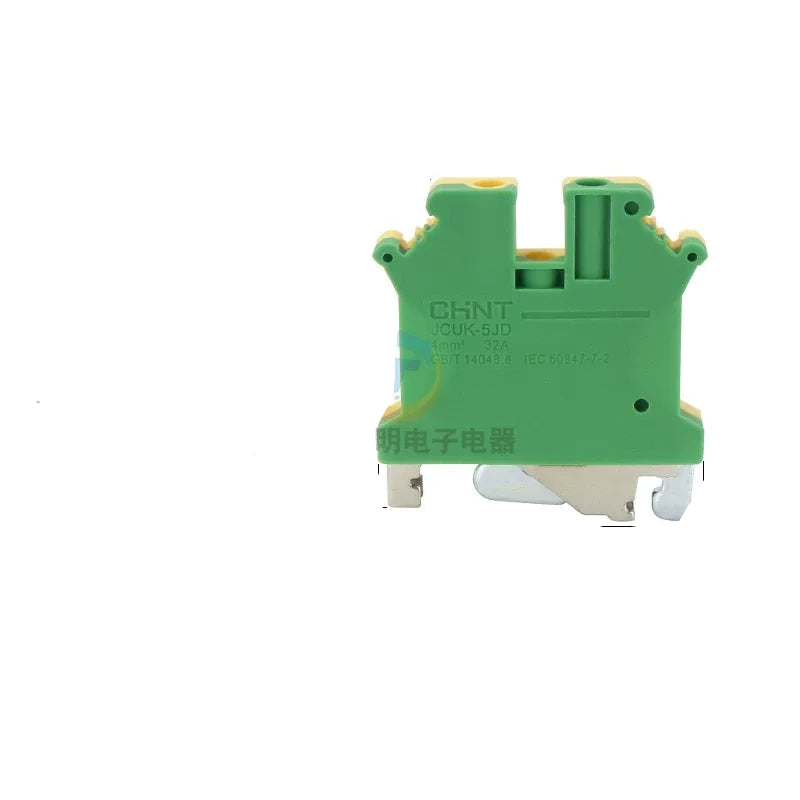

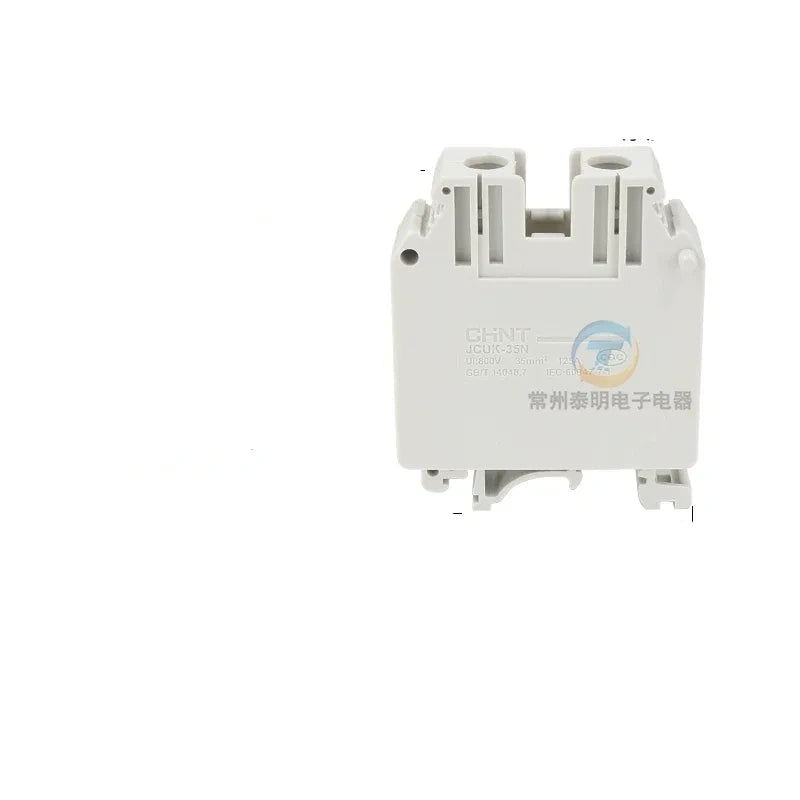

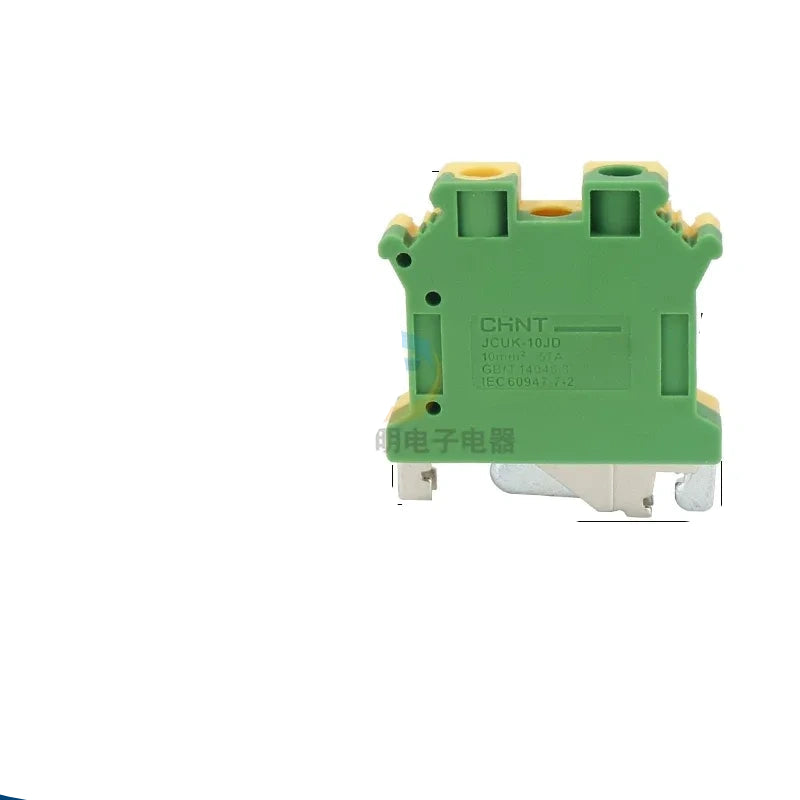

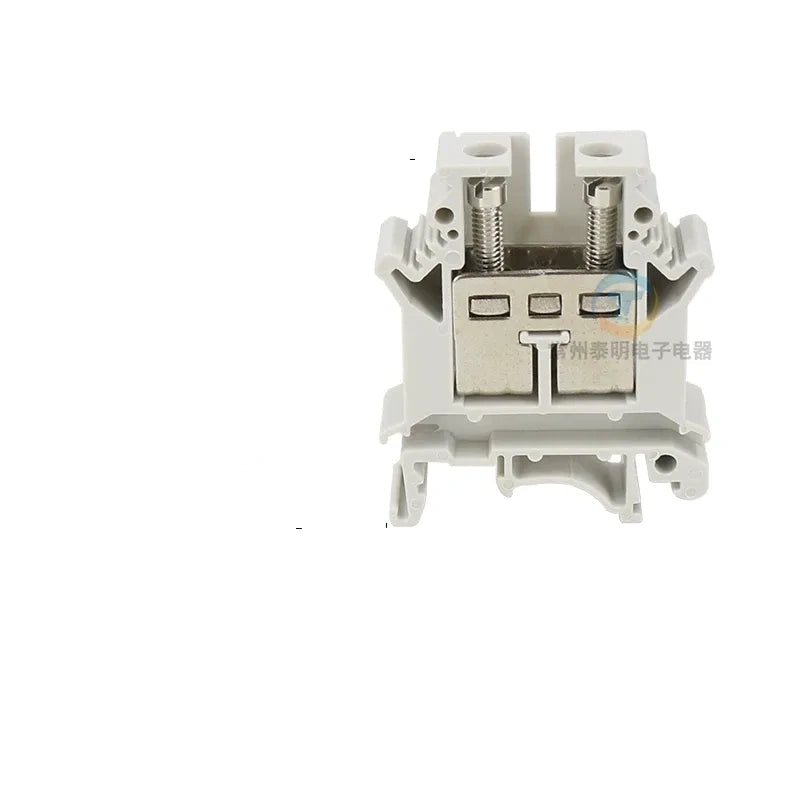

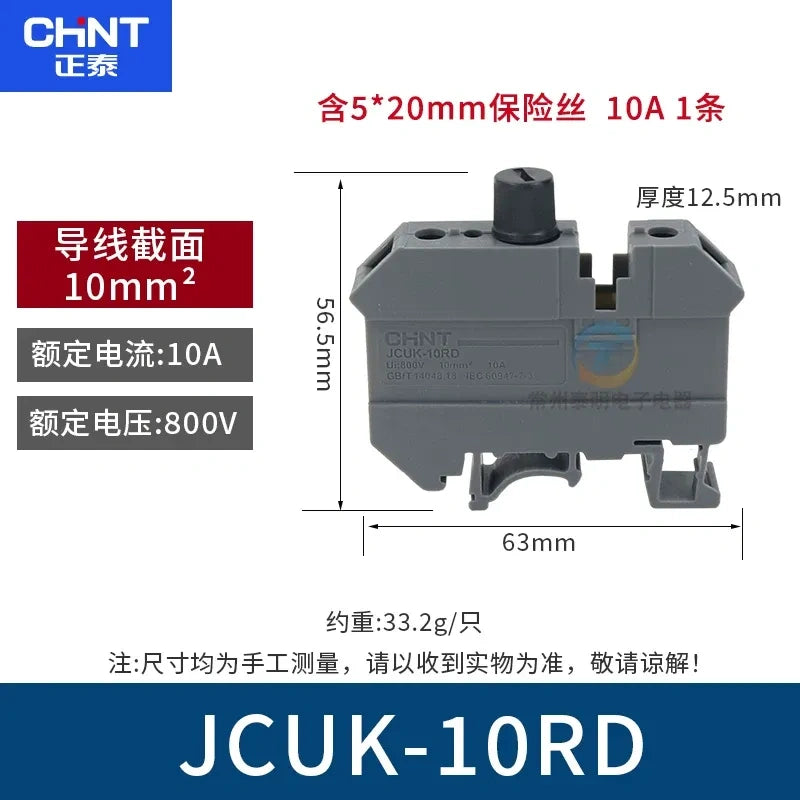

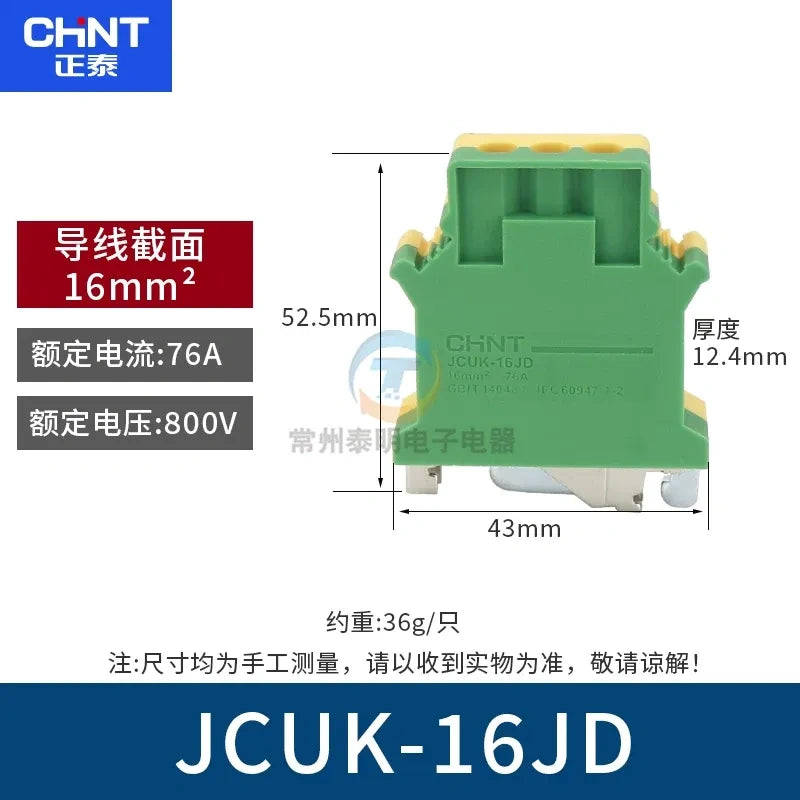

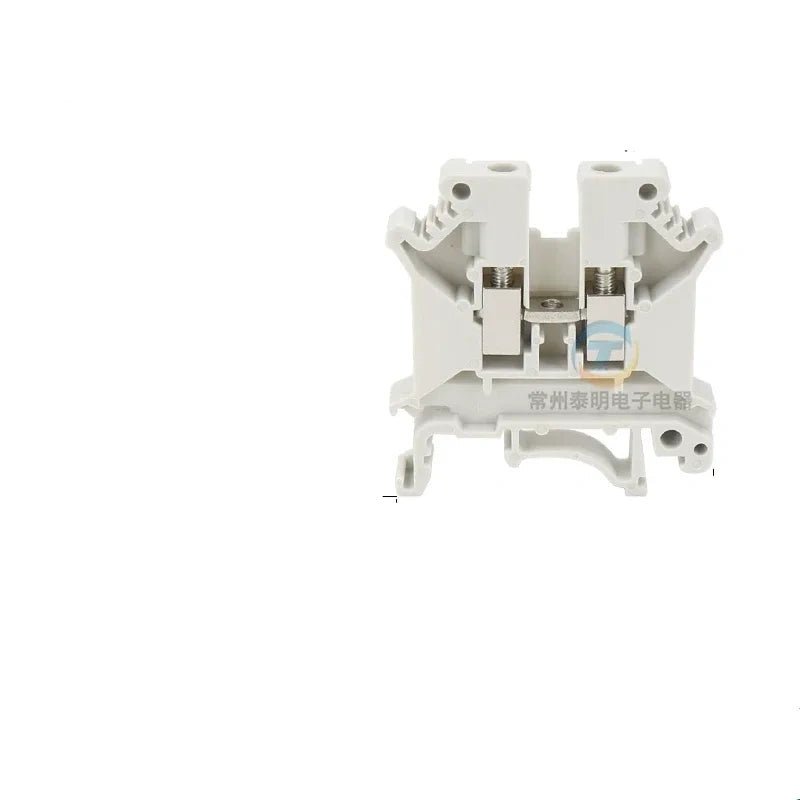

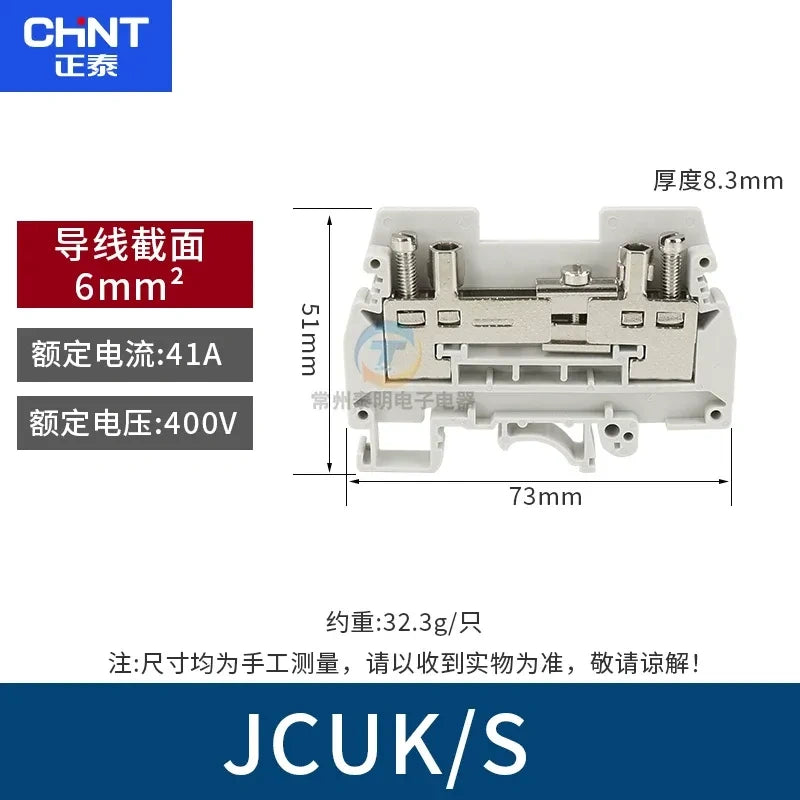

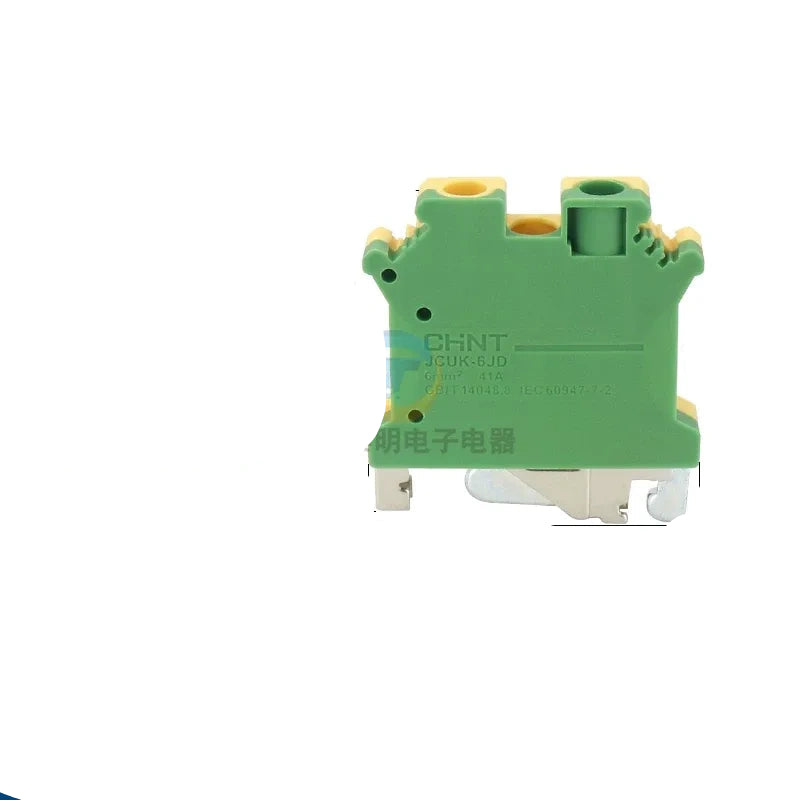

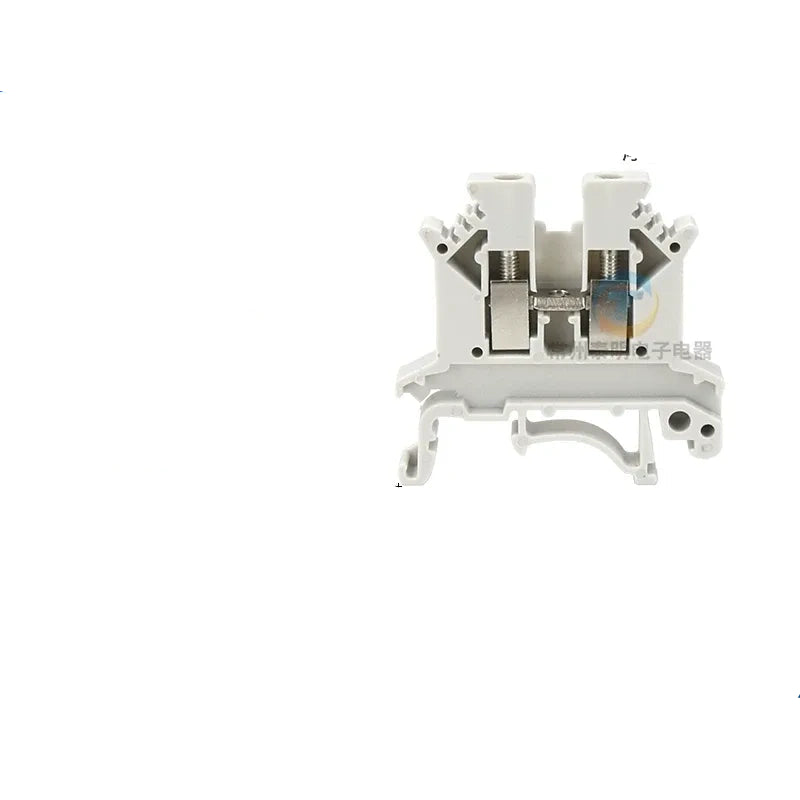

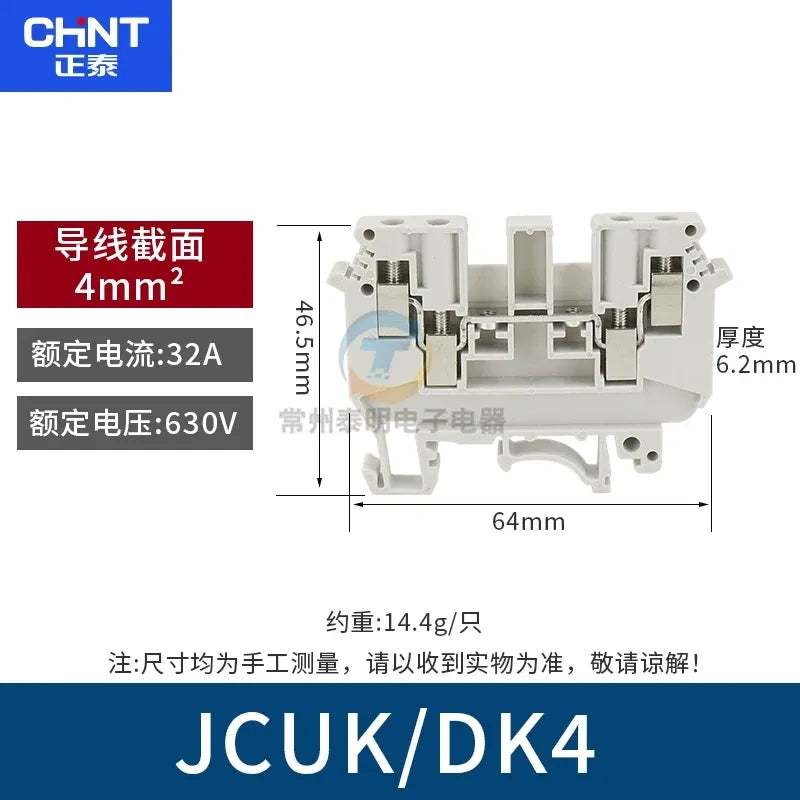

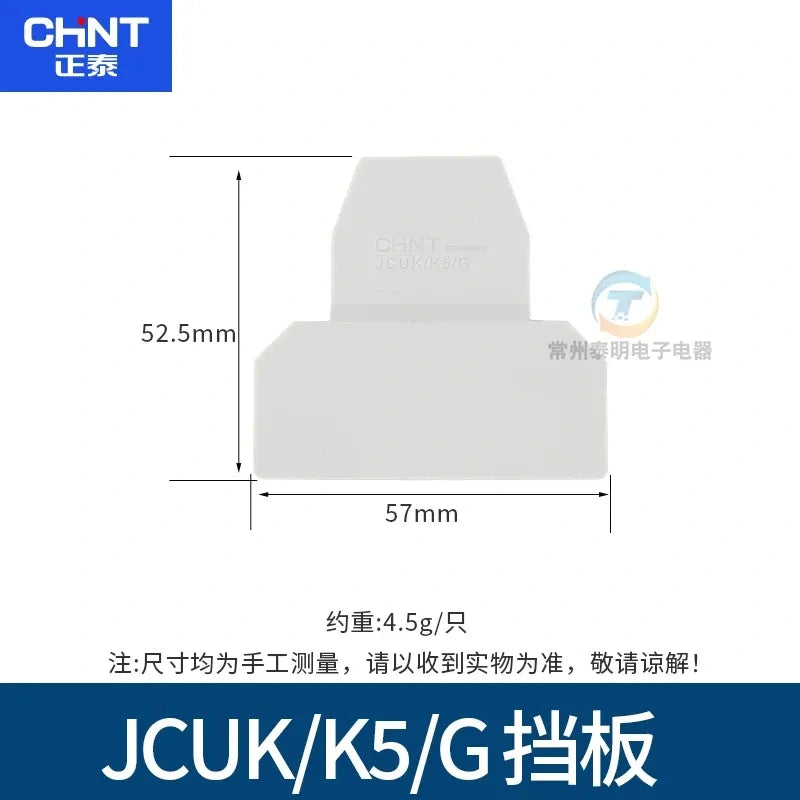

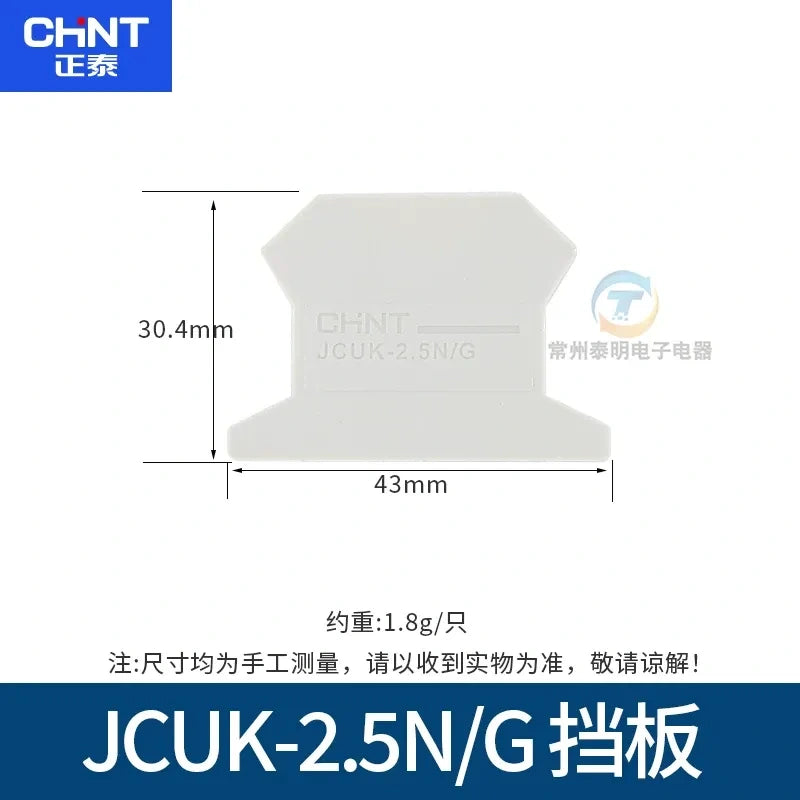

Core Types	1.Standard N:2.5N(2.5mm²/24A)、3N、5N(4mm²/32A)、6N(6mm²/41A)、10N(10mm²/57A)、16N(16mm²/76A)、35N(35mm²/125A) 2.JD Earth Terminal:5JD/6JD/10JD/16JD/35JD（黄绿接地端子） 3.RD Fuse Terminal:5RD/10RD（内置保险丝） 4.Double Layer:DK4/K5/S double-row terminal 5.Accessory:Isolation baffles for each model
Wire Cross-section	2.5mm²/4mm²/6mm²/10mm²/16mm²/35mm²
Rated Current	24A~125A by different size
Rated Voltage	Up to AC1000V,50/60Hz
Housing Material	Flame Retardant PA66 Nylon, high toughness anti-crack
Mounting	Standard TH35 35mm DIN Rail
Compliance Standard	IEC60947-7-1、GB/T14048.7
Application	Control cabinet, distribution box, automation equipment, wiring harness junction
