CHNT F4/F5 Auxiliary Contact Attachment NO NC Auxiliary Switch
Regular price
Dhs. 50.00 AED
Regular price
Sale price
Dhs. 50.00 AED
Unit price
per
Shipping calculated at checkout.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Couldn't load pickup availability

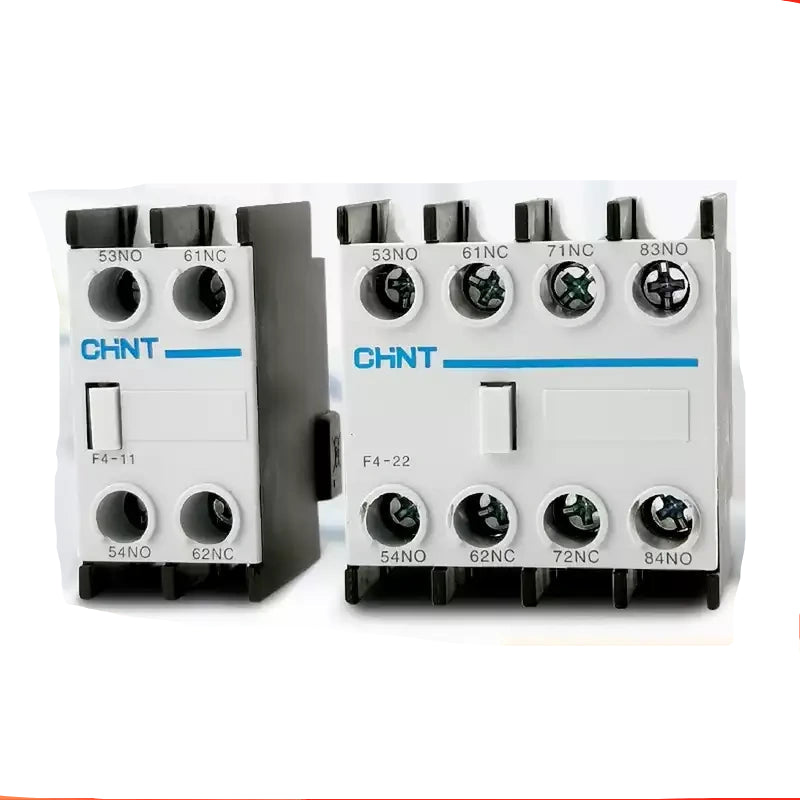

CHNT F4 Auxiliary Contact Block F4-11/F4-02/F4-20/F4-22/F4-31/F4-13/F4-40 & F5 Air Delay Head Fit CJX2 AC Contactor, Auxiliary Contact Attachment NO NC Auxiliary Switch
DESCRIPTION
Original CHNT F4 series auxiliary contact block & F5 pneumatic delay head, perfectly compatible with CJX2 series AC contactors.
F4 Auxiliary Contact full specs:
F4-11(1NO+1NC), F4-02(2NC), F4-20(2NO), F4-22(2NO+2NC), F4-31(3NO+1NC), F4-13(1NO+3NC), F4-40(4NO); Rated thermal current 10A, insulation voltage 660V.
F5 Delay Head: F5-D0/D2(Delay-on-break), F5-T0/T2(Delay-on-make), adjustable delay time 0.1s~30s, used for time-delay control, signal interlock & circuit expansion on contactor control system for automation, pump, motor control cabinet.
- Full Range Contact Combination:7 kinds of F4 auxiliary contacts from 2NC~4NO+NC combinations, freely expand contactor auxiliary points for various interlock circuit design.
- Optional Pneumatic Delay Attachment:F5 series on-delay & off-delay timing heads, adjustable 0.1~30s delay, realize automatic sequential control for motor and equipment startup/shutdown.
- Perfect Match CJX2 Contactor:Direct snap-on installation to CJX2 AC contactor top, no extra wiring modification needed, easy field assembly.
- High Electrical Rating:10A rated thermal current & 660V insulation voltage, durable for long-term frequent switching in industrial control cabinet.
- Wide Application:Fit for water pump, fan, conveyor motor control, PLC cabinet auxiliary signal conversion, building automation sequential circuit control.
Specification
| ITEM | VALUE |
|---|---|
| Brand | CHNT |
| Product Series | F4 Auxiliary Contact Block + F5 Pneumatic Air Delay Head |
| F4 Contact Models
|
F4-11:1NO+1NC
|
| F5 Delay Type | F5-T0/T2: Power-on Delay???F5-D0/D2: Power-off Delay
|
| Rated Thermal Current | 10A |
| Rated Insulation Voltage | 660V |
| Compatible Contactor | CJX2 series AC contactor |
| Certification | 3C Approved |
| Application | AC contactor auxiliary circuit expansion, motor/pump interlock control, automation equipment time delay switching |
