CHINT ELECRTIC

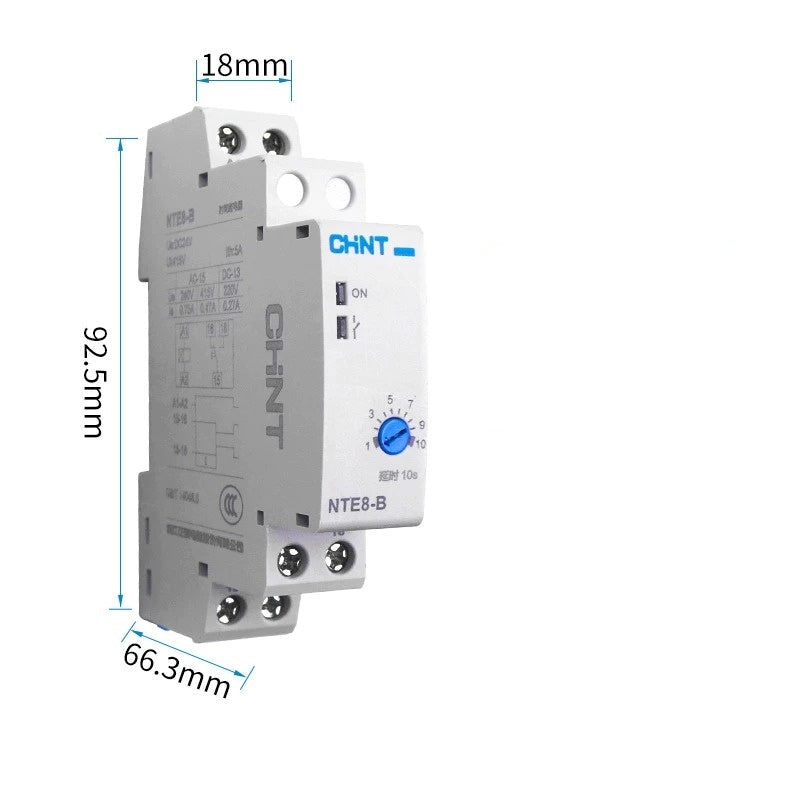

CHINT NTE8 Series DIN Rail Time Delay Relay NTE8A/NTE8B

Dhs. 71.00 AED
Dhs. 71.00 AED
Sale Sold out
Shipping calculated at checkout.
Model NO.
Voltage
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

CHINT NTE8 Series DIN Rail Time Delay Relay NTE8A Break Delay / NTE8B Power On Delay Adjustable 1~480S AC220V DC24V Single Contact Timer Relay

Product Overview

CHINT NTE8 modular DIN-rail mounted time relay has two working types:
  • NTE8A: Signal Break Delay (not power-off delay) with 1NO contact
  • NTE8B: Power-on Delay with 1CO (1NO+1NC changeover contact)

    3 standard adjustable timing ranges: 1~10s / 12~120s / 48~480S, coil voltage: AC220V / DC24V, standard 35mm DIN rail installation, flame retardant housing with CCC certification.

Option Buttons English Translation

NTE8B Power-On Delay Type

  1. B Power On Delay 1-10S → NTE8B Power On Delay 1~10 Seconds
  2. B Power On Delay 12-120S → NTE8B Power On Delay 12~120 Seconds
  3. B Power On Delay 48-480S → NTE8B Power On Delay 48~480 Seconds

NTE8A Signal Break Delay Type

  1. A Break Delay 1-10S → NTE8A Signal Break Delay 1~10 Seconds
  2. A Break Delay 12-120S → NTE8A Signal Break Delay 12~120 Seconds
  3. A Break Delay 48-480S → NTE8A Signal Break Delay 48~480 Seconds

Coil Voltage Options

  • AC220V → AC 220VAC
  • DC24V → DC 24VDC

Core Technical Parameter

Item Spec
Model NTE8A(Break Delay) / NTE8B(Power On Delay)
Delay Range 1~10s / 12~120s / 48~480s
Rated Coil Voltage AC220V / DC24V
Contact Spec NTE8A:1NO; NTE8B:1CO(1NO+1NC)
Contact Rating AC240V/0.75A, AC415V/0.47A; DC220V/0.27A, Ith=5A
Reset Time ≤1s
Mount 35mm DIN Rail Mount
Ambient Temp -5℃~+40℃
Electrical Life 100,000 operations; Mechanical Life:1,000,000 operations
Housing Flame retardant & durable plastic



Key Features

  1. Two Control Logic: NTE8B standard power-on delay; NTE8A signal break delay (delay runs after input signal cuts off, not power cut off).
  2. Compact DIN Rail Design: Slim modular size for cabinet standard rail installation, save panel space.
  3. Wide Adjustable Timing: Three full-range time specs cover short/medium/long delay automation needs.
  4. High Anti-flame Shell: Fire retardant material, stable performance for long-term industrial running.

Application

Home appliance lighting control, industrial automation equipment, new energy wind power equipment, communication cabinet sequential control & timing protection.
