CHINT NC1 AC Magnetic Contactor 09A~95A
Regular price
Dhs. 60.00 AED
Regular price
Dhs. 71.00 AED
Sale price
Dhs. 60.00 AED
Unit price
per
Shipping calculated at checkout.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Couldn't load pickup availability

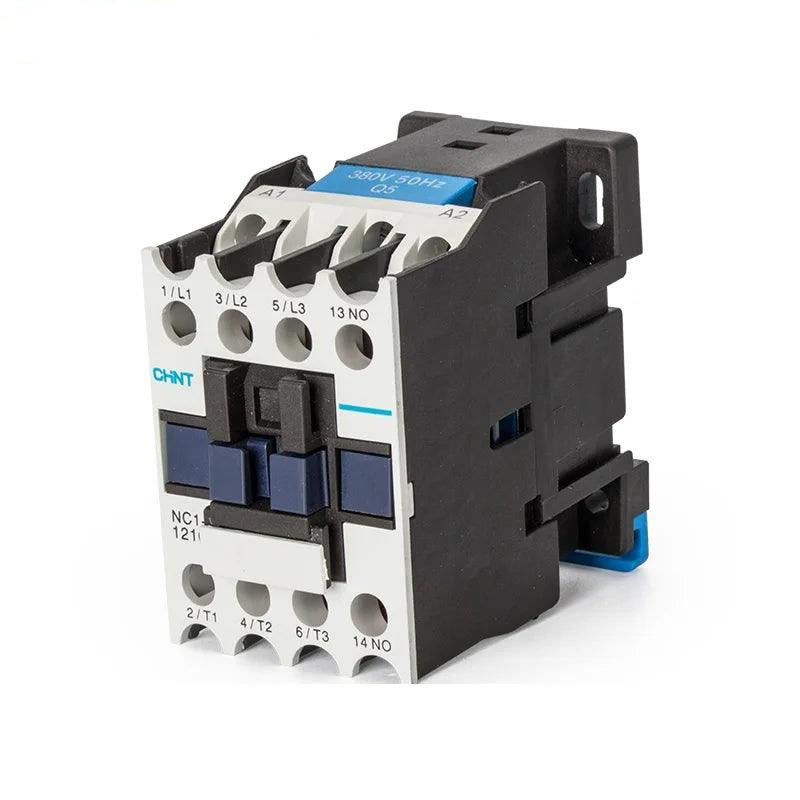

Original CHINT NC1 AC Magnetic Contactor 09A~95A AC220V/380V 1NO/1NC/1NO+1NC Auxiliary DIN Rail Motor Control Contactor
Product Description
Genuine CHINT NC1 series AC coil magnetic contactor, equivalent to CJX2 type, current range 09A/12A/18A/25A/32A/40A/50A/65A/80A/95A, coil voltage AC220V & AC380V optional. Auxiliary contact options:1NO(10),1NC(01),1NO+1NC(11). Silver alloy anti-welding main contacts, UL94-V0 flame retardant housing, standard 35mm DIN rail installation. Widely used for AC motor, solenoid valve, heater load switching in automation control cabinet, conforms to IEC60947-4-1 & CCC certification, stable performance for long-term continuous operation.
Key:Value
brand:CHINT
brand_origin:China
product_category:AC Magnetic Contactor
sub_category:CJX2 Equivalent NC1 Contactor
model_series:NC1
available_models:NC1-0910,NC1-0901,NC1-1201,NC1-1210,NC1-1810,NC1-1801,NC1-2510,NC1-3210,NC1-4011,NC1-5011,NC1-6511,NC1-8011,NC1-9511
coil_voltage:AC220V,AC380V
rated_current:9A,12A,18A,25A,32A,40A,50A,65A,80A,95A
auxiliary_contact_type:1NO / 1NC / 1NO+1NC
main_circuit_rating:AC-3 400V
installation:35mm DIN Rail Mount
housing_material:UL94-V0 Flame Retardant Plastic
contact_material:Silver Alloy Anti-Arc Contact
core_feature1:Low noise AC coil,stable against voltage fluctuation
core_feature2:Arc resistant contact to avoid welding failure
core_feature3:Compact modular design for cabinet wiring
application:AC Motor,Solenoid Valve,Heating Device,Industrial Automation Control Cabinet
certification:CCC,IEC60947-4-1,GB14048.4
condition:Original New Genuine
Full Model Parameter Table (AC 220V Standard Coil, Item No. = MPN)
| MPN / MODEL NO. | Item No. | AC-3 Rated Current | Main Pole | Built-in Aux Contact | Matching Thermal Relay |
|---|---|---|---|---|---|
| NC1-0910 | NC1-0910 | 9A | 3NO | 1NO | NR2-09 Series |
| NC1-0901 | NC1-0901 | 9A | 3NO | 1NC | NR2-09 Series |
| NC1-1210 | NC1-1210 | 12A | 3NO | 1NO | NR2-12 Series |
| NC1-1201 | NC1-1201 | 12A | 3NO | 1NC | NR2-12 Series |
| NC1-1810 | NC1-1810 | 18A | 3NO | 1NO | NR2-18 Series |
| NC1-1801 | NC1-1801 | 18A | 3NO | 1NC | NR2-18 Series |
| NC1-2510 | NC1-2510 | 25A | 3NO | 1NO | NR2-25 Series |
| NC1-2501 | NC1-2501 | 25A | 3NO | 1NC | NR2-25 Series |
| NC1-3210 | NC1-3210 | 32A | 3NO | 1NO | NR2-32 Series |
| NC1-3201 | NC1-3201 | 32A | 3NO | 1NC | NR2-32 Series |
| NC1-4011 | NC1-4011 | 40A | 3NO | 1NO+1NC | NR2-36 Series |
| NC1-5011 | NC1-5011 | 50A | 3NO | 1NO+1NC | NR2-36 Series |
| NC1-6511 | NC1-6511 | 65A | 3NO | 1NO+1NC | NR2-36 Series |
| NC1-8011 | NC1-8011 | 80A | 3NO | 1NO+1NC | NR2-93 Series |
| NC1-9511 | NC1-9511 | 95A | 3NO | 1NO+1NC | NR2-93 Series |
Common AC Coil Voltage Suffix Options
- AC24V, AC36V, AC48V, AC110V, AC220V, AC380V (50/60Hz universal)
- DC coil version add suffix Z: e.g. NC1-0910Z
