BL-2838 DC Brushless Vibration Motor 12V 24V, Built-in Driver, 3000~12000rpm PWM Speed Control, Forward & Reverse

Dhs. 127.00 AED
Dhs. 127.00 AED
Sale Sold out
Shipping calculated at checkout.
Motor Speed
Motor Voltage & Wire Type
Shaft Extension
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Free Shipping on Orders $30+

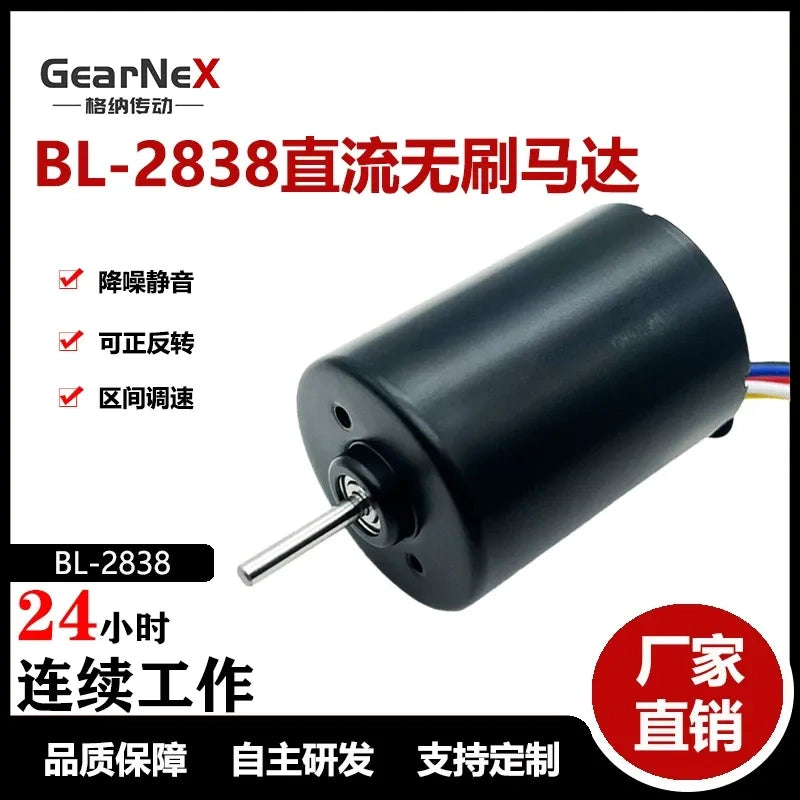

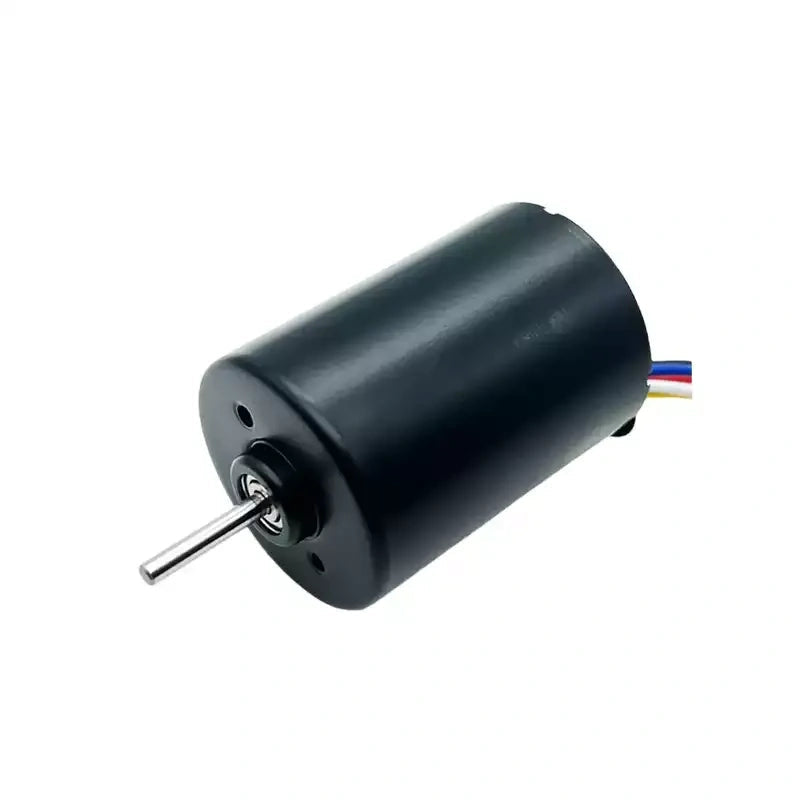

BL-2838 DC Brushless Vibration Motor 12V 24V, Built-in Driver, PWM Speed Control, Forward & Reverse, Small BLDC Vibration Motor, Replacement for 385 Motor


Product Description

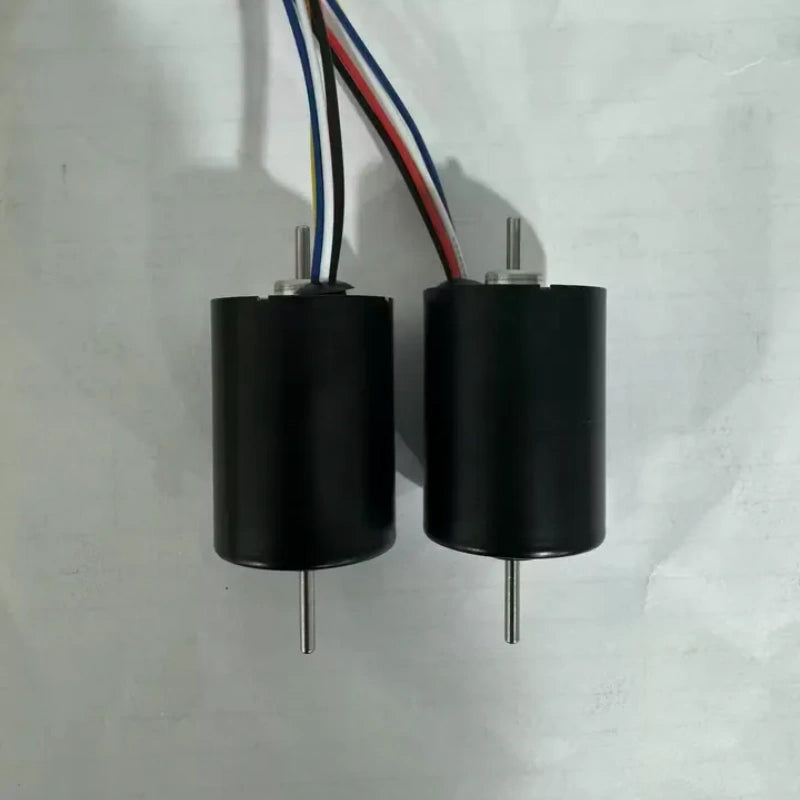

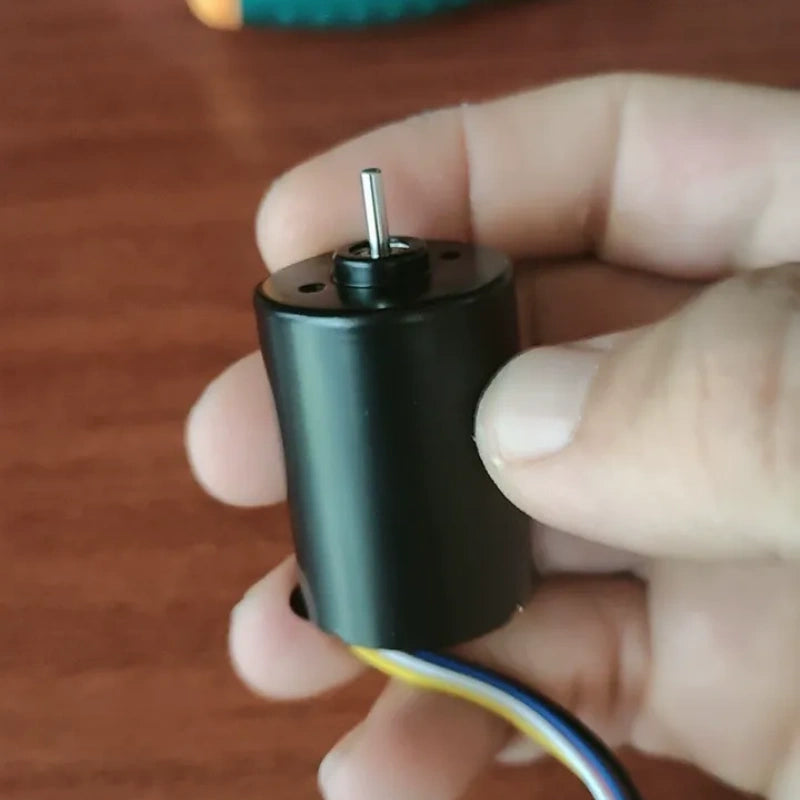

The BL-2838 small DC brushless vibration motor comes with integrated built-in driver, supporting PWM speed regulation and forward/reverse rotation. Available in dual voltage options: 12V / 24V. Multiple no-load speed options from 3000rpm up to 12000rpm. Output shaft length optional:10.5mm,15mm; available in 5-wire /6-wire versions for different control needs.

Rated power:9.91W, net weight approx 112g. It adopts pure copper coil and high-strength magnetic rotor, matched with ball bearing for stable rotation, low heat and long service life.
Widely used in CNC machine tools, laser cutting equipment, food packaging machinery, textile machinery, robotic manipulators, medical instruments, semiconductor equipment, automation control systems and other precision industrial applications.

Core Advantages

✅ Built-in driver, simple wiring

✅ PWM adjustable speed & reversible rotation

✅ Pure copper winding, stable output

✅ Compact size, light weight, low noise

✅ Multiple speed & shaft length selections

✅ 12V/24V wide voltage support

Wire Sequence & Function Description

Please read carefully before using the product

Red Wire: Motor Power Positive + (DC 12V–24V). Do NOT miswire
Black Wire: Motor Power Negative − (DC 12V–24V). Do NOT miswire
Yellow Wire: Speed Feedback Signal (6 pulses per rotation. Max low level:0.6V; High level:4V ~ 5.6V)
Orange Wire: Motor Direction Control Input Signal (Forward rotation when connected together with black negative wire)
White Wire: PWM Speed Control Signal for motor speed regulation (Compatible with 0–5V speed controller)
Green Wire: Motor Brake Signal Input Control (Brake triggered at low level, max 0.6V)
⚠️ WARNING: Never reverse positive and negative power supply. Signal wires must NOT connect to power. Warranty void if miswired!

Specification

Attribute Value
Product Model BL-2838
Motor Type DC Brushless Vibration BLDC Motor
Rated Voltage 12V / 24V
Rated Power 9.91W
No-load Speed 3000~12000 RPM optional
Function PWM Speed Control, Forward & Reverse Rotation, Vibration
Wire Type 5 Wire / 6 Wire

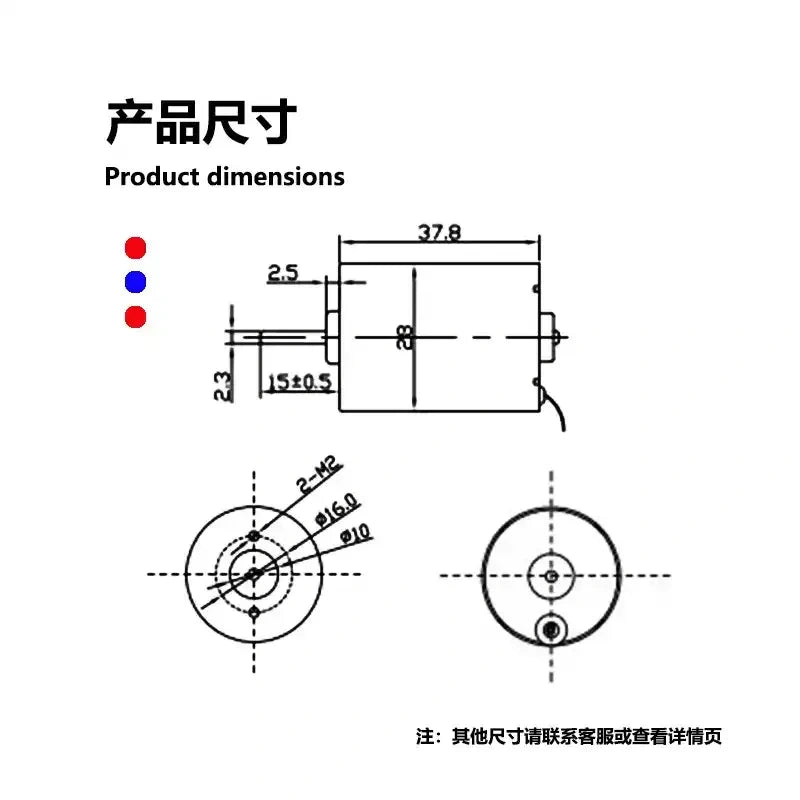

Output Shaft Length 10.5mm /15mm
Material Pure Copper Coil, High Strength Magnetic Tile, Ball Bearing
Net Weight 112g
Feature Built-in driver, compact, low heat, high temperature resistant
Application Medical device, packaging, robotics, CNC, automation equipment

FAQ

1: What functions does BL-2838 brushless vibration motor have?

A: It supports PWM speed adjustment, forward and reverse rotation, with built-in driver.
Q2: What voltage options for BL-2838 motor?

A: 12V and 24V two voltage versions.
Q3: What is the net weight of BL-2838?

A: Approximately 112 grams.
Q4: Can I select different output shaft lengths?

A: Yes, optional 10.5mm and 15mm shaft length.
Q5: What wire versions are available?

A: 5 wire and 6 wire for selection.
Q6: What industries use this small brushless vibration motor?

A: Medical instruments, packaging machinery, robotic arms, CNC, automation and precision equipment
medical equipment etc.
