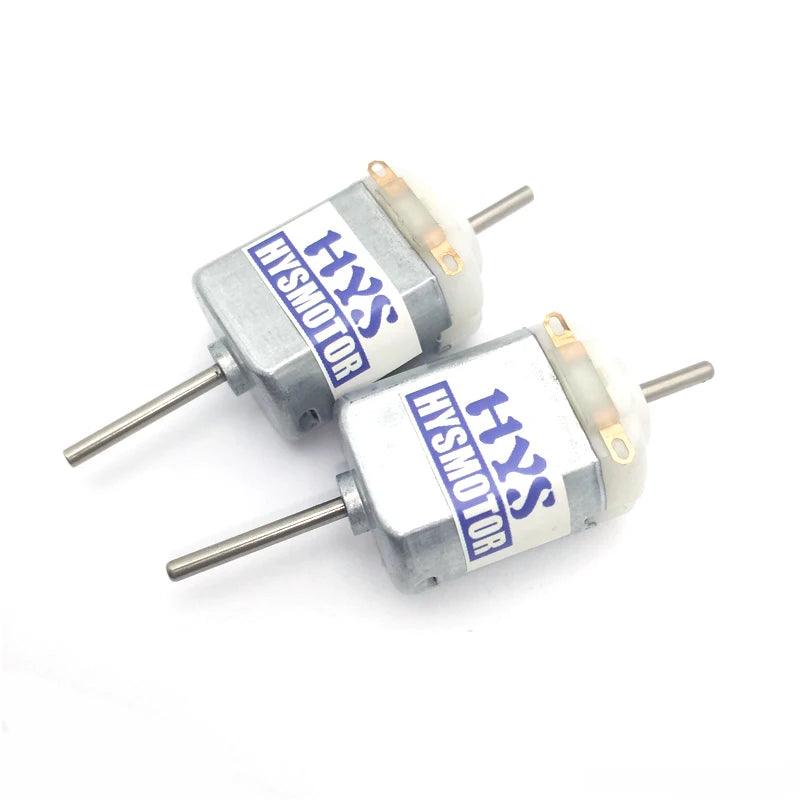

5pcs 1.5-12V DC Strong Magnetic Axis Carbon Brush 130 Motor 6V 12V 3000/5400RPM Toy Motor TOP Quality DIY

SPECIFICATIONS

5pcs 1.5-12V DC Strong Magnetic Axis Carbon Brush 130 Motor 6V 12V 3000/5400RPM Toy Motor TOP Quality DIY

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brush

Type: Micro Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: 130 motor

The 130 motor can be used as a hand-cranked generator or a wind-driven generator. It can turn on 3vled lamps with one hand directly, and the power generation efficiency is high. In addition, the motor can also be connected to a solar panel and be powered by solar energy. Moreover, the motor brush is a carbon brush, which can be powered on for a long time, with wear resistance and long life.

Working voltage: DC 1.5V-12V

Reference speed: 3000RPM (6V), 5400RPM (12V)

Reference current: at 3V, no-load current 30MA, locked rotor current 90ma

Motor size: length 25 * thickness 20 * height 15mm

Motor shaft diameter: 2mm

Out shaft length: 19mm at the front end, 9mm at the rear end

Motor weight: about 18.45g
