555 DC Gear Motor 12V/24V 5-160RPM 7-Shape
Regular price
Dhs. 156.00 AED
Regular price
Dhs. 175.00 AED
Sale price
Dhs. 156.00 AED
Unit price
per
Shipping calculated at checkout.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Couldn't load pickup availability

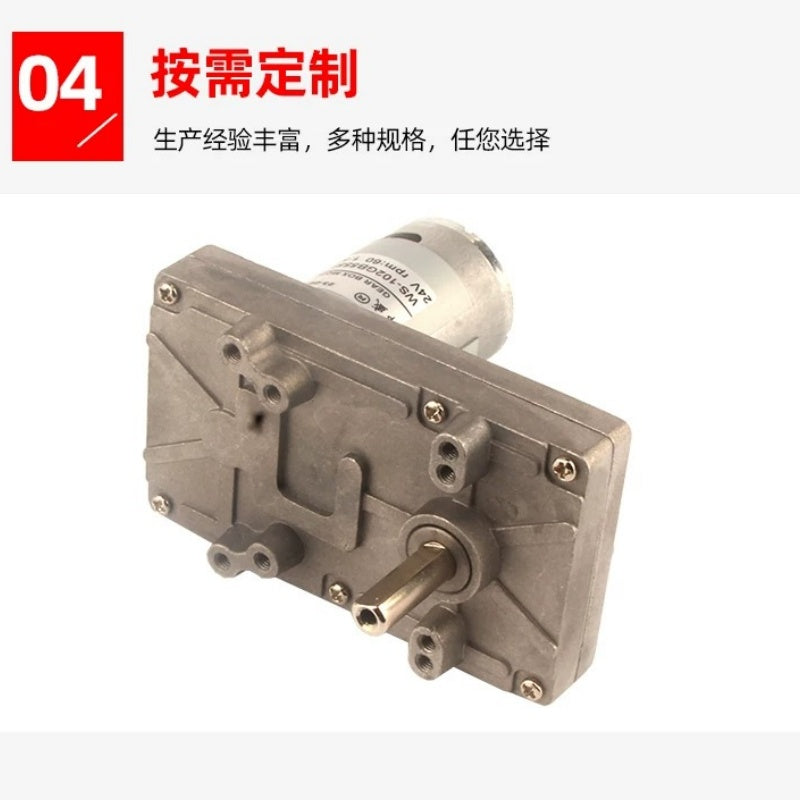

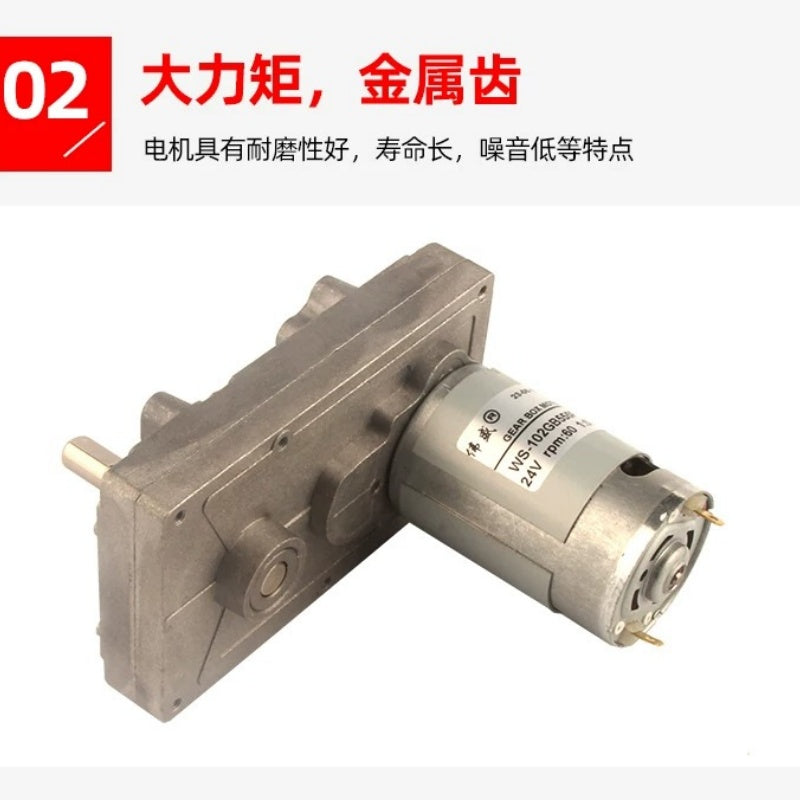

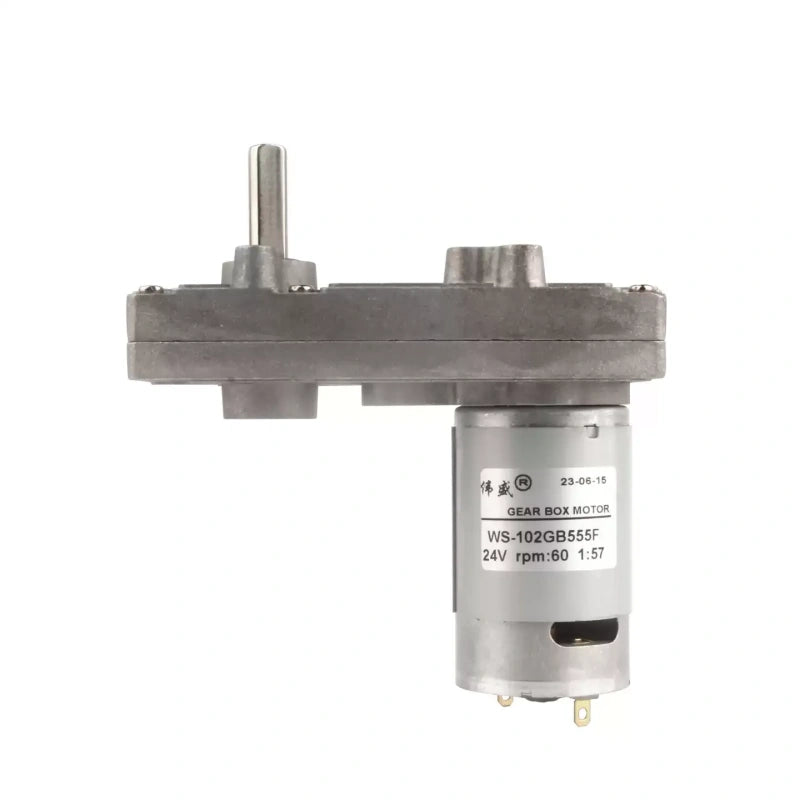

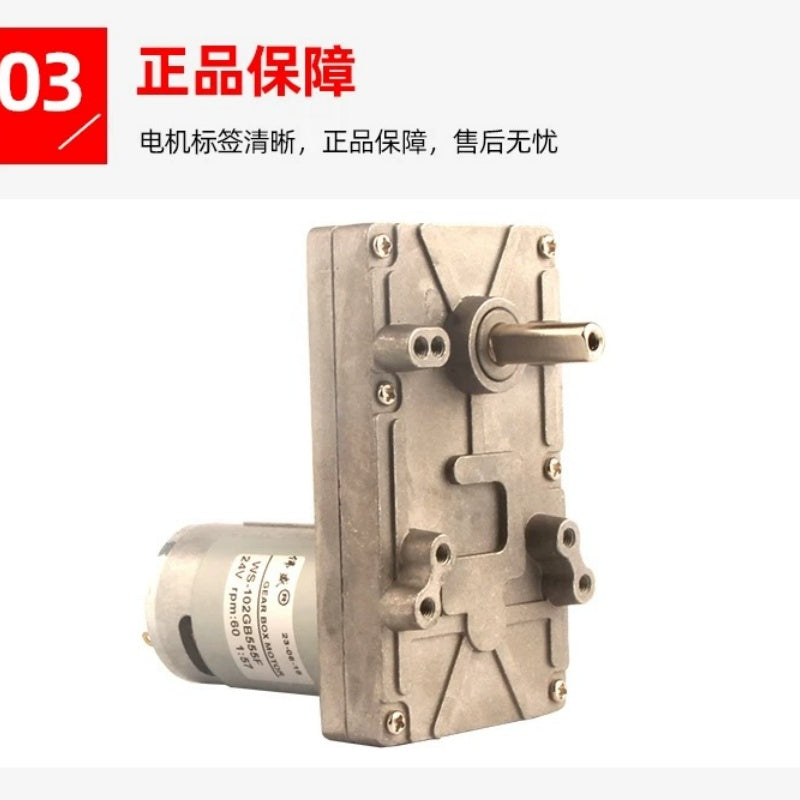

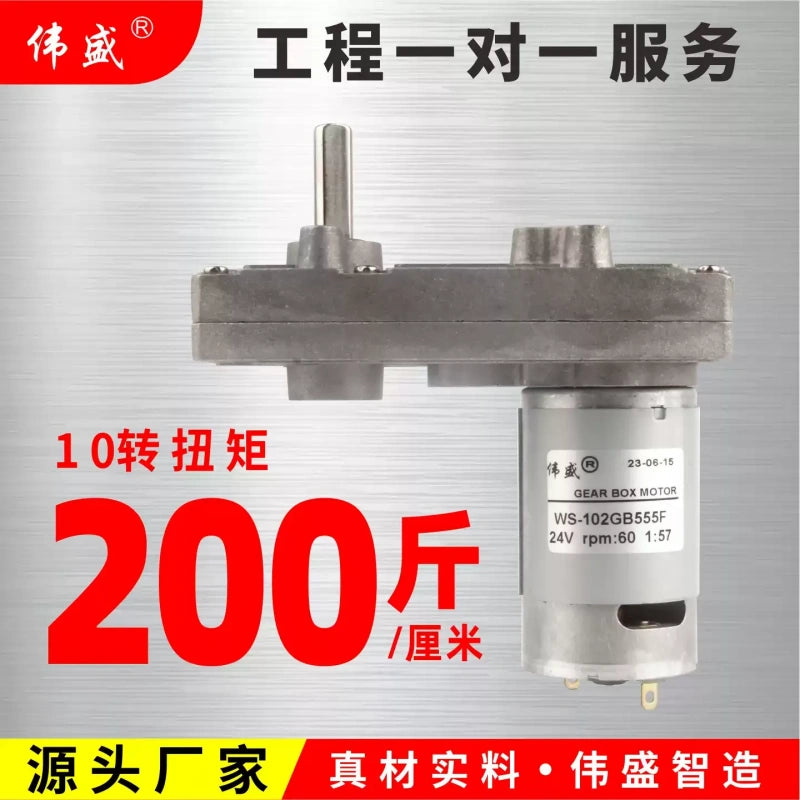

102GB555F 555 DC Gear Motor 12V/24V 5-160RPM 7-Shape Metal Gear Motor for Vending Machine
Product Description
102GB555F 7-shape DC gear motor with metal gears, 12V/24V options, speeds from 5RPM to 160RPM. High torque, reversible, speed-controllable, ideal for vending machines, game consoles, and automation projects.??
Specification
| ????€???? | ?????? |
|---|---|
brand |
Generic / OEM |
model |
102GB555F |
type |
7-Shape DC Gear Motor |
rated voltage |
12V / 24V DC |
speed options (RPM) |
12V: 5, 10, 20, 30, 45, 80
|
structure |
7-shaped gearbox (offset shaft) |
motor type |
555 DC motor, all-copper winding |
gear material |
Metal gears (impact-resistant) |
magnet type |
High-quality magnetic tiles (high torque) |
features |
Reversible, speed-controllable, high torque, low noise |
application |
Vending machines, game consoles, automation equipment, DIY projects |
options |
Motor only / Motor + mounting bracket |
warranty |
1 year |
??

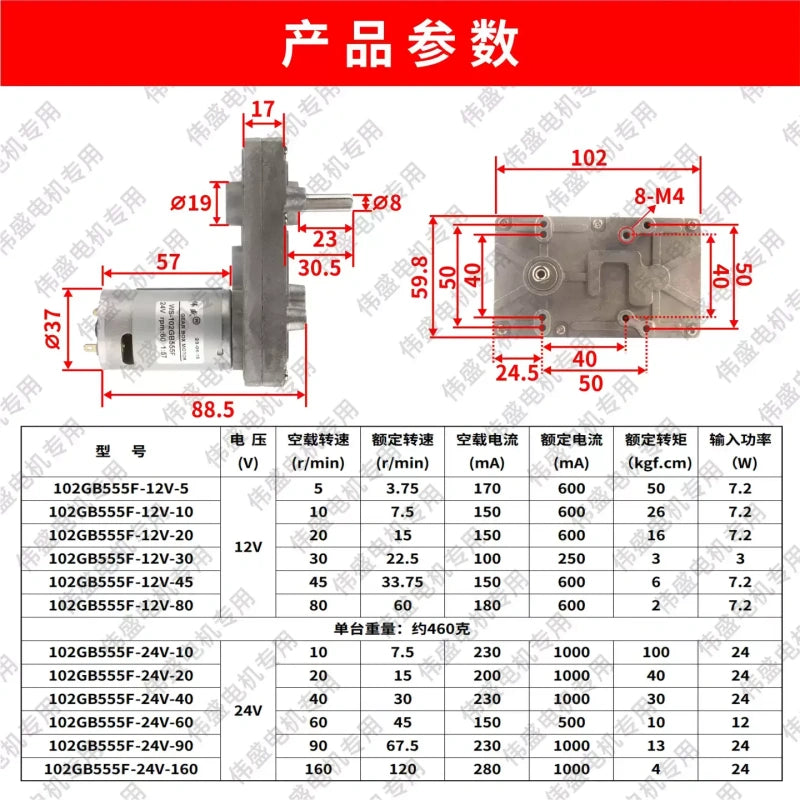

102GB555F DC Gear Motor ?€? Technical Specifications (English)
This is the complete parameter table for the 102GB555F series 7-shaped DC gear motors, including 12V and 24V variants.
Motor Parameter Information
| Model | Voltage (V) | No-load Speed (r/min) | Rated Speed (r/min) | No-load Current (mA) | Rated Current (mA) | Rated Torque (kgf??cm) | Input Power (W) |
|---|---|---|---|---|---|---|---|
| 102GB555F-12V-5 | 12 | 5 | 3.75 | 170 | 600 | 50 | 7.2 |
| 102GB555F-12V-10 | 12 | 10 | 7.5 | 150 | 600 | 26 | 7.2 |
| 102GB555F-12V-20 | 12 | 20 | 15 | 150 | 600 | 16 | 7.2 |
| 102GB555F-12V-30 | 12 | 30 | 22.5 | 100 | 250 | 3 | 3 |
| 102GB555F-12V-45 | 12 | 45 | 33.75 | 150 | 600 | 6 | 7.2 |
| 102GB555F-12V-80 | 12 | 80 | 60 | 180 | 600 | 2 | 7.2 |
| 102GB555F-24V-10 | 24 | 10 | 7.5 | 230 | 1000 | 100 | 24 |
| 102GB555F-24V-20 | 24 | 20 | 15 | 200 | 1000 | 40 | 24 |
| 102GB555F-24V-40 | 24 | 40 | 30 | 230 | 1000 | 30 | 24 |
| 102GB555F-24V-60 | 24 | 60 | 45 | 150 | 500 | 10 | 12 |
| 102GB555F-24V-90 | 24 | 90 | 67.5 | 230 | 1000 | 13 | 24 |
| 102GB555F-24V-160 | 24 | 160 | 120 | 280 | 1000 | 4 | 24 |
??
Unit Net Weight: Approx. 460g
Notes:
- Rated Torque: Measured at the rated operating point, in kgf??cm (kilogram-force centimeter).
-
Input Power: Calculated as
Voltage ?? Rated Currentunder rated load conditions. - Speed: "No-load Speed" refers to the speed when no load is applied; "Rated Speed" refers to the speed under rated load.
