50ZY 50mm Micro High Speed Permanent Magnet DC Motor| 12V/24V 2000~6000RPM

Name: 50ZY 50mm Micro High Speed Permanent Magnet DC Motor| 12V/24V 2000~6000RPM
Brand: electrical center b2c
SKU: DC12V / Single 50ZY Motor / 2000RPM
Price: 126.0 AED
Availability: InStock

Dhs. 126.00 AED

~~Dhs. 152.00 AED~~ Dhs. 126.00 AED

Sale Sold out

Shipping calculated at checkout.

Motor Voltage DC12V DC24V

Motor Config.- Single Motor Motor+Bracket

Motor Speed 2000RPM 3000RPM 4000RPM 5000RPM 6000RPM

Product variants

Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

Quantity

WS?€?50ZYT78?€?R Micro Permanent Magnet DC Motor, 12V/24V High?€?Speed Reversible Speed?€?Adjustable Motor, Vertical Mount with Bracket Option, for Cotton Candy Machine

Product Description

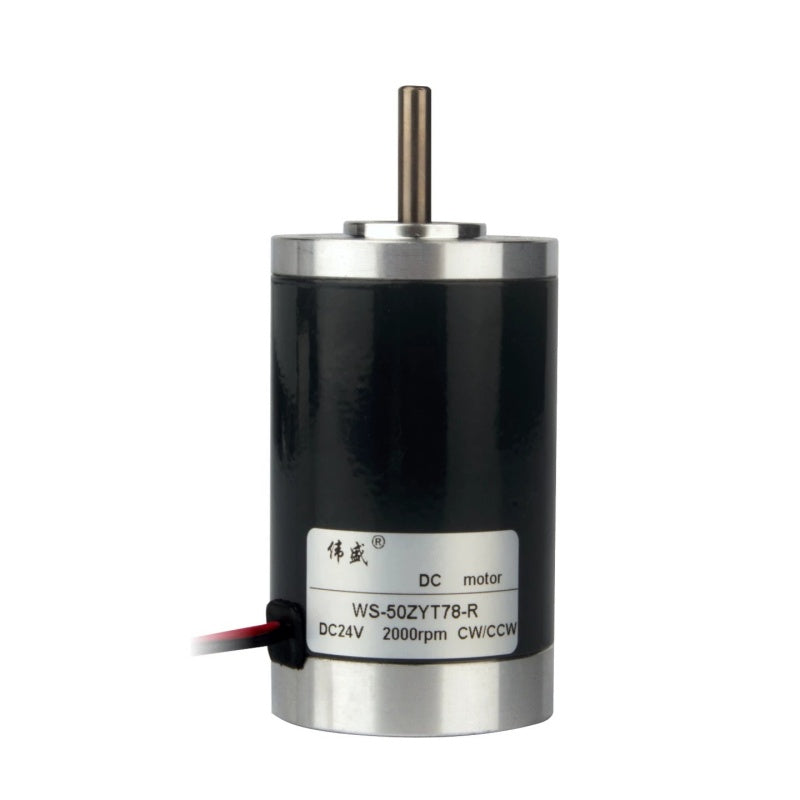

This is the WS?€?50ZYT78?€?R micro permanent magnet DC motor, available in 12V/24V voltage, with 5 speed options: 2000/3000/4000/5000/6000RPM.

It features forward & reverse rotation, adjustable speed, built?€?in magnetic encoder, IP44 dustproof & waterproof grade, vertical installation design. Rated power 12W, rated torque 0.06N??m, rated current 500mA, separately excited type.

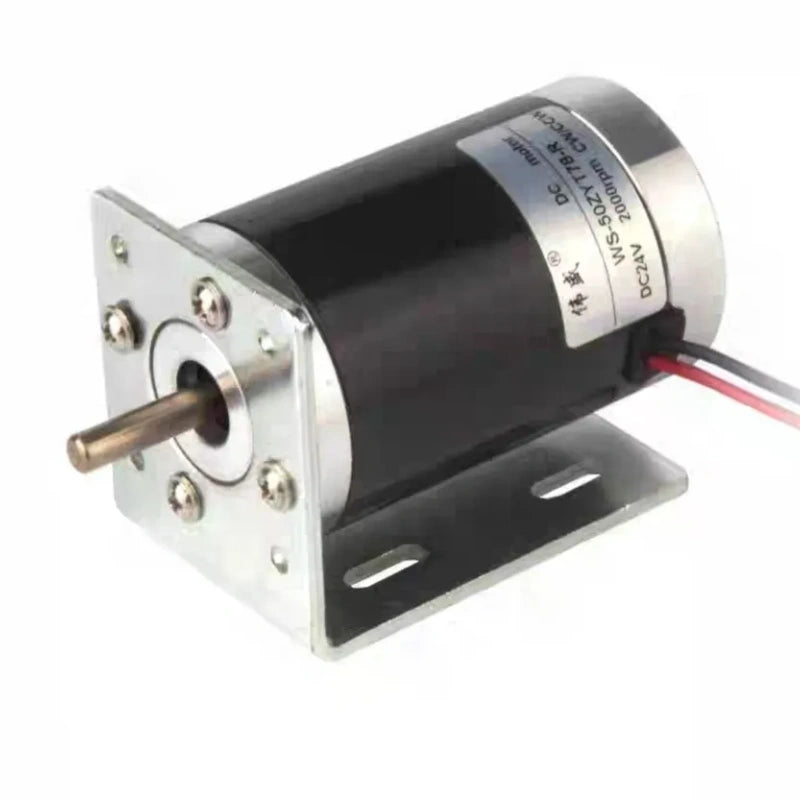

Two configurations are available: single motor, motor + mounting bracket. Widely used in cotton candy machines, powder shakers, small automated equipment and DIY projects.

This motor has passed CE certification, stable performance, long service life.

Key Specifications

Model: WS?€?50ZYT78?€?R
Brand: Weisheng
Rated Voltage: 12V / 24V DC
Rated Power: 12W
Rated Torque: 0.06N??m
Rated Current: 500mA
Speed Options: 2000/3000/4000/5000/6000RPM
Encoder Type: Magnetic Encoder
Protection Grade: IP44
Excitation Type: Separately Excited
Installation Type: Vertical Mount
Certification: CE
Origin: Chinese Mainland

Key Features

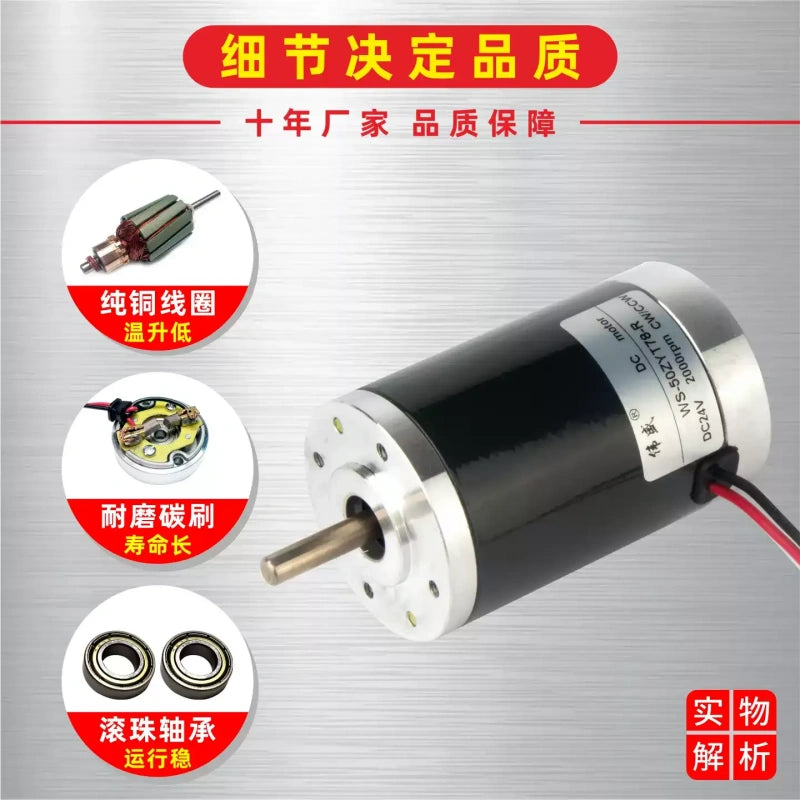

Permanent magnet structure, high efficiency, low noise

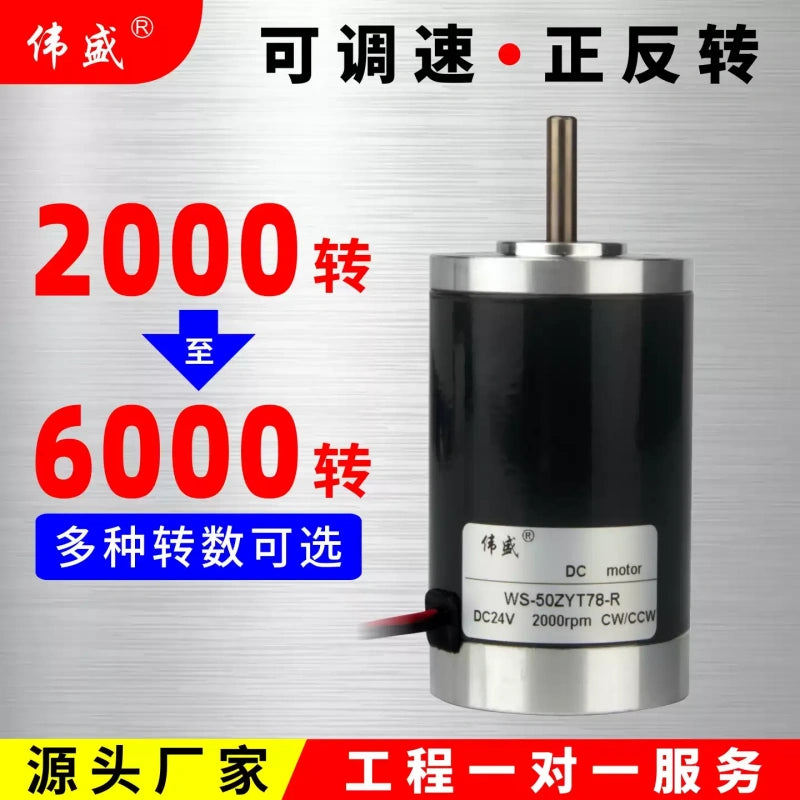

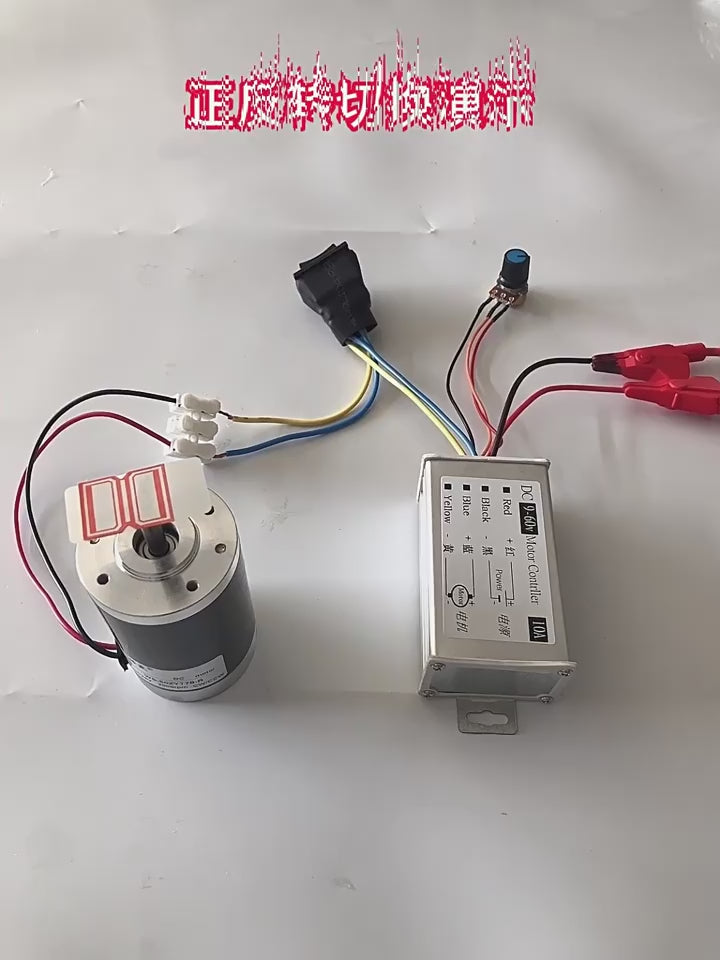

Forward/reverse rotation & speed adjustable
Built?€?in magnetic encoder for precise speed control
IP44 dust?€?proof and water?€?proof, stable operation
Compact micro size, easy to install with optional bracket
Wide application for small machinery and DIY projects

Specification

Attribute Name	Attribute Value
Product Model	WS?€?50ZYT78?€?R
Brand	Weisheng
Rated Voltage	12V DC, 24V DC
Rated Power	12W
Rated Torque	0.06N??m
Rated Current	500mA
Speed	2000RPM, 3000RPM, 4000RPM, 5000RPM, 6000RPM
Rotation Mode	Forward & Reverse Rotation
Speed Control	Adjustable Speed
Encoder Type	Magnetic Encoder
Protection Grade	IP44
Excitation Type	Separately Excited
Installation Type	Vertical Mount

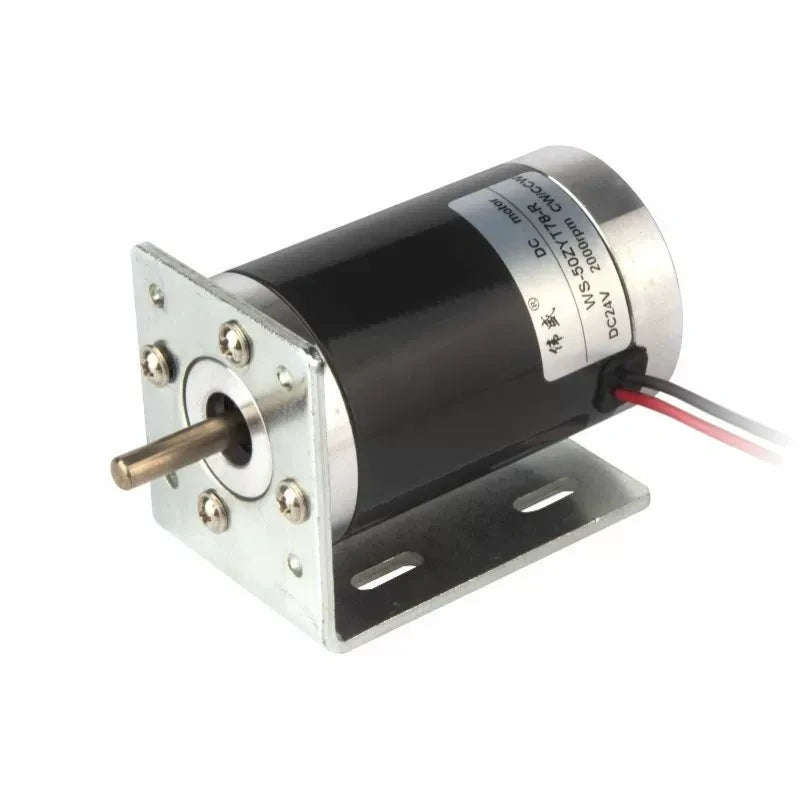

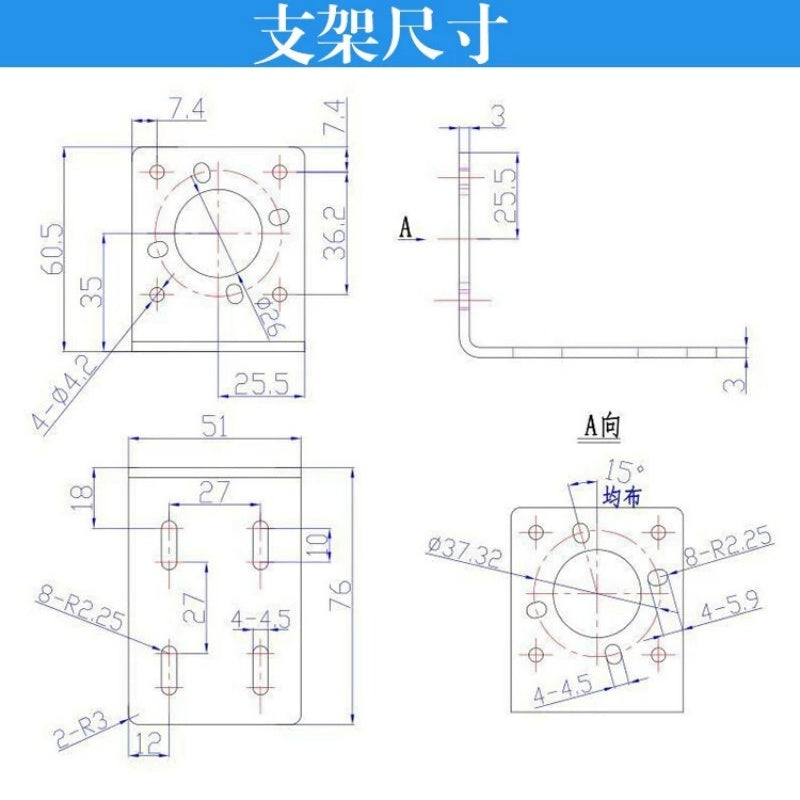

Configuration	Single Motor, Motor with Mounting Bracket
Certification	CE
Origin	Chinese Mainland
Application	Cotton Candy Machine, Powder Shaker, Small Automated Equipment, DIY Projects

??

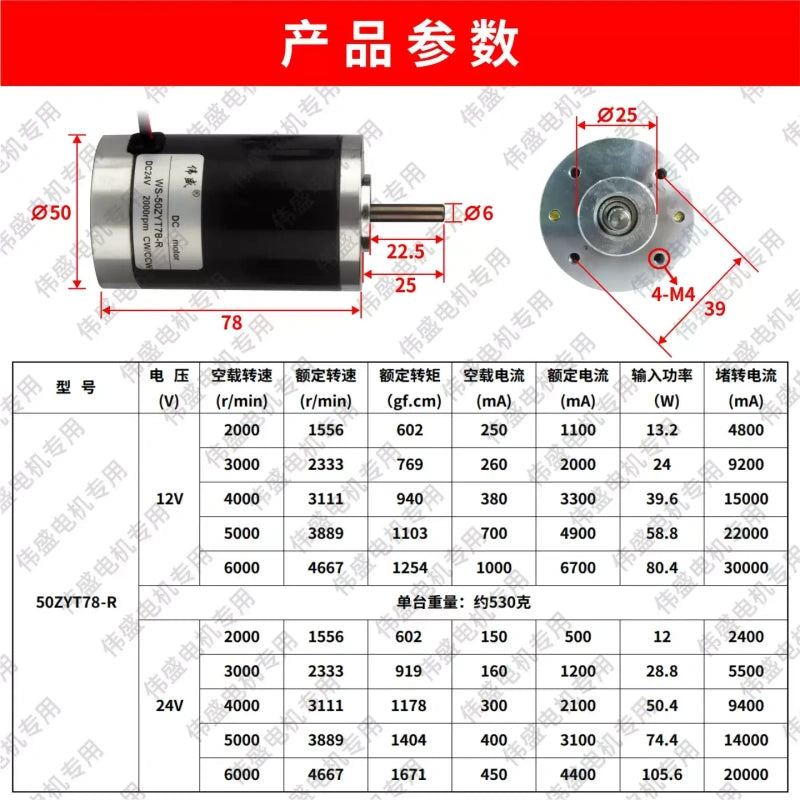

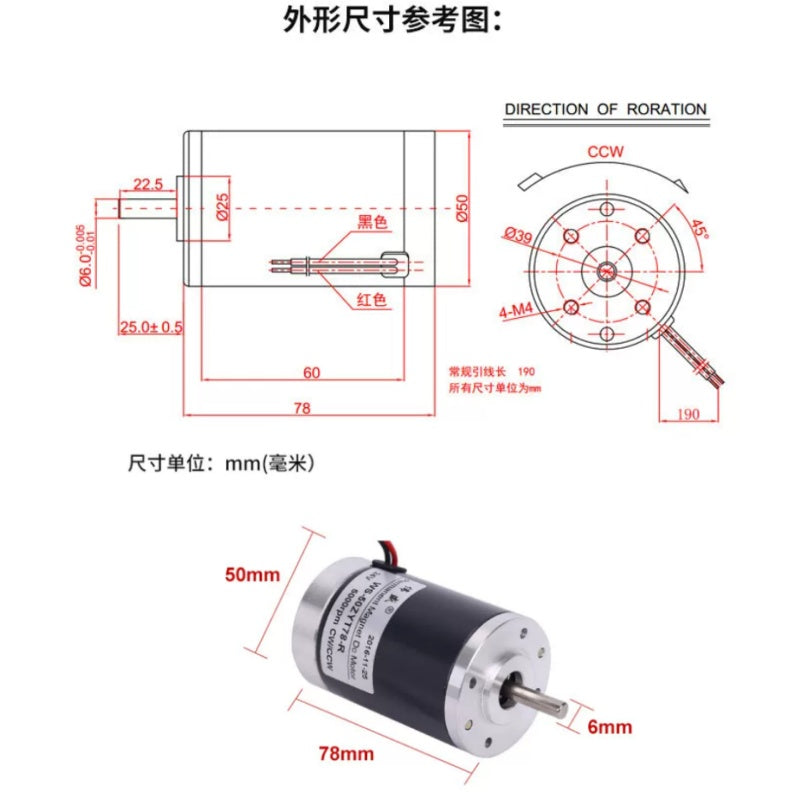

50ZYT78?€?R Motor Specification Sheet

Model	Voltage (V)	No?€?load Speed (r/min)	Rated Speed (r/min)	Rated Torque (gf??cm)	Stall Torque (gf??cm)	No?€?load Current (mA)	Rated Current (mA)	Stall Current (mA)
50ZYT78?€?R	12	2000	1556	602	2708	250	1100	4800
	12	3000	2333	769	3460	260	2000	9200
	12	4000	3111	940	4231	380	3300	15000
	12	5000	3889	1103	4964	700	4900	22000
	12	6000	4667	1254	5641	1000	6700	30000
	24	2000	1556	602	2708	150	500	2400
	24	3000	2333	919	4137	160	1200	5500
	24	4000	3111	1178	5303	300	2100	9400
	24	5000	3889	1404	6318	400	3100	14000
	24	6000	4667	1671	7521	450	4400	20000
