45ZY 45mm Micro High Speed Permanent Magnet DC Motor| 12V/24V
Regular price
Dhs. 145.00 AED
Regular price
Dhs. 171.00 AED
Sale price
Dhs. 145.00 AED
Unit price
per
Shipping calculated at checkout.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Couldn't load pickup availability

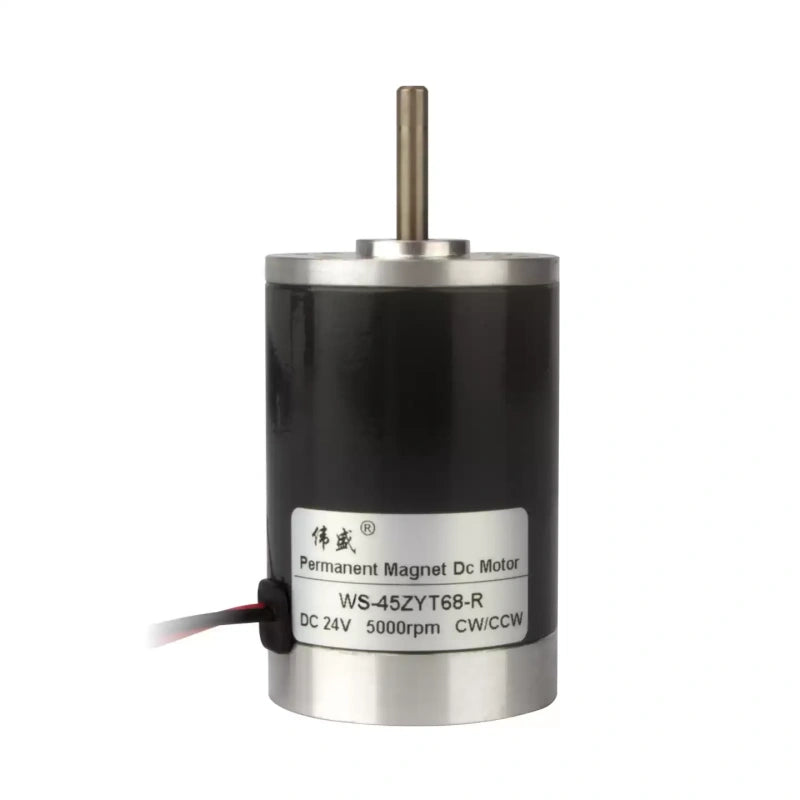

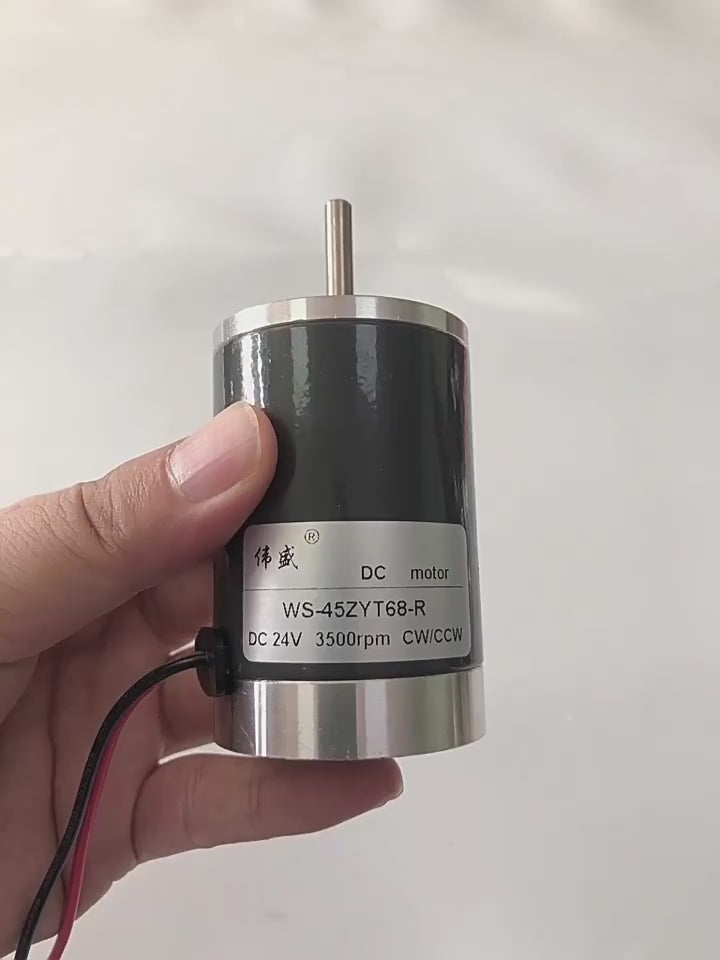

WS?€?45ZYT78?€?R 45mm Micro Permanent Magnet DC Motor, 12V/24V High?€?Speed Reversible Speed?€?Adjustable Motor, Vertical Mount with Bracket Option, for Cotton Candy Machine
Product Description
This is the WS?€?45ZYT78?€?R micro permanent magnet DC motor, available in 12V/24V voltage, with 5 speed options: 2000/3000/4000/6000RPM.
It features forward & reverse rotation, adjustable speed, built?€?in magnetic encoder, IP44 dustproof & waterproof grade, vertical installation design. Rated power 12W, rated torque 0.06N??m, rated current 500mA, separately excited type.
Two configurations are available: single motor, motor + mounting bracket. Widely used in cotton candy machines, powder shakers, small automated equipment and DIY projects.
This motor has passed CE certification, stable performance, long service life.
Key Specifications
- Model: WS?€?45ZYT78?€?R
- Brand: Weisheng
- Rated Voltage: 12V / 24V DC
- Rated Power: 16W
- Rated Torque: 0.04N??m
- Rated Current: 700mA

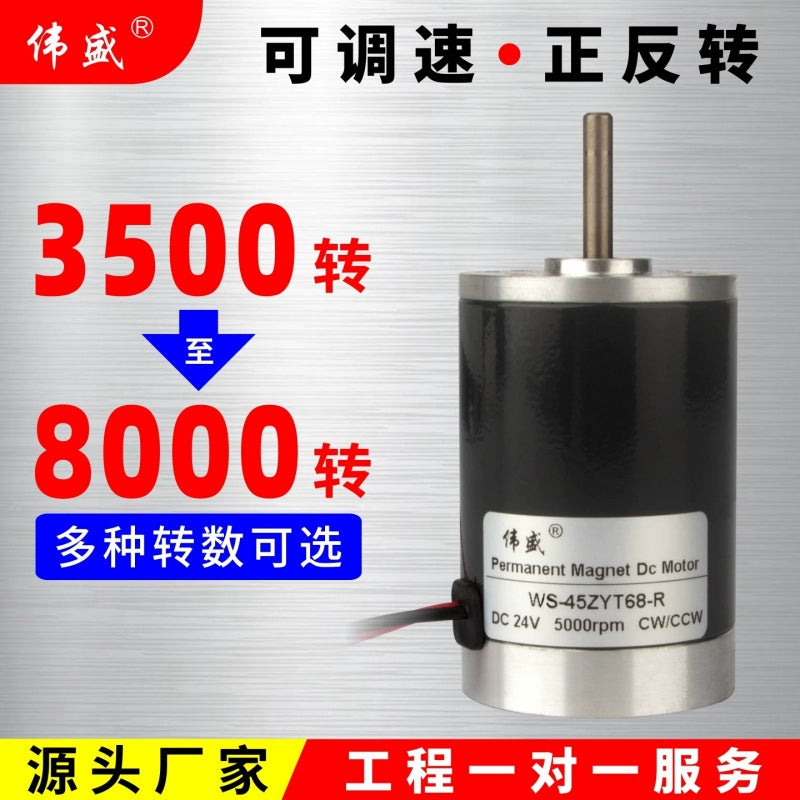

- Speed Options: 3500/5000/6000/7000RPM/8000RPM
- Encoder Type: Magnetic Encoder
- Protection Grade: IP44
- Excitation Type: Separately Excited
- Installation Type: Vertical Mount
- Certification: CE
- Origin: Chinese Mainland
Key Features
- Permanent magnet structure, high efficiency, low noise
- Forward/reverse rotation & speed adjustable
- Built?€?in magnetic encoder for precise speed control
- IP44 dust?€?proof and water?€?proof, stable operation
- Compact micro size, easy to install with optional bracket
- Wide application for small machinery and DIY projects
Specification
| Attribute Name | Attribute Value |
|---|---|
| Product Model | WS?€?45ZYT78?€?R |
| Brand | Weisheng |
| Rated Voltage | 12V DC, 24V DC |
| Rated Power | 16W |
| Rated Torque | 0.04N??m |
| Rated Current | 700mA |
| Speed | 3500RPM, 5000RPM, 6000RPM, 7000RPM, 8000RPM |
| Rotation Mode | Forward & Reverse Rotation |
| Speed Control | Adjustable Speed |
| Encoder Type | Magnetic Encoder |
| Protection Grade | IP44 |
| Excitation Type | Separately Excited |
| Installation Type | Vertical Mount |

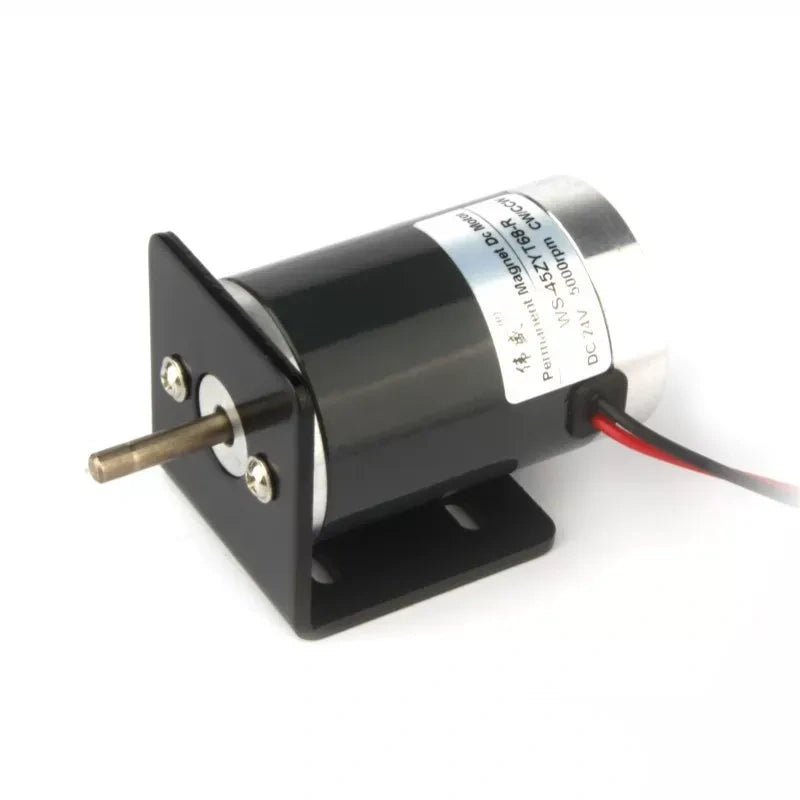

| Configuration | Single Motor, Motor with Mounting Bracket |
| Certification | CE |
| Origin | Chinese Mainland |
| Application | Cotton Candy Machine, Powder Shaker, Small Automated Equipment, DIY Projects |
??
Application Scenarios
- Paper Shredder
- Bag Cutting Machine
- Lawn Mower
- Copier
- Wire Winding Machine
- Cotton Candy Machine
45ZYT68?€?R Motor Specification Sheet
| Model | Voltage (V) | No?€?load Speed (r/min) | Rated Speed (r/min) | Rated Torque (gf??cm) | No?€?load Current (mA) | Rated Current (mA) | Stall Current (mA) |
|---|---|---|---|---|---|---|---|
| 45ZYT68?€?R | 12 | 3500 | 2625 | 450 | 500 | 1300 | 6000 |
| 12 | 5000 | 3750 | 630 | 635 | 1800 | 9500 | |
| 12 | 6000 | 4500 | 680 | 790 | 2580 | 11000 | |
| 12 | 7000 | 5250 | 700 | 860 | 3000 | 12500 | |
| 12 | 8000 | 6000 | 750 | 950 | 3200 | 16000 | |
| 24 | 3500 | 2625 | 500 | 162 | 700 | 3600 | |
| 24 | 5000 | 3750 | 700 | 244 | 900 | 6700 | |
| 24 | 6000 | 4500 | 750 | 305 | 1100 | 8700 | |
| 24 | 7000 | 5250 | 800 | 390 | 1250 | 12000 | |
| 24 | 8000 | 6000 | 850 | 400 | 1500 | 16000 |
??
Precautions for Motor Use
- Confirm the correct motor voltage before use. For DC motors, also verify that the power supply provides sufficient current.
- Do not operate under overload conditions. Overload mainly arises from two factors: torque and shaft stress. The load torque must not exceed the motor?€?s rated torque; the axial and radial stress on the shaft must not exceed its allowable limit. The actual measured current of the motor under load must not exceed the rated current. A fuse is generally required to prevent motor burnout caused by overload.
- Do not store or operate the motor in high?€?temperature, humid, or corrosive gas environments, as these will degrade motor performance.
- When installing transmission components such as gears and pulleys onto the motor shaft, avoid abnormal knocking during pressing?€?in.
- When soldering the positive and negative power terminals of the motor, use a soldering iron at 340??C ?? 40??C for no more than 3 seconds. Avoid plastic deformation, solder penetration into the motor, or broken wire ends, which will impair motor function.
- When installing the motor, check screw length to prevent overly long screws from pressing against internal motor components.
