3-Stage DC Linear Actuator 12V 24V, Silent Electric Telescopic Rod, Reciprocating Lifting Motor with Button / Joystick Control

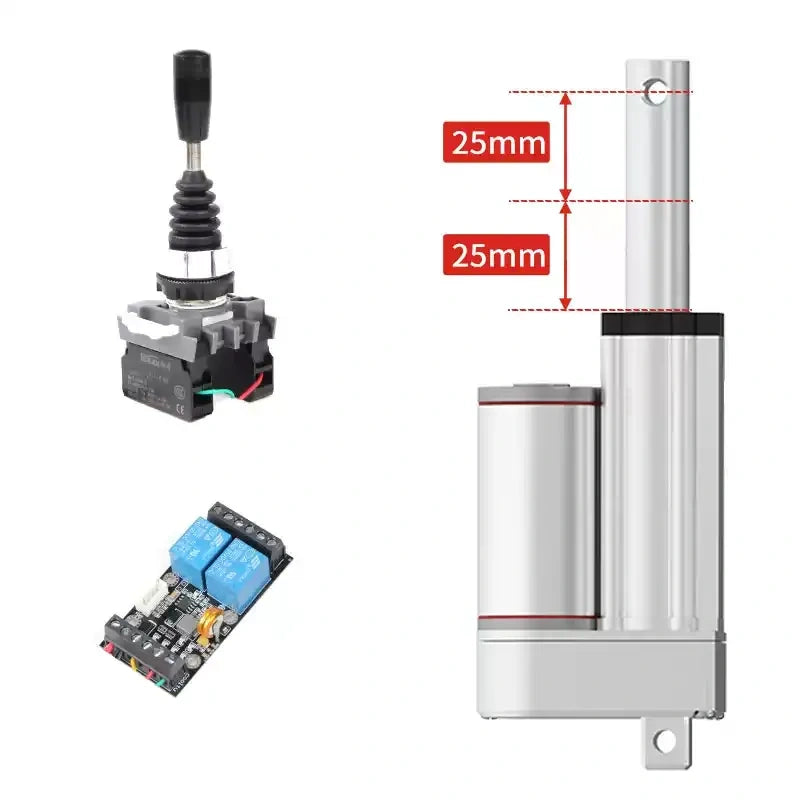

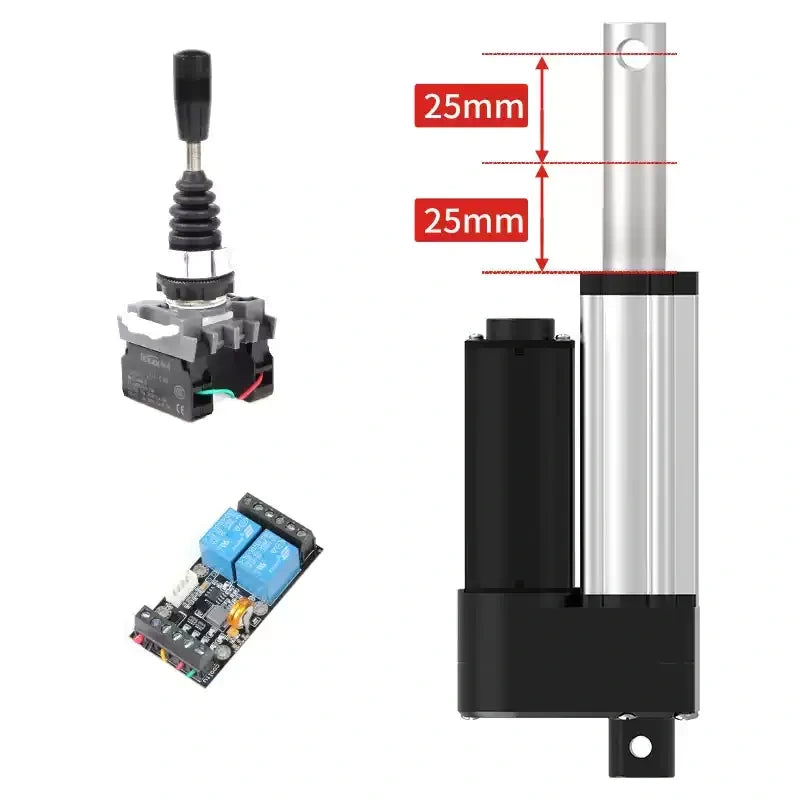

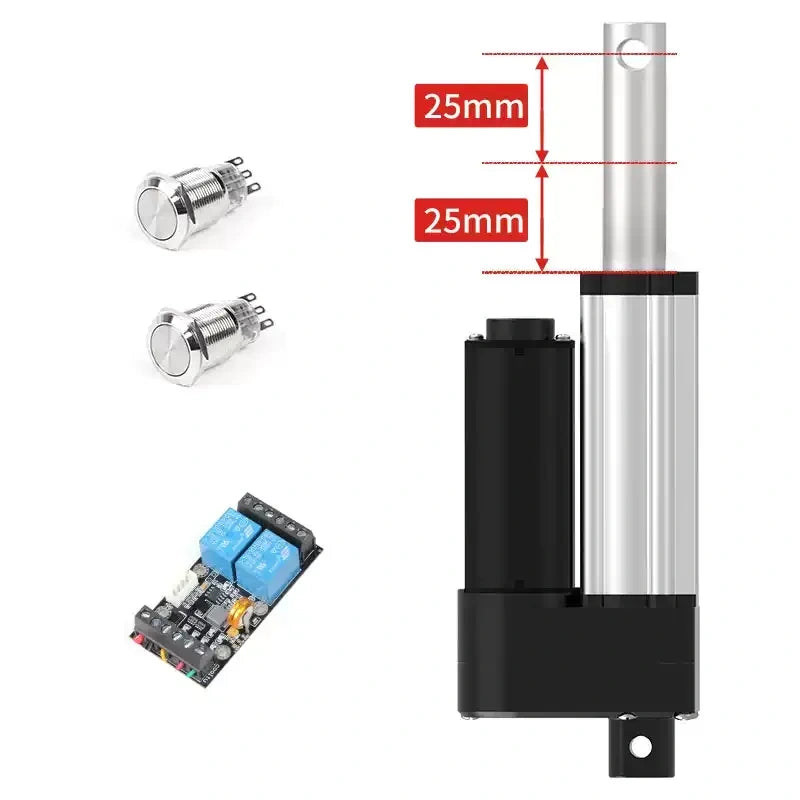

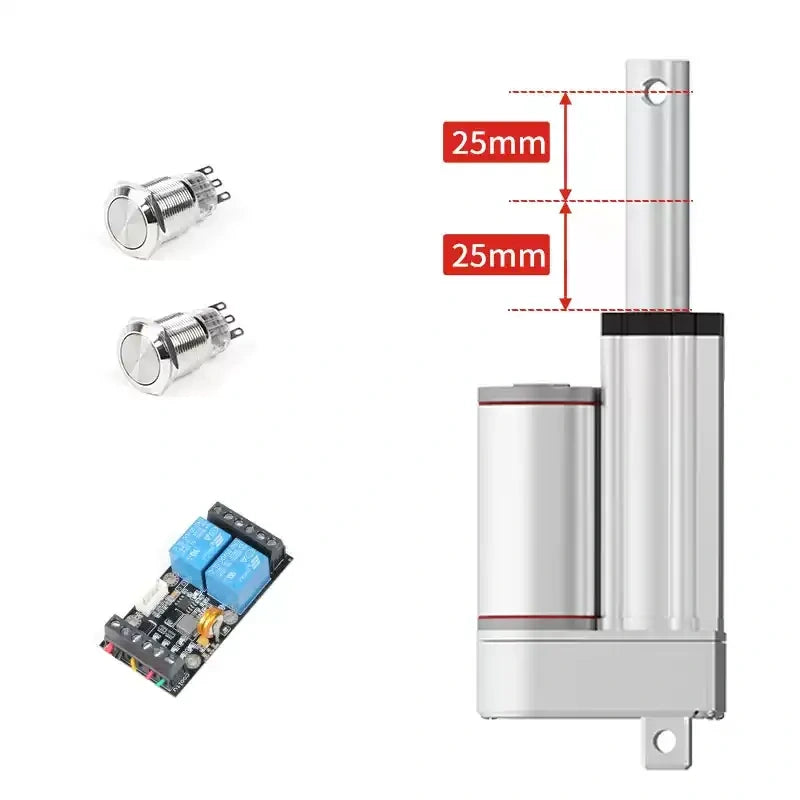

3-Stage DC Linear Actuator, stroke 25mm+25mm

3 Position Electric Linear Actuator, Mini Reciprocating Telescopic Rod, DC 12V/24V High Thrust Lifting Motor, Silent & Square Small Actuator with Button / Joystick Control

Product Description

3-position electric linear actuator, compact mini reciprocating telescopic electric cylinder, DC 12V / 24V high thrust lifting motor. Two main styles available: Large Silent Actuator and Square Small Actuator.

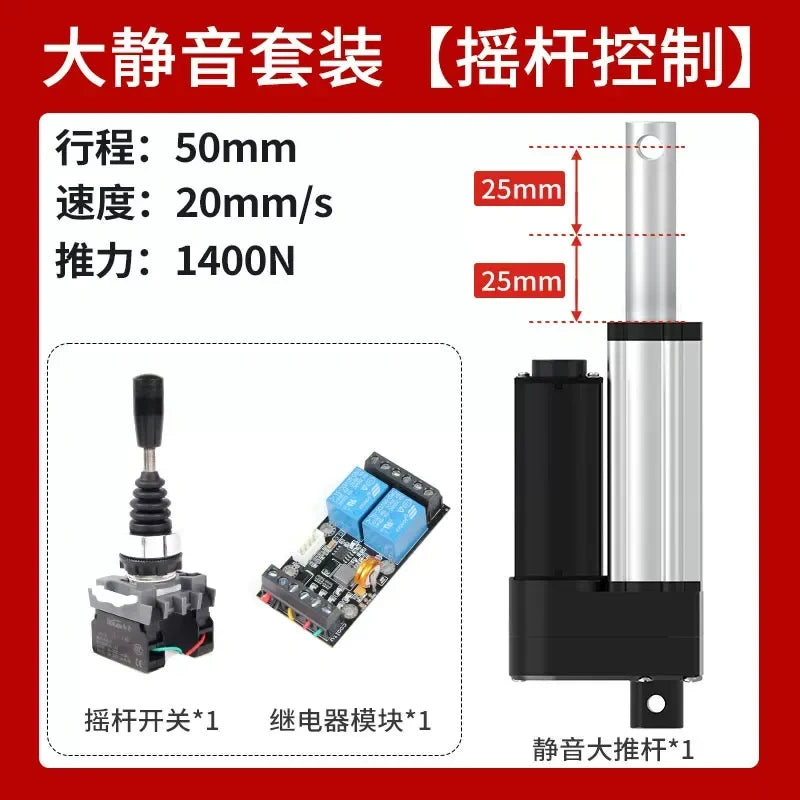

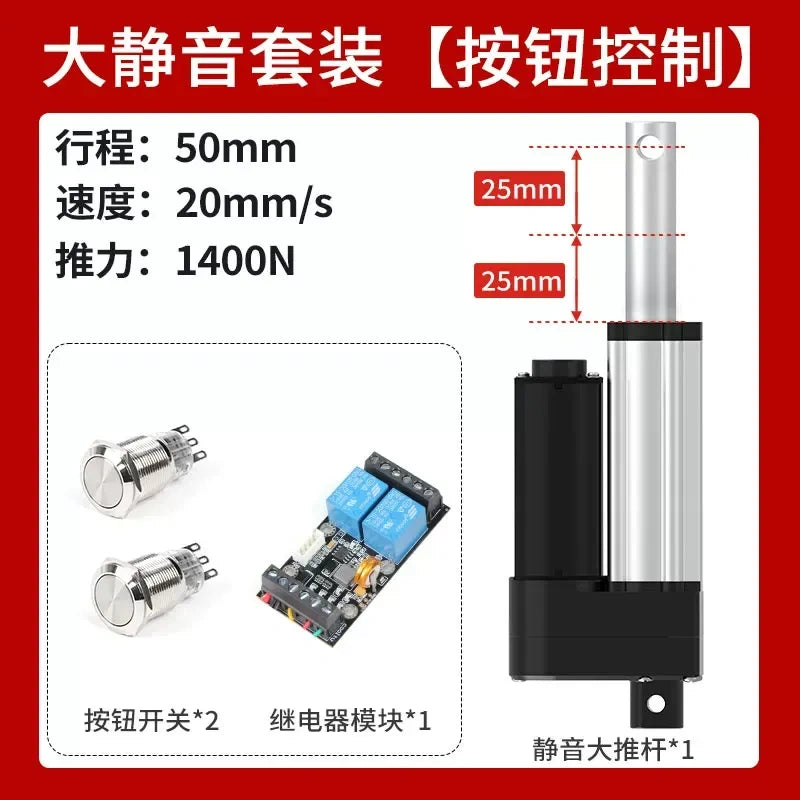

• Silent Large Actuator: Default spec DC24V, 1400N thrust, speed 20mm/s

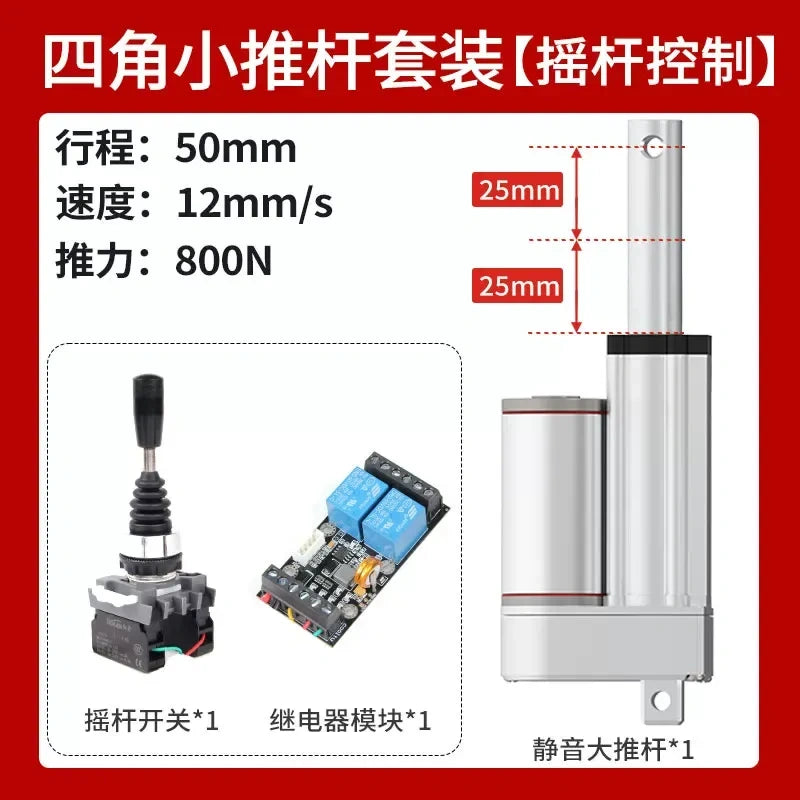

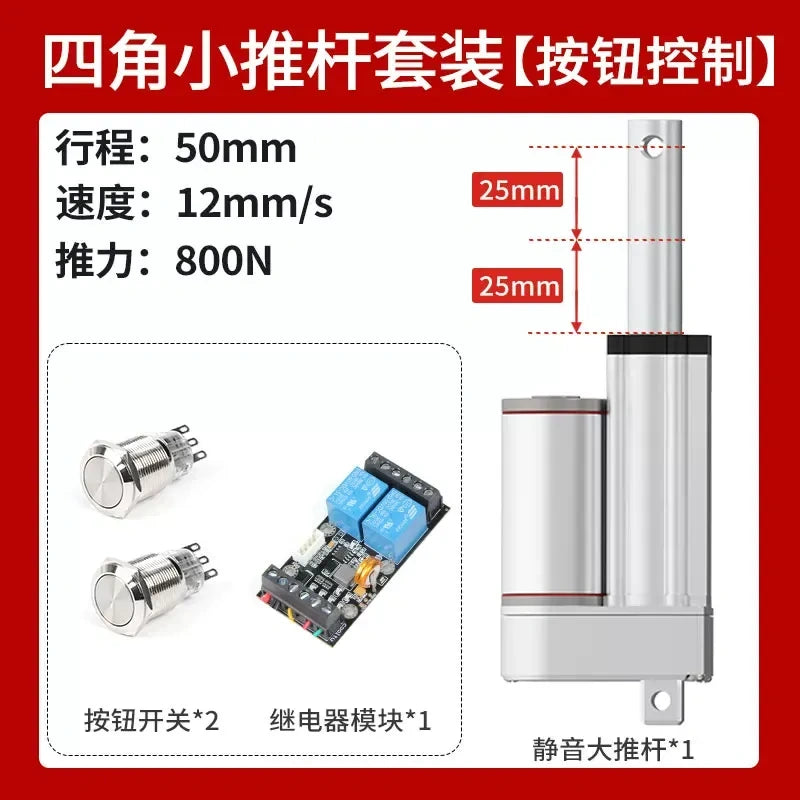

• Square Small Actuator: Default spec DC24V, 1000N thrust, speed 12mm/s

Control options: Button control or Joystick control for selection. 50mm stroke as standard variant, other custom strokes available. Built-in limit switches to stop automatically at fully extended & retracted positions to protect the motor. Aluminum alloy housing, stable reciprocating push & pull movement.

Perfect for industrial automation, lifting tables, smart furniture, window openers, medical beds, DIY linear motion projects, automation lifting and push-pull applications.

Key Features

✅ 3-position mini electric telescopic actuator / electric cylinder

✅ 2 styles: Silent large push rod & square small push rod

✅ Power: DC12V / DC24V

✅ Control mode: Button control / Joystick control optional

✅ Silent large actuator: 1400N, 20mm/s default

✅ Square small actuator:1000N,12mm/s default

✅ Built-in limit switch for over-travel protection

✅ Reciprocating linear motion, lifting & push pull function

✅ Aluminum housing, compact structure, easy installation

✅ Widely used in industry, smart home, automation DIY

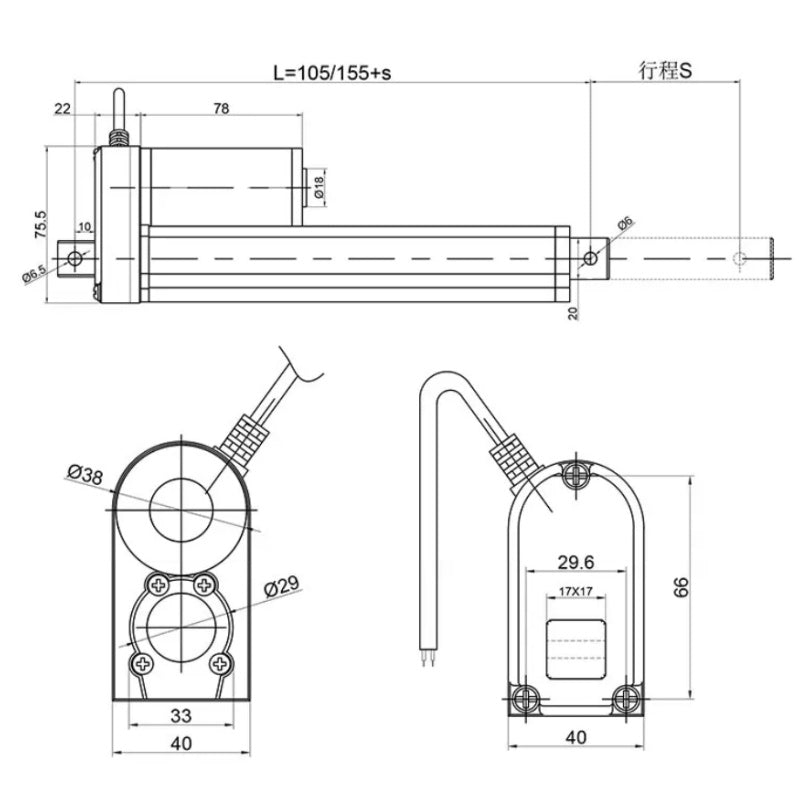

Specification

FAQs

Q1: What are the two actuator styles?

A1: Silent large push rod and square small push rod. They have different default thrust and speed. Silent large one default:1400N,20mm/s; square small one default:1000N,12mm/s.

Q2: What control methods can I choose?

A2: Two control types: Button control or Joystick control, you can pick when ordering.

Q3: What voltage options are supported?

A3: DC12V and DC24V are available.

Q4: Does this actuator stop automatically at end positions?

A4: Yes, built-in limit switches. It will automatically stop once fully extended or retracted to avoid motor burnout.

Q5: What stroke is in stock?

 A5: 50mm stroke is standard variant, other custom strokes can be customized upon request.

Q6: What applications can this 3-position linear actuator be used for?

A6: Industrial reciprocating motion, lifting equipment, smart furniture, automatic window openers, medical beds, various DIY push-pull automation projects.

Q7: What is 3-position electric actuator?

A7: It supports 3 working positions for telescopic movement, realize multi-stop reciprocating linear motion.
