electrical center b2c

22MM Selector Knob Rotary Switch Latching Momentary 2NO 1NO1NC 2 3 Position DPST 10A 400V Power Switch ON/OFF Red Green Black

Dhs. 25.00 AED
Dhs. 12.00 AED Dhs. 25.00 AED
Sale Sold out
Shipping calculated at checkout.
Color
Size
Standard
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

SPECIFICATIONS

22MM Selector Knob Rotary Switch Latching Momentary 2NO 1NO1NC 2 3 Position DPST 10A 400V Power Switch ON/OFF Red Green Black,la38 series button switch

Warranty: 2 years

Switch Type: Knob switch

Model Number: LA38-11X2

Material: Plastic

Is Smart Device: NO

Features: Latching/Momentary

Current: 10A

Certification2: CE

Descriptions

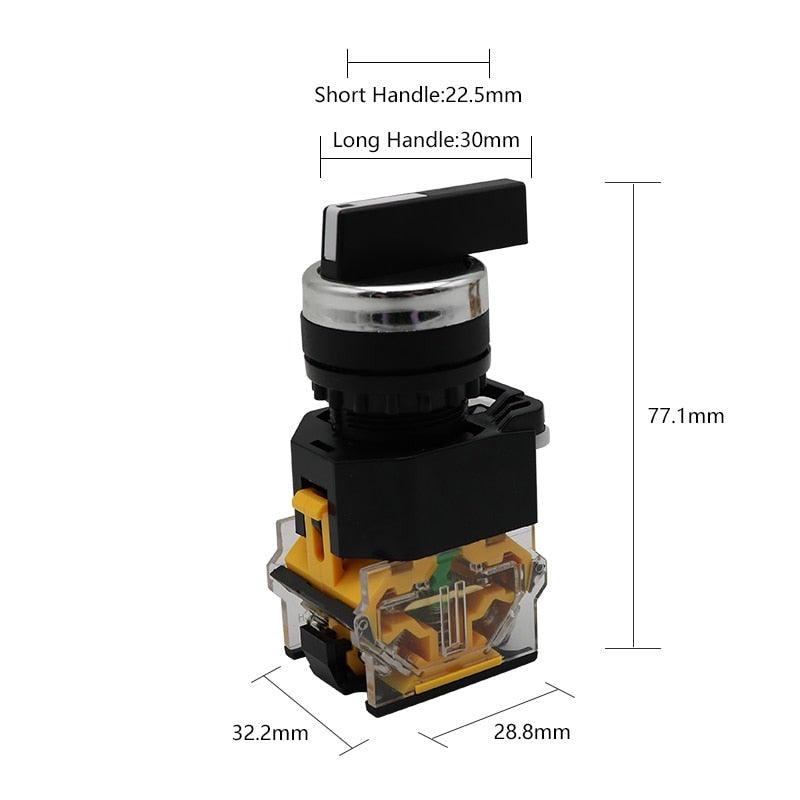

Overall Size: 29×37×77mm
Mounting Hole Size: 22mm
Operation Type: Self-lock,Self-reset
Contact Configuration: 1NO1NC
Ui: 400V, Ith: 10A
Material: Plastic
Contact  Material: Copper
Button Colour: Green/Red/Black
Terminal Type: Screw ( 4 Terminals )
Operation Temperature: -25°C ~ +55°C
Mechanicla Life: 1,000,000 times
Electrical      Life: 300 ,000 times

3 position push button switch,2 position push button switch,3 position push button,two position push button switch
