2000N Reciprocating Electric Linear Actuator Stroke 50mm-450mm 36mm/s
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Couldn't load pickup availability
Electric Linear Actuator / Reciprocating Push Rod Motor
PTL Series Parallel Lifter, Electric Linear Actuator with Aluminum Alloy Body, 12/24V DC
核心描述
关键特性
- ✅ High Performance: Rated thrust 2000N, speed 36mm/s, 12/24V DC compatible

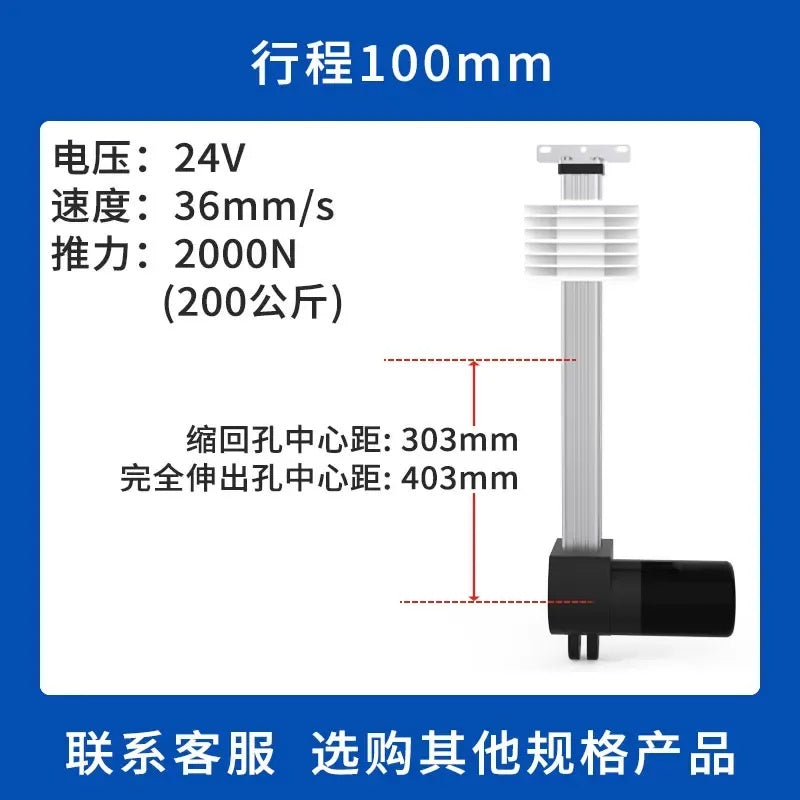

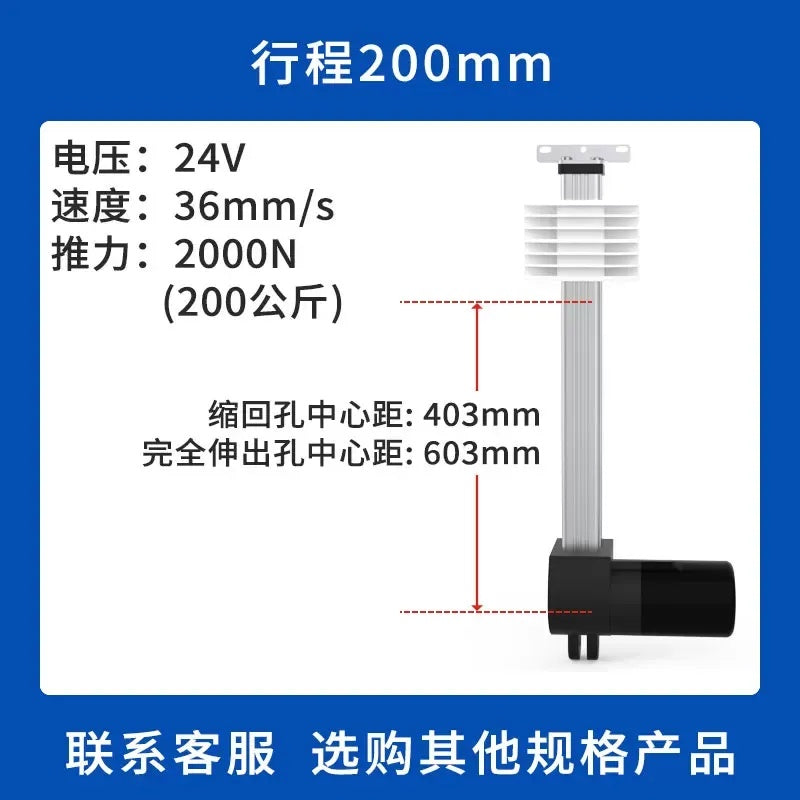

- ✅ Wide Stroke Range: Available in 50-450mm standard strokes, custom 500-1200mm available
- ✅ Durable Build: Aluminum alloy body, operating temperature from -40°C to +85°C
- ✅ Smooth Operation: Low-noise reciprocating motion, suitable for quiet environments
- ✅ Versatile Applications: Perfect for foot bath sofas, recliners, bed lifts, cabinets, and more
- ✅ Easy Integration: Compact design for simple installation in various projects
规格说明
- Product Name: Electric Linear Actuator / Reciprocating Push Rod Motor
- Model: PTL Series
- Material: Aluminum Alloy
- Rated Voltage: 12V / 24V DC
- Rated Speed: 36mm/s
- Rated Thrust: 2000N
- Stroke Range: 10-1500mm (standard: 50/100/150/200/250/300/350/400/450mm; custom: 500-1200mm)
- Operating Temperature: -40°C ~ +85°C
- Application: Foot Bath Sofa, Recliner, Bed Lift, Cabinet, Home Automation
DATA SHEET
| Attribute | Value |
|---|---|
| Product Name | Electric Linear Actuator Motor |
| Brand | LUILEC |
| Model | PTL Series |
| Material | Aluminum Alloy |
| Rated Voltage | 12V / 24V DC |
| Rated Speed | 36mm/s |
| Rated Thrust | 2000N |
| Stroke Range | 50-450mm (Standard), 500-1200mm (Custom) |
| Operating Temperature | -40°C ~ +85°C |
| Application | Foot Bath Sofa, Recliner, Bed Lift, Cabinet, Home Automation |

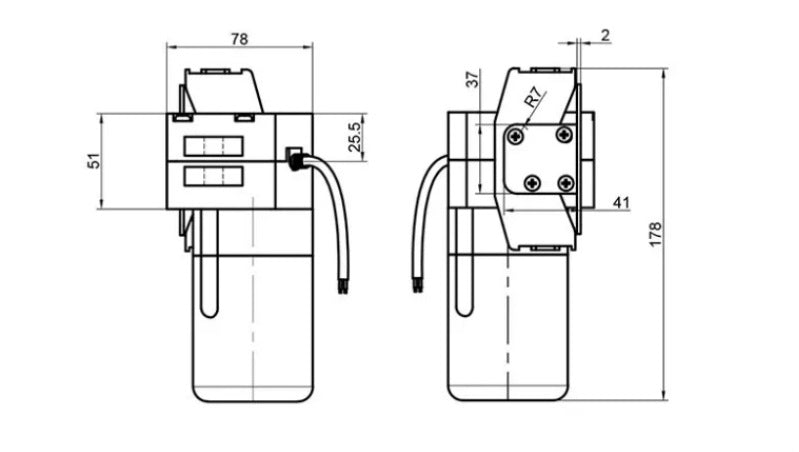

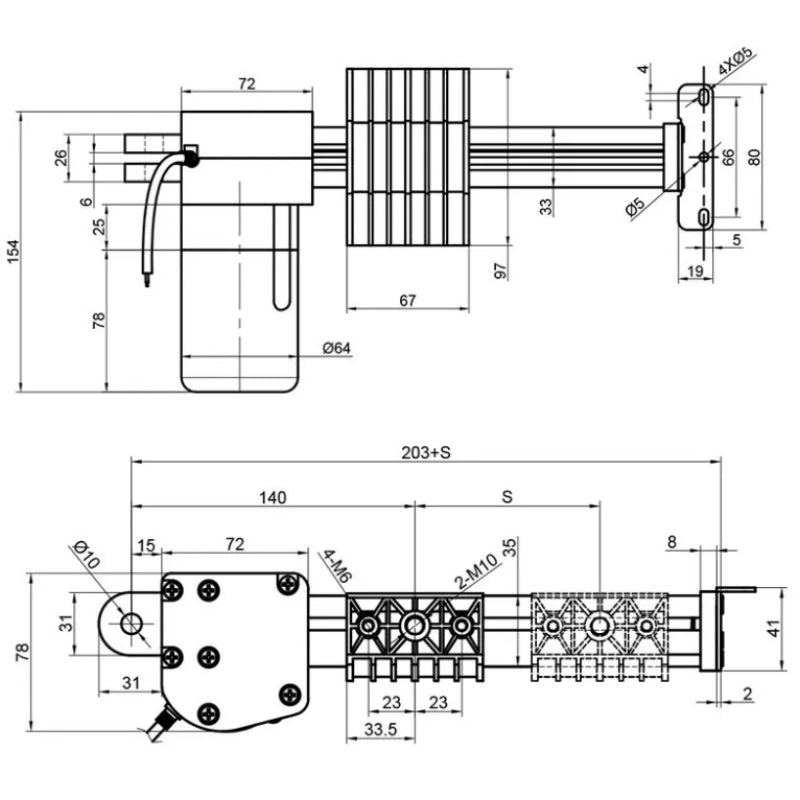

Product Dimension
FAQs | 2000N Reciprocating Electric Linear Actuator PTL Series
Q1: What is the maximum thrust of this PTL series linear actuator?
A1: The rated thrust is 2000N, which can handle heavy load lifting tasks for furniture and light automation equipment.
Q2: What voltage options are available for this electric linear actuator?
A2: It supports 12V DC and 24V DC power supply for selection.
Q3: What is the moving speed of this linear actuator?
A3: Rated speed is 36mm/s, providing fast and stable reciprocating movement.
Q4: What stroke options do you offer? Can I get custom stroke?
A4: Standard stroke range: 50mm–450mm. Custom stroke from 500mm to 1200mm is available upon request.
Q5: What material is this linear actuator made of?
A5: Main body adopts aluminum alloy material, lightweight, high rigidity and corrosion resistant.
Q6: What is the working temperature range?
A6: Operating temperature: -40°C ~ +85°C, suitable for both low-temperature and high-temperature working environments.
Q7: What are the main application scenarios for this 2000N linear actuator?
A7: Widely used for foot bath sofas, recliners, bed lifting systems, cabinet automation, home automation and other reciprocating lifting projects.
Q8: Does this actuator have built-in limit switches?
A8: Yes, built-in limit switches, it will automatically stop at the maximum extended and retracted positions to prevent overtravel damage.
Q9: Can this linear actuator run continuously all day?
A9: It is designed for intermittent operation, continuous non-stop 24-hour working is not recommended to protect the motor service life.
Q10: What is the brand and model of this push rod?
A10: Brand: LUILEC, Model: PTL Series reciprocating electric linear actuator.
Q11: Is there any maintenance requirement for this linear actuator?
A11: It adopts sealed integrated structure, normally no regular maintenance required under normal working conditions.
Q12: Can I install this actuator horizontally or vertically?
A12: It supports both vertical and horizontal installation, please confirm the load direction before installation.
