electrical center b2c

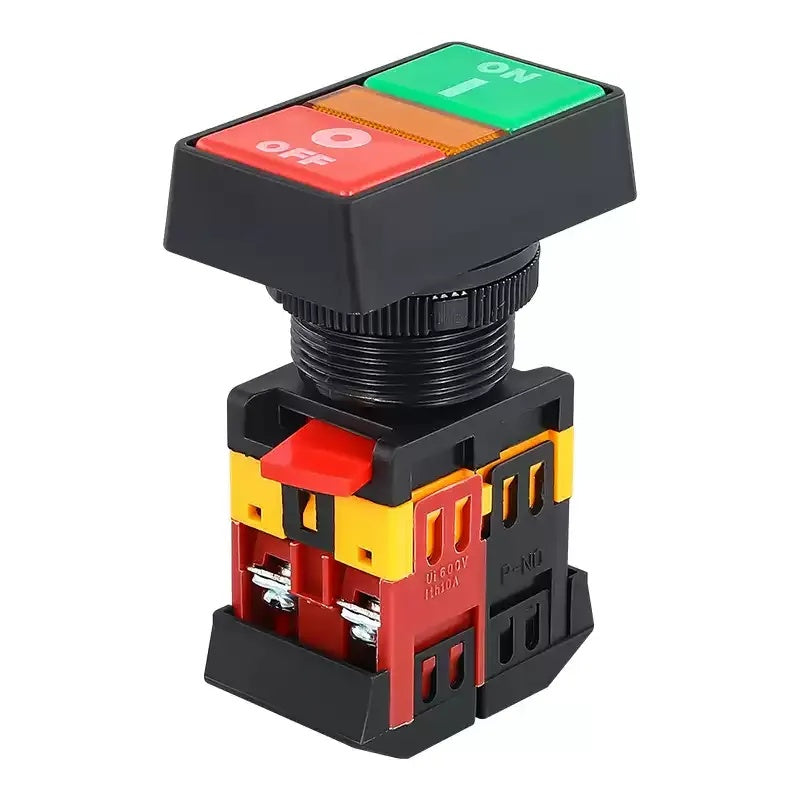

Dual Push Button Switch with LED

Dhs. 37.00 AED
Dhs. 25.00 AED Dhs. 37.00 AED
Sale Sold out
Shipping calculated at checkout.
Mode NO.
Voltage
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

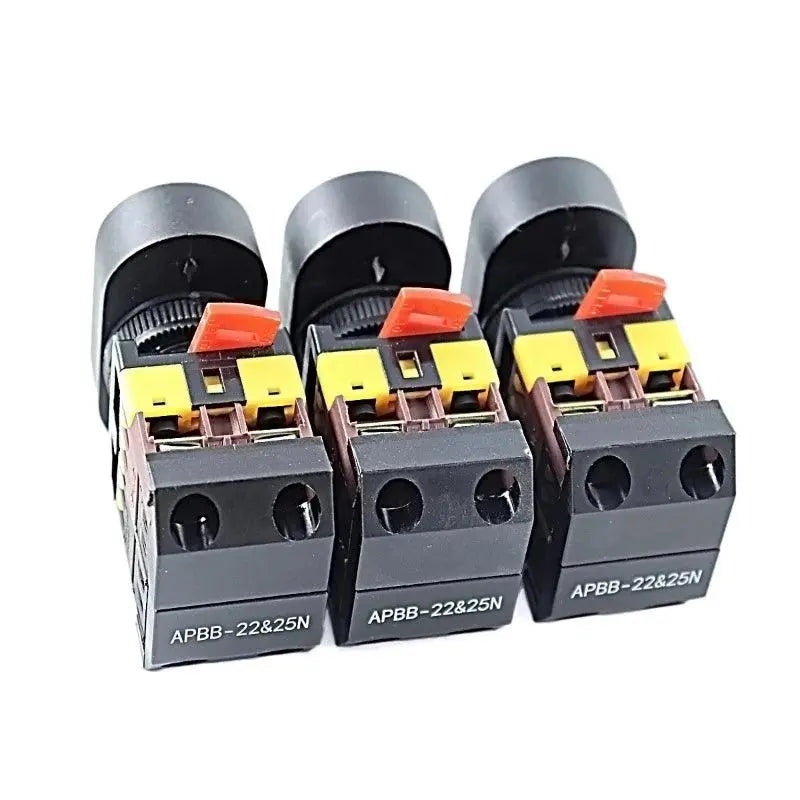

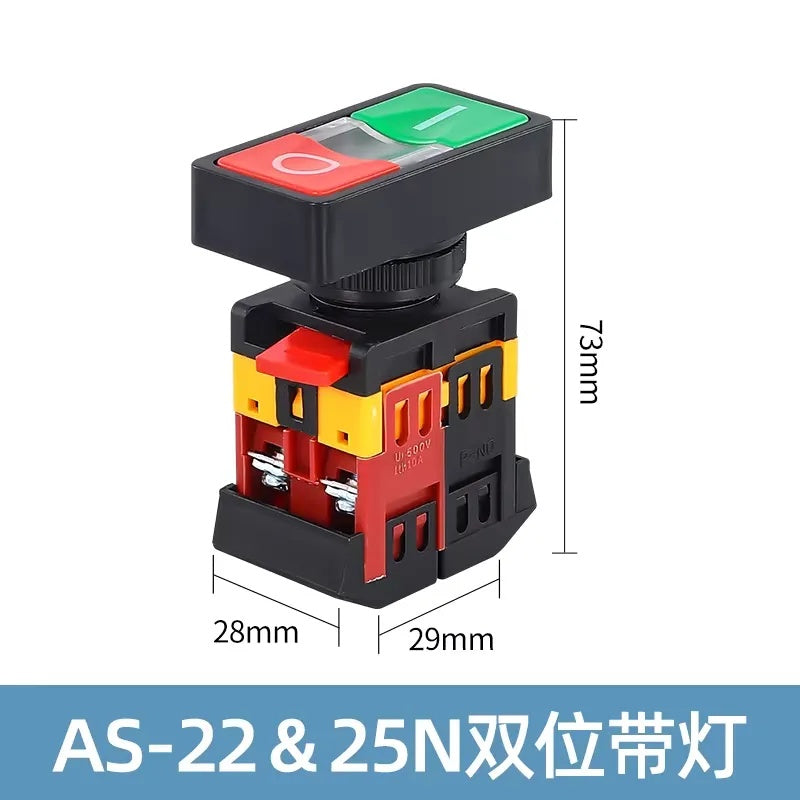

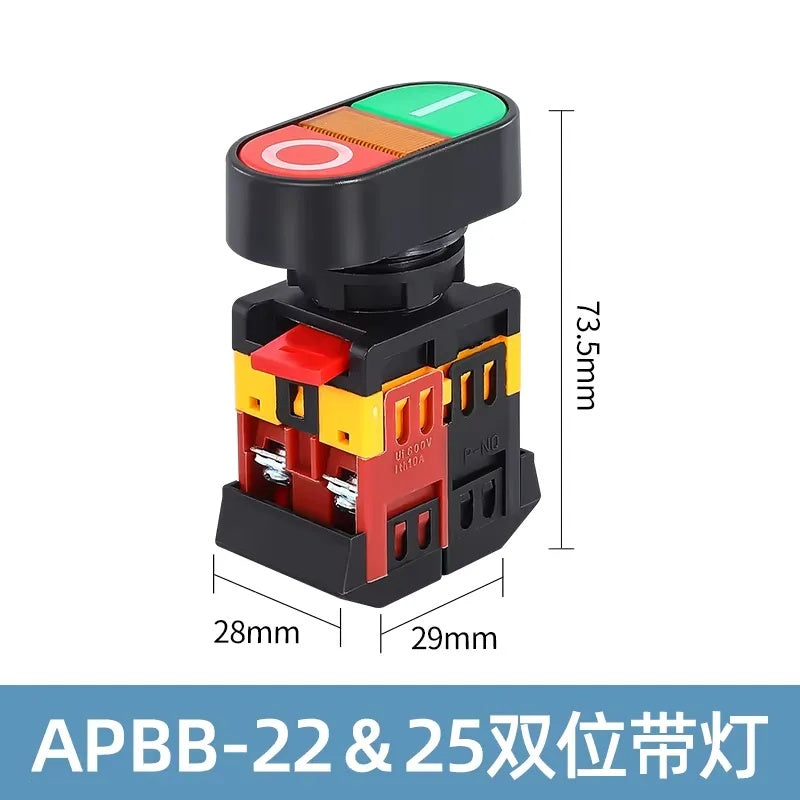

  • APBB-22&25N / AS-22&25N：Dual LED Push Button Switch 22mm/25mm, 10A Momentary, Start/Stop

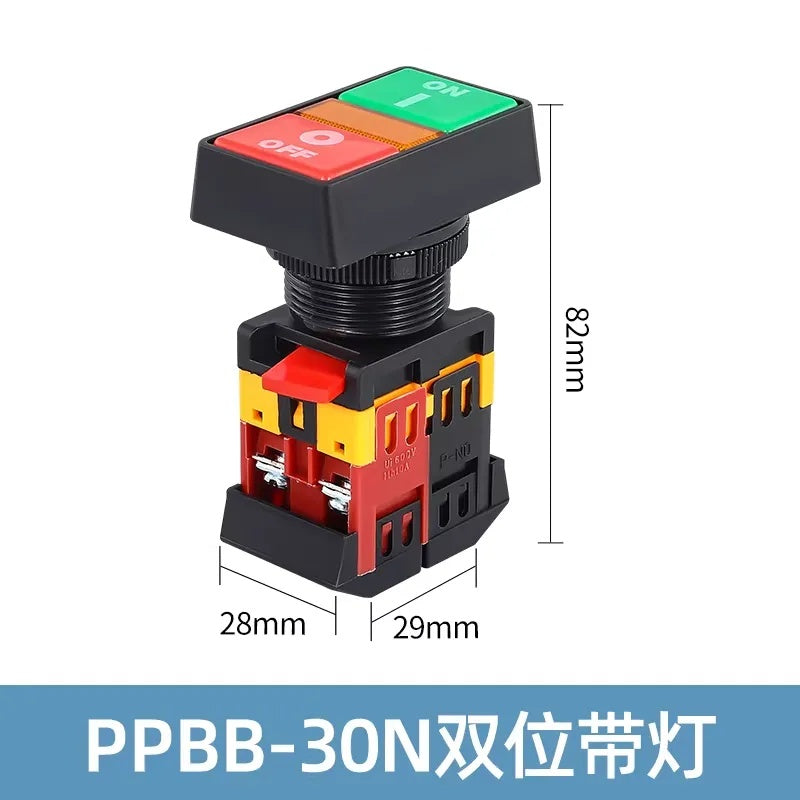

  • PPBB-30N：Dual LED Push Button Switch 30mm, 10A Momentary, Start/Stop

Product Overview


This dual-position push button switch with built-in LED indicator is a high-performance momentary (self-reset) start/stop switch, designed for industrial control, automation equipment, and mechanical operation. Available in 22mm/25mm and 30mm mounting sizes, it features 10A high-current load capacity, flame-retardant housing, and long service life, making it ideal for reliable start/stop control in various industrial and commercial scenarios.



中文属性 英文属性（AI / 平台标准） 属性值（英文）
产品名称 Product Name Dual Position Push Button Switch with LED Indicator
产品型号 Model Number APBB-22&25N, AS-22&25N, PPBB-30N
开孔尺寸 Mounting Hole Size 22mm/25mm (APBB/AS), 30mm (PPBB)
额定电流 Rated Current 10A
触点形式 Contact Configuration SPST (1NO+1NC, Momentary)
操作结构 Operation Type Momentary (Self-Reset)
带灯功能 LED Indicator Built-in LED, Power-on Light
机械寿命 Mechanical Life 5,000,000 Cycles
电气寿命 Electrical Life 600,000 Cycles
耐压等级 Dielectric Strength 2KV/5s
外壳材质 Housing Material Flame-Retardant, High-Temperature Resistant
触点材质 Contact Material High-Conductivity, High-Current Load
防护特性 Protection Features Impact-Resistant, Oxidation-Resistant, Wear-Resistant
适用场景 Application Industrial Control, Start/Stop Switch, Automation Equipment



Core Features

  1. Dual-Button Design with LED Indicator

    Built-in LED indicator lights up when powered on, clearly showing the working status. Dual start/stop buttons for intuitive operation, compatible with 22mm/25mm/30mm universal mounting holes.
  2. High-Current Load Capacity

    Premium high-conductivity contacts support 10A rated current, with strong overload resistance and long electrical life (600,000 cycles), ensuring stable performance in high-load industrial environments.
  3. Durable & Safe Construction

    Flame-retardant, high-temperature resistant housing with self-extinguishing property, impact and oxidation resistant. Wear-resistant button head prevents scratches, ensuring long-term durability.
  4. Momentary Self-Reset Operation

    Standard momentary (self-reset) action, automatically returns to the original position after release, perfect for start/stop control of motors, machinery, and automation systems.
  5. Long Service Life & High Reliability

    5,000,000 mechanical life cycles and 600,000 electrical life cycles, with 2KV/5s dielectric strength, meeting industrial-grade reliability standards.

Application Scenarios

  • Industrial control panels, mechanical equipment start/stop switches
  • Automation equipment, conveyor systems, production lines
  • DIY projects, electrical control boxes, vehicle modification
  • Commercial equipment, access control, and other momentary control needs
