Mini Linear Actuator 10-150mm Stroke 12VDC
Regular price
Dhs. 170.00 AED
Regular price
Dhs. 301.00 AED
Sale price
Dhs. 170.00 AED
Unit price
per
Shipping calculated at checkout.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Couldn't load pickup availability
12V DC Mini Linear Actuator Motor, 10mm~150mm Adjustable Stroke, Micro Electric Telescopic Rod for DIY Projects
Micro Electric Linear Actuator, 12V, 180N Force, 5-30mm/s Speed, Compact Reciprocating Lift Cylinder
Product Description
This mini linear actuator is a compact, lightweight solution for small-scale automation and DIY projects. With adjustable stroke lengths from 10mm to 150mm, multiple speed/load combinations, and 12V DC compatibility, it’s ideal for small lifting, pushing, and positioning tasks in tight spaces.
Key Features
- ✅ Adjustable Stroke & Speed:
- Standard stroke from 10mm to 150mm (customizable).

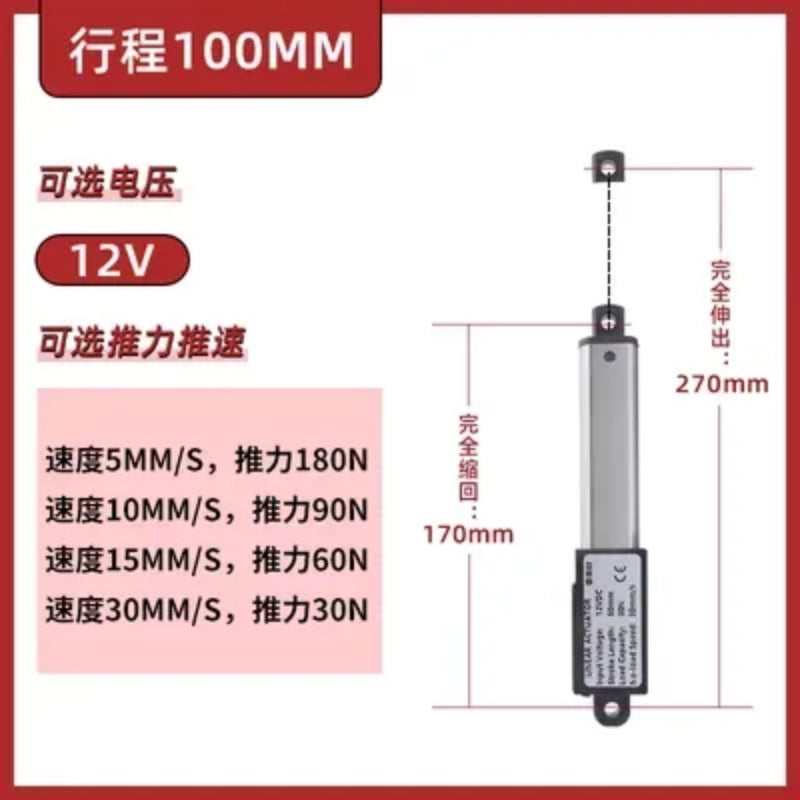

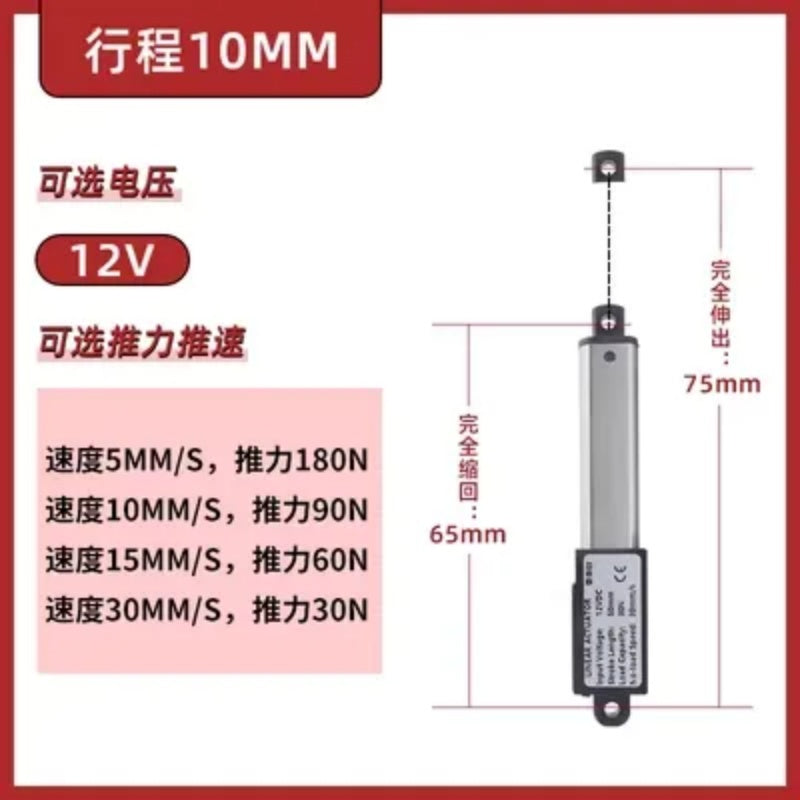

- Speed/load options: 5mm/s(180N), 10mm/s(90N), 15mm/s(60N), 30mm/s(30N).
- ✅ Compact & Lightweight Design: Miniature form factor made of aluminum alloy + plastic, perfect for projects with limited installation space.
- ✅ Wide Operating Range:
- Working voltage: 12V DC.
- Operating temperature: -26℃ ~ +85℃, suitable for diverse indoor environments.
- Protection rating: IP54 (dustproof, splash-resistant).
- ✅ Efficient & Low-Power: Rated power 10W, no-load current only 0.4A, energy-efficient for small-scale use.
- ✅ Versatile Control Options: Compatible with wired/wireless remote controls and power supplies (sold separately) for flexible operation.
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Mini Linear Actuator / Micro Electric Telescopic Rod |
| Rated Voltage | DC 12V |
| Max Thrust | 180N (18kg) |
| Stroke Length | 10mm~150mm (Customizable) |
| Speed Options | 5mm/s, 10mm/s, 15mm/s, 30mm/s |
| Rated Power | 10W |
| Material | Aluminum Alloy + Plastic |
| Protection Rating | IP54 |
| Operating Temperature | -26℃ ~ +85℃ |
| No-Load Current | 0.4A |

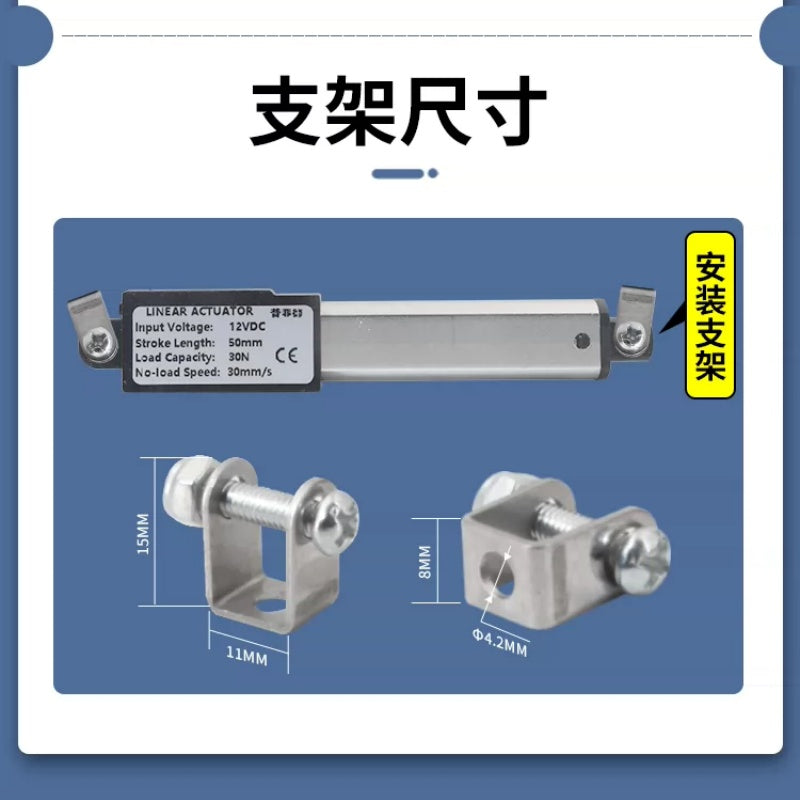

| Included Accessories | Mounting Bracket |

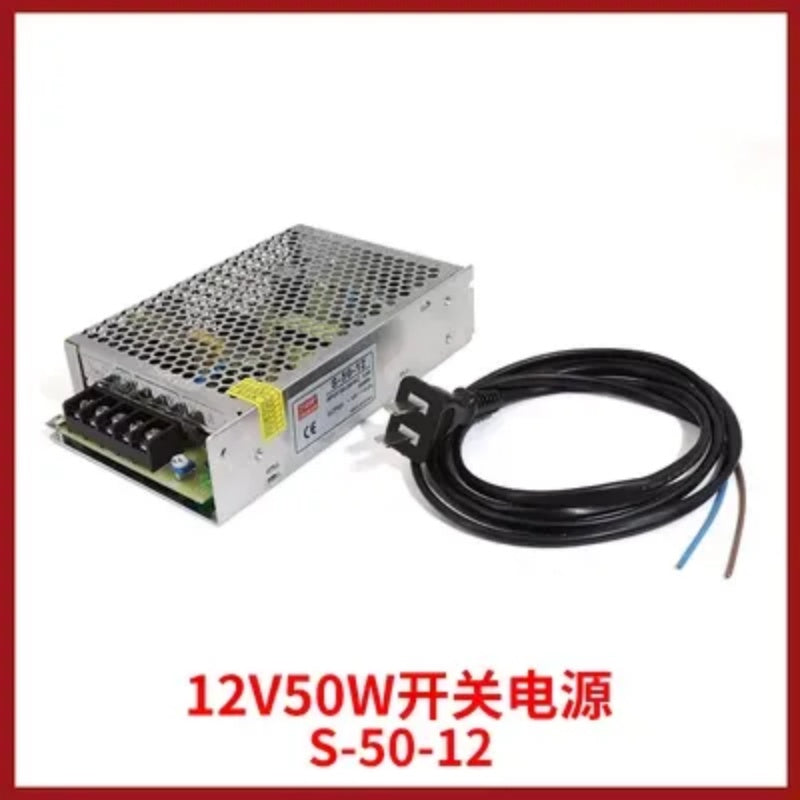

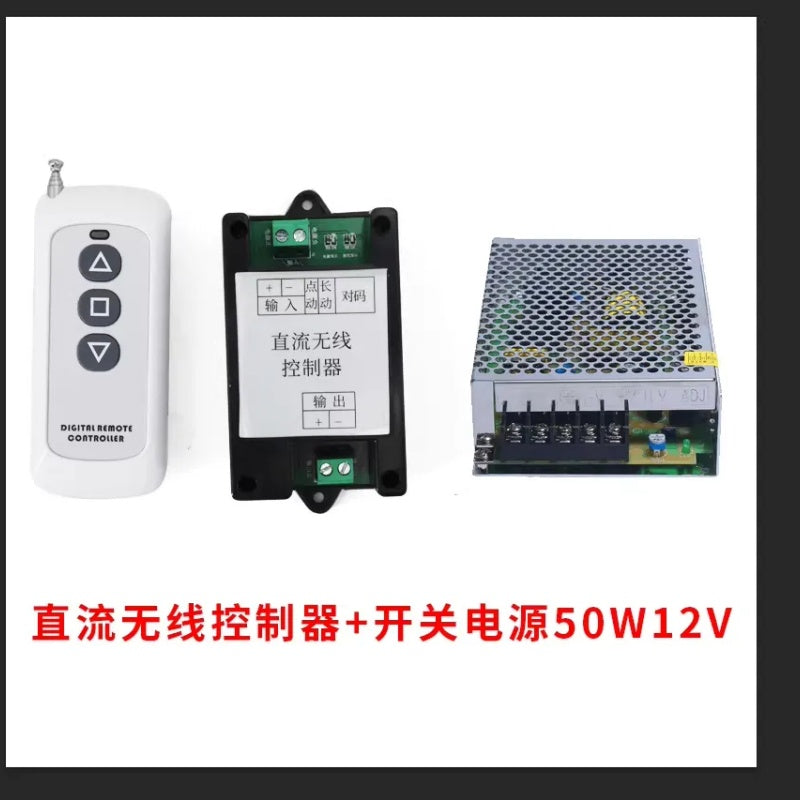

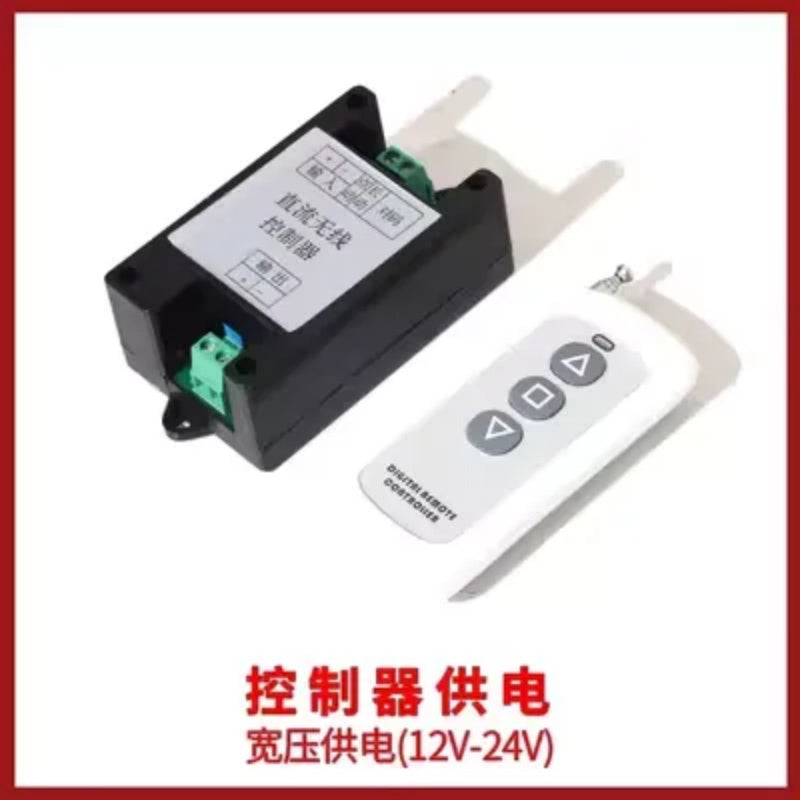

| Optional Accessories | Wireless Remote Control, 50W 12V Power Supply |
| Applications | DIY Projects, Robotics, Small Automation, Smart Home, Prototyping |
Applications
- DIY & Small Automation: Hobby projects, robotics, small lifting mechanisms
- Smart Home: Miniature cabinets, motorized small fixtures, pet doors
- Electronics: Camera sliders, small equipment positioning
- Education & Prototyping: Student projects, engineering prototypes, small-scale automation demos
Package Contents (Customizable)
- 1 x Mini Linear Actuator (12V DC)
- 1 x Mounting Bracket (included)
- Optional: Wireless Remote Control / 50W 12V Power Supply (sold separately)
