GX12 Aviation Plug Cable, Male Female Pre-wired Connector, 2/3/4/5/6/7 Pin Soldered Extension Power Cord
تعذّر تحميل توفر الاستلام
GX12 aviation plug cable, GX12 pre-wired connector
GX12 Round Aviation Plug With Cable, 2 to 7 Core, Custom Wire End Processing, Industrial Power Extension Cord
Product Description

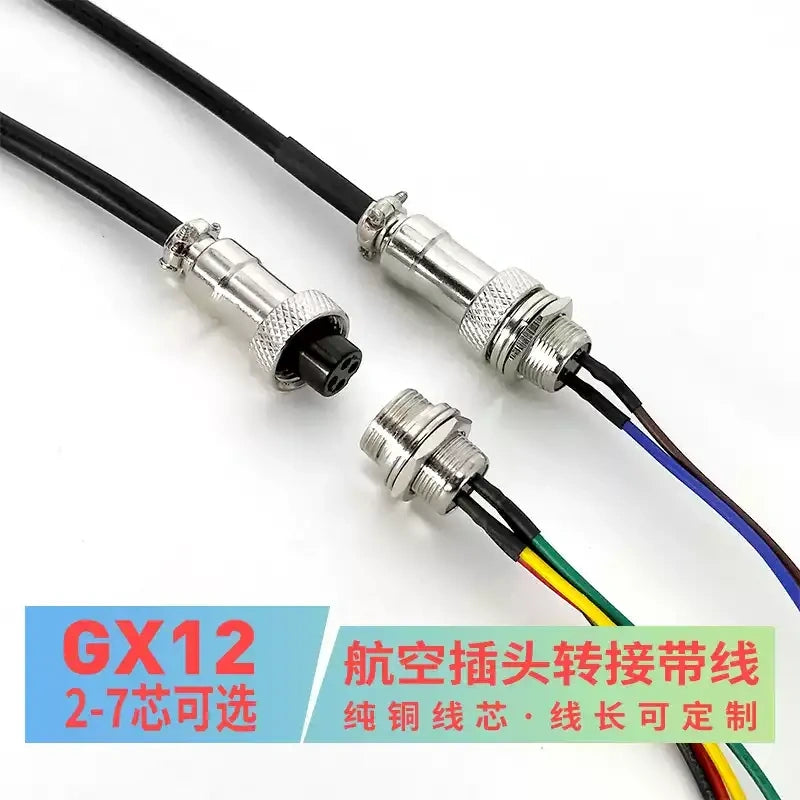

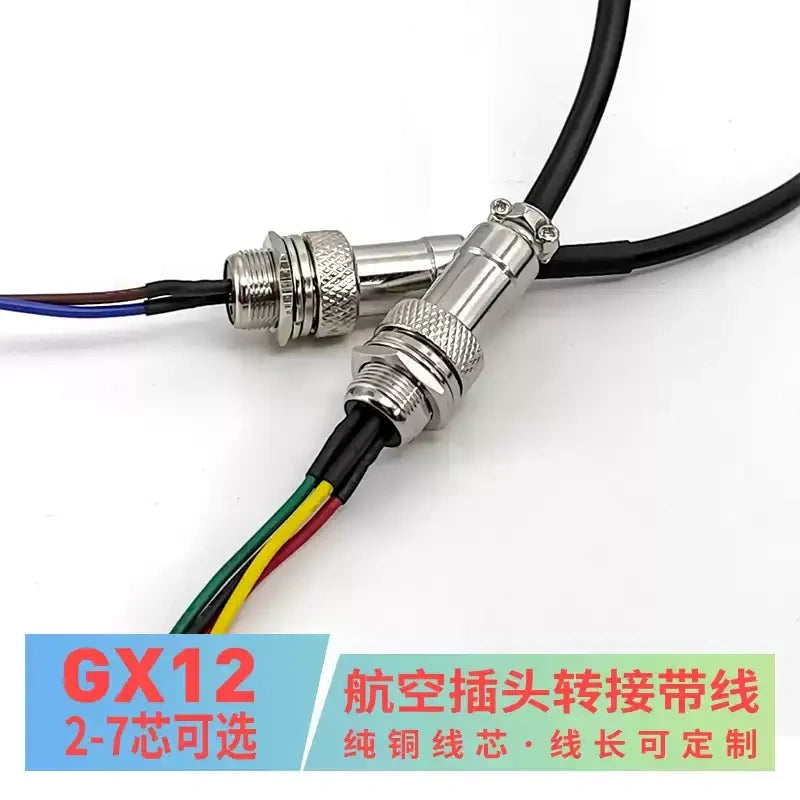

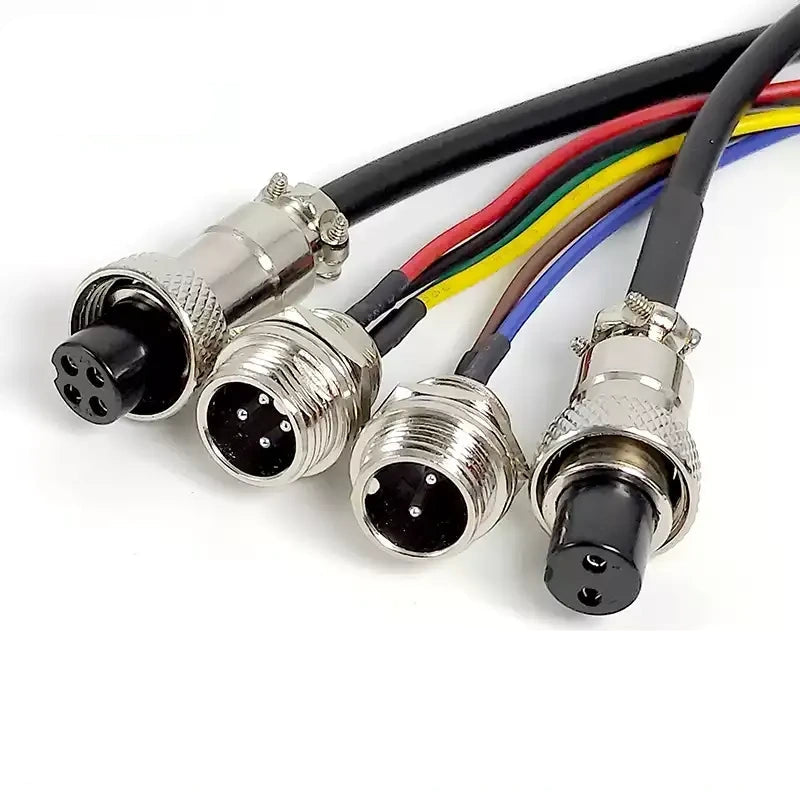

GX12 series pre-wired aviation connector cable, widely used for power and signal transmission in industrial equipment, sensors, motors and automation devices. Multiple connector styles for your selection:

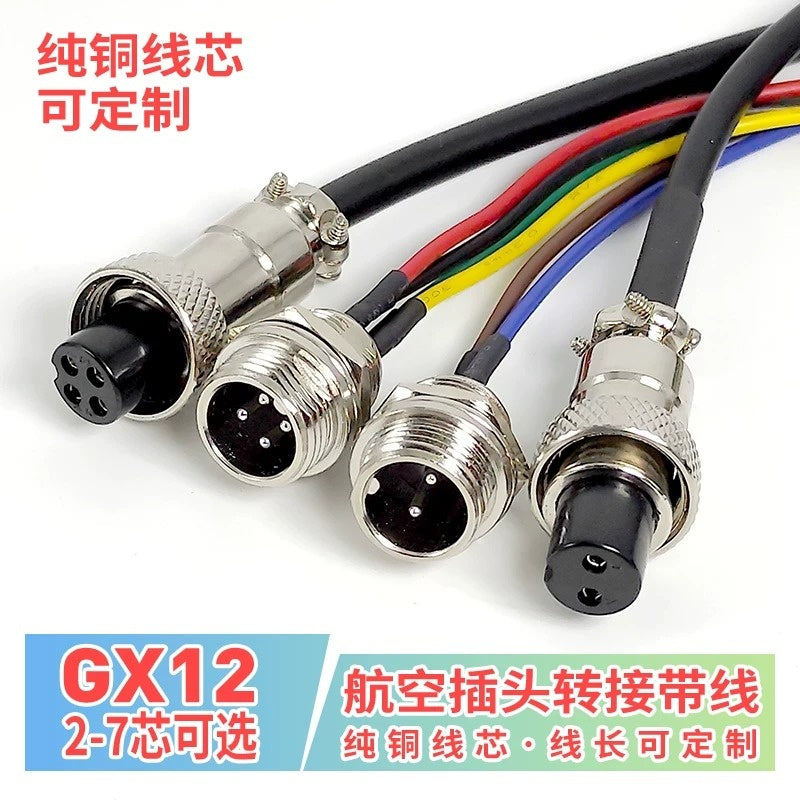

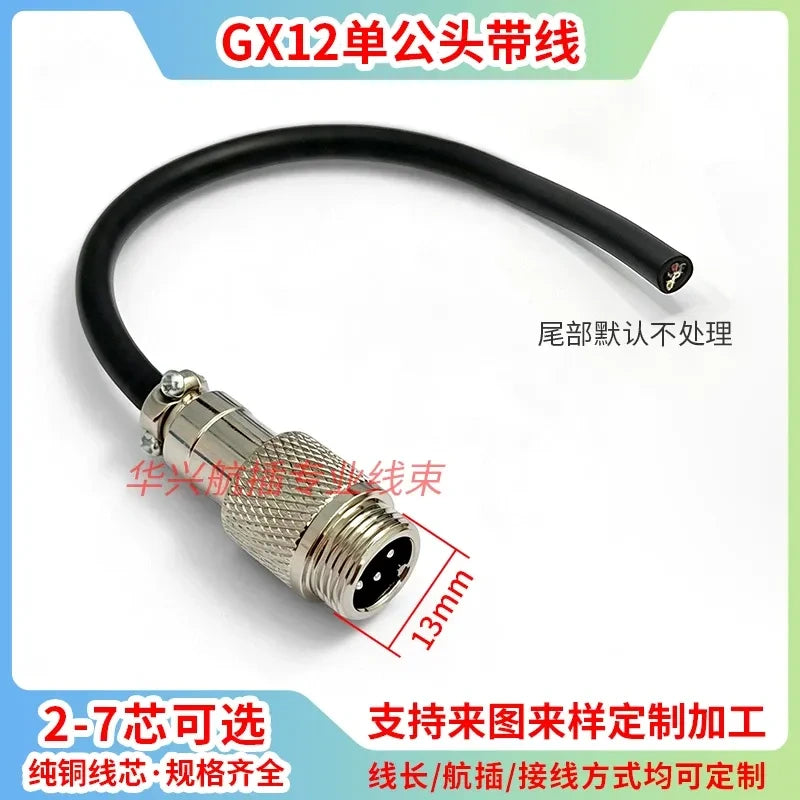

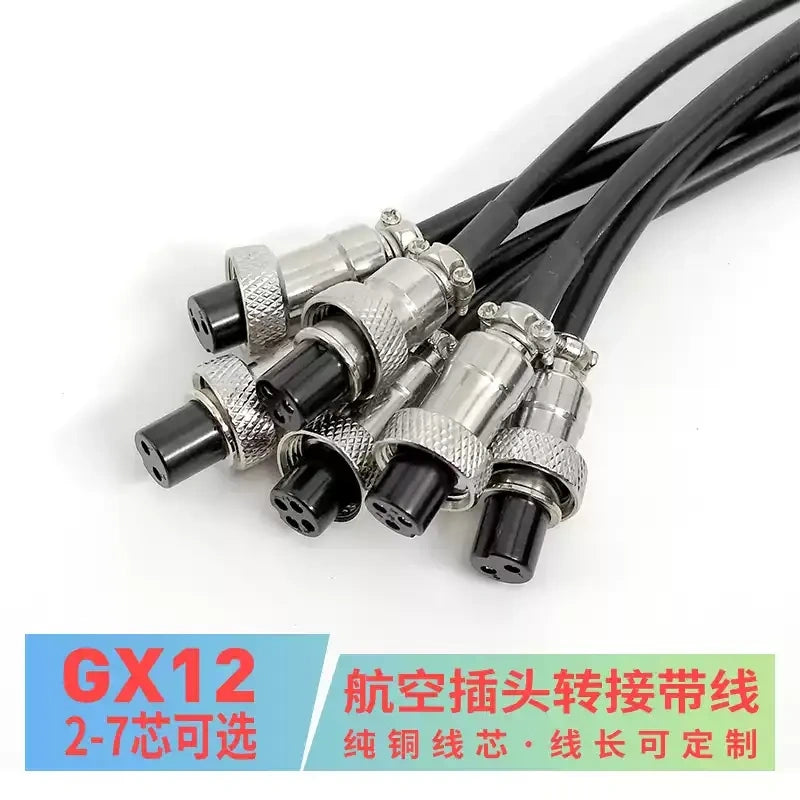

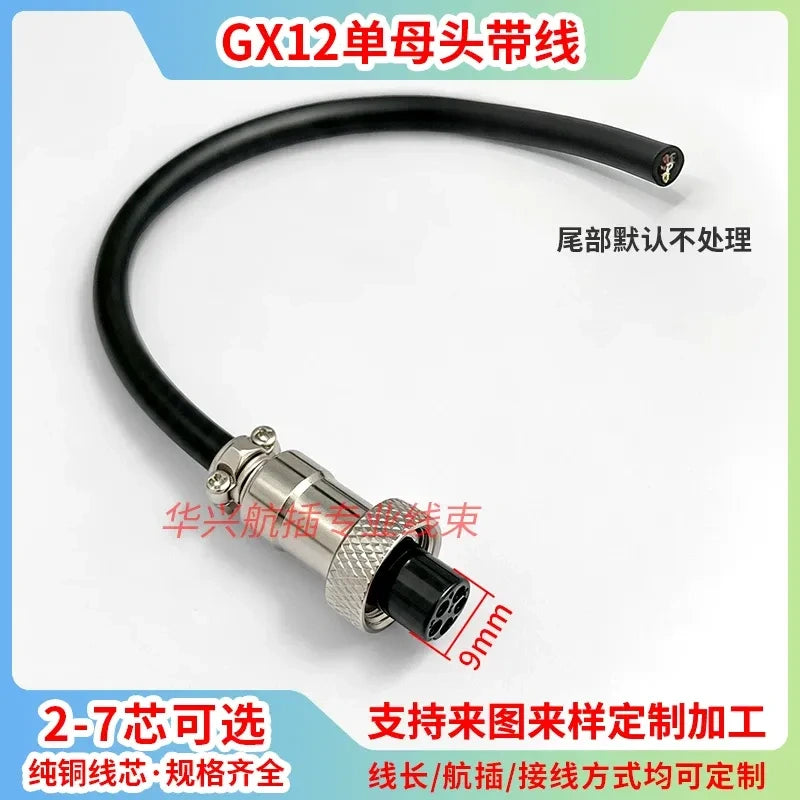

- Single-end Female, Single-end Male

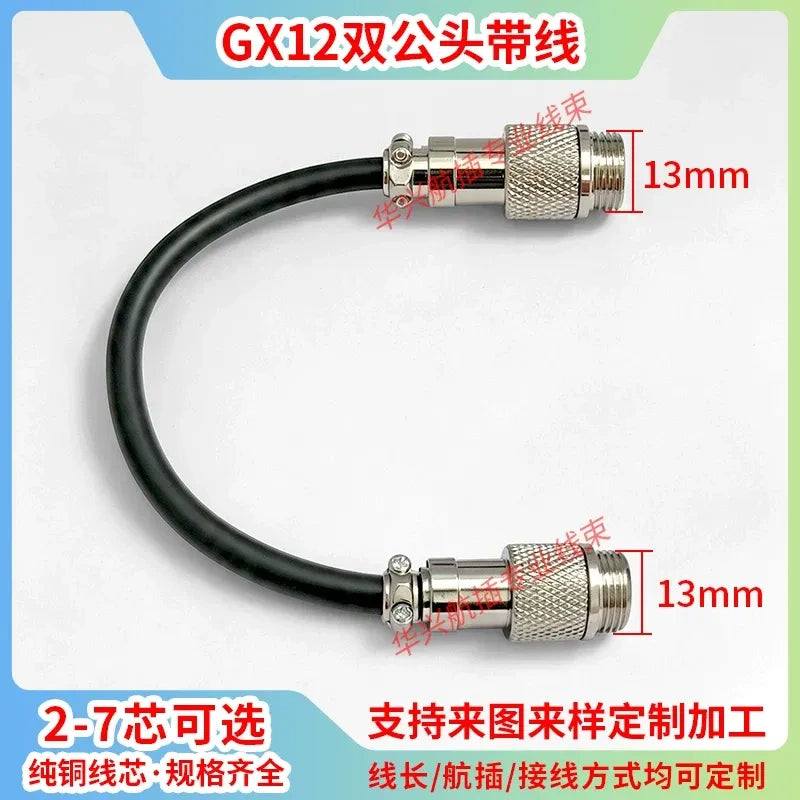

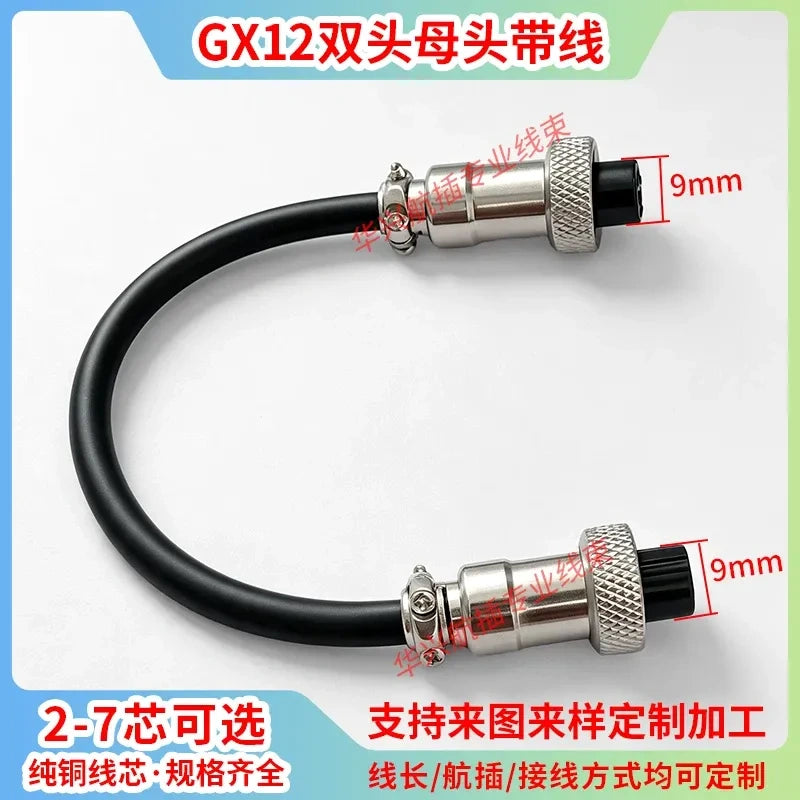

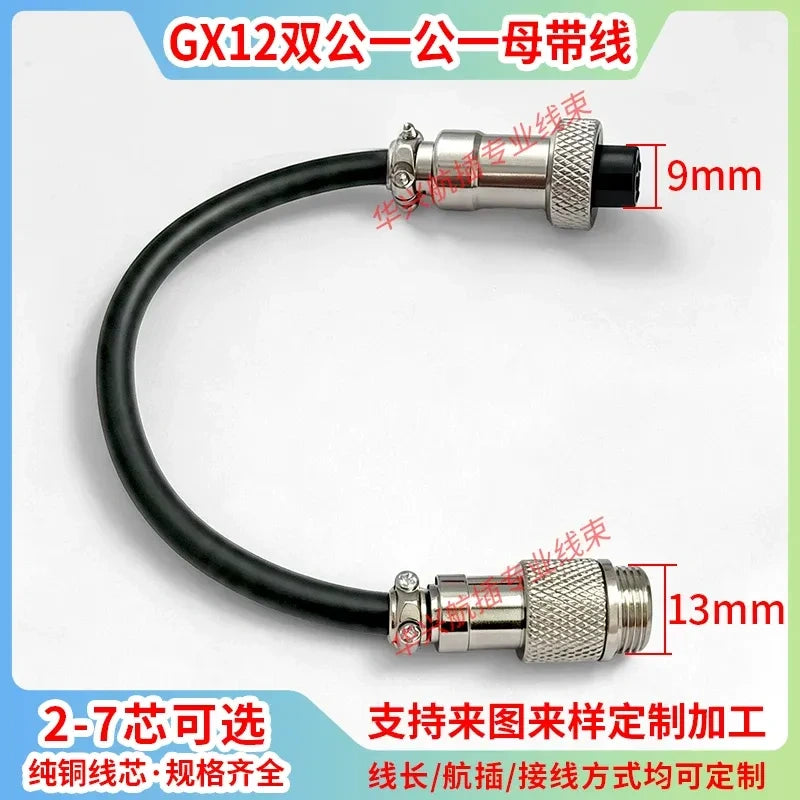

- Double-end Female, Double-end Male, Double-end 1 Male 1 Female

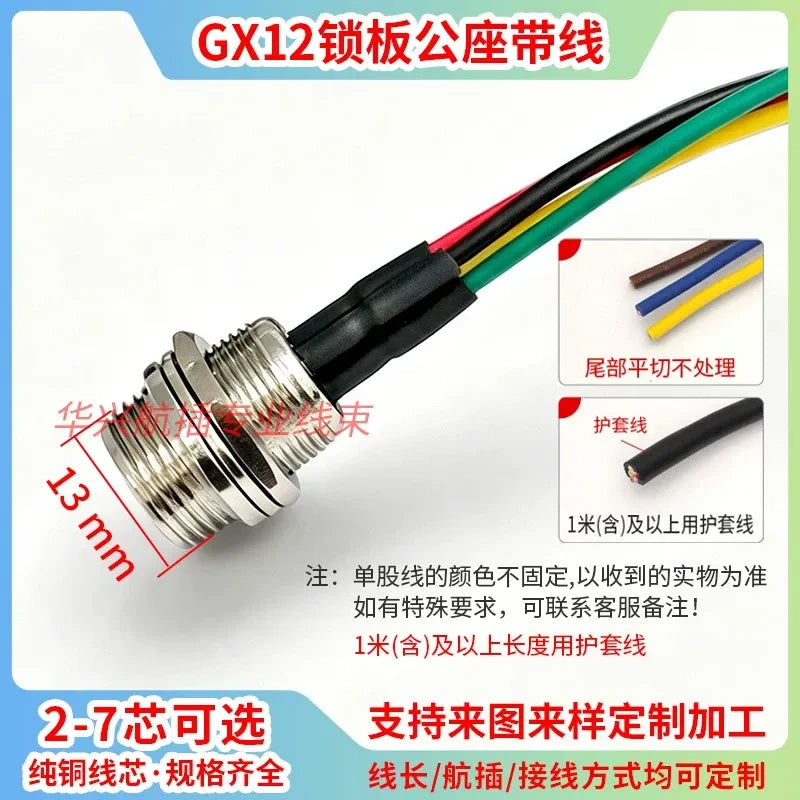

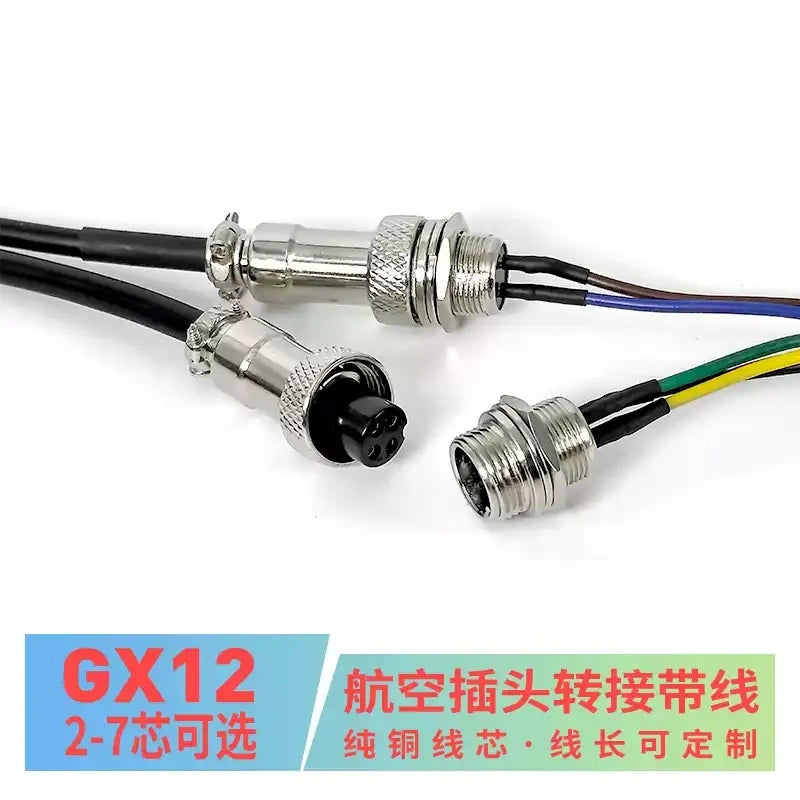

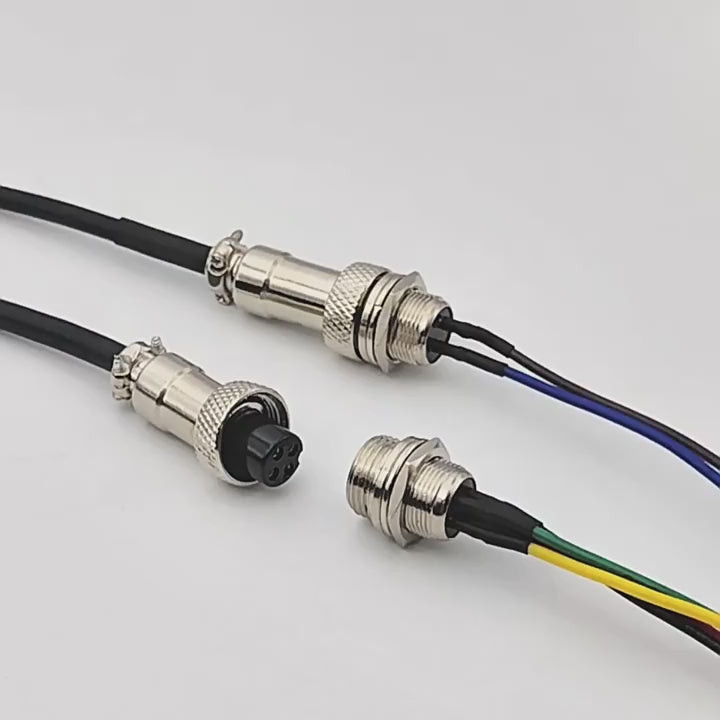

- Locking Panel Mount Male Receptacle (1m & above with protective sleeve wire)
Core options: 2 Core, 3 Core, 4 Core, 5 Core, 6 Core, 7 Core Available cable length: 20cm, 30cm, 50cm, 1m, 1.5m, 2m, 3m
Product Features
✅ Soldered joint construction with screw fastening, high conductivity, firm connection, no loose terminals
✅ Strict multi-process inspection to avoid cold solder joint, false solder and missing solder
✅ Custom wire termination available: half strip, full strip & tin dipping, pin terminals, number tube, crimp housing (VH3.96 / XH2.54 / PH2.0 etc.)
✅ Rated current: 5A, Rated voltage: 125~200V, Low contact resistance, good insulation performance
✅ Twist-lock design for stable mating, anti-vibration, easy plug & unplug
Electrical Specs
Contact Diameter: φ1.2 Contact Resistance: ≤5mΩ Insulation Resistance: ≥2000MΩ Withstand Voltage: 1500V AC for 1 minute Wire Hole Diameter: φ0.8
Attribute Table
| Attribute | Value |
|---|---|
| Product Name | GX12 Aviation Connector Cable |
| Connector Type | Round Aviation Plug GX12 |
| Connector Variant | Single-end Female, Single-end Male, Double Female, Double Male, 1M1F Double End, Locking Panel Mount Male Receptacle |
| Core Options | 2 Core,3 Core,4 Core,5 Core,6 Core,7 Core |
| Cable Length | 20cm,30cm,50cm,1m,1.5m,2m,3m |
| Rated Current | 5A |
| Rated Voltage | 125V~200V AC |
| Contact Diameter | φ1.2mm |
| Wire Terminal | Default flat cut; Custom: stripping & tin dipping, pin terminal, crimp housing |
| Application | Industrial sensor, automation equipment, motor power connection, signal transmission |
| Process | Soldered connection + screw fixed |
FAQ
Q: What core options are available for this GX12 cable?
A: We have 2,3,4,5,6,7 core versions to choose from.
Q: Can I customize the wire end treatment?
A: Yes. Available custom processing: half stripping, full stripping & tin dipping, number marking tube, pin terminals, crimp connector housing like VH3.96, XH2.54, PH2.0. Default wire end is flat cut without processing.
Q: What is the rated current and voltage?
A: Rated current is 5A. 2-core model supports up to 200V AC; 3~7 core rated voltage is 125V AC.
Q: What is the difference between panel mount lock male receptacle?
A: Locking panel mount male base is for cabinet installation. Orders of 1 meter and above come with protective sleeve wire.
Q: Are the connector joints soldered?
A: Yes, internal soldering plus external screw locking. Stable conductivity and prevent wire falling off.
