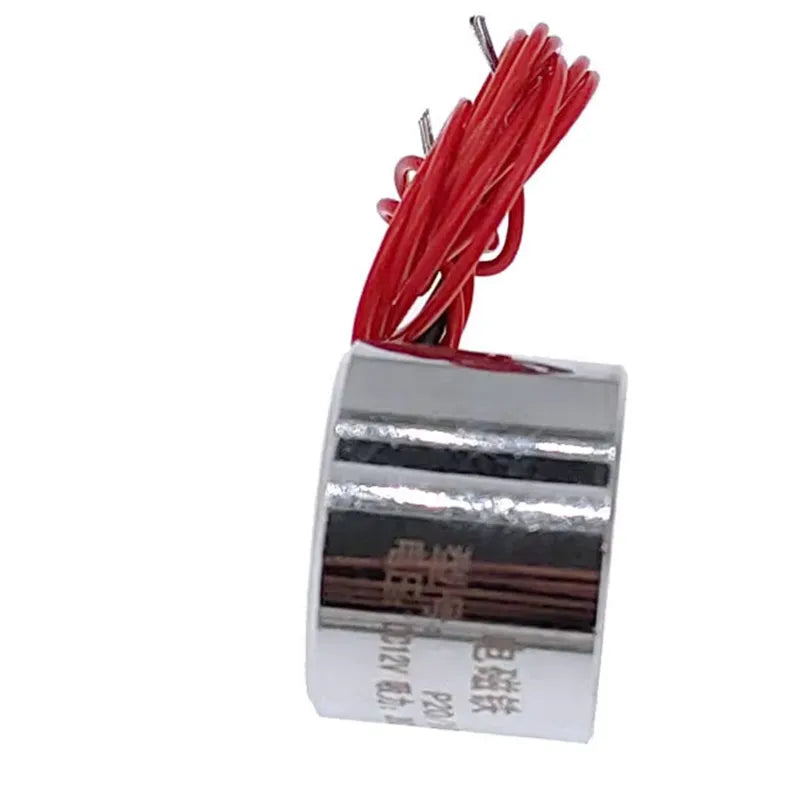

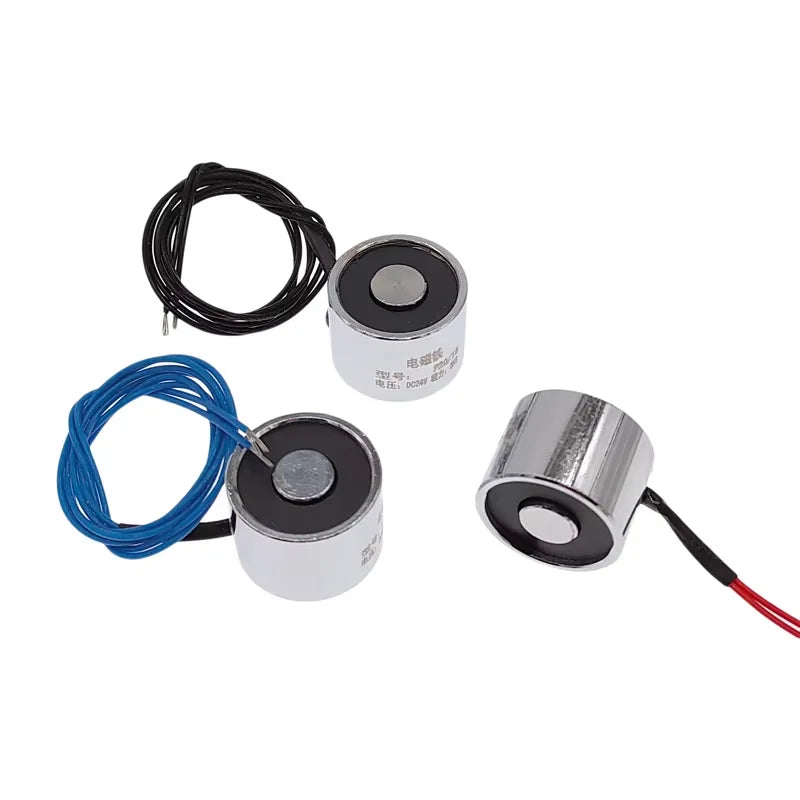

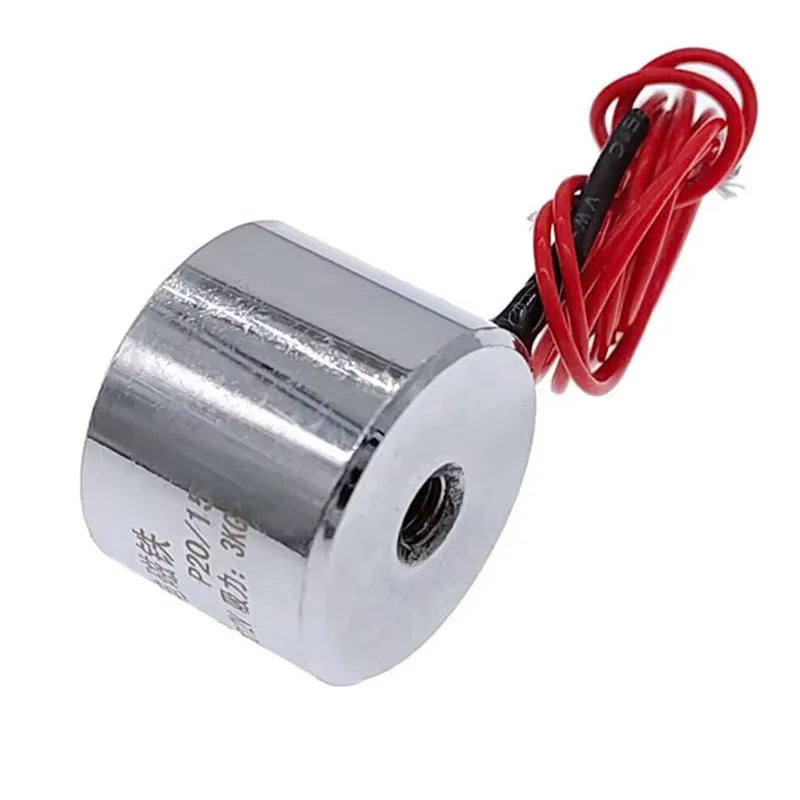

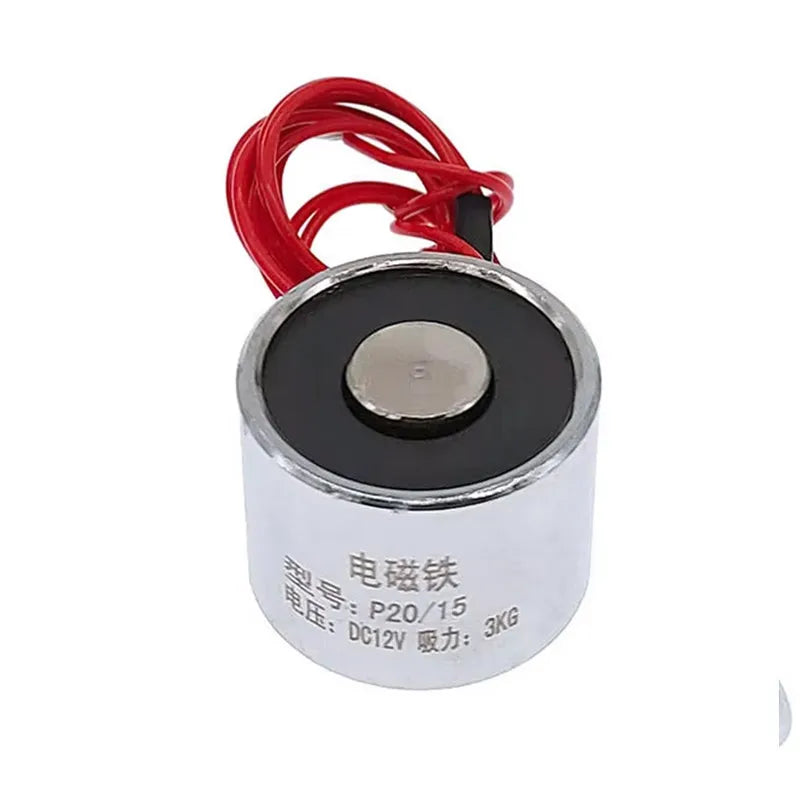

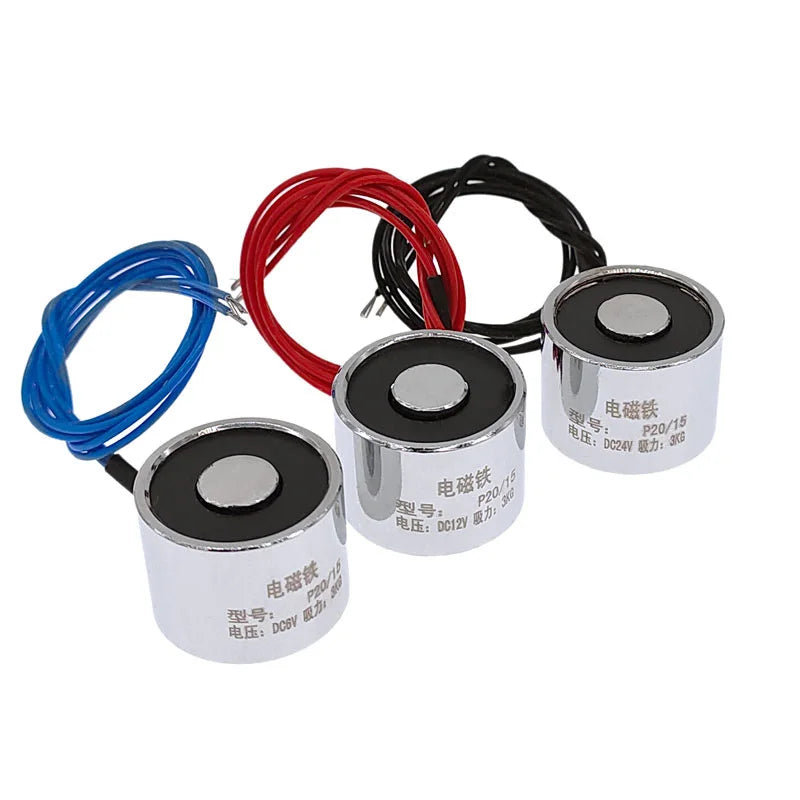

Electromagnet P20/15 Cylinder Electric Magnet DC 5V 6V 12V 24V Suction 3KG 30N Strong Electromagnet Solenoid
تعذّر تحميل توفر الاستلام
P20/15 electromagnet, round lifting electromagnet, 3kg suction electromagnet, 30N dc electromagnet, dc5v electro magnet, dc12v sucker electromagnet
dc24v electromagnetic chuck, cylinder electromagnet, automation holding magnet, suction solenoid
Brand Name: CNMAWAY
Certification: CE
High-concerned chemical: none
Model Number: P20/15
Origin: Mainland China

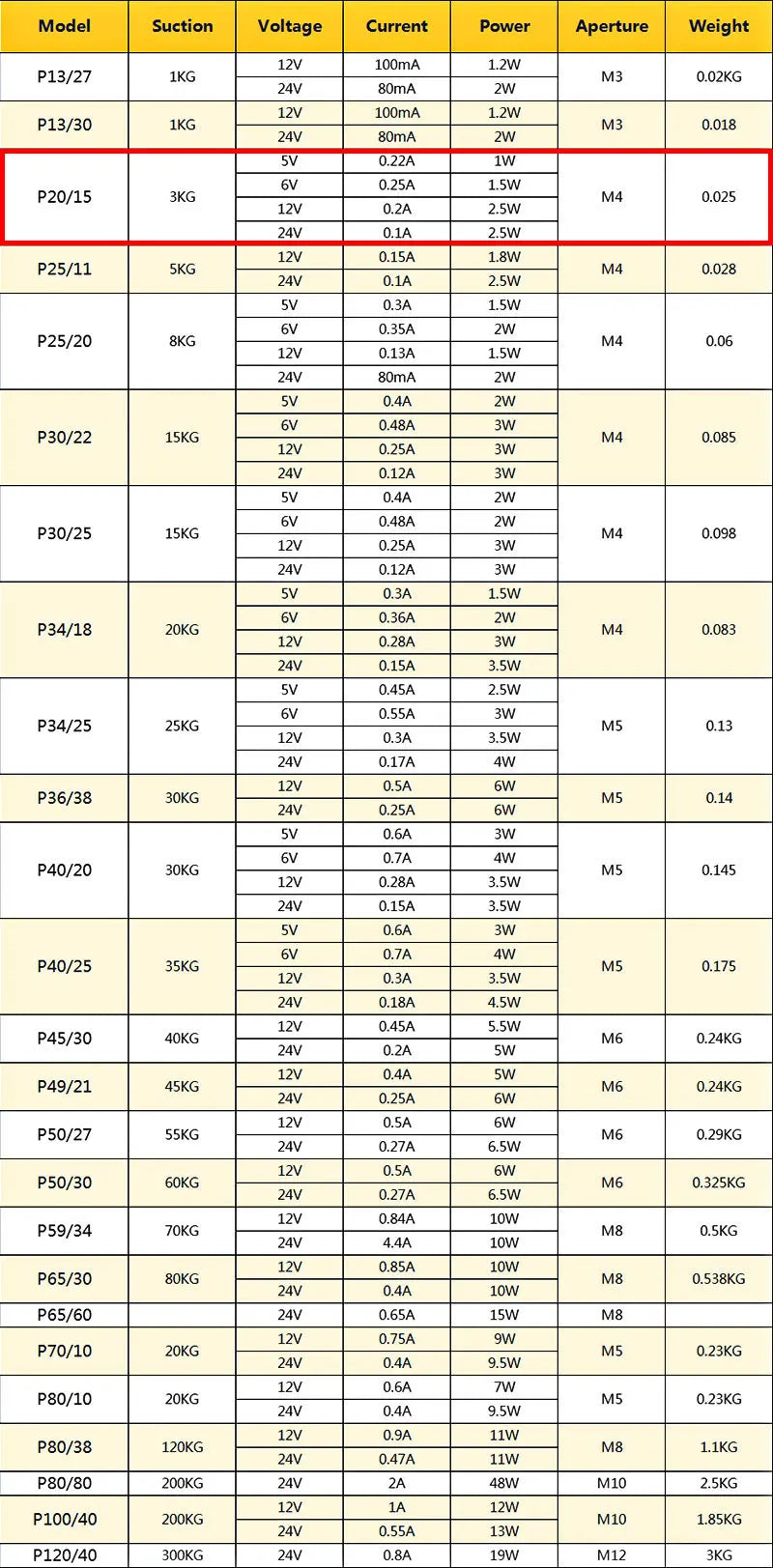

SPECIFICATION
| Attribute | Value |
|---|---|
| Product Name | P20/15 Round Suction Electromagnet |
| Model | P20/15 |
| Rated Voltage | DC 5V, DC 6V, DC 12V, DC 24V |
| Suction Force | 30N (3kg) |
| Shape | Cylindrical |
| Working Mode | Electrified suction, power-off demagnetization |
| Feature | Compact round body, two-wire connection, flat suction surface |
| Application | Automation gripping, material sorting, magnetic fixture, small handling equipment |
FAQ
Q1: Does it hold magnetism after power off?
A1: No. It loses suction immediately once power is cut off.
Q2: What material can it attract?
A2: Only ferrous metal like iron, steel. It will not work on copper, aluminum or stainless steel.
Q3: Can it run continuously?
A3: Check coil specification; low-voltage small electromagnets are usually for intermittent use, long-time energizing may overheat.

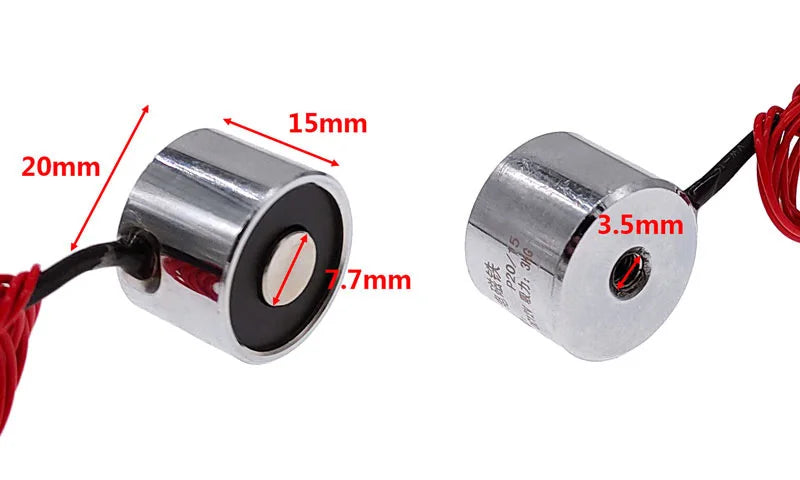

Q4: What do P20 and 15 mean?
A4: P stands for suction type; 20mm diameter, 15mm height.
Reminder:
1. Adsorption area should smooth, flat and clean, and can't be too large and too thin.
2. The electromagnet requires direct contact that with no distance.
3. The electromagnet only suitable for intermittent work, such as 1 seconds on and 1 seconds off. It's okay to work like this all day.
