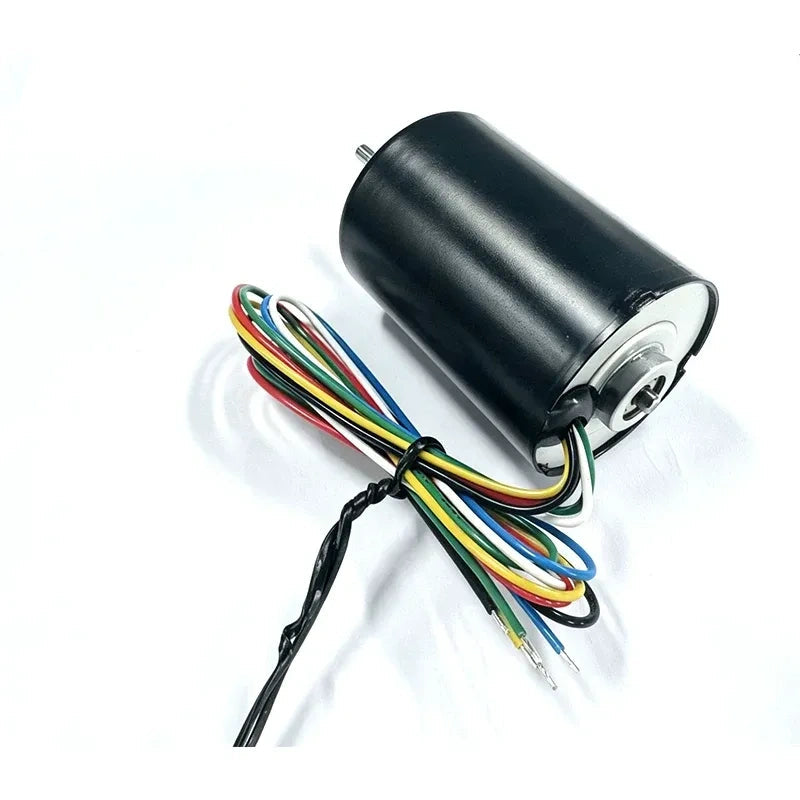

BL-3650 DC Brushless Motor 12V/24V 3000-10000RPM Built-in Driver PWM

$34.85 USD

مبيع نفد المخزون

الشحن يُحسب عند إتمام الشراء.

Motor Speed 3000RPM 4000RPM 5000RPM 6000RPM 7000RPM 8000RPM 9000RPM 10000RPM

Motor Voltage & Wire Type DC12V 5-Wire DC12V 6-Wire DC24V 5-Wire DC24V 6-Wire

Output Shaft Length 9mm 11mm 19mm

متغيرات المنتج

الكمية

Added ✓

BL-3650 DC Brushless Motor 12V 24V, Built-in Driver,

BL-3650 DC brushless motor 12V 24V 3000-10000 RPM

built-in driver PWM forward reverse brushless motor

5-wire 6-wire 9mm 11mm 19mm shaft micro BLDC

plug and play brushless motor for CNC robot

BL-3650 compact DC brushless motor with integrated built-in driver, supports forward/reverse rotation and PWM speed regulation. Dual voltage 12V / 24V available.

Optional no-load speeds: 3000,4000,5000,6000,7000,8000,9000,10000 RPM.

Output shaft length optional:9mm,11mm,19mm; 5-wire /6-wire versions for different control demands.

Spec: BL-3650 DC Brushless Motor; Voltage: 12V/24V; Speed: 3000/4000/5000/6000/7000/8000/9000/10000 RPM; Built-in Driver; Forward & Reverse; PWM Speed Control; Wire: 5-Wire/6-Wire; Shaft: 9mm/11mm/19mm.
Feature: Compact 36mm-class brushless motor with built-in driver for true plug-and-play PWM control & reversible rotation; high-speed up to 10k RPM; 5/6-wire configs support flexible control/feedback; quieter & longer life vs brushed; pairs seamlessly with HH/MK/JQX/LC1D & PSU stack.
Use: Micro CNC spindles, robotic actuators, smart agriculture (coop door/ventilation), gimbals, precision tools, tachometer-tested loops.
Pairing: Drive directly via PWM (built-in driver); power by 3-60V/3-90V PSU; logic switch via HH52P/MK2P → JQX-38F/LC1D for main power; wire UL2464/UL2547; test 4mm banana; coupler GX/M12; read XD tachometer; clean with cordless washer.
Note: Built-in driver = easier integration vs BL-2838 (sensorless no driver) & complements BL-3657 (Hall); 24V for higher torque/speed; 9/11/19mm shaft options; sits in the high-RPM direct-drive family bridging GP reducers & heavy AC gear.

Core Advantages

✅ Built-in driver, simple wiring installation

✅ PWM speed adjustable & reversible rotation

✅ High speed, stable torque output

✅ Pure copper coil, low heating, long lifespan

✅ Multiple RPM and shaft length options

✅ Dual voltage 12V/24V compatible

Wire Sequence & Function Description

Please read carefully before using the product

Red Wire: Motor Power Positive + (DC 12V–24V). Do NOT miswire
Black Wire: Motor Power Negative − (DC 12V–24V). Do NOT miswire
Yellow Wire: Speed Feedback Signal (6 pulses per rotation. Max low level:0.6V; High level:4V ~ 5.6V)
Orange Wire: Motor Direction Control Input Signal (Forward rotation when connected together with black negative wire)
White Wire: PWM Speed Control Signal for motor speed regulation (Compatible with 0–5V speed controller)
Green Wire: Motor Brake Signal Input Control (Brake triggered at low level, max 0.6V)
⚠️ WARNING: Never reverse positive and negative power supply. Signal wires must NOT connect to power. Warranty void if miswired!

Specification

Attribute	Value
Product Model	BL-3650
Motor Type	DC Brushless BLDC Motor
Rated Voltage	12V / 24V
Rated Power	27.47W
No-load Speed	3000~10000 RPM optional
Function	PWM Speed Control, Forward & Reverse Rotation
Wire Type	5 Wire / 6 Wire
Output Shaft Length	9mm / 11mm / 19mm
Material	Pure Copper Coil, High Strength Magnetic Tile, Ball Bearing
Net Weight	189g
Feature	Built-in driver, high speed, compact size, low heat
Application	Medical instrument, packaging, robotics, CNC, laser cutting, automation equipment
