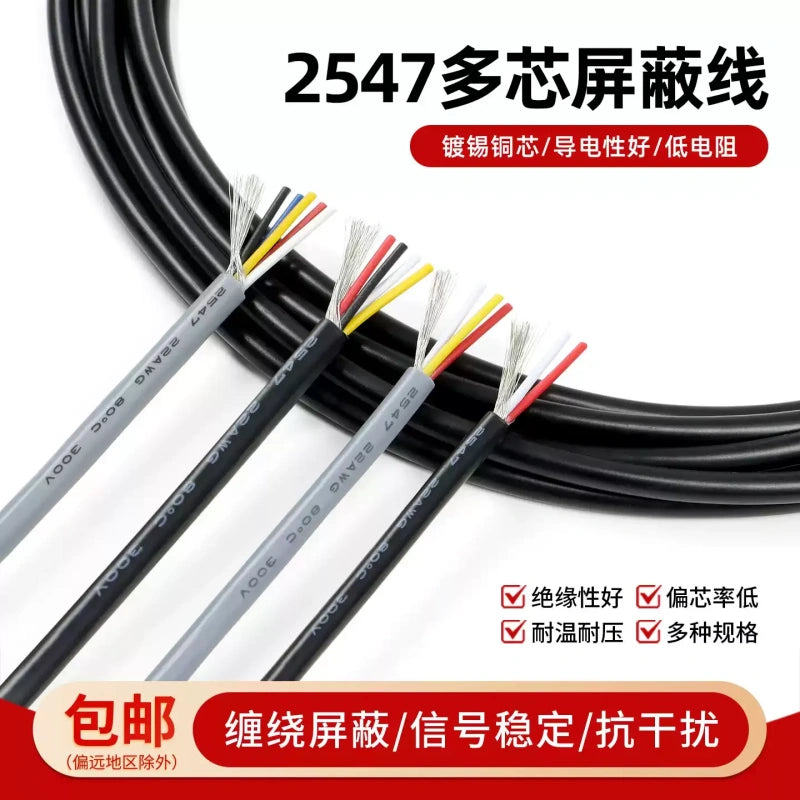

1M/5M 2547 Multi-Core Shielded Cable 2/3/4/5/6/7/8 Core 16-30AWG Tinned Copper Braided Shield Wire
تعذّر تحميل توفر الاستلام
2547 shielded wire,multi core shielded cable
Description
✅ Tinned Copper Conductor Adopt multi-strand fine tinned copper wire, excellent conductivity, stable signal transmission, anti-oxidation and long service life.

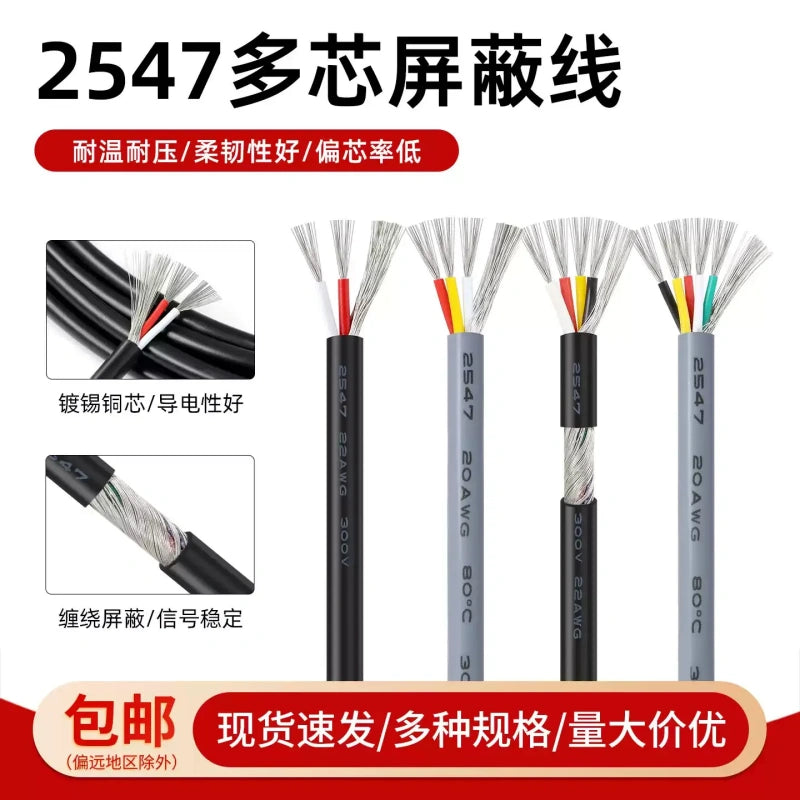

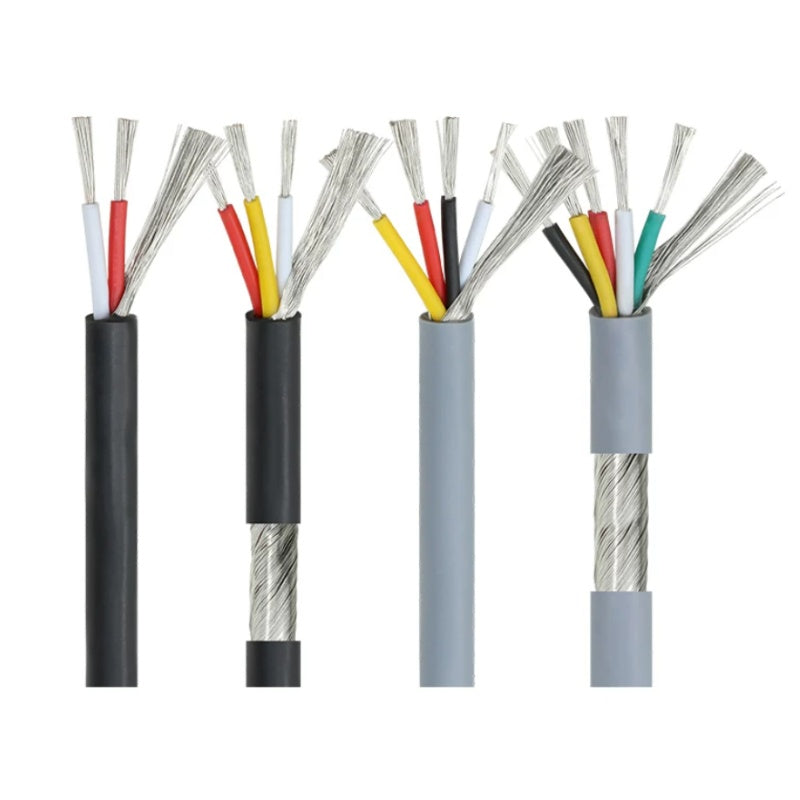

✅ Wrapped Tinned Copper Shielding Tinned copper wrapped shield layer effectively blocks electromagnetic interference, guarantees clean and stable signal for audio, data and sensor signal transmission.

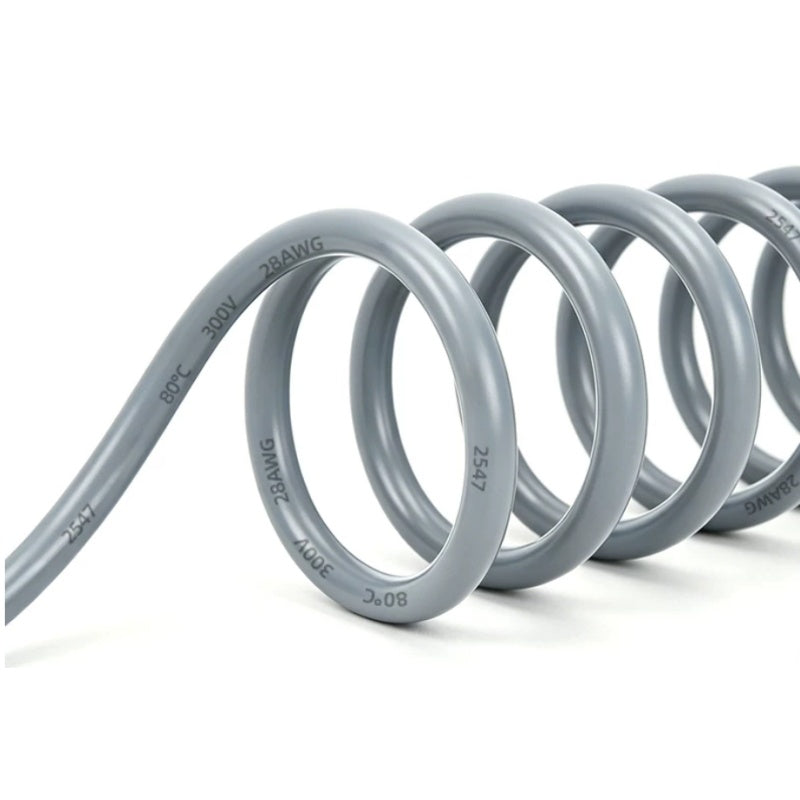

✅ Flexible Environmental Insulation Jacket Flexible PVC outer sheath, good bending resistance, rated temperature up to 80℃, rated voltage 300V. Durable and wear-resistant for indoor equipment wiring.

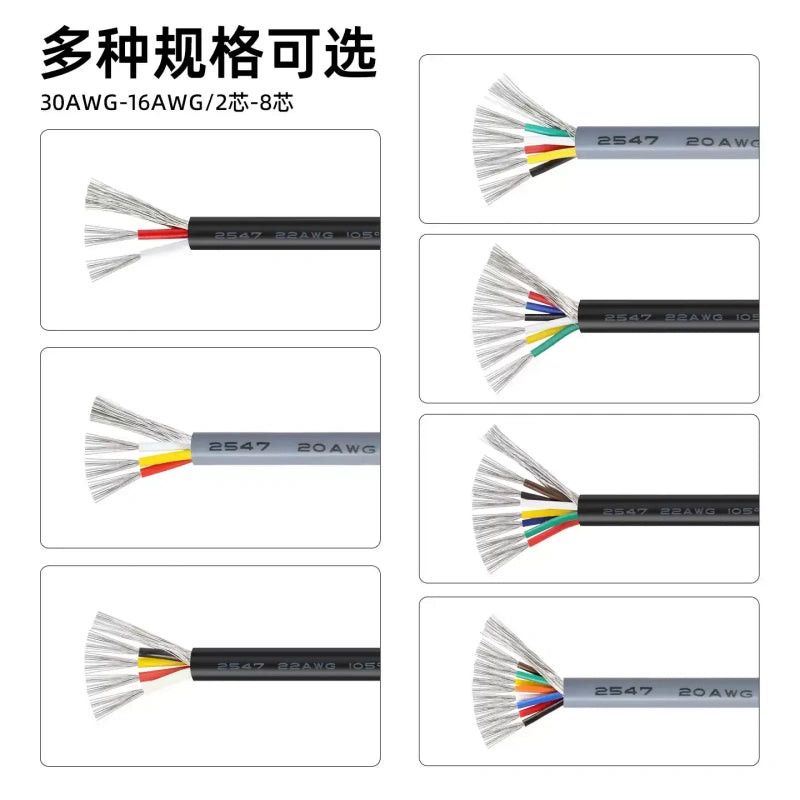

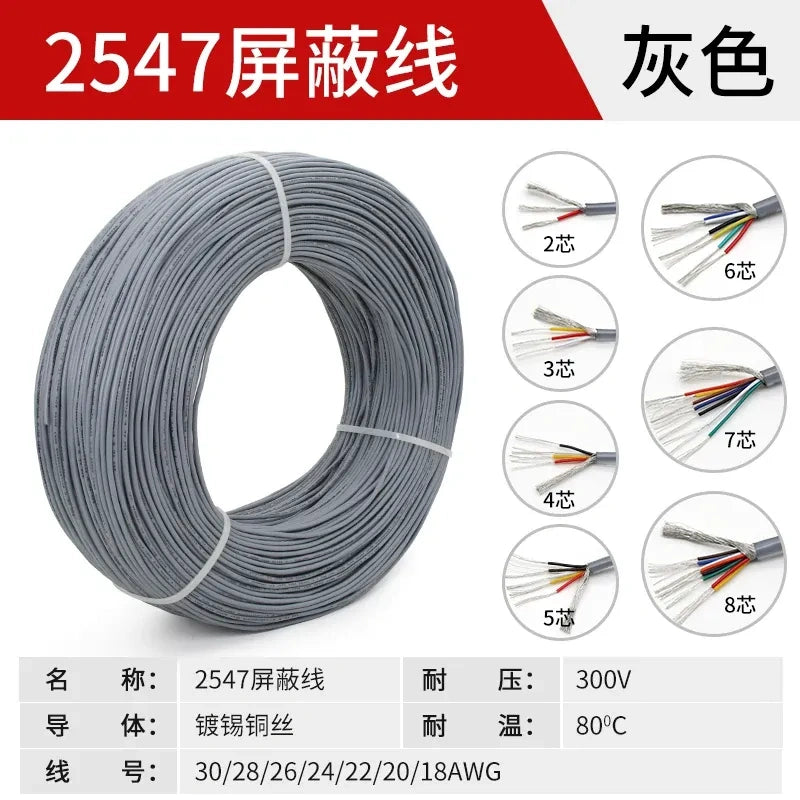

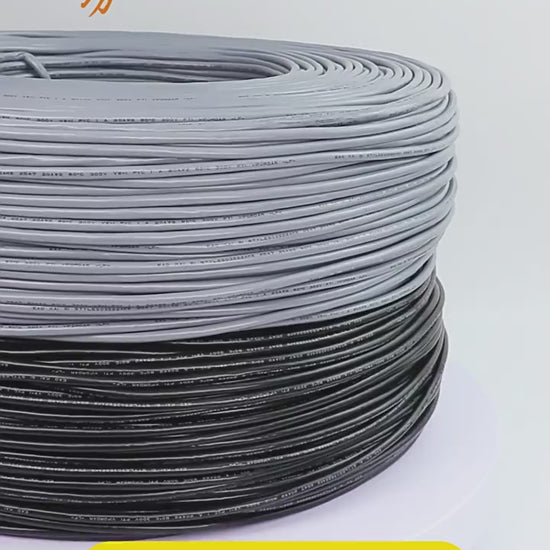

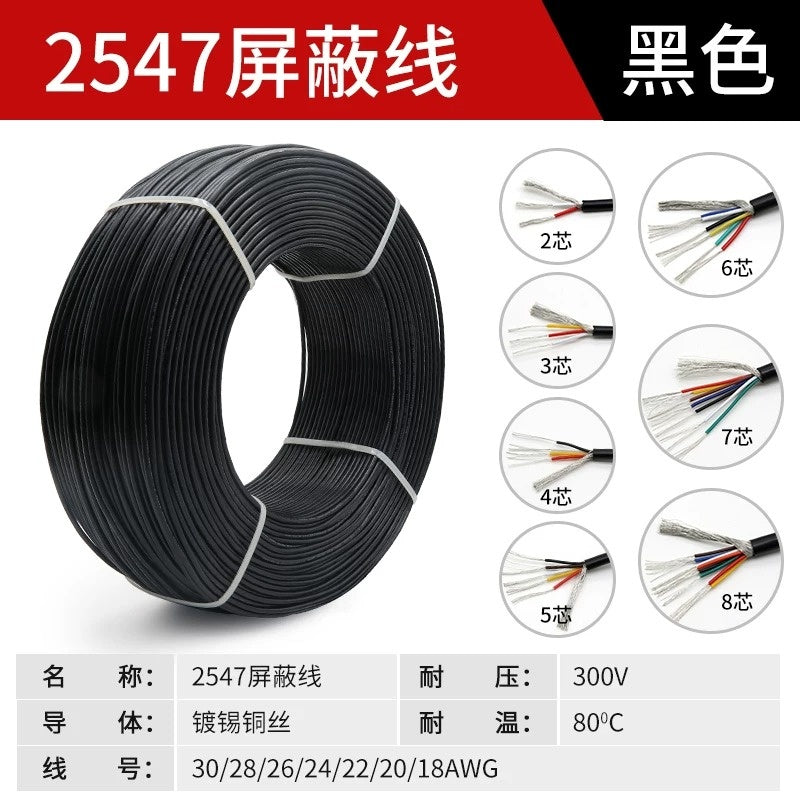

✅ Wide Specification Selection Multiple core options: 2/3/4/5/6/7/8 Core; AWG range:16AWG,18AWG,20AWG,22AWG,24AWG,26AWG,28AWG,30AWG. Color: Black / Grey. Custom cut length 1m,5m.
✅ Common Application Perfect for audio signal cable, USB data wire, instrument internal wiring, sensor connection, control signal transmission, electronic equipment internal wiring.

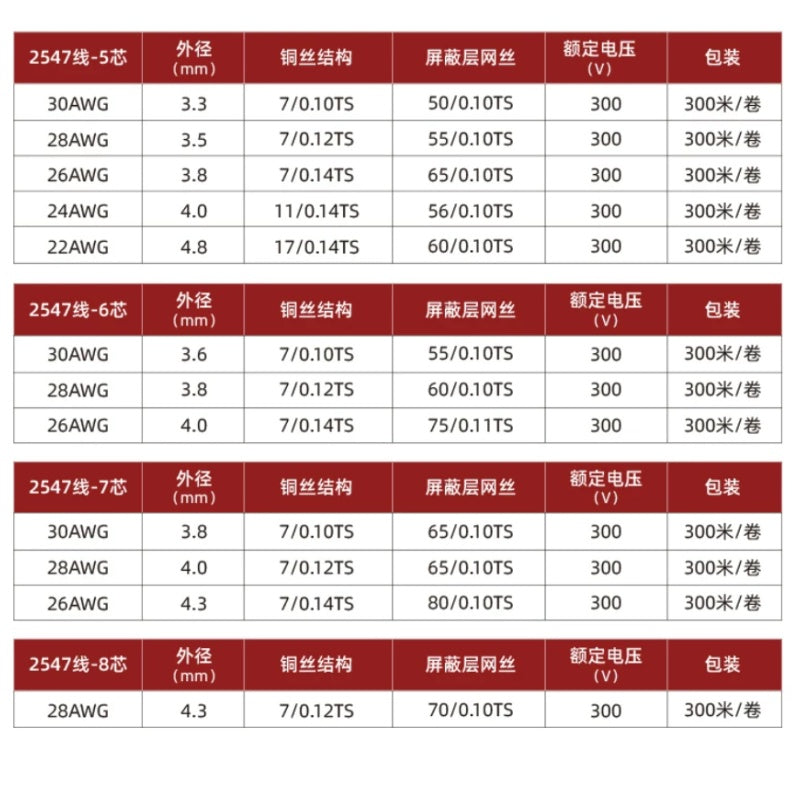

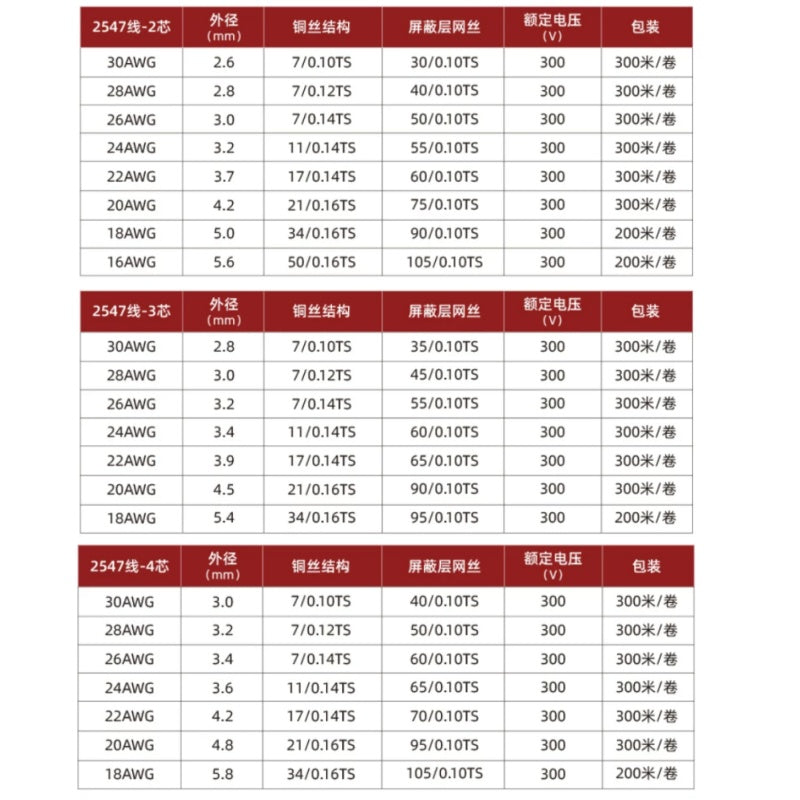

Specification
| Attribute | Value |
|---|---|
| Product Name | 2547 Multi-Core Shielded Cable |
| Model | 2547 |
| Conductor Material | Tinned Copper |
| Shield Type | Wrapped Tinned Copper Shield |
| Insulation & Jacket | PVC Environmental Protection Material |
| Rated Voltage | 300V |
| Rated Temperature | 80℃ |
| Core Count | 2 Core,3 Core,4 Core,5 Core,6 Core,7 Core,8 Core |
| Wire Gauge(AWG) | 16AWG,18AWG,20AWG,22AWG,24AWG,26AWG,28AWG,30AWG |

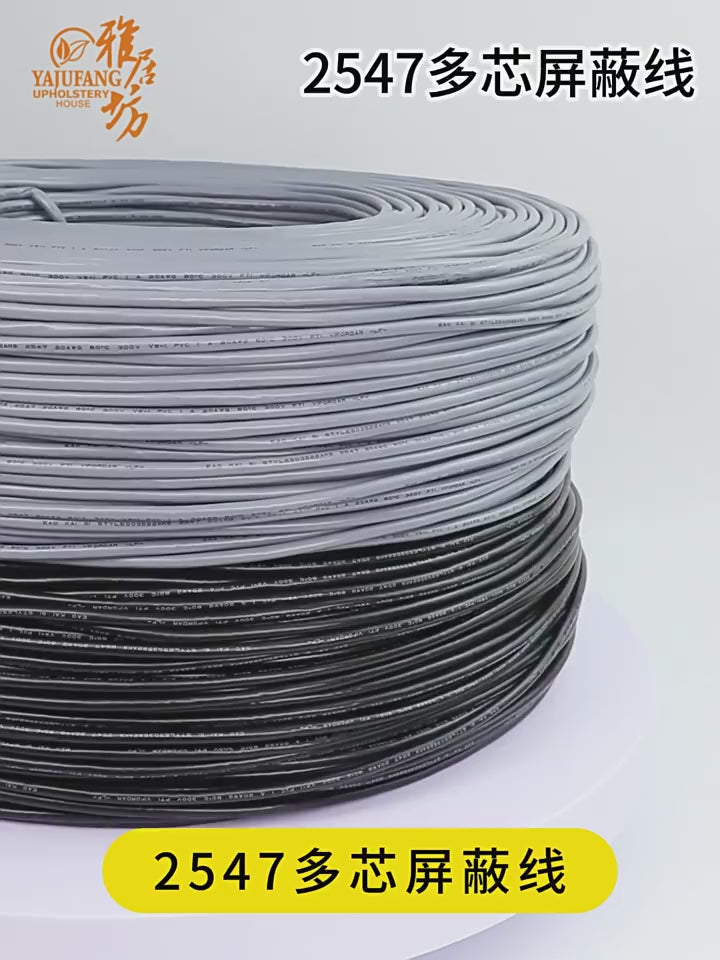

| Outer Color | Black, Grey |
| Available Length | 1m,5m |
| Application | Audio Signal, USB Data Transmission, Sensor Signal, Electronic Equipment Internal Wiring |
| Feature | Anti-EMI Interference, Flexible, Bend Resistant, Stable Signal, Anti-Oxidation |
FAQs
Q1: What is this 2547 shielded cable used for?
A1: It is mainly used for audio signal transmission, USB data lines, sensor signal wiring, instrument and electronic control equipment internal wiring. The shielding layer reduces electromagnetic interference and keeps signal stable.
Q2: What is the shielding structure of 2547 cable?
A2: It adopts wrapped tinned copper wire shielding (not braided mesh), provides good anti-interference performance for low voltage signal transmission.
Q3: What is the rated voltage and temperature?
A3: Rated voltage 300V, maximum working temperature 80°C. It is for low voltage signal use, not for high power main power circuit.
Q4: What AWG and core options are available?
A4: Core:2/3/4/5/6/7/8 core; AWG from 16AWG to 30AWG. Two jacket colors: black and grey. Length options:1m,5m.
Q5: Is the conductor copper?
A5: Yes, multi-strand tinned copper, tinned surface prevents oxidation and improves soldering performance.
Q6: Can I use it for USB data cable?
A6: Yes, it is widely used as USB data signal cable, audio signal cable for low voltage signal transmission.
Q7: Is this cable flexible?

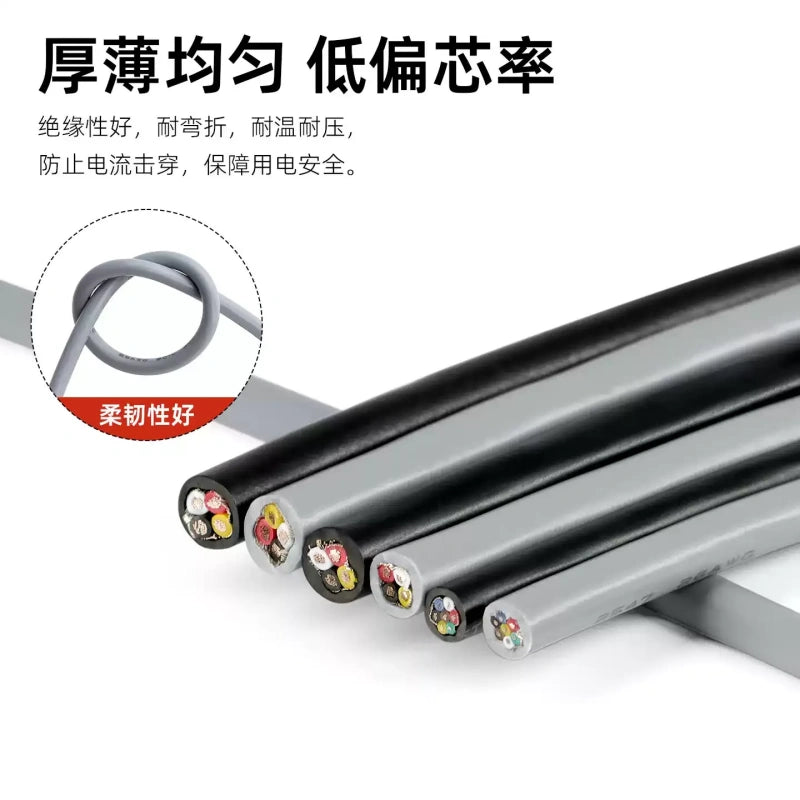

A7: Yes, PVC outer jacket is flexible, good bending resistance, suitable for equipment internal wiring.
