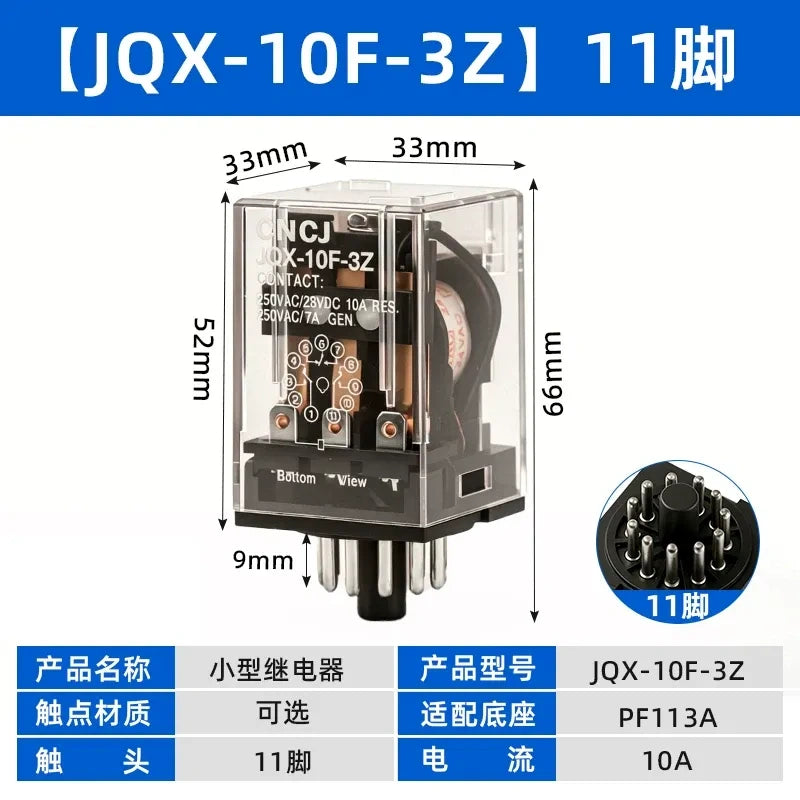

10A Miniature Electromagnetic Intermediate Relay MK2P MK3P JTX-2C JTX-3C JQX-10F-2Z JQX-10F-3Z/ AC220V AC110V DC24V DC12V AC24V AC12V, With/Without Base
تعذّر تحميل توفر الاستلام
miniature electromagnetic relays
This is 10A miniature electromagnetic intermediate relay, widely used for signal amplification, circuit switching and isolation in automation control systems. Multiple model variants available: MK2P, MK3P, JTX-2C, JTX-3C, JQX-10F-2Z, JQX-10F-3Z. Coil voltage options: AC220V, AC110V, DC24V, DC12V, AC24V, AC12V.
Constructed with full copper coil and high-quality silver contacts. Adopts thickened red copper conductive sheets, featuring low contact resistance, excellent electrical conductivity, stable power-on performance and low heat generation. The relay body uses premium transparent housing material, moisture-proof, wear-resistant and high temperature resistant. DIN rail mount base is optional, you can select version with base or without base according to your wiring requirement.
Perfect for PLC control cabinets, industrial automation, machinery control, HVAC, lighting control, pump and solenoid valve control. Compact size for panel installation, reliable for frequent switching operations.
Specification
| Attribute | Value |
|---|---|
| Product Type | Miniature Electromagnetic Intermediate Relay |
| Rated Current | 10A |
| Available Models | MK2P, MK3P, JTX-2C, JTX-3C, JQX-10F-2Z, JQX-10F-3Z |
| Coil Voltage Options | AC220V, AC110V, DC24V, DC12V, AC24V, AC12V |
| Contact Material | Silver Contact |
| Coil Material | Full Copper Coil |
| Conductor Material | Thickened Red Copper Conductive Sheet |
| Housing | Transparent Plastic, Moisture-proof, Wear-resistant, High Temperature Resistant |
| Base Option | Optional: With DIN Rail Base / Without Base |
| Mounting | DIN Rail Mount (with base) |
| Main Application | Industrial Automation, PLC Control Cabinet, Solenoid Valve, Lighting, Pump Circuit Control, Signal Isolation & Amplification |
FAQs
Q1: What models are available for this 10A intermediate relay?
A1: MK2P, MK3P, JTX-2C, JTX-3C, JQX-10F-2Z, JQX-10F-3Z.
Q2: What coil voltages can I choose?
A2: AC220V, AC110V, DC24V, DC12V, AC24V, AC12V.
Q3: What is the rated current of this relay?
A3: 10A rated, it is miniature electromagnetic intermediate relay.
Q4: What are the contact and coil materials?
A4: Silver contact, full copper coil, thickened red copper conductive sheet for low resistance and stable conduction.
Q5: Is the base included?
A5: Two options: with DIN rail base or without base, select the variant you need.
Q6: What is the feature of the housing?
A6: Transparent high-quality plastic housing, moisture-proof, wear-resistant and high temperature resistant.
Q7: What applications can this relay be used for?
A7: Industrial control cabinet, PLC automation, machine equipment, solenoid valve, lighting control, water pump control and circuit signal isolation.
Q8: Can it be mounted on DIN rail?
A8: Yes, when you select the version with base, it supports standard DIN rail installation.
Q9: What is the advantage of silver contacts?
A9: Silver contacts have good conductivity, anti-arc performance, stable switching and long service life for frequent on-off operation.
Q10: Are these relays drop-in replacement for old control panel relays?
A10: Yes, standard pin layout, widely used as replacement spare parts for old automation control circuits.
