N20 DC Encoder Gear Motor CHF‑GM1024‑N20ABHL, 55mm M4 Thread Screw Shaft, 1:50‑1:500 Gear Ratio
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
تعذّر تحميل توفر الاستلام
DC hall encoder gear motor, N20 55mm M4 threaded shaft reduction motor
CHF‑GM1024‑N20ABHL DC Hall Encoder Gear Motor, M4 55mm Thread Shaft ZH1.25‑6PIN Connector, DC3V 6V 12V N20 Reduction Motor AB Phase Encoder
CHF‑GM1024‑N20ABHL N20 series DC hall‑encoder reduction gear motor. Output shaft: M4 thread, total length 55mm. Interface: ZH1.25‑6PIN terminal connector. Operating voltage optional DC3V, DC6V, DC12V; motor type: 06‑type / K100‑type / A12‑type. Gear ratio options:1:50,1:100,1:150,1:200,1:350,1:500. Integrated AB two‑phase hall encoder, signal level 3.3V /5.0V for speed and position closed‑loop control. Reversible CW/CCW rotation. Compact lightweight design. Application scenarios: intelligent robot, robotic arm, smart home device, micro gimbal, auto‑focus system, small automation projects. Note: Max allowable stall torque ≤3.0kg·cm, long‑time stall operation forbidden.
Model: CHF‑GM1024‑N20ABHL
Type: DC Hall Encoder Geared Reduction Motor
Operating Voltage: DC3V, DC6V, DC12V
Motor Sub‑type: 06‑type, K100‑type, A12‑type
Gear Ratio: 1:50, 1:100, 1:150, 1:200, 1:350, 1:500

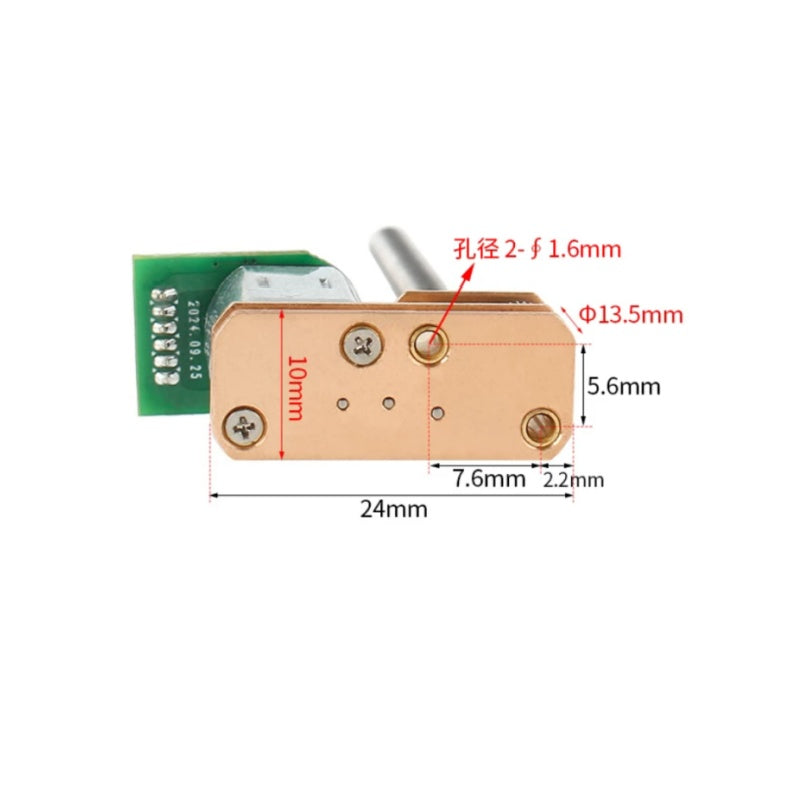

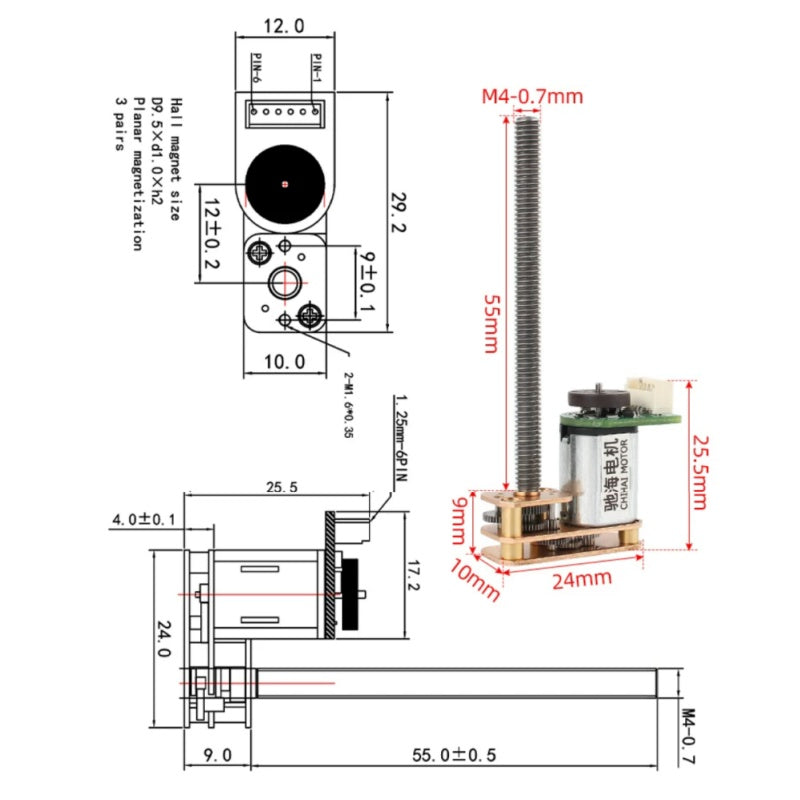

Output Shaft: M4 Threaded Shaft, Shaft Length 55mm
Connector: ZH1.25mm‑6PIN

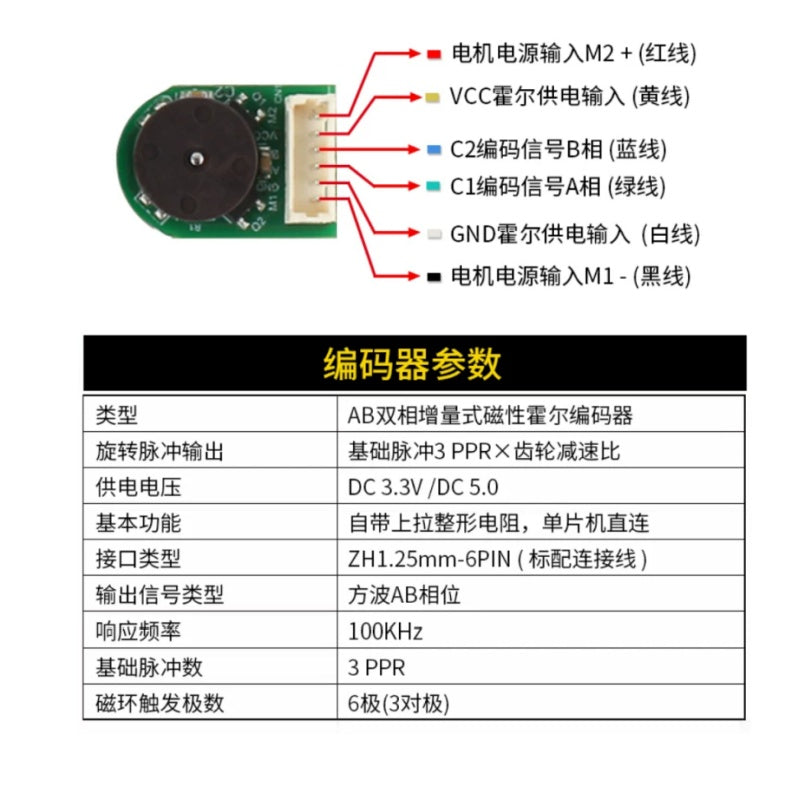

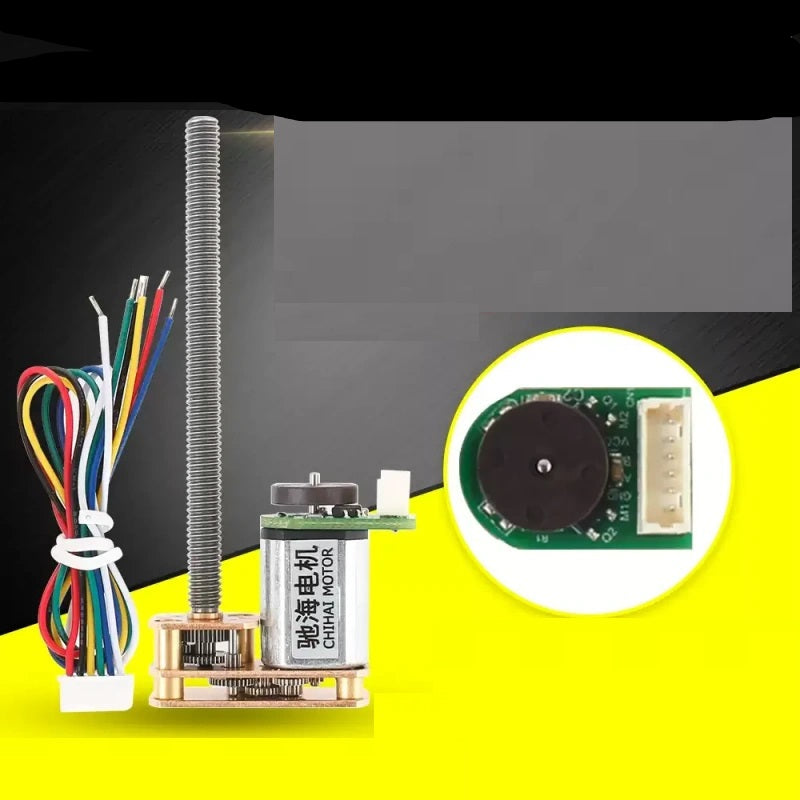

Encoder: AB Dual‑Phase Hall Encoder, Signal Level 3.3V /5.0V
Rotation: CW / CCW Reversible
Net Weight: 0.017 kg (17g, slight deviation for different gear ratio)
Gross Weight: 0.028 kg (with poly bag)

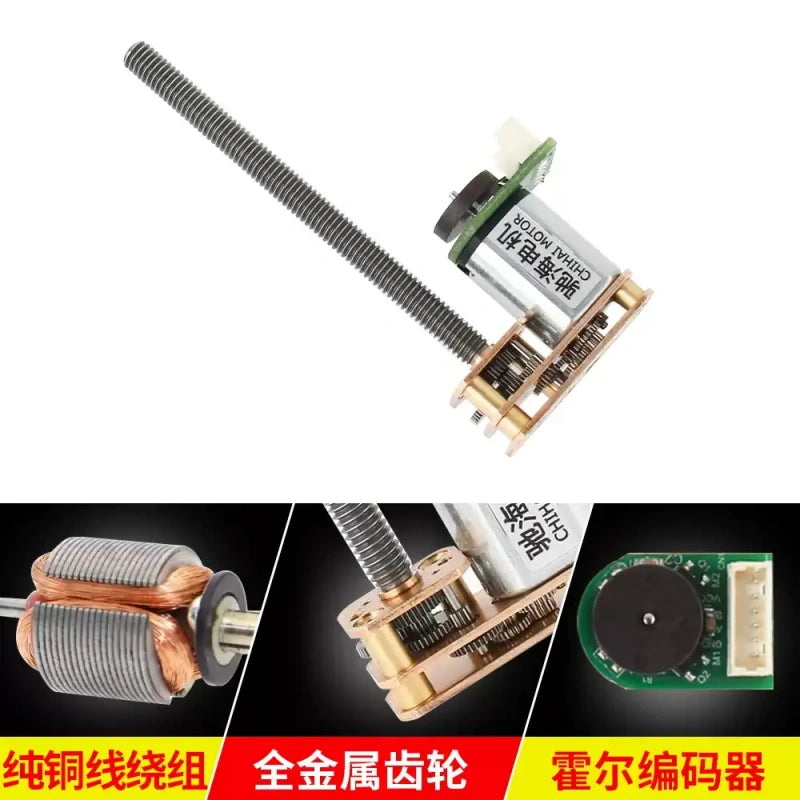

Feature: AB phase hall encoder feedback, M4 long threaded shaft, ZH1.25 6pin plug‑in connector, multiple voltage & gear‑ratio options, compact small size, closed‑loop speed‑position control support
Application: Intelligent Robot, Robotic Manipulator, Smart Home, Micro Gimbal, Auto‑Focus System, Mini Automation Equipment
Product Specifications Table
| Item | Value |
|---|---|
| Model | GM1024‑N301ABH |
| Motor Type | DC Geared Motor, AB‑Phase Hall Encoder |
| Rated Voltage | DC 3V |
| Core Versions | K100 High‑Speed Powder‑Coated Core
|
| Gear Ratio Options | 100 / 150 / 200 |
| Outer Diameter | 12mm |
| Weight | 17‑18g |
| Connector | ZH1.25‑6PIN |
Version Feature Comparison
| Version | Max Power | Key Features | Typical Application |
|---|---|---|---|
| K100 High‑Speed Core | ‑ | High speed, low torque, powder‑coated core | Robot wheel, high‑speed speed measurement |
| 06‑0.1W | 0.1W | Low power, low current, small torque, power‑saving | Micro‑valve, light‑load focusing mechanism |
| 06‑0.45W | 0.45W | Medium power, balanced speed & torque | Small actuator, robot car drive |
| A12‑0.9W | 0.9W | High‑power, maximum torque, higher working current | Manipulator & heavy‑load driving |
