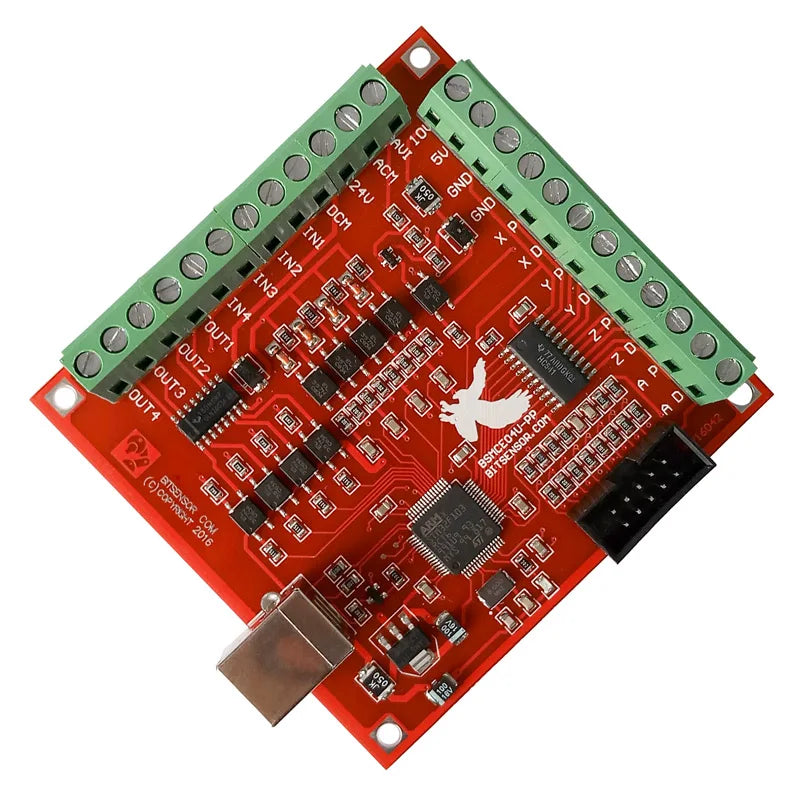

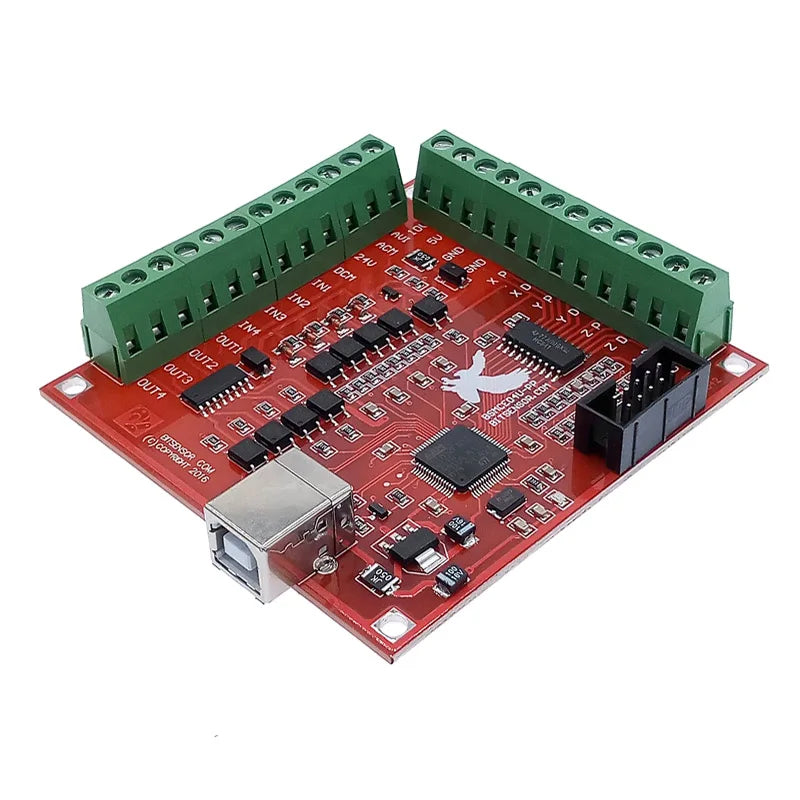

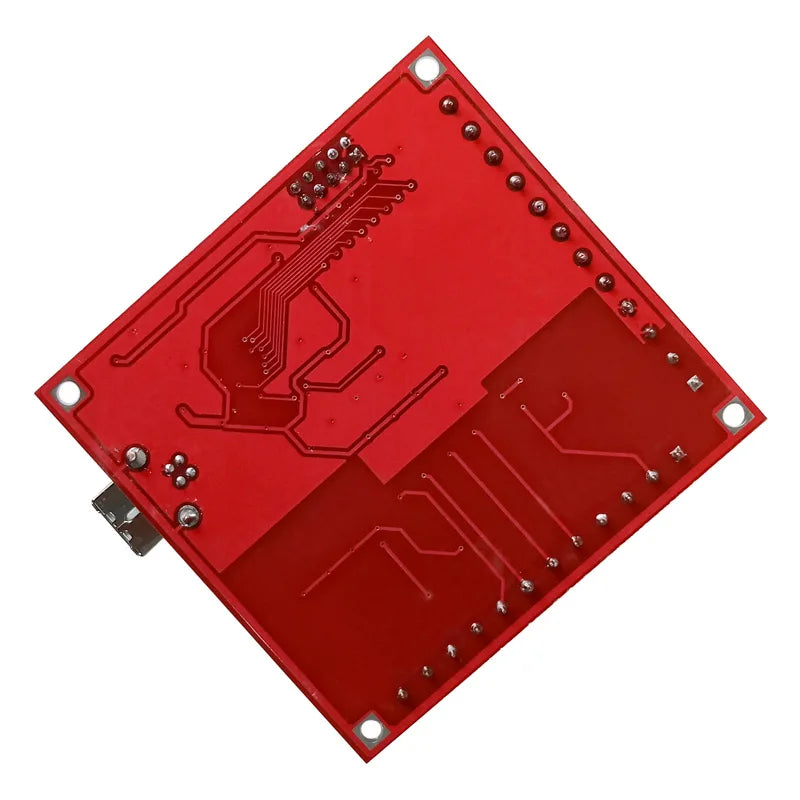

Breakout Board CNC USB MACH3 100Khz 4 Axis Interface Driver Motion Controller Driver Board
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
تعذّر تحميل توفر الاستلام
mach3 breakout board, cnc usb controller, 4 axis cnc control card, 100khz mach3 board, cnc motion controller, stepper motor control board, servo driver interface card
cnc milling controller, mach3 usb card, cnc limit probe breakout board
Does it include a Battery?: No
Does it include wireless functionality?: No
High-concerned chemical: none
Model Number: CNC Driver Board
Motor: DC Motor
Origin: Mainland China
Power Source: DC
Power Supply: DC
| Attribute | Value |
|---|---|
| Product Name | CNC USB MACH3 100KHz 4 Axis Breakout Board Motion Controller |
| Model | CNC Driver Board |
| Axis | 4 Axis Linkage |
| Max Pulse Frequency | 100KHz |
| Interface | USB |
| Supported Motor | DC Stepper Motor / Servo Motor |
| Power Input | DC |

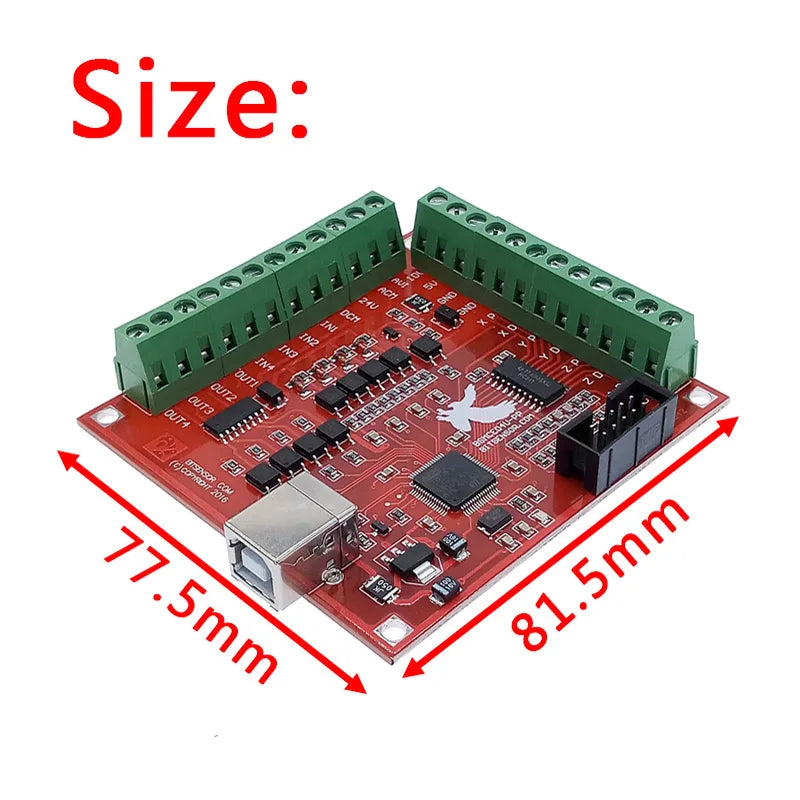

| Dimension | 81.5mm × 77.5mm |
| Unit Weight | 100g (0.1kg) |
| Feature | Opto-isolated, Emergency Stop, Limit Switch Input, Automatic Tool Probe, Spindle 0-10V speed control |
| Compatible Software | MACH3 |
| Compatible OS | Windows XP / Win7 / Win8 / Win10 |
| Origin | Mainland China |

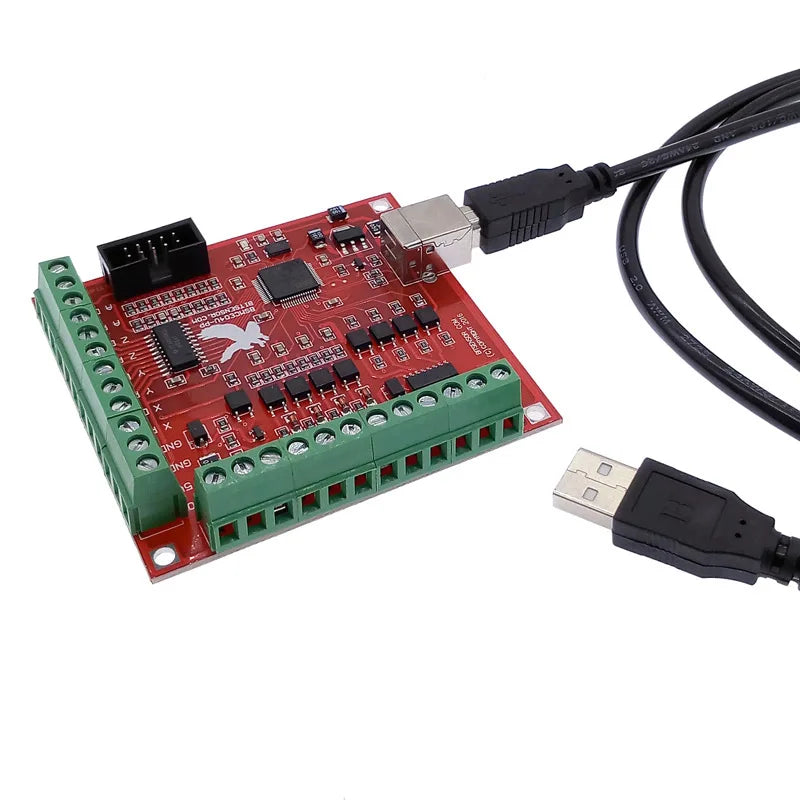

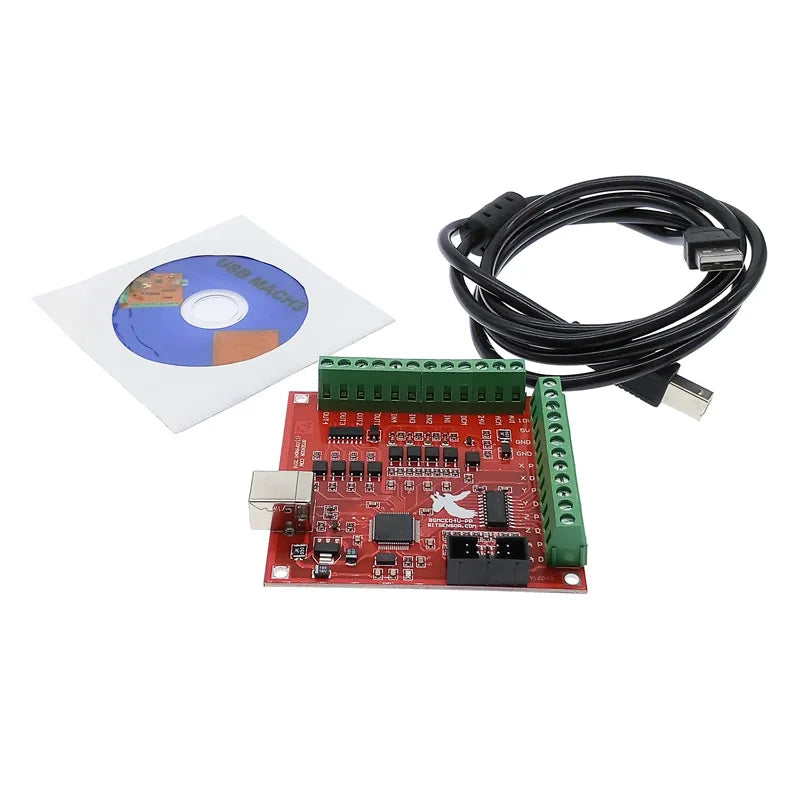

| Package Include | 1 × Breakout Board, 1 × USB Cable, 1 × DVD (Driver & Software) |
FAQ
Q1: What motors can this Mach3 breakout board control?
A1: It works with external stepper drivers and servo drivers, it cannot drive stepper motors directly.
Q2: What is the maximum pulse frequency?
A2: 100KHz, suitable for high-speed CNC engraving and milling.
Q3: Does it support limit switch and emergency stop?
A3: Yes, it supports limit switch, emergency stop input and automatic tool probing function.
Q4: Which software does this board use?

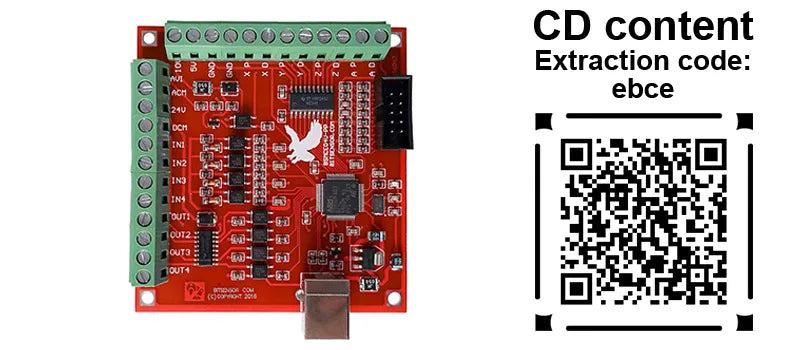

A4: Designed for MACH3 CNC control software, the driver is included on the DVD.
Q5: Do I need extra power supply for this board?
A5: It requires external DC power supply for stable operation; USB is only for signal communication.
Q6: How many axes can it run at the same time?
A6: 4-axis synchronous linkage (X/Y/Z/A axis).

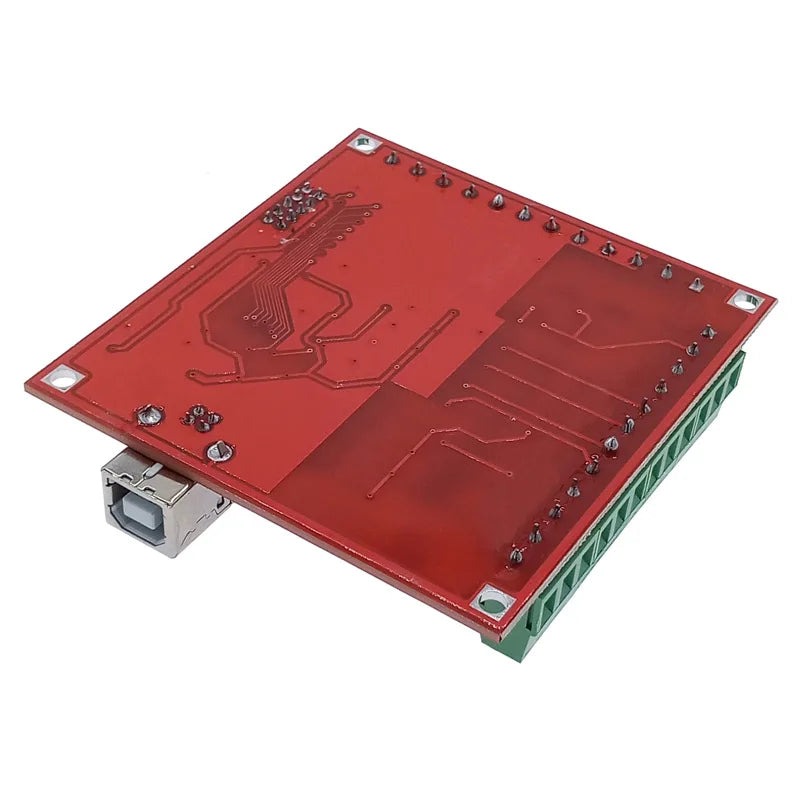

Q7: What size is this controller board?
A7: PCB size approx 81.5mm × 77.5mm.
