1pcs 2L Electromagnetic Lubrication Pump Lubricant Pump CNC Automatic Lubricating Oil Pump
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
تعذّر تحميل توفر الاستلام
2l lubrication pump, cnc automatic oil pump, electromagnetic lubricant pump, machine lubrication pump, cnc lubricator pump, lathe oil pump
milling machine lubrication pump, solenoid lubricating pump, automatic oil feeder, lubrication pump cnc
Application: Automatic CNC control solenoid pump
Brand Name: CNMAWAY
Certification: NONE
Does it include batteries: Not included
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Fuel: lubricating oil
High-concerned chemical: none
Model Number: 2L
Origin: China Mainland
Power (W): Electric
Power Source: Electric
Pressure: Low Pressure
Standard or Nonstandard: Standard
Structure: Lubricating oil pump
Theory: Electromagnetic Pump
Use: Oil
PARAMETER
| Attribute | Value |
|---|---|
| Product Name | 2L Electromagnetic Automatic Lubricating Oil Pump |
| Model | 2L |
| Brand | CNMAWAY |
| Tank Capacity | 2 Liters |
| Medium | Lubricating oil |
| Control | Digital automatic timing oil supply |
| Application | CNC router, lathe, milling machine, industrial machine tool lubrication |
| Feature | Built-in pressure gauge, transparent oil tank, solenoid drive |
FAQ
Q1: What is this pump for?
A1: It automatically injects lubricating oil to guide rails, ball screws of CNC machines on a timed cycle.
Q2: Does it come with oil?
A2: No, only the pump unit; lubricating oil needs to be filled separately.
Q3: Can I adjust the oiling interval and oiling time?
A3: Yes, this digital version supports setting cycle time and oil duration.
Instructions:

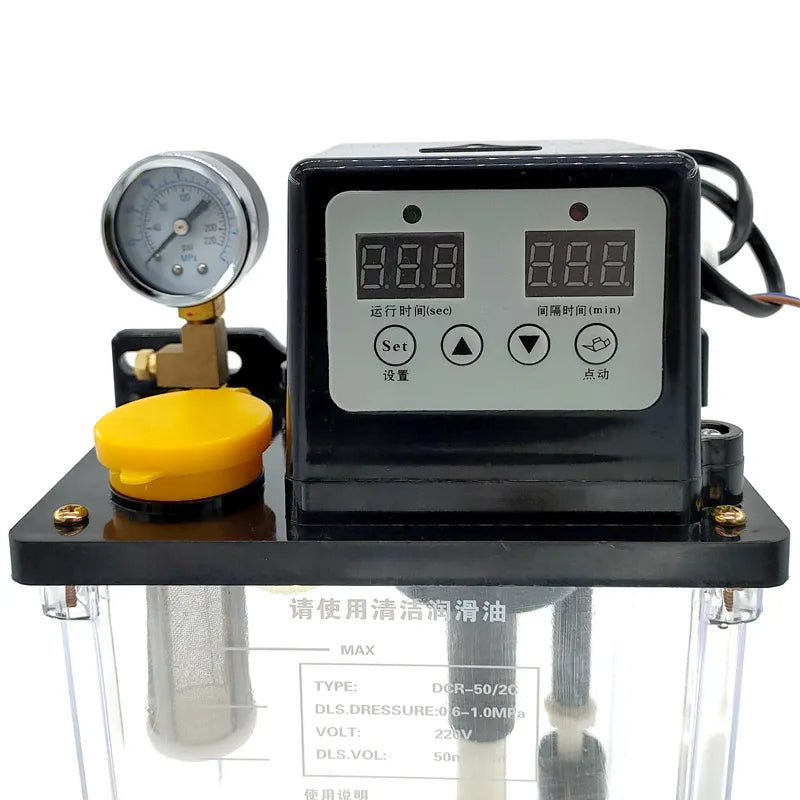

1. Set the interval time and operation time according to the actual oil consumption of the equipment. Long press the "SET" key to enter the setting state, then short press the "SET" key to select the number to be set, press ▲▼ to increase or decrease to the required time.
First enter the interval time (0 ~ 999 minutes), more than 10 minutes is recommended.
Then press the "SET" key to enter the running time (0 ~ 999 seconds), within 120 seconds is recommended.
Finally, long press the "SET" key to save the set time.
2. The alarm buzzer rings intermittently, and the display screen shows "ERO" for oil level alarm. Please fill the oil tank.
3. With inching button, press and hold the inching button to enter the working state.
4. Use 15#-68# lubricating oil only, recycling is strictly prohibited. If it is not used according to the regulations, the oil pump will be damaged.
