TSR SSR-10AA 25A 40A 60A 80A Three Phase SSR Solid State Relay AC Control AC 480V 70-280V Input Aluminum Radiator Heat Sink

$24.59 USD
$28.69 USD $24.59 USD
Sale Sold out
Shipping calculated at checkout.
Size

SPECIFICATIONS

TSR  SSR-10AA 25A 40A 60A 80A Three Phase SSR Solid State Relay AC Control AC 480V 70-280V Input Aluminum Radiator Heat Sink

Usage: General Purpose

Theory: Solid State Relay

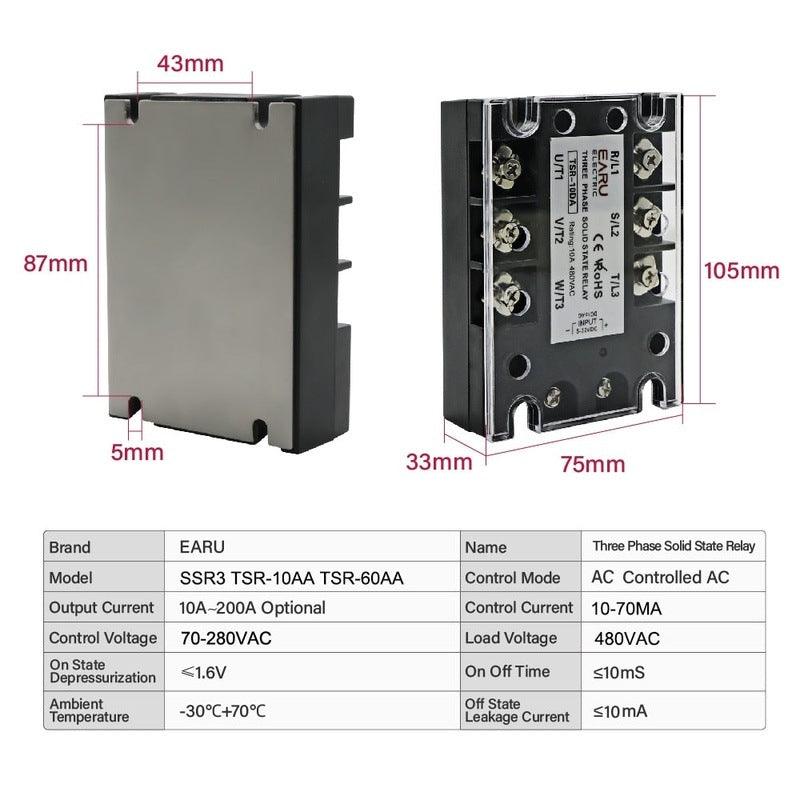

Size: 150.8mm*75.5mm*37.5mm

Rating: 10A 480VAC

Protect Feature: Sealed

Power Source: AC

Net Weight: 237.5g

Module Number 2: SSR-80AA/SSR-100AA/SSR-200AA

Module Number 1: SSR-10AA/SSR-25AA/SSR-40AA/SSR-60AA

Model Number: TSR-40AA

Load Current: 10A 25A 40A 60A 80A 100A 120A 200A

Control Voltage: 70-280VAC

Control Type: AC Control AC

Contact Load: Low Power

Certification: CE,RoHS

Step 1: Choose a correct control Mode
AA- AC Control AC
DA- DC Control AC


Step 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :70%, Inductive load:20%,Capacitive load：10%.

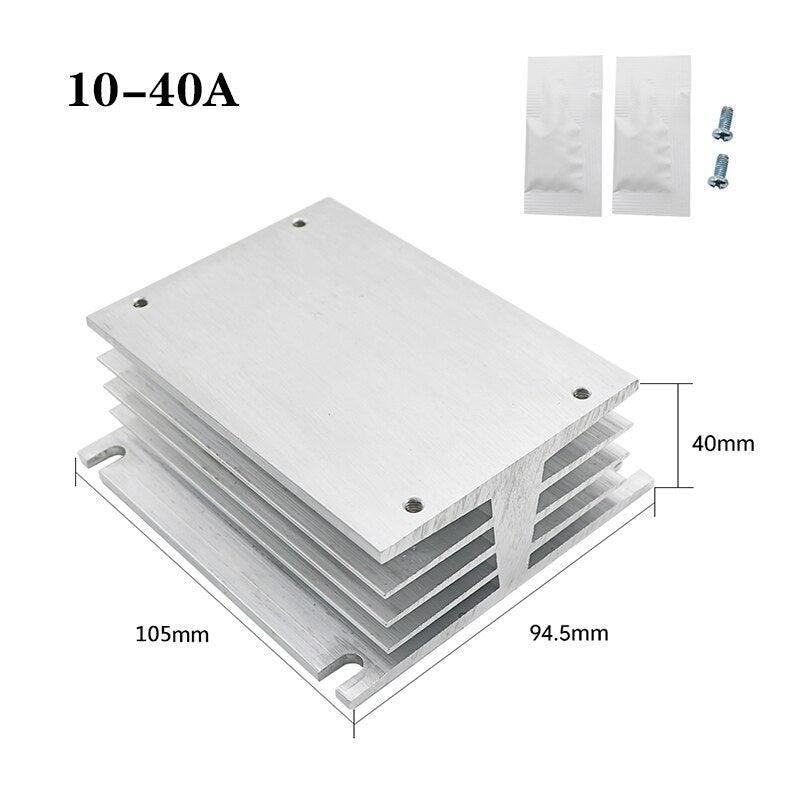

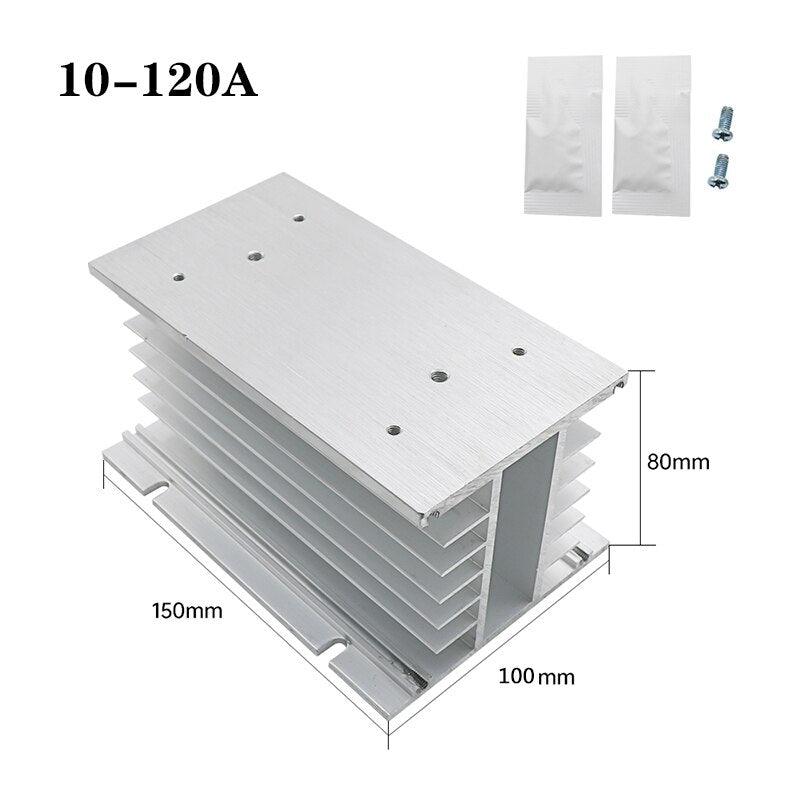

Step 3: Choose a suitable heat sink
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)


Notice:
The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).
According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
