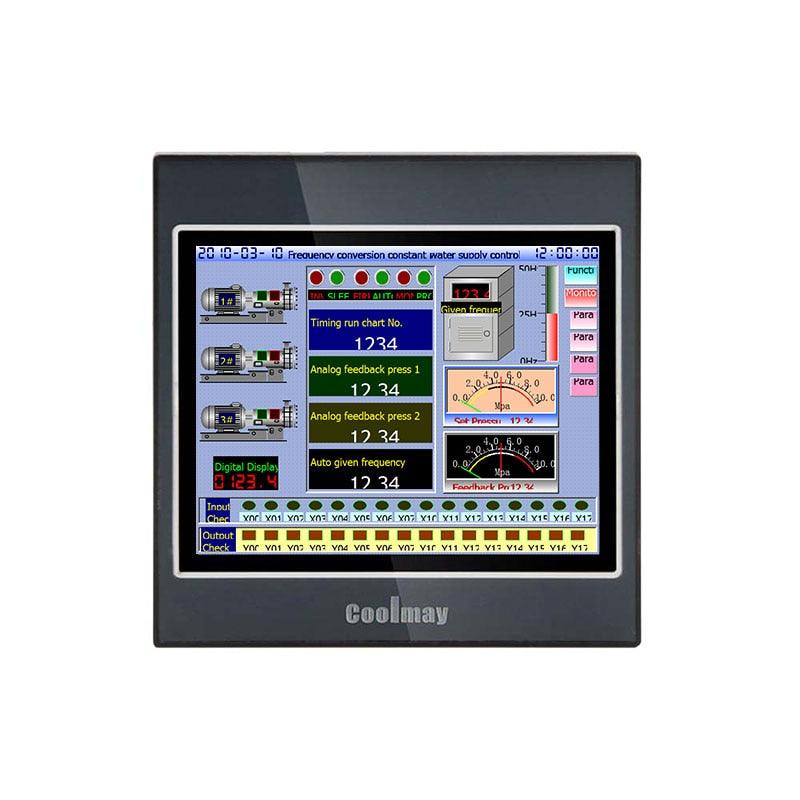

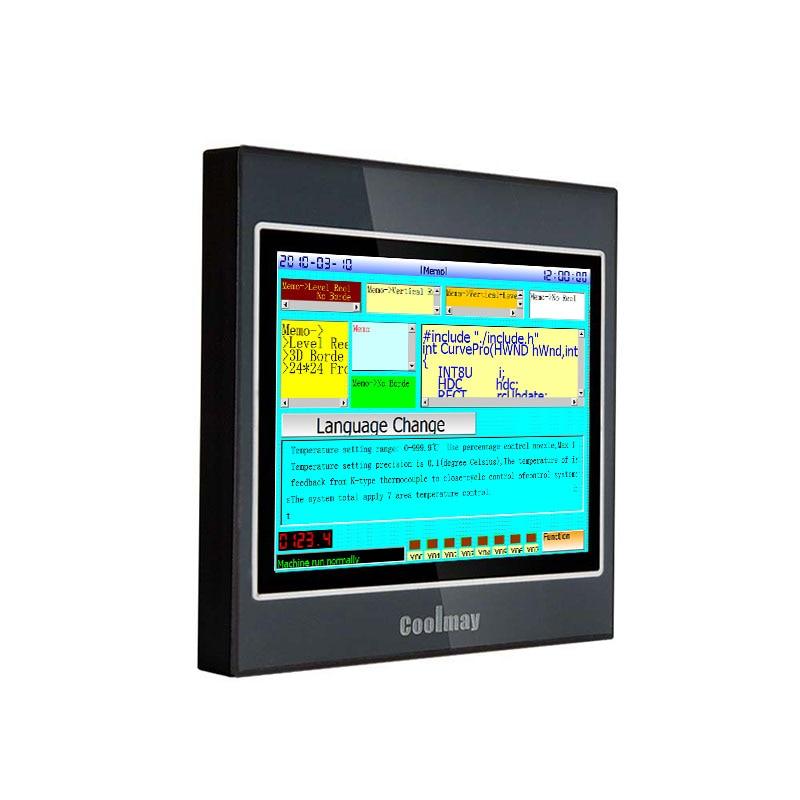

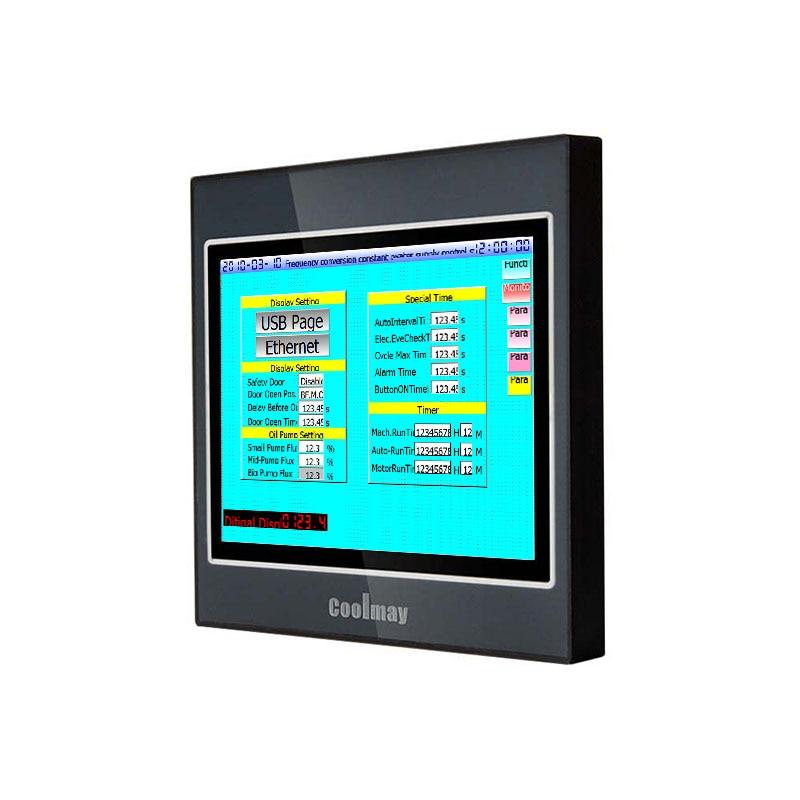

TK6037FH Economic Mini Color Touch Screen HMI Monitor for Industrial Automation
SPECIFICATIONS
Coolmay TK6037FH Economic Mini Color Touch Screen HMI Monitor for Industrial Automation
Type: Automation monitor
Resolution: 320*240 pixels
Protocol: MODBUS/free port/common PLC communication Protocol
Origin: CN(Origin)
Model Number: TK6037FH
Is Smart Device: No
Dimension: 88*88*25mm
Cutout size: 72*72mm
Color: grey, silver
Certification: CE
Certification: CE
Brand Name: Coolmay
Backlight: LED
Application: Milling Machine
The packagewill include:
* 1 set of device (grey color) and cables(Type-C cable asdefault)
* Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.
Note:
(1) The device includes functions below
-
3.5 inch ture color touchscreen
-
RS232, RS485 port
-
Support modbus, free port and common PLC communication protoco
(2) 1 set of cables is free of charge. Please order in our store for additional cables.
Specifications of TK6037FH:
Dimension |
88*88*25mm |
Cutout size |
72*72mm |
Display size |
73*56mm |
Weight |
Appox. 0.3 kg |
Display |
3.5" TFT |
Resolution |
320*240 pixels |
Brightness |
300 cd/m² |
Contrast ratio |
400:01:00 |
Backlight |
LED |
Backlight time |
60,000 hours |
Display color |
65536 colors |
Touch type |
4-wire resistive panel |
ROM |
64MB |
RAM |
NOR Flash 8MB |
CPU |
32bit CPU 408MHz |

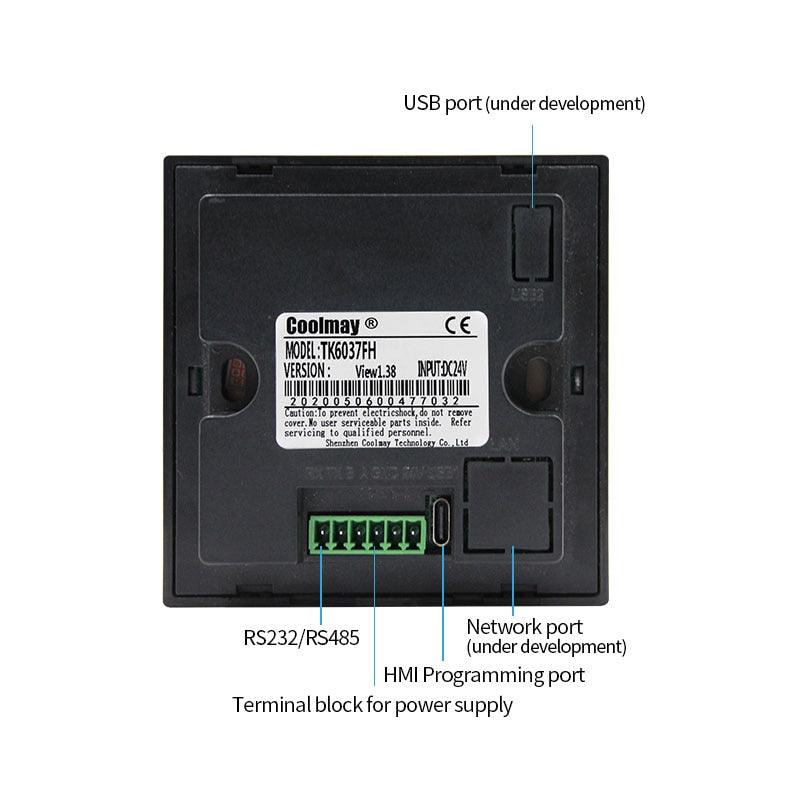

Download port |
Type-C, RS232, RS485 |
COM port |
1 RS232, 1 RS485 |
Optional |
NULL |
Protocol |
Support MODBUS, free port and common PLC communication Protocol |
Calendar |
Yes |
Input Voltage |
12-24VDC±10%<150mA @ 24VDC |
Consumption |
42mA/24V |
Protection Class |
IP65 (front panel) |
Temperature |
Ambient environment: 0~50℃ Storage environment: -20~70℃ |
Humidity |
20%~90% RH |
Certification |
CE |
Software |
