• Multi function Amplifier module CM-REY.
1 2

electrical center b2c

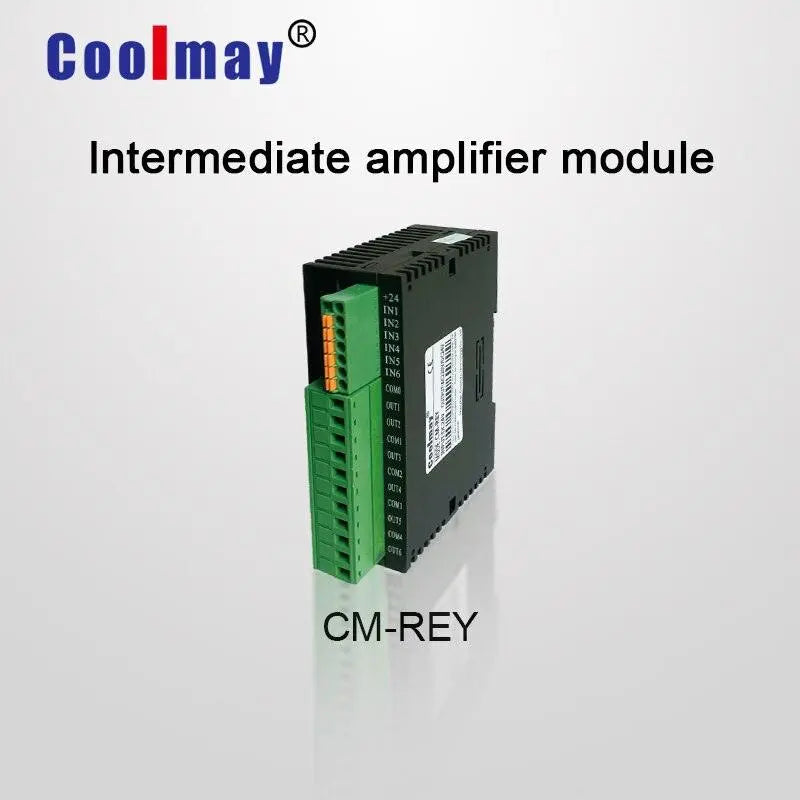

Multi function Amplifier module CM-REY

$42.20 USD
$73.00 USD $42.20 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Multi function Amplifier module CM-REY

Range: 430-450Mhz

Output type: NPN

Output points: 6I/6O

Origin: CN(Origin)

Motor Type: Stepper Motor

Installation: Standard rail , NS35/7.5

Input voltage: 88-264VAC or 125-373VDC

Input type: NPN

Dimension: 90*60*32mm

Connection mode: 5.08 pluggable terminal

Certification: CE

Brand Name: Coolmay

Amplification module

CM-MOS

CM-SSR

CM-REY

Transistor amplification module

Solid state

amplificationmodule

Intermediate

amplifier module


Installation

Standard guide rail’s installation,can be installed on NS35\7.5or NS32 guide slot

Dimension

89.5*79*32.5mm

Connection mode

5.08 pluggable terminal

Input voltage

88-264VAC or 125-373VDC( withstand 300VAC surge input for 5s without damage)

Input type

NPN

Working voltage

DC12~30V

AC100~250V

DC/AC0~250V

Output current

5A

5A

15A

Max. Output current

10A

10A

16A

Output method

MOS

Zero-crossing trigger

Relay tip

Output points

6I/6O

Output type

NPN

Protection method

optoelectronic isolation,FWD protction

optoelectronic isolation,RC absorption circuit

Relay-isolated, 400V piezoresistor

Detail info refer

to

< Coolmay Amplifier User Manual>
