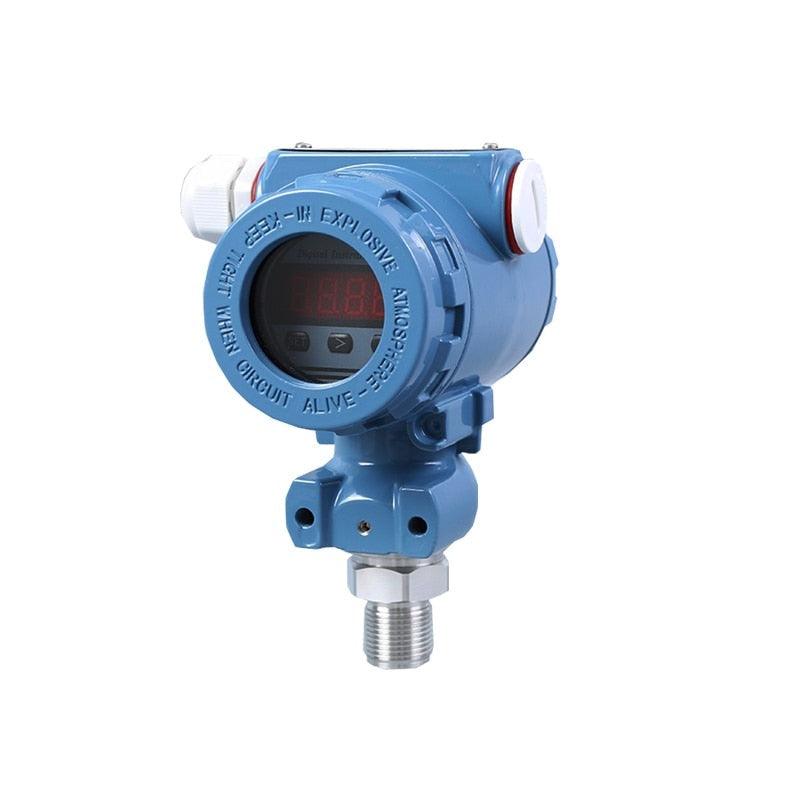

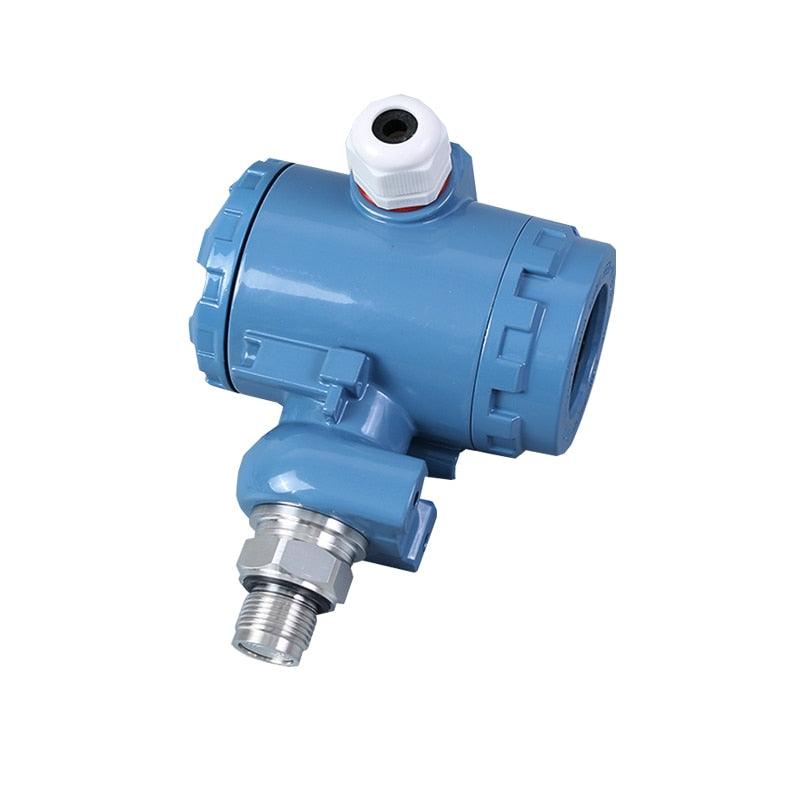

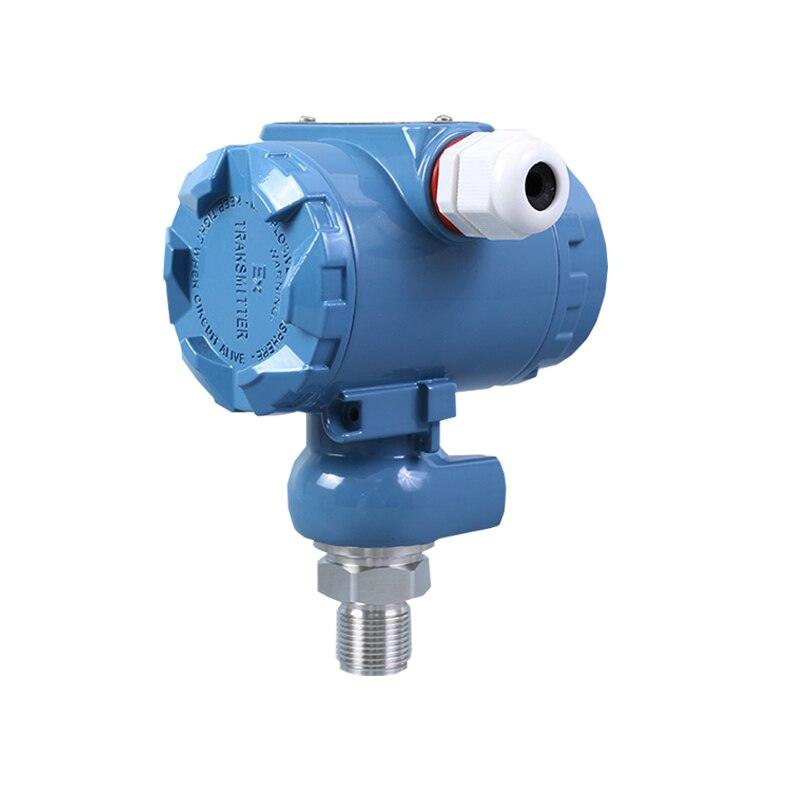

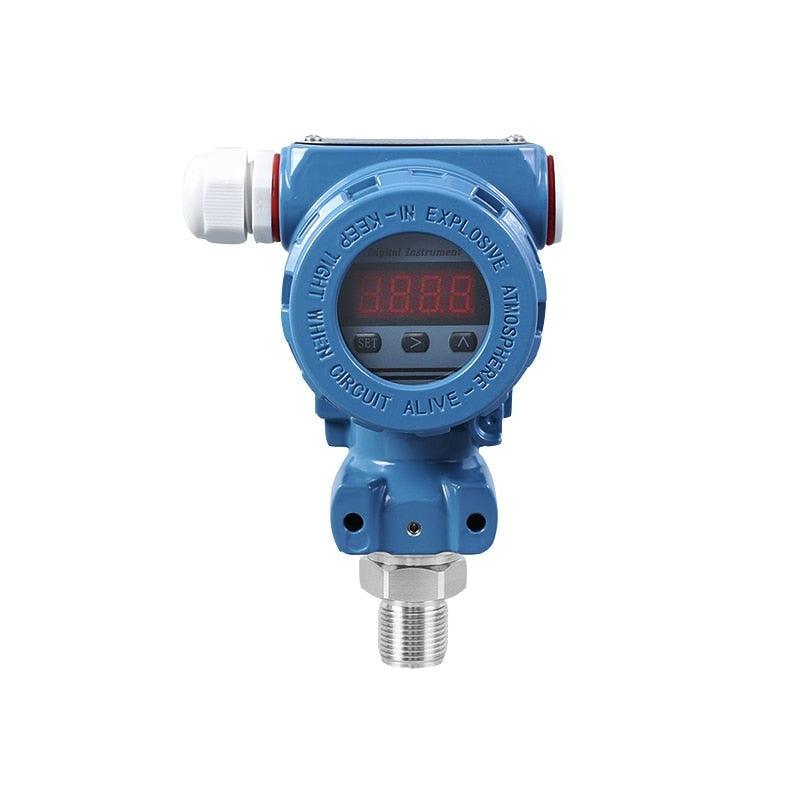

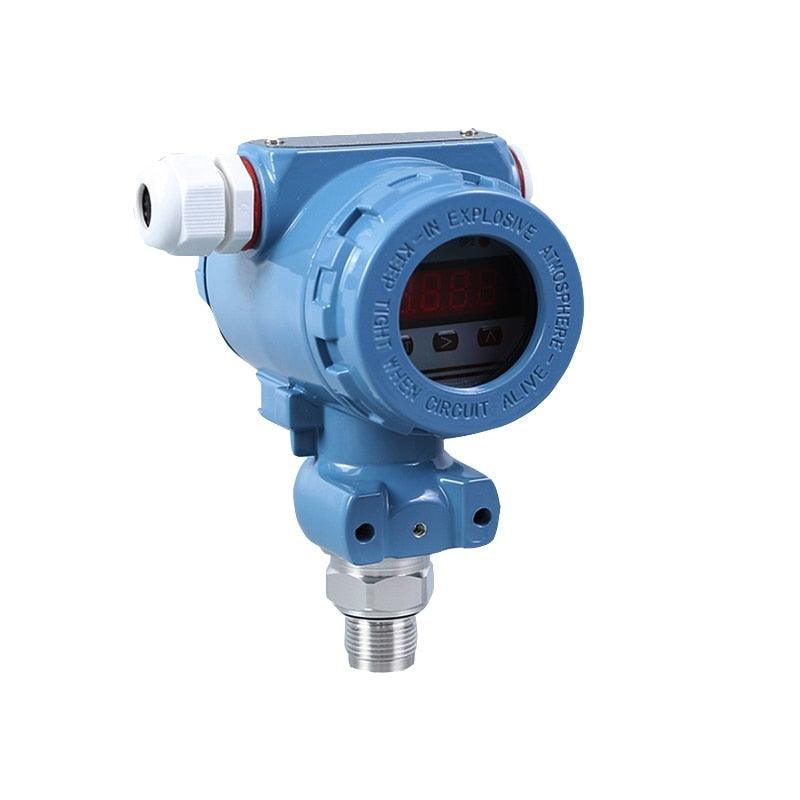

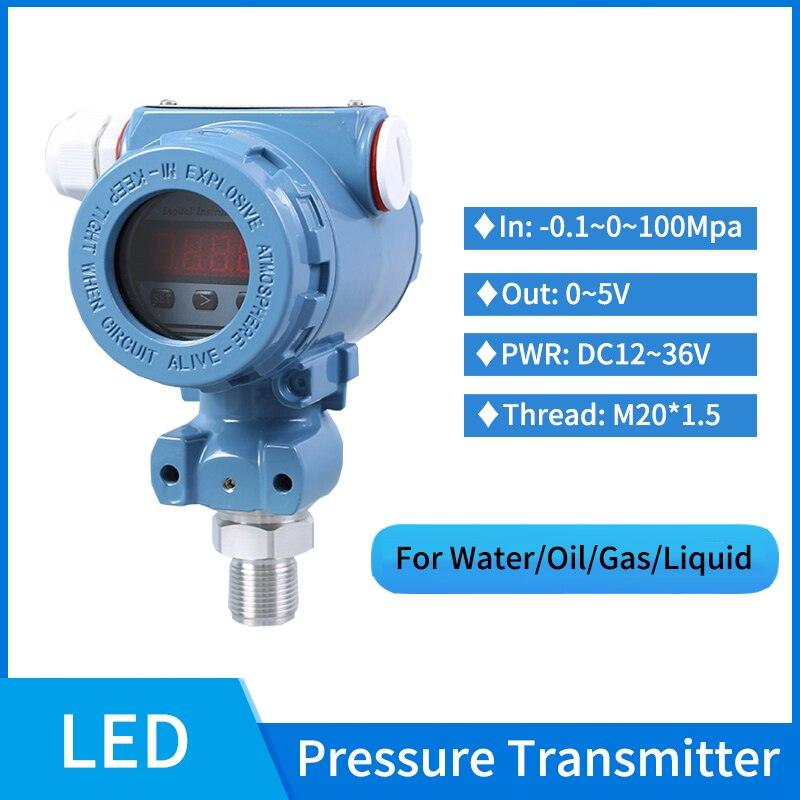

LED Display Pressure Transducer Water Air Oil Pressure Sensor Diffusion Dilicon Absolute Vacuum 0-5V Pressure Transmitter

Regular price $88.56 USD
Regular price $98.63 USD Sale price $88.56 USD
Sale Sold out
Shipping calculated at checkout.
Measuring Range

SPECIFICATIONS

LED Display Pressure Transducer Water Air Oil Pressure Sensor Diffusion Dilicon Absolute Vacuum 0-5V Pressure Transmitter

Sensor: Diffusion silicon chip

Product name: Pressure transmitter

Power supply: DC24V

Output signal: 0-5V dc

Origin: Mainland China

Model Number: ELPT400

Measure range: -0.1~0~100MPa

Max Measuring Range: 400 Bar & Above

Material: Stainless Steel

Connection thread: M20*1.5

Certification: CE,FCC,RoHS

Brand Name: KEJUN

Accuracy: 0.2%FS

LED Display Pressure Transducer Water Air Oil Pressure Sensor Diffusion Dilicon Absolute Vacuum 0-5V Pressure Transmitter


This link is special for:
1. Measuring range: the one you choose
2. Output signal: 0-5Vdc
3. Power supply: DC24V
4. Connection thread: M20*1.5


Notes:

What we can make:

1. Available measuring range: any range within -0.1Mpa~0~100Mpa (-1bar~0~1000bar).

2. Available output signal: 4~20mA, 0-10V, 0-5V, 0.5~4.5V, RS485.

3. Available power supply: 12~30Vdc, 24Vdc, 12Vdc

4. Available thread: M20*1.5, G1/2, G1/4, NPT1/2, NPT1/4, etc
