electrical center b2c

LC1D205 Contactor Contacts LC1D245 Main Contact Kit LA5FG431 Contactor Accessories

$75.00 USD
$75.01 USD $75.00 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

SPECIFICATIONS

LC1D205 Contactor Contacts LC1D245 Main Contact Kit LA5FG431 Contactor Accessories Movable and Fixed Silver Contact Replacement

Phase: 3

Number of Pole: 3

Model Number: LC1D205 LC1D245

Main Circuit Rating Voltage: 380V

Electricity Type: AC

Description

NOTICE:

grade B :the contact point contains approximately 40% silver the thickness of the contact point is approximately :1.5mm

grade A : the contact point contains approximately 85% silver the thickness of the contact point is approximately :1.5mm

grade A plus : the contact point contains approximately 85% silver the thickness of the contact point is approximately :2mm

grade S:the contact point contains approximately 85% silver the thickness of the contact point is approximately :2.2mm

The higher the silver content, the longer the service life of the product.

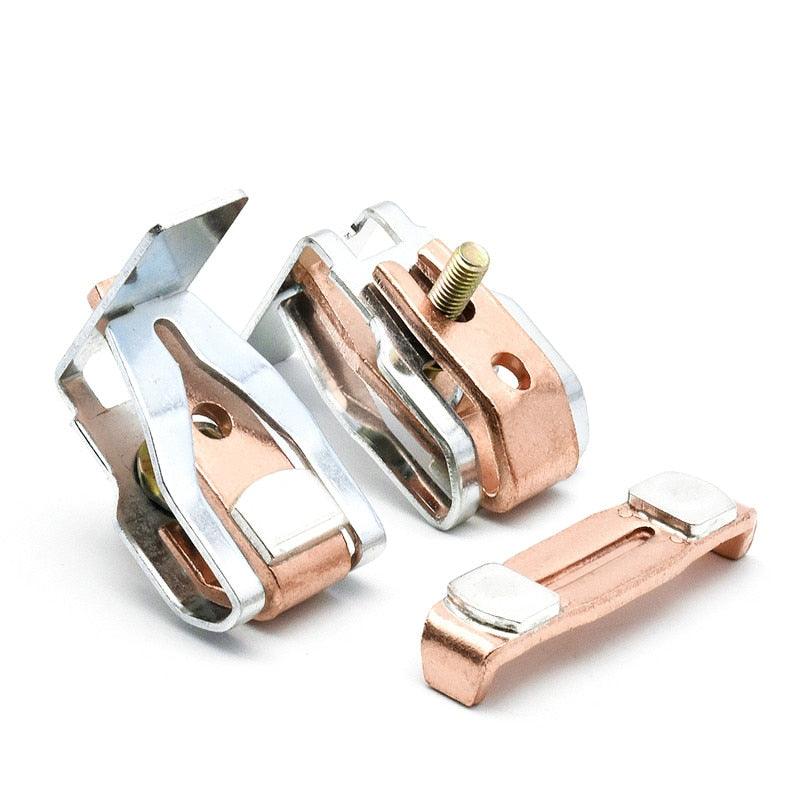

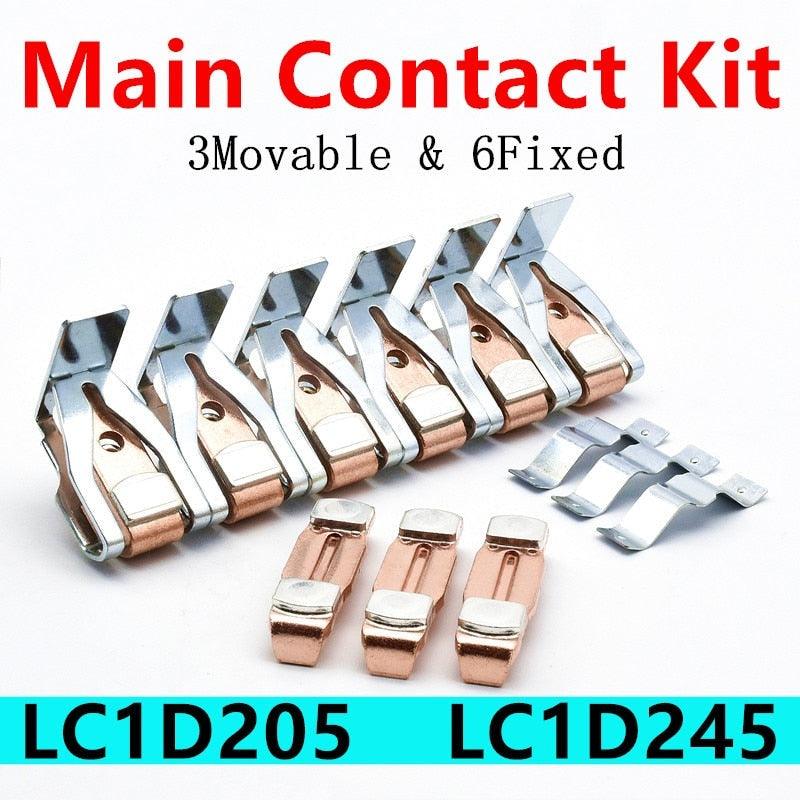

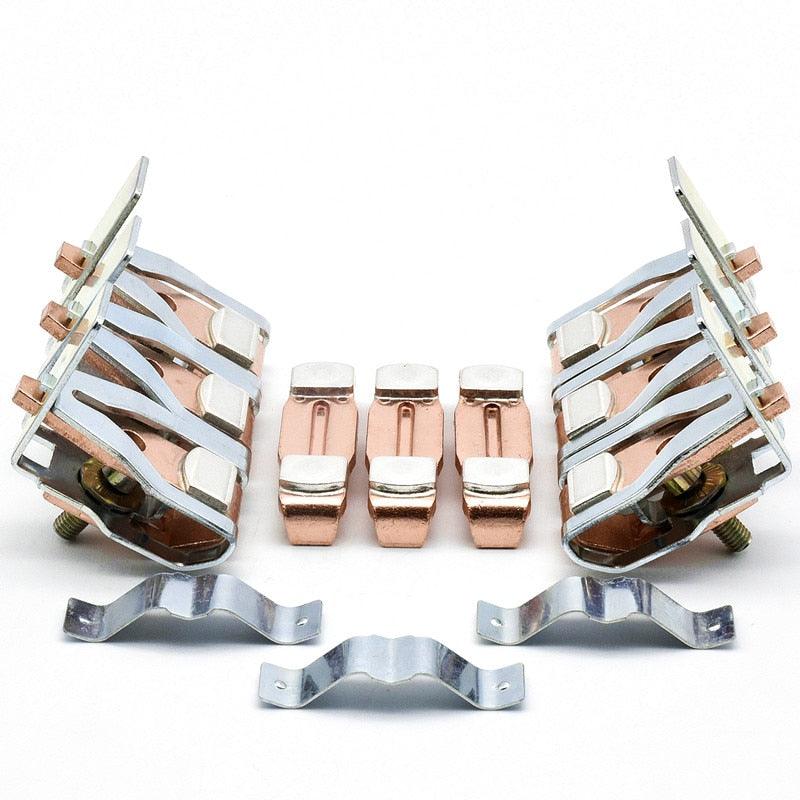

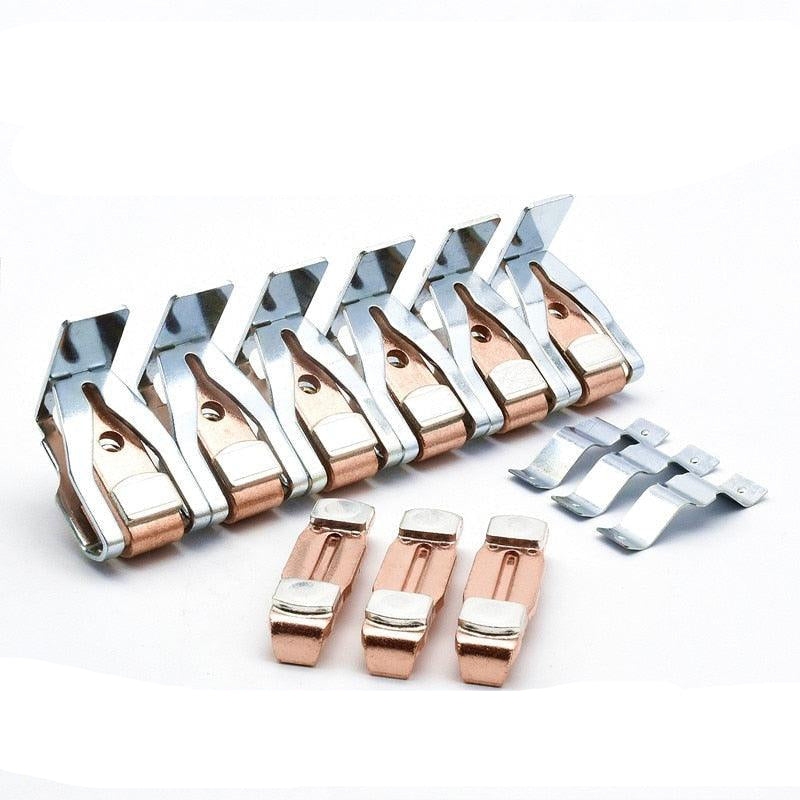

One set includes:3 movable parts & 6 fixed parts & 3 leaf springs Please check the picture below:

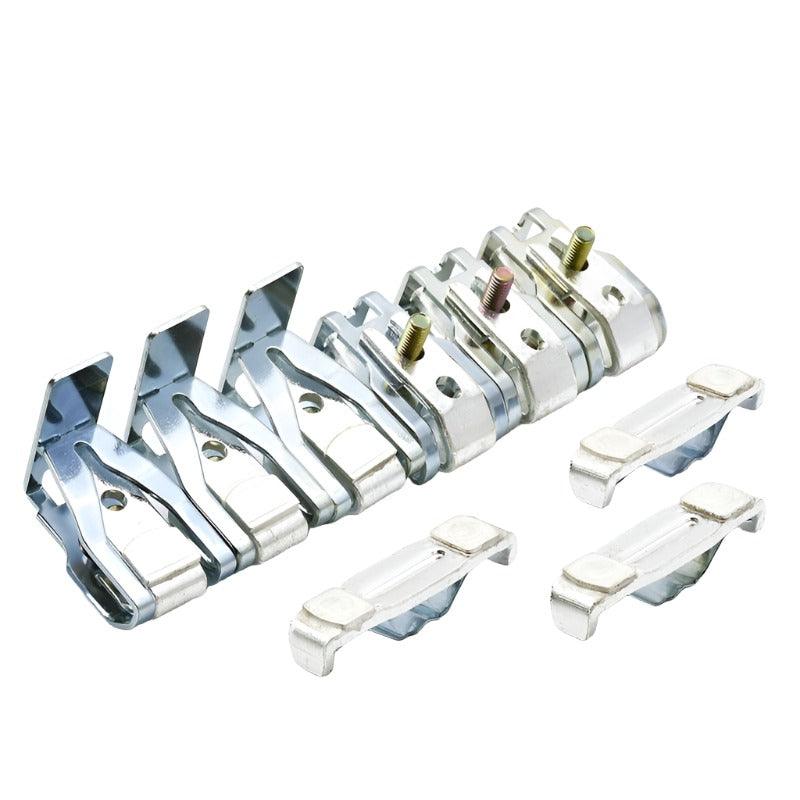

B grade:the color of the product is white .Please check the picture below :

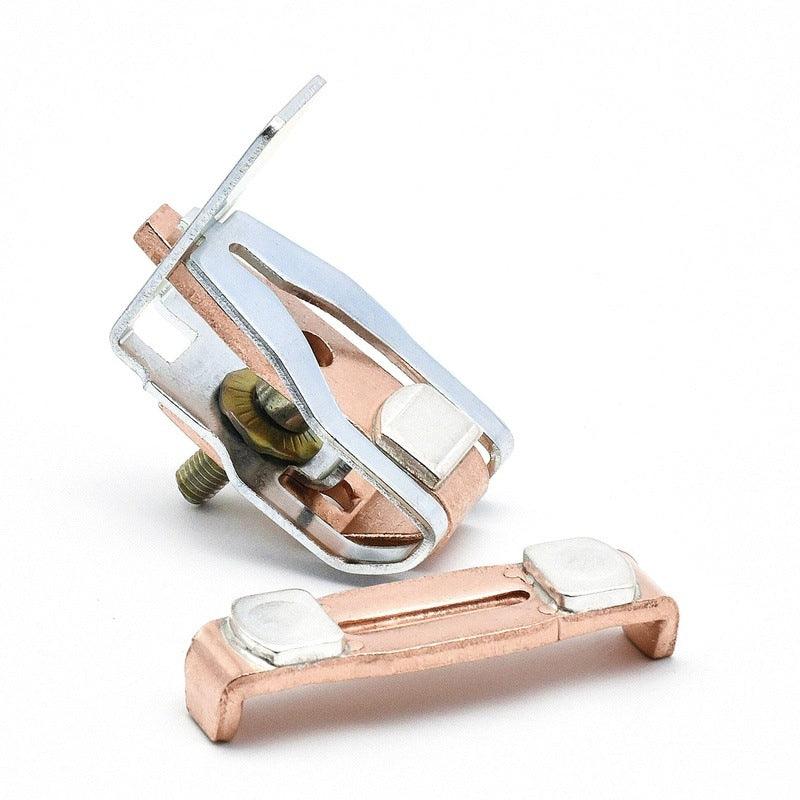

A plus grade & A grade:the color of the product is red.Please check the picture below :



grade S:the contact point contains approximately 85% silver the thickness of the contact point is approximately :2.2mm Please check the picture

Care Instructions
