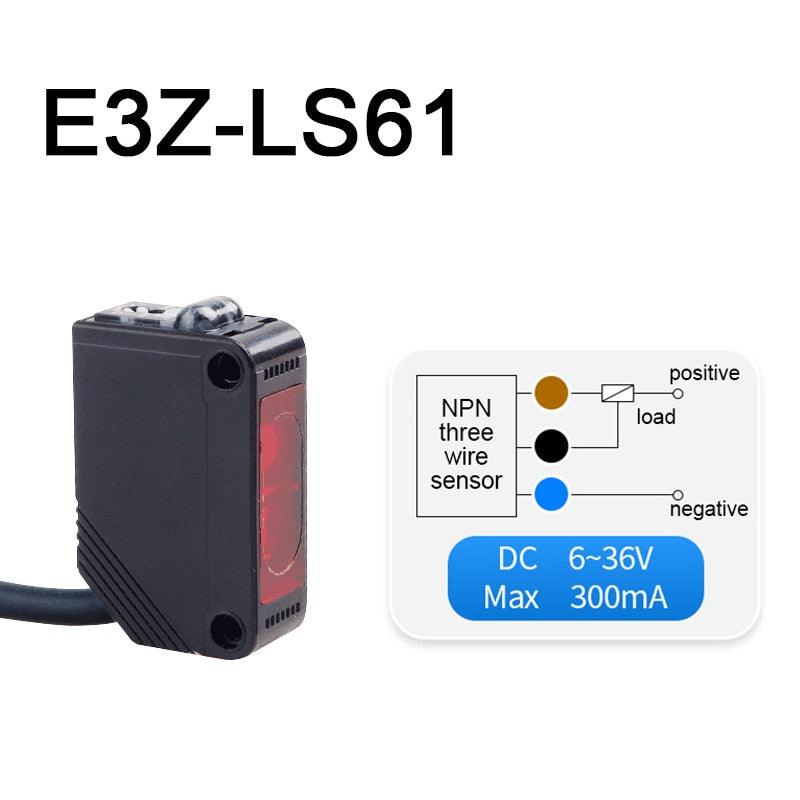

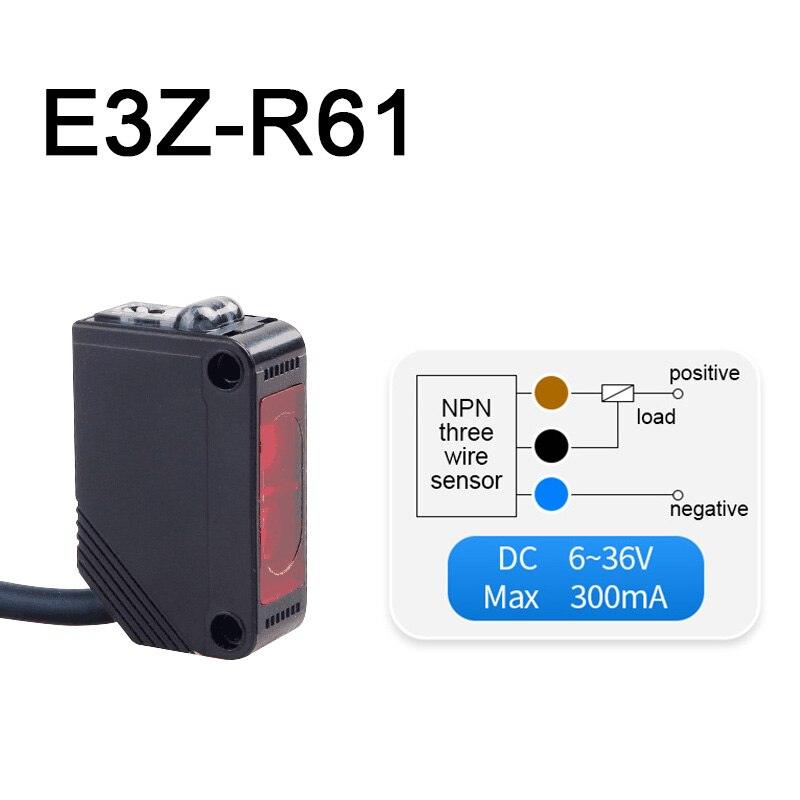

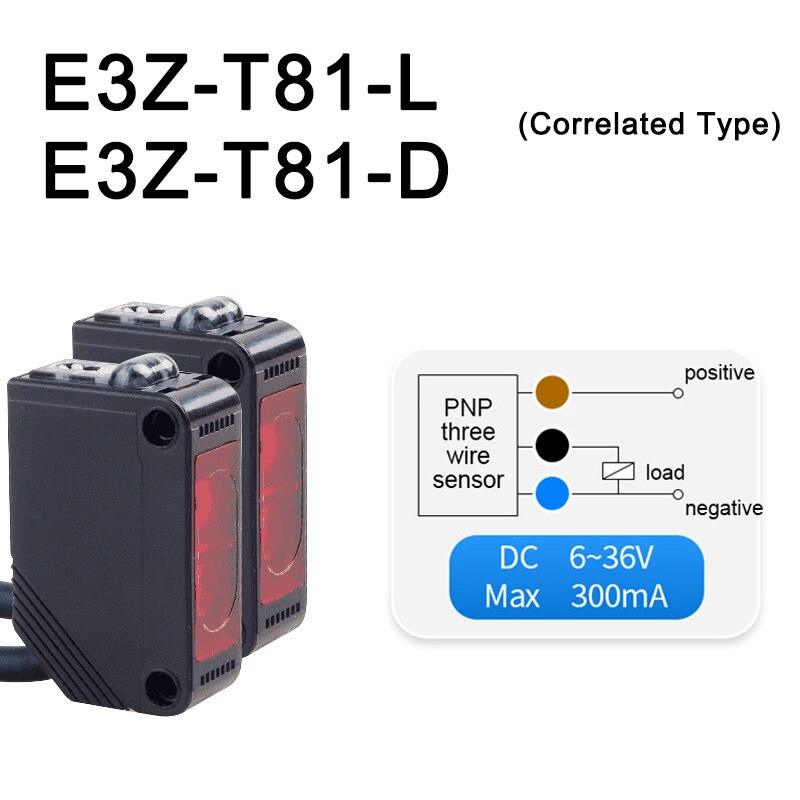

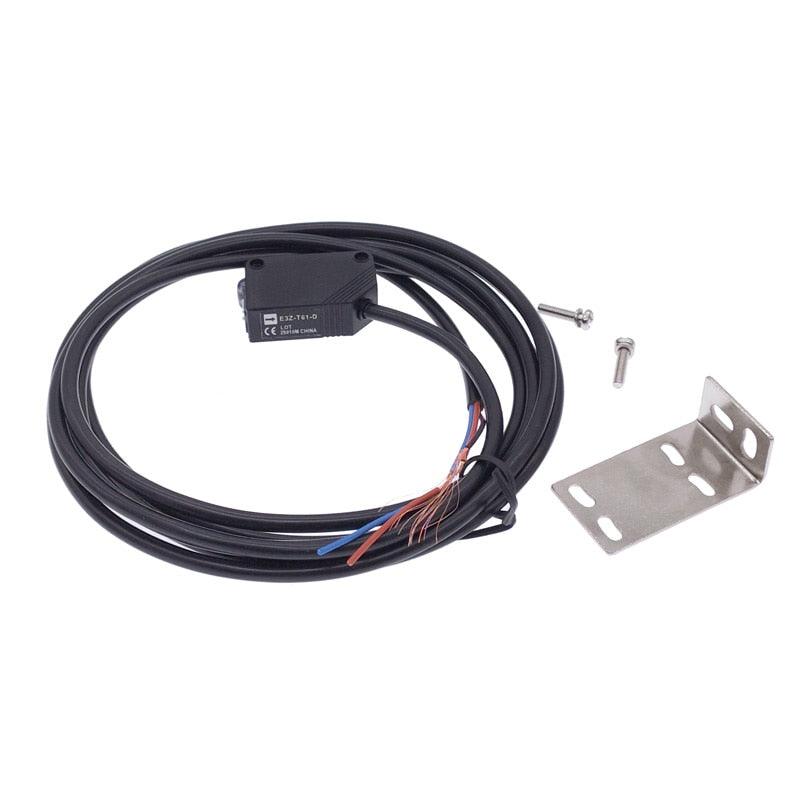

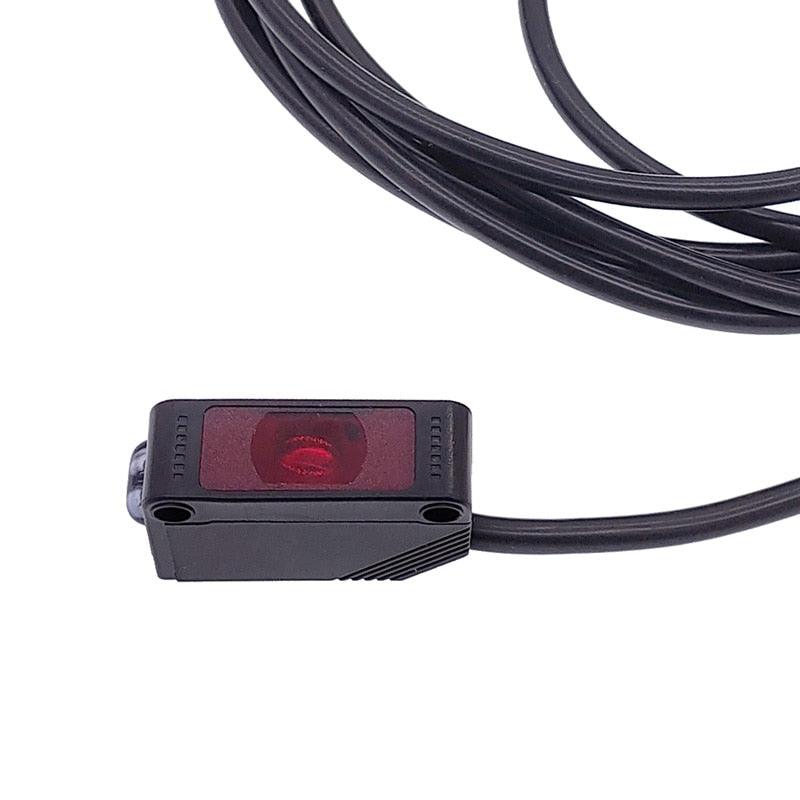

Infrared Photoelectric Switch Diffuse Reflection Type Sensor DC12V-24V with Bracket E3Z-D61/D81/D62/D82/T61/T81/R61/R81/LS61

SPECIFICATIONS

Infrared Photoelectric Switch Diffuse Reflection Type Sensor DC12V-24V with Bracket E3Z-D61/D81/D62/D82/T61/T81/R61/R81/LS61

Warranty: 1 year

Switch Type: Photoelectric Switch

Origin: CN(Origin)

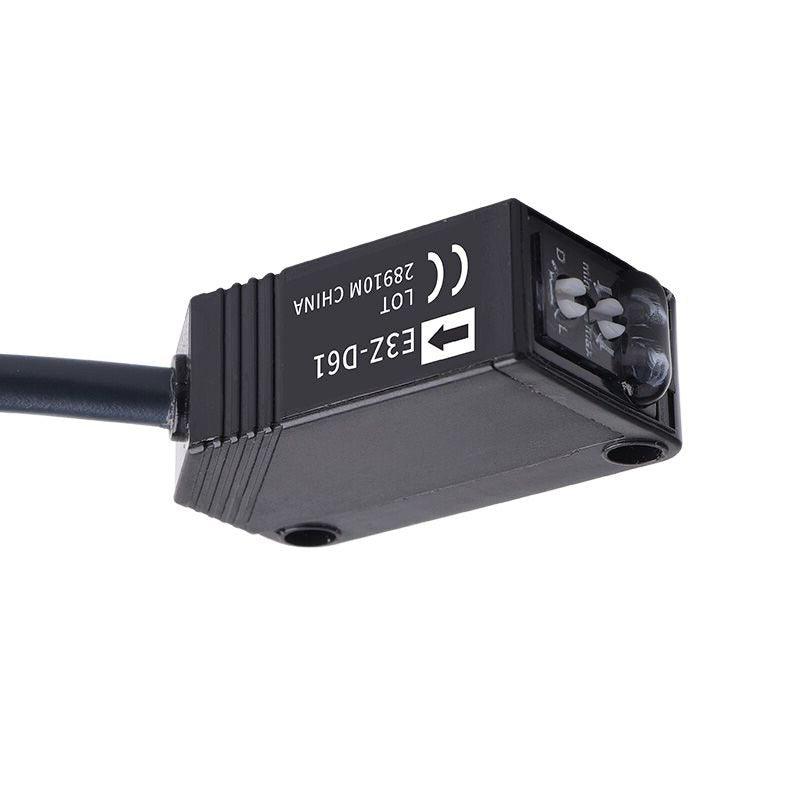

Model Number: D61

Material: Plastic

Item Type: Switches

Is Smart Device: No

Current: 300mA

Certification: CCC

Voltage: DC12-24V

Output current: 300mA

Reflection form: diffuse reflection type

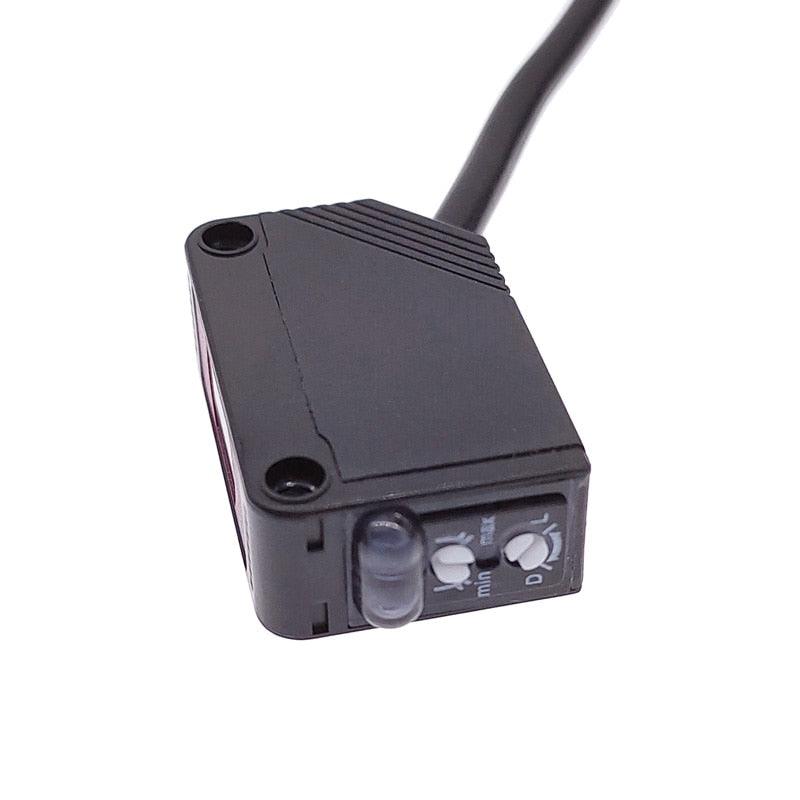

Action status: switchable "L" normally open, "D" normally closed

Standard detection distance: non fully transparent objects above 1mm (such as colorless glass)

Light source (wavelength): infrared luminescence (950)

Circuit protection: reverse connection protection, open circuit protection, surge protection

Service life: 2 million times

Response time: less than 2ms

Insulation resistance: above 20mΩ

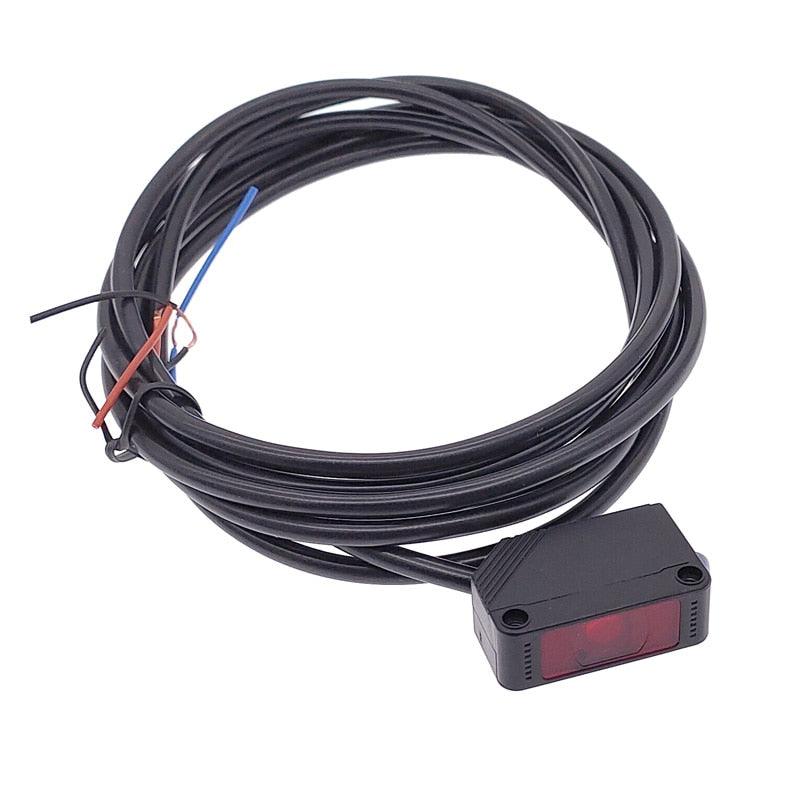

Conductor length: 2m

Shell material: ABS

Cable material: PVC
