GW4632-BL2418 DC Brushless 12V 24V Turbo Worm Gear High Torque Low Speed Micro BLDC Motor 3 5 9 15 20 27 35 45 60 100 138 240RPM

BL2418 DC Brushless Motor Series, Include 4 Family, click for details:
1) BL2418: High-speed (No Gearbox)
2) GA25-BL2418: Common Gearbox
3) GP24-BL2418: Planetary Gearbox
4) GW4632-BL2418: Worm Gearbox

More DC Brushless Motor Series (BL2418 series's brothers), click for details.

Model: GW4632-BL2418-S0614D
Gear Box Name: GW4632
Gear Box Type: Worm Gear
Motor Body Name: BL2418
Motor Body Type: DC Brushless Motor (BLDC)
Shaft Number: Single

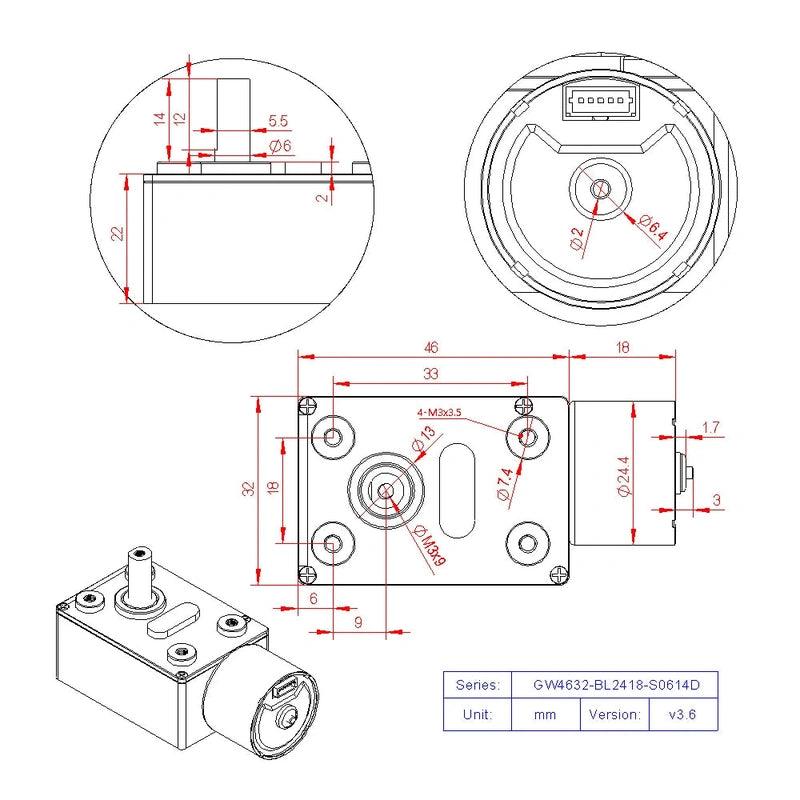

Shaft Size: 6mm(diameter) * 14mm(length)
Shaft Shape: D-Cut, 5.5mm(thickness) * 12mm(length)
Rated Voltage: DC 24V (can be reduced to 12V, etc.)
Motor Weight: 150g (approx.)
Motor Use Temperature: 0℃ - 70℃
Motor Storage:
- Temperature: 0℃ - 40℃
- Humidity: 15% -90% RH

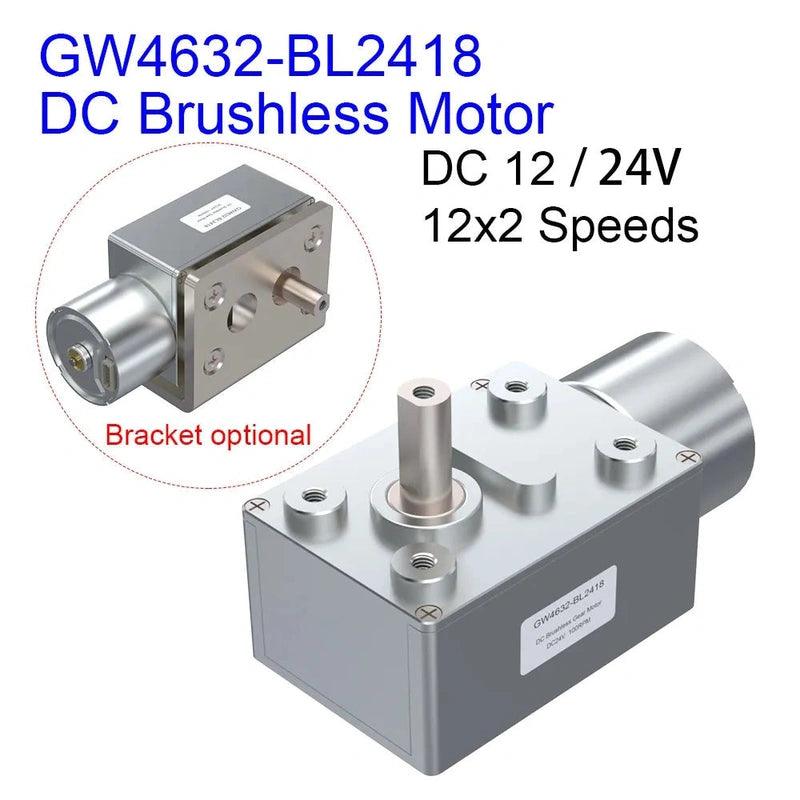

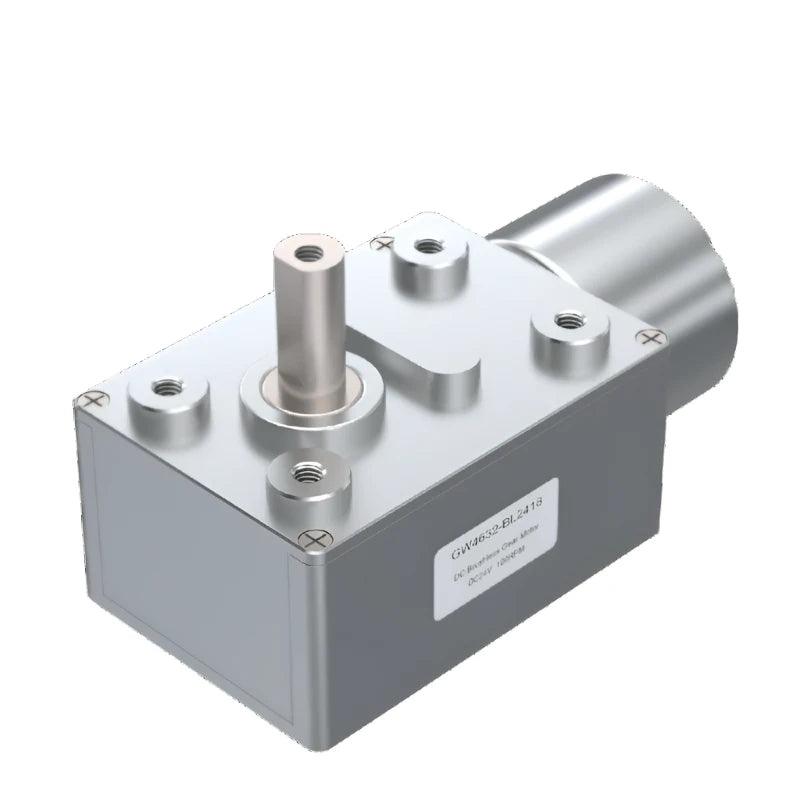

The GW4632-BL2418 is DC Brushless Turbo Worm Gear Motor with high torque, low RPM (low speed), and long life.

The GW4632-BL2418 motor’s rated voltage is DC 24V, it can be reduced to 12V, etc. When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.

The Speed (RPM) in the purchase option is DC24V.
When the voltage is reduced to 12V, the speed is about 1/2 of those of 24V. So if you want a motor of 12V m RPM, please select 24V 2*m RPM, such as want 12V 25RPM select 24V 50RPM.

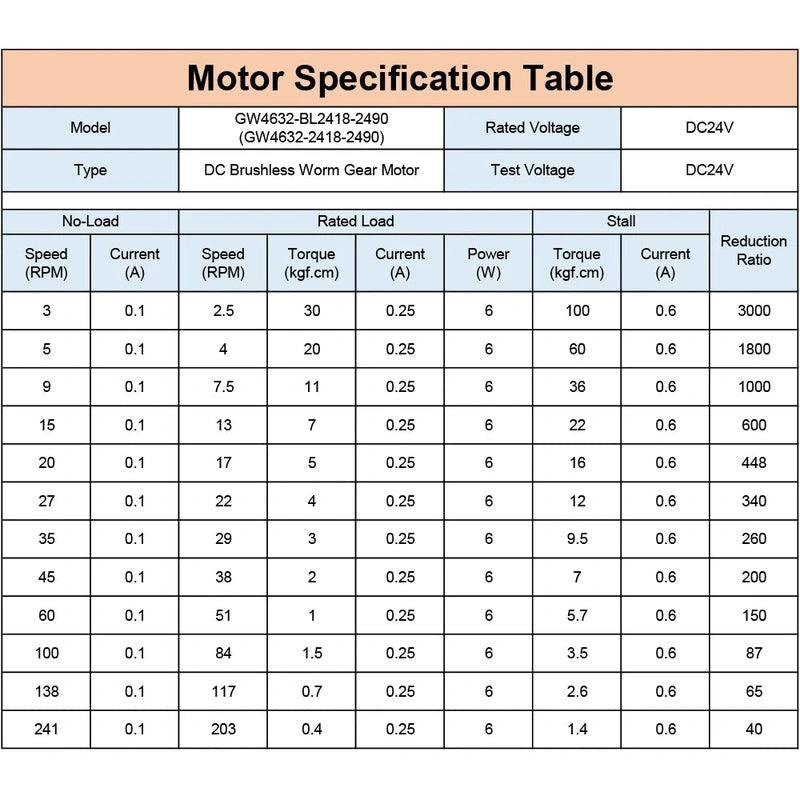

The No-load Speed at rated voltage DC 24V (Speeds in purchase options) is:
3 5 9 15 20 27 35 45 60 100 138 241 RPM

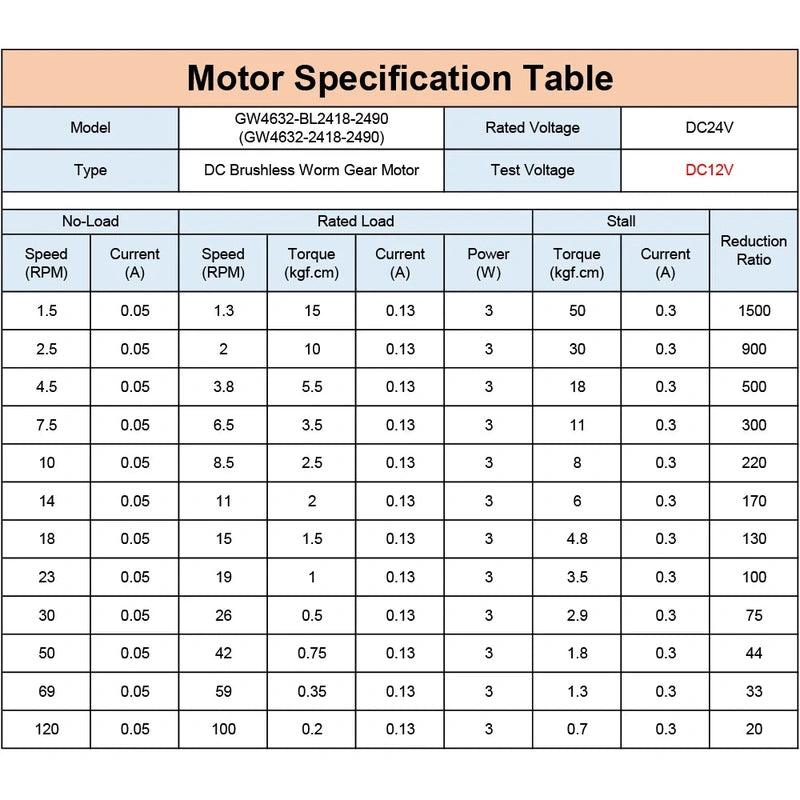

The No-load speed at DC 12V is (Speeds in purchase options divided by 2):
1.5 2.5 4.5 7.5 10 14 18 23 30 50 69 120 RPM

For more voltages and speeds, please contact us.


Package included:
- 1 x Motor

- 1 x Motor Wire (about 200mm length)

Notes:
1. VCC and GND must not be misconnected.
2. CW/CCW, PWM, BRAKE could not be connected to VCC.
3. Prohibit CW/CCW signal while the motor is running. When you need to switch the direction, please stop the motor first, then set the correct CW/CCW according to the expected motor rotation direction, and then start the motor.
4. For gear motors, the FG output pulse must to be multiplied by the reduction ratio of the gearbox.

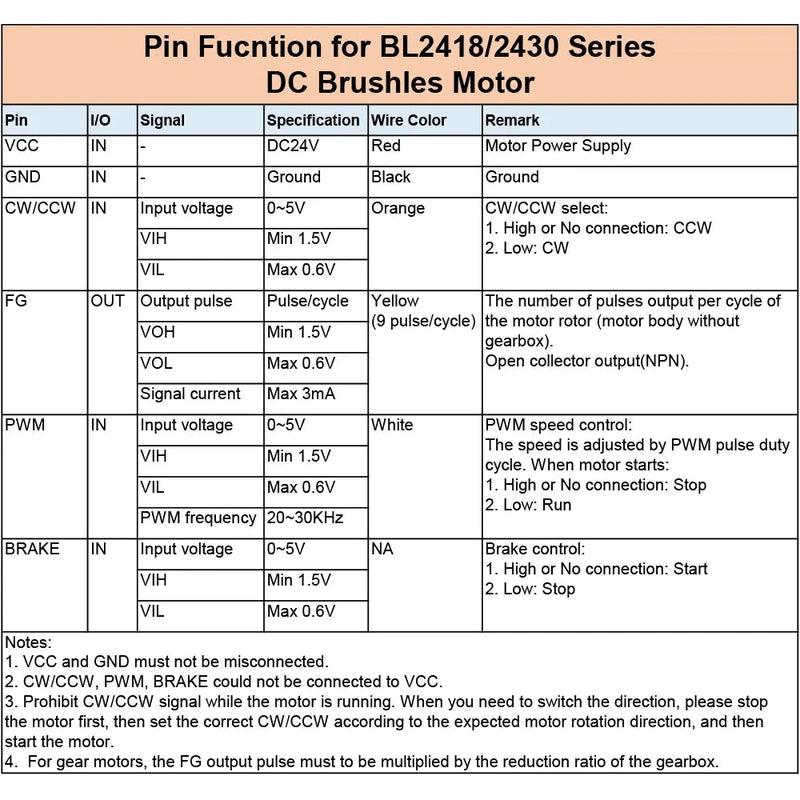

Notes: Pin connect for DC brushless motor describes how the motor's pins are connected when the motor is started, and how the speed and brakes are controlled.
GW4632 series DC geared motors bracket (Click image below for details)
