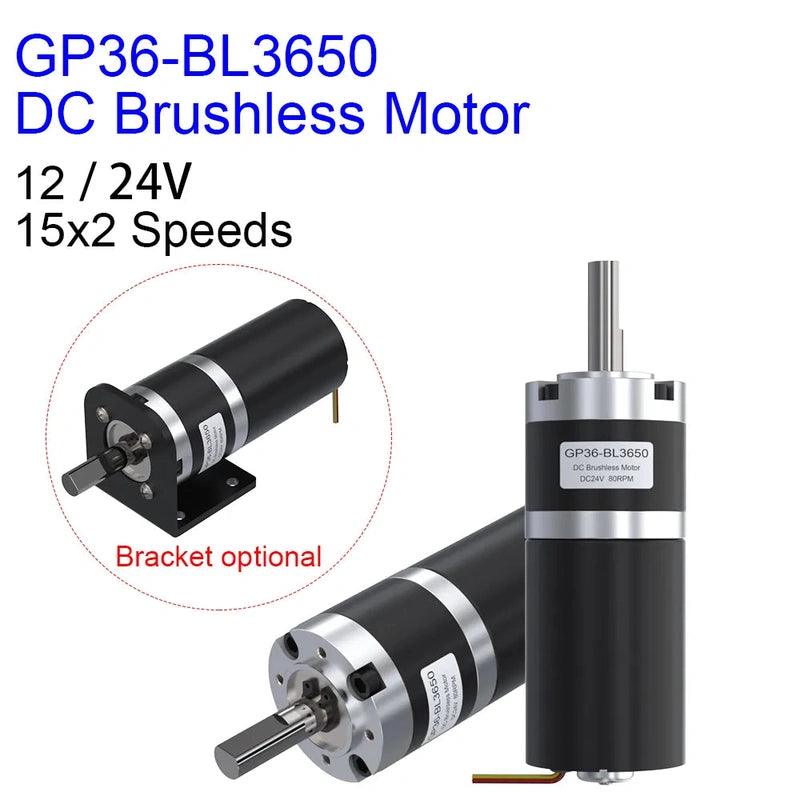

GP36-BL3650 DC Brushless 12V 24V Planetary Gear High Torque Low RPM Micro Gearbox BLDC Motor with reducer 10 80 300 1500 2000RPM

BL3650 DC Brushless Motor Series, Include 4 Family, click for details:
1) BL3650: High-speed (No Gearbox)

2) GB37-BL3650: Common Gearbox

3) GP36-BL3650: Planetary Gearbox

4) GW5840-BL3650: Worm Gearbox

More DC Brushless Motor Series (BL3650 series's brothers), click for details.

Model: GP36-BL3650-S0628D, GP36-BL3650-S0828D
Gear Box Name: GP36
Gear Box Type: Planetary Gear
Motor Body Name: BL3650
Motor Body Type: DC Brushless Motor (BLDC)
Rated Voltage: DC12/24V (can be reduced)
Motor Weight: 440g (approx.)
Motor Use Temperature: 0℃-70℃
Motor Storage:
- Temperature: 0℃-40℃
- Humidity: 15%-90% RH

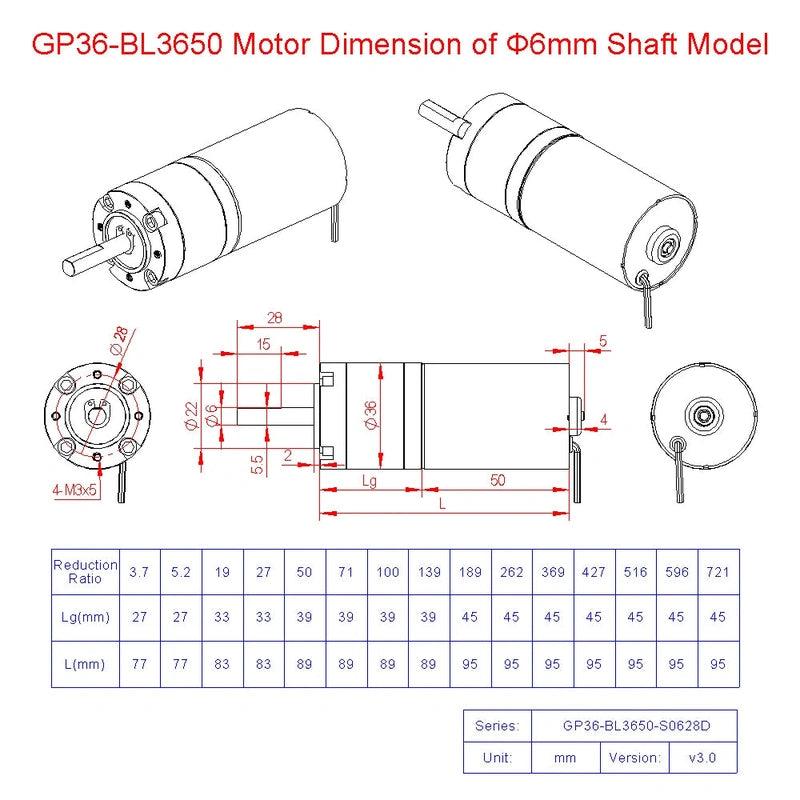

For GP36-BL3650-S0628D:
Shaft Number: Single
Shaft Size: 6mm(diameter) * 28mm(length)
Shaft Shape: D-Cut, 5.5mm(thickness) * 15mm(length)

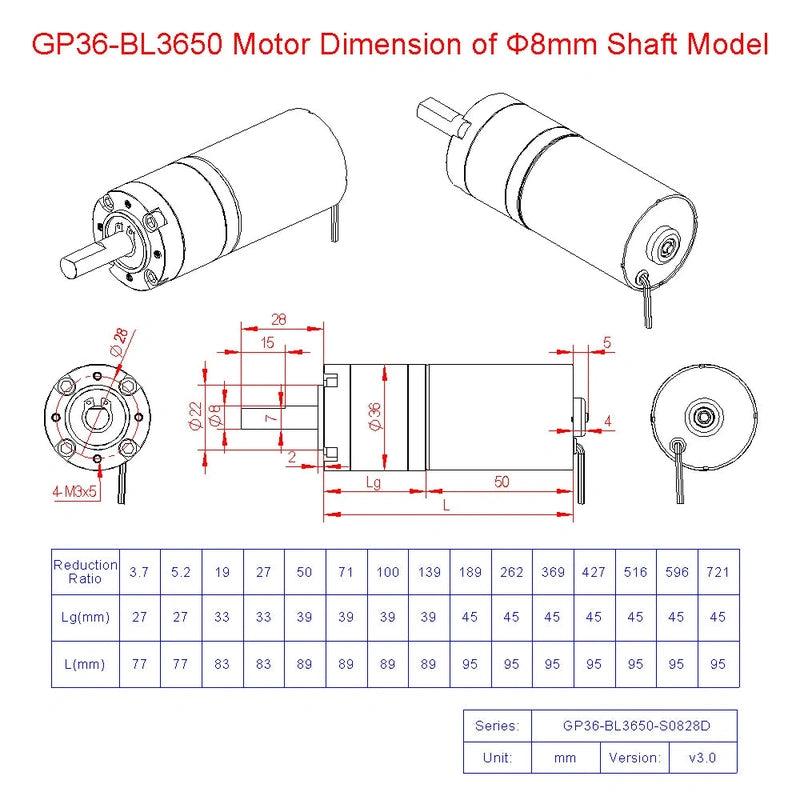

For GP36-BL3650-S0828D:
Shaft Number: Single
Shaft Size: 8mm(diameter) * 28mm(length)
Shaft Shape: D-Cut, 7mm(thickness) * 15mm(length)

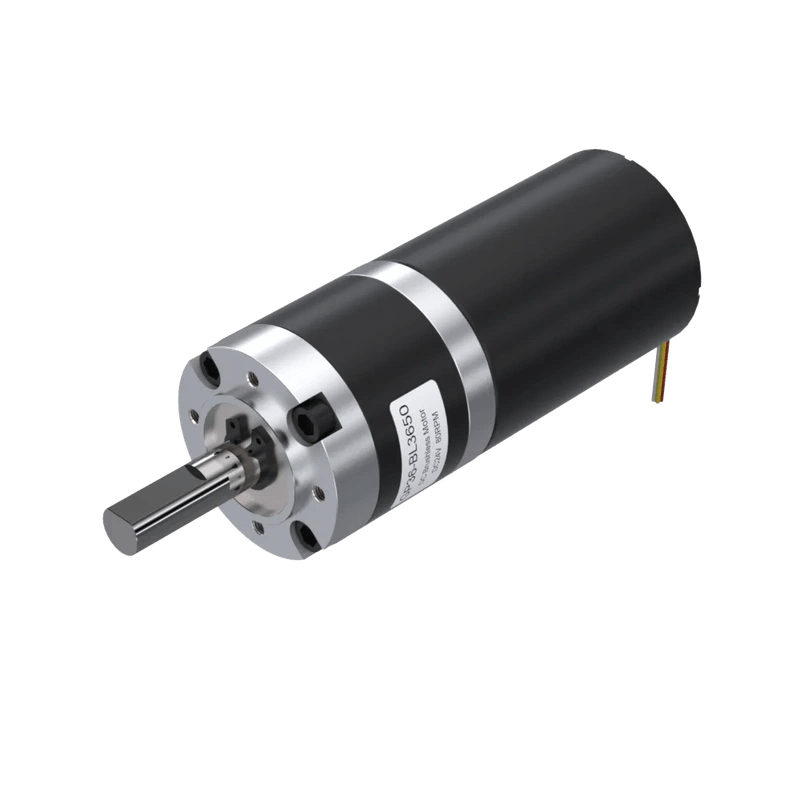

The GP36-BL3650 is DC Brushless Planetary Gear Motor with high precision, high torque, low RPM (low speed), and long life.

The motor's rated voltage is DC 12/24V, and it can be reduced.

When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.

Usually when the voltage is reduced to 6/12V (the 1/2 of DC12/24V), then the speed, current and torque are about 1/2 of those of 12/24V.

The Speed (RPM) in the purchase option is rated voltage DC12/24V.

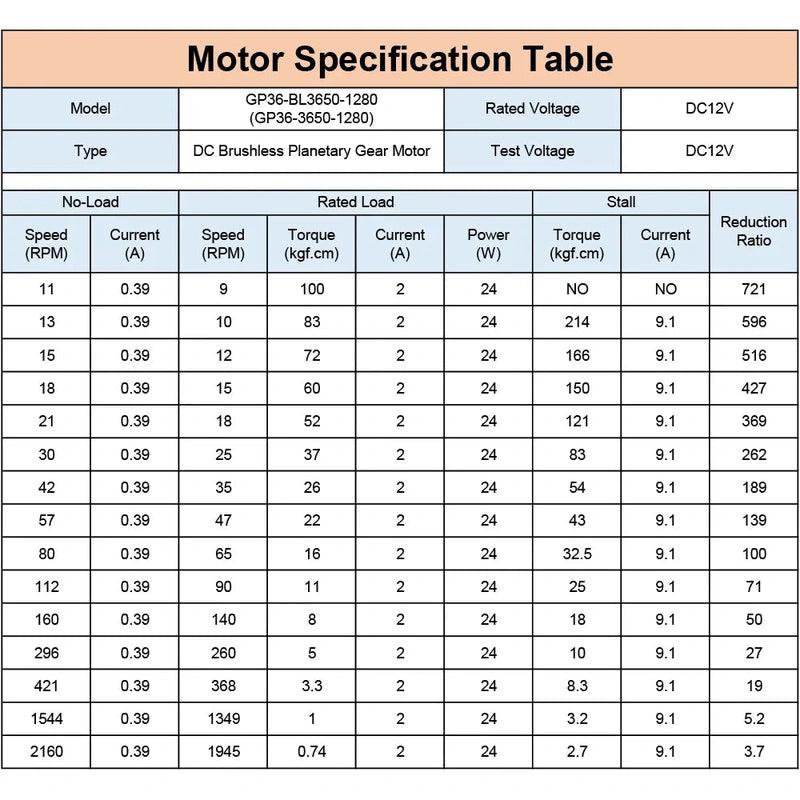

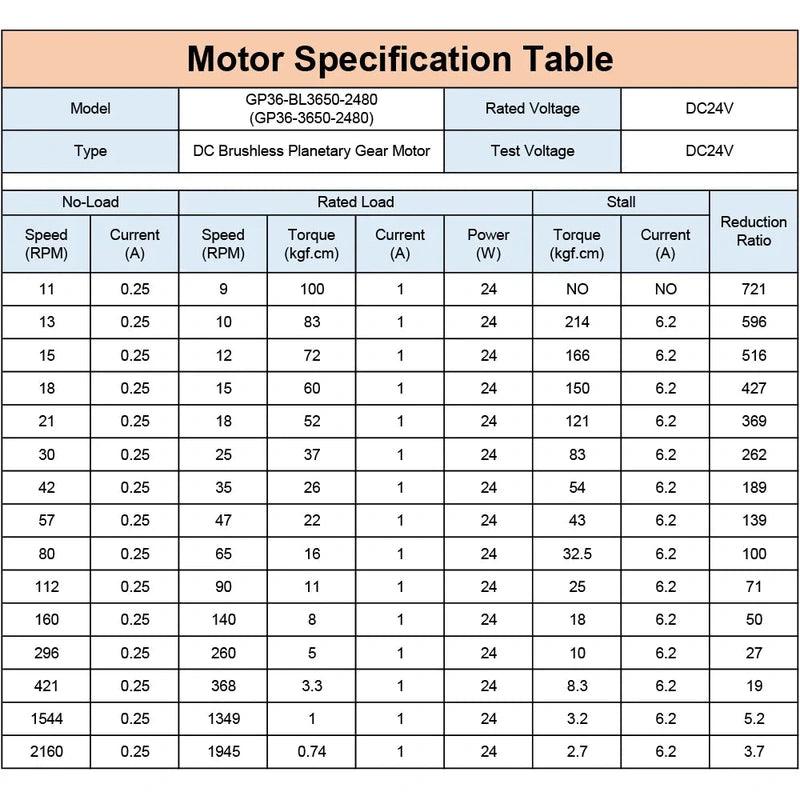

The No-load Speed at rated voltage DC 12/24V (Speeds in purchase options) is:
11 13 15 18 21 30 42 57 80 112 160 296 421 1544 2160 RPM

The No-load speed at reduced voltage DC 6/12V is (Speeds in purchase options divided by 2):
5.5 6.5 7.5 9 10.5 15 21 28.5 40 56 80 148 210.5 772 1080 RPM

For more voltages and speeds, please contact us.


Package included:
- 1 x Motor with Wire (about 280mm length)

Notes:
1. VCC and GND must not be misconnected.
2. CW/CCW, PWM, BRAKE could not be connected to VCC.
3. Prohibit CW/CCW signal while the motor is running. When you need to switch the direction, please stop the motor first, then set the correct CW/CCW according to the expected motor rotation direction, and then start the motor.
4. For gear motors, the FG output pulse must to be multiplied by the reduction ratio of the gearbox.

Notes: Pin connect for DC brushless motor describes how the motor's pins are connected when the motor is started, and how the speed and brakes are controlled.
