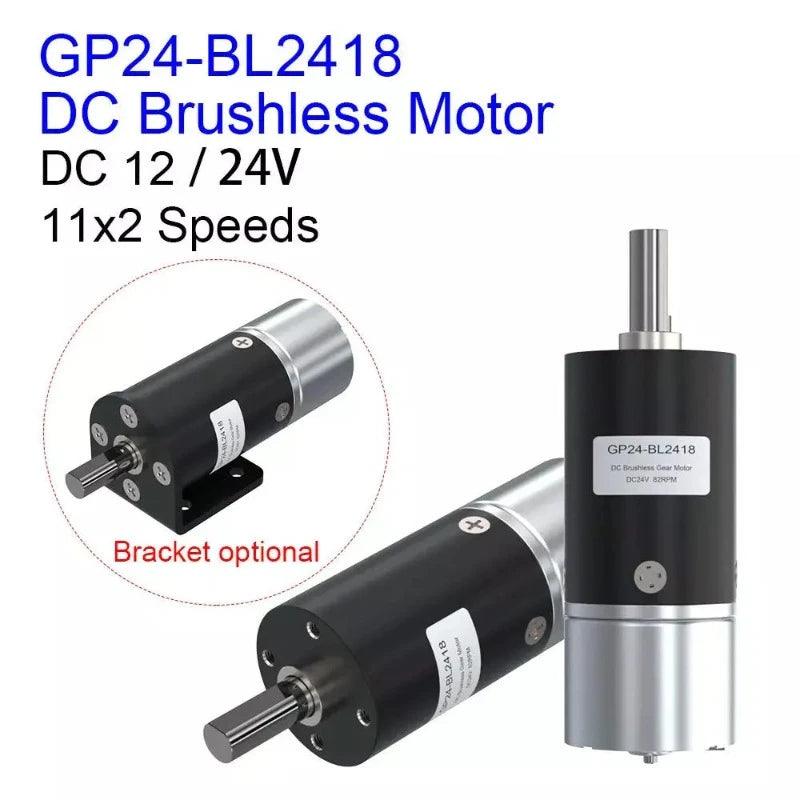

GP24-BL2418 DC Brushless 12V 24V Planetary Gear High Torque Low Speed Micro BLDC Motor

BL2418 DC Brushless Motor Series, Include 4 Family,
1) BL2418: High-speed (No Gearbox)
2) GA25-BL2418: Common Gearbox
3) GP24-BL2418: Planetary Gearbox
4) GW4632-BL2418: Worm Gearbox

More DC Brushless Motor Series (BL2418 series's brothers)

Model: GP24-BL2418-S0418D、GP24-BL2418-S0618D
Gear Box Name: GP24
Gear Box Type: Planetary Gear
Motor Body Name: BL2418
Motor Body Type: DC Brushless Motor (BLDC)
Rated Voltage: DC 24V (can be reduced to 12V, etc.)
Motor Weight: 150g (approx.)
Motor Use Temperature: 0℃ - 70℃
Motor Storage:
- Temperature: 0℃ - 40℃
- Humidity: 15% -90% RH

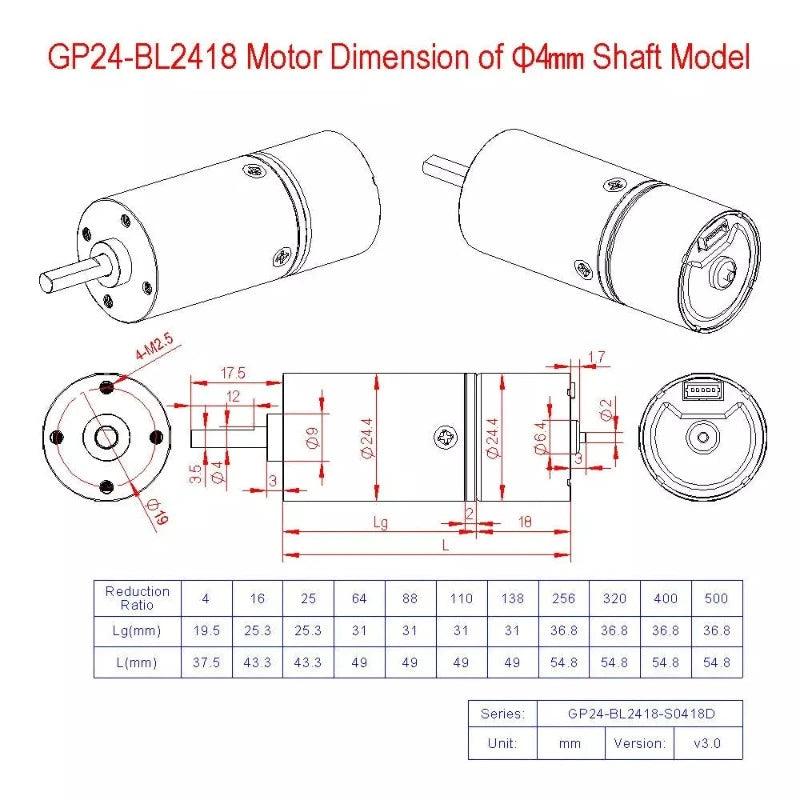

For GP24-BL2418-S0418D:
Shaft Number: Single
Shaft Size: 4mm(diameter) * 17.5mm(length)
Shaft Shape: D-Cut, 3.5mm(thickness) * 12mm(length)

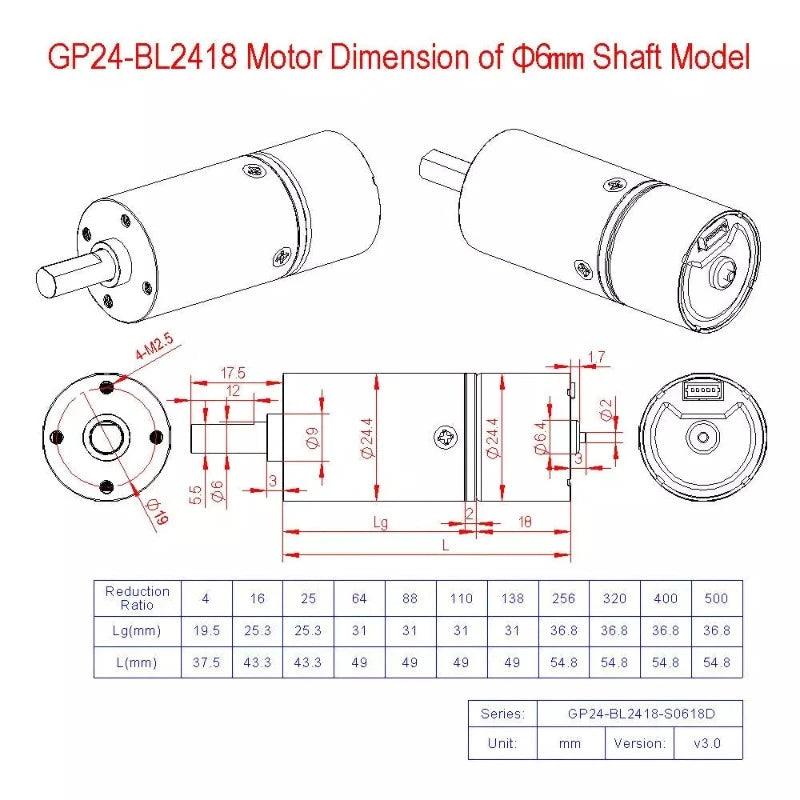

For GP24-BL2418-S0618D:
Shaft Number: Single
Shaft Size: 6mm(diameter) * 17.5mm(length)
Shaft Shape: D-Cut, 5.5mm(thickness) * 12mm(length)

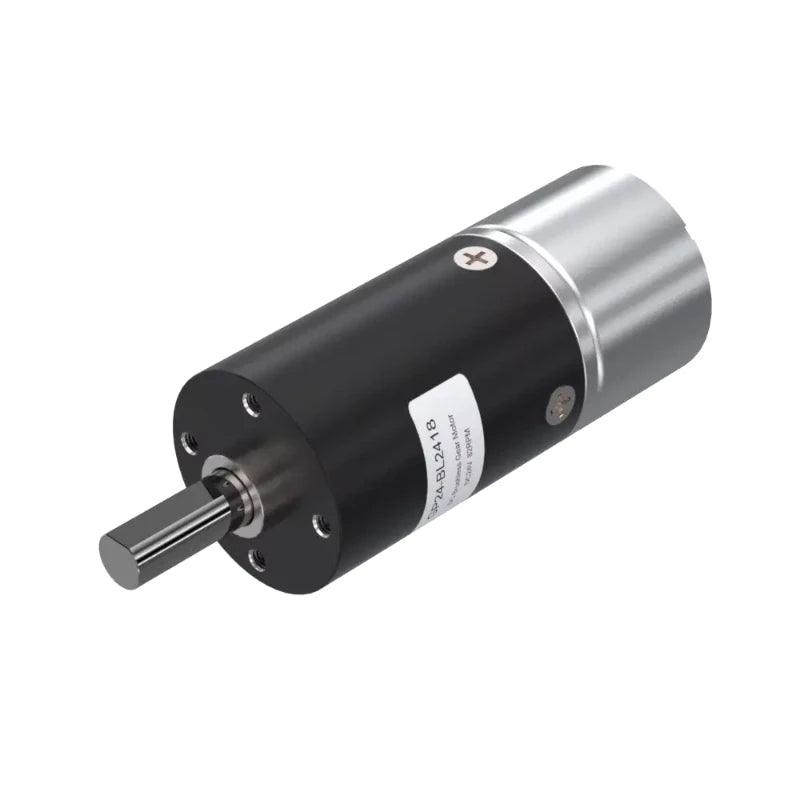

The GP24-BL2418 is DC Brushless Planetary Gear Motor with high precision, high torque, low RPM (low speed), and long life.

The GP24-BL2418 motor’s rated voltage is DC 24V, it can be reduced to 12V, etc. When the voltage is reduced, its speed, current and torque are reduced accordingly in proportion.

The Speed (RPM) in the purchase option is DC24V.
When the voltage is reduced to 12V, the speed is about 1/2 of those of 24V. So if you want a motor of 12V m RPM, please select 24V 2*m RPM, such as want 12V 25RPM select 24V 50RPM.

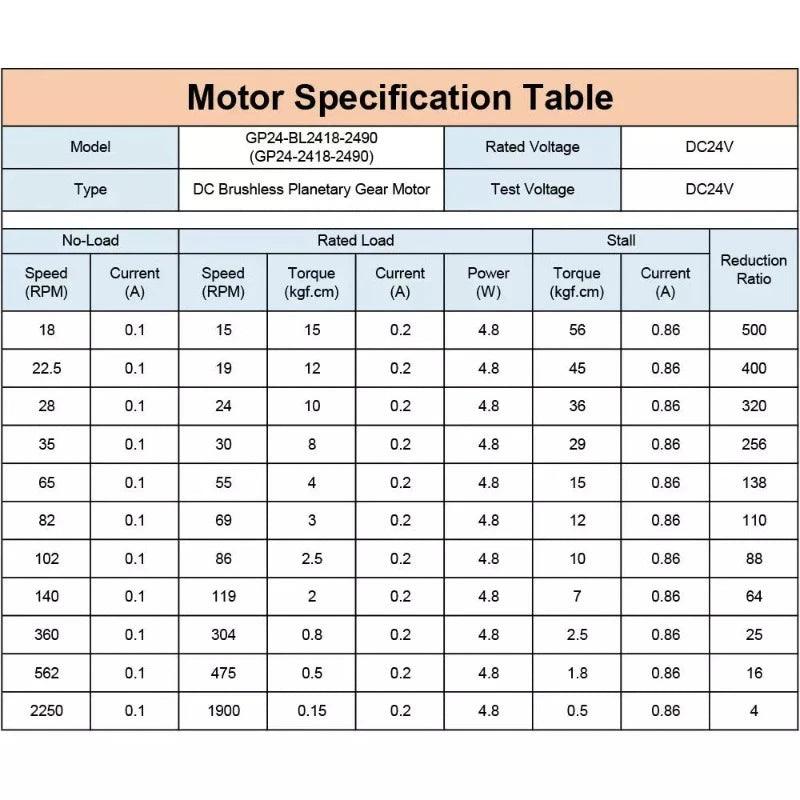

The No-load Speed at rated voltage DC 24V (Speeds in purchase options) is:
18 22.5 28 35 65 82 102 140 360 562 2250 RPM

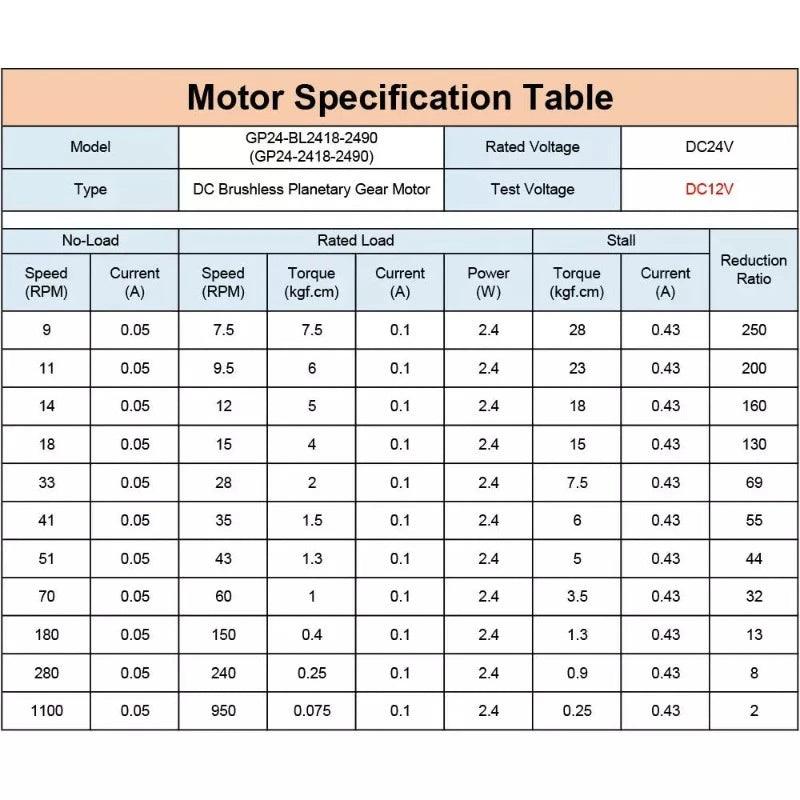

The No-load speed at DC 12V is (Speeds in purchase options divided by 2):
9 11 14 18 33 41 51 70 180 280 1100 RPM

For more voltages and speeds, please contact us.

Package included:
- 1 x Motor

- 1 x Motor Wire (about 200mm length)

Notes:
1. VCC and GND must not be misconnected.
2. CW/CCW, PWM, BRAKE could not be connected to VCC.
3. Prohibit CW/CCW signal while the motor is running. When you need to switch the direction, please stop the motor first, then set the correct CW/CCW according to the expected motor rotation direction, and then start the motor.
4. For gear motors, the FG output pulse must to be multiplied by the reduction ratio of the gearbox.

Notes: Pin connect for DC brushless motor describes how the motor's pins are connected when the motor is started, and how the speed and brakes are controlled.
