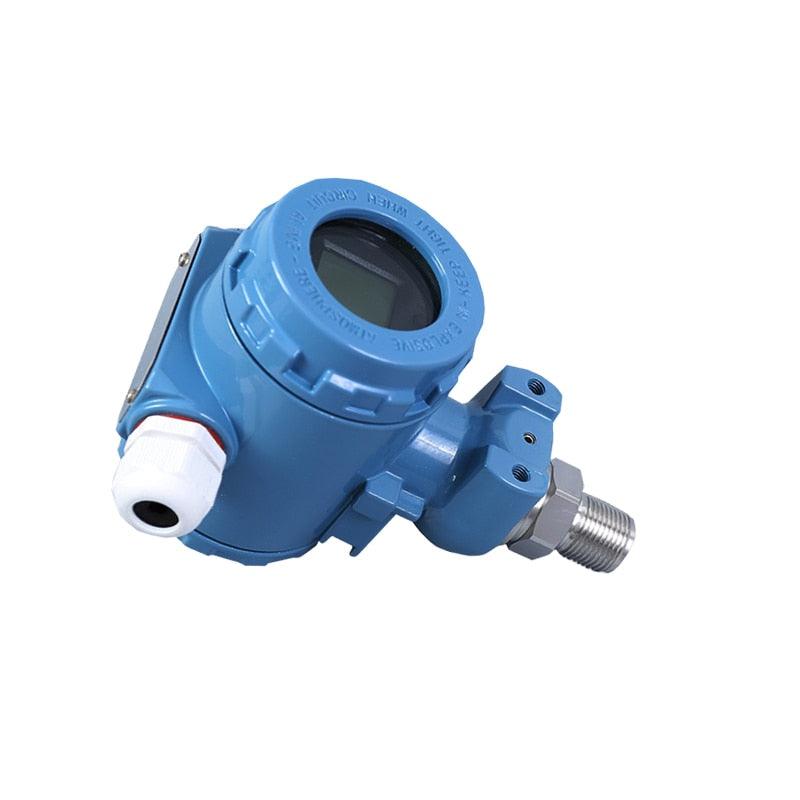

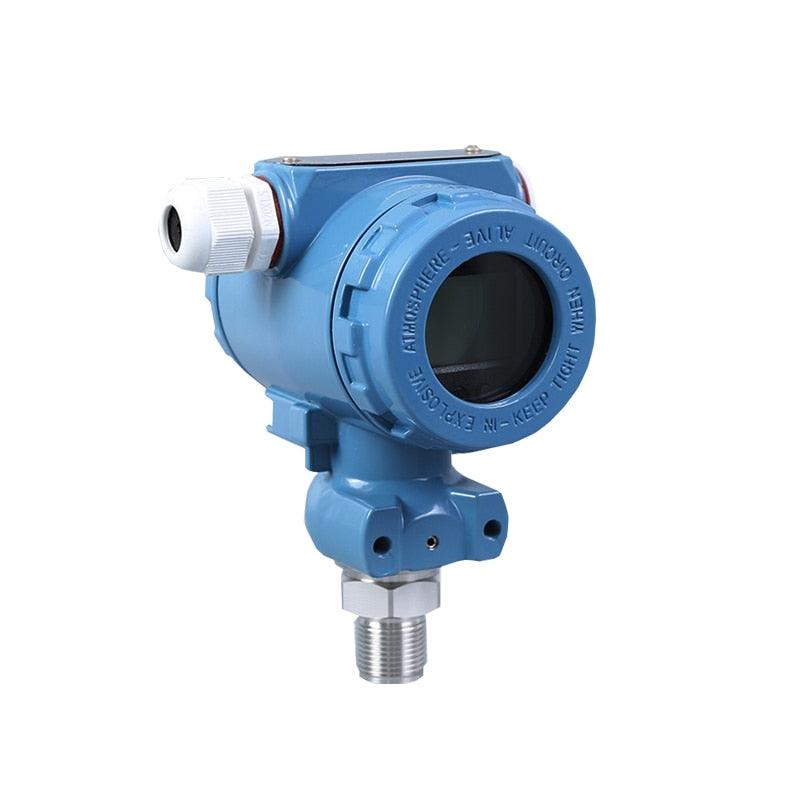

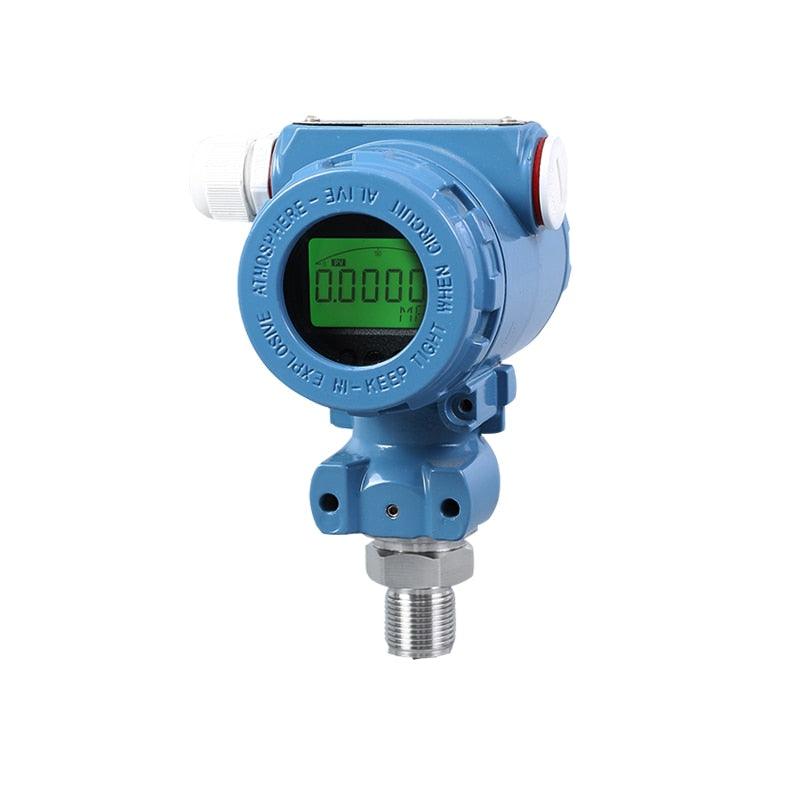

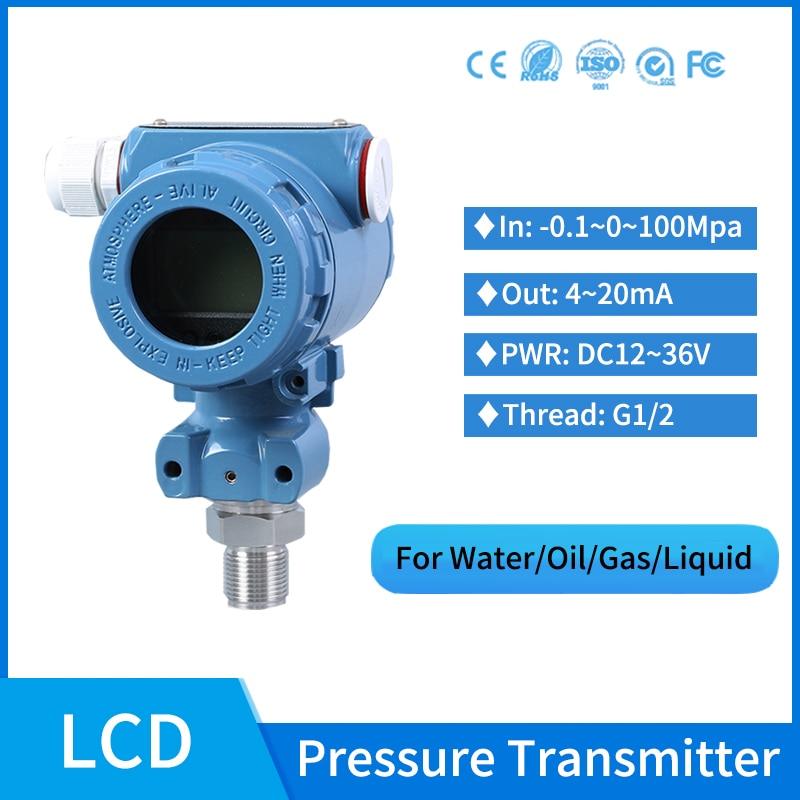

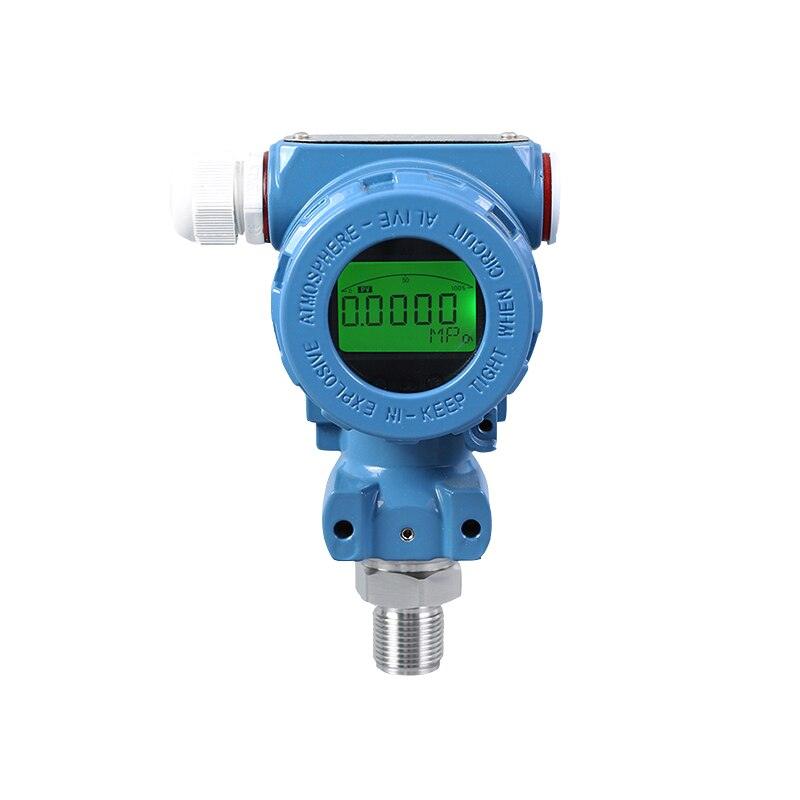

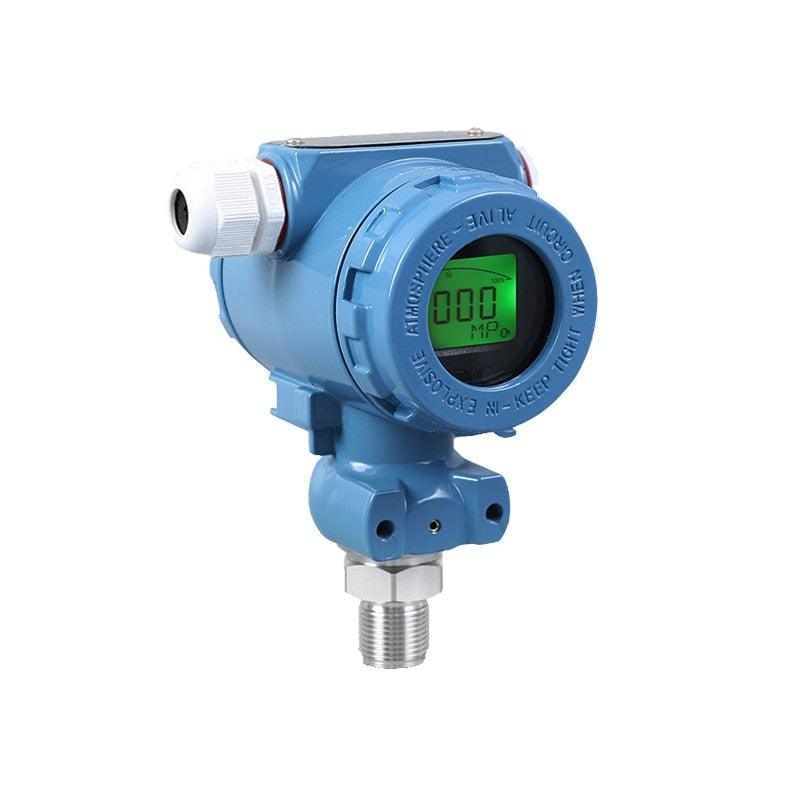

G1/2 IP65 Pressure Sensor Hydraulic Pressure Transmitter with LCD display 0-40Mpa Pressure Transducer

$90.41 USD
$100.83 USD $90.41 USD
Sale Sold out
Shipping calculated at checkout.
Measuring Range

SPECIFICATIONS

G1/2 IP65 Pressure Sensor Hydraulic Pressure Transmitter with LCD display 0-40Mpa Pressure Transducer

Sensor: Diffusion silicon chip

Product name: Pressure transmitter

Power supply: DC24V

Output signal: 4~20mA

Origin: Mainland China

Model Number: ELPT400

Measure range: -0.1~0~100MPa

Max Measuring Range: 400 Bar & Above

Material: Stainless Steel

Connection thread: G1/2

Certification: CE,FCC,RoHS

Brand Name: KEJUN

Accuracy: 0.2%FS

G1/2 IP65 Pressure Sensor Hydraulic Pressure Transmitter with LCD display 0-40Mpa Pressure Transducer


This link is special for:
1. Measuring range: the one you choose
2. Output signal: 4~20mA
3. Power supply: DC24V
4. Connection thread: G1/2


Notes:

What we can make:

1. Available measuring range: any range within -0.1Mpa~0~100Mpa (-1bar~0~1000bar).

2. Available output signal: 4~20mA, 0-10V, 0-5V, 0.5~4.5V, RS485.

3. Available power supply: 12~30Vdc, 24Vdc, 12Vdc

4. Available thread: M20*1.5, G1/2, G1/4, NPT1/2, NPT1/4, etc

2088 TRANSSMITTER DATA SHEET DOWNLOAD
