FLUKE i400E digital clamp meter multimeter, with dual banana jacks 1A~400A AC current range 5Hz~20kHz

$77.97 USD
$94.24 USD $77.97 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

FLUKE i400E digital clamp meter multimeter, AC current clamp, with dual banana jacks 1A~400A AC current range 5Hz~20kHz

Typical bandwidth: 5 Hz-20 kHz

Output signal 1: mV/A AC

Origin: Mainland China

Operating Temperature: 0 - 50 ℃

Model Number: FLUKE i400E

Measuring Resistance Range: /

Measuring Inductance Range: /

Measuring Capacitance Range: /

Maximum non-destructive current: 600 A

Load impedance: 1 A-400 A

Is Smart Device: NO

Inside diameter of jaw: 30 mm

Display Type: Digital display

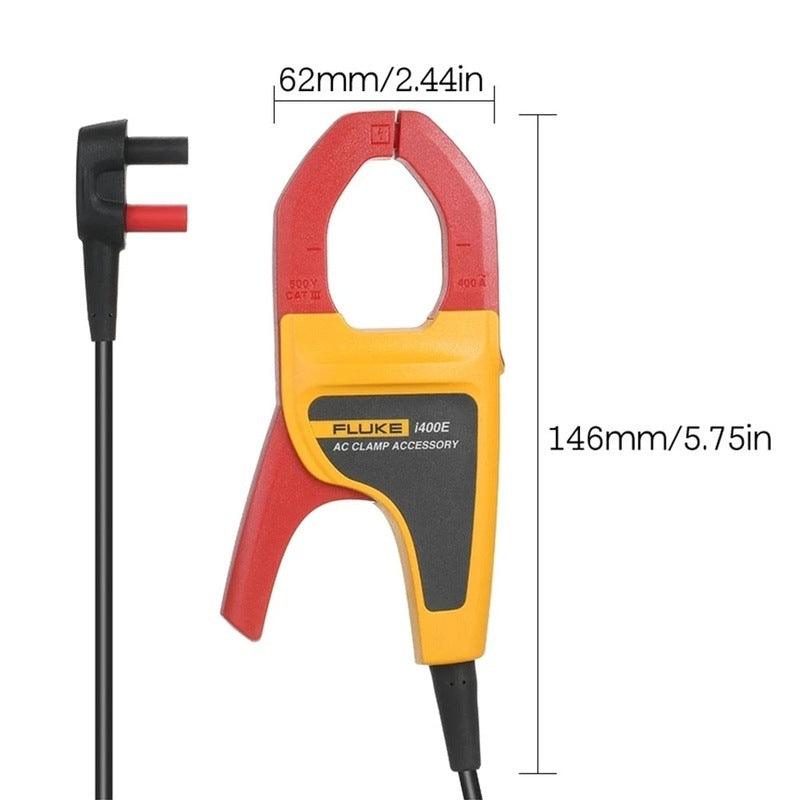

Dimensions: 146 mm x 62 mm x 34 mm

DIY Supplies: ELECTRICAL

DC Voltage: /

DC Current: /

Certification: CE

Brand Name: FLUKE

AC current range: 1 A-400 A

Main features

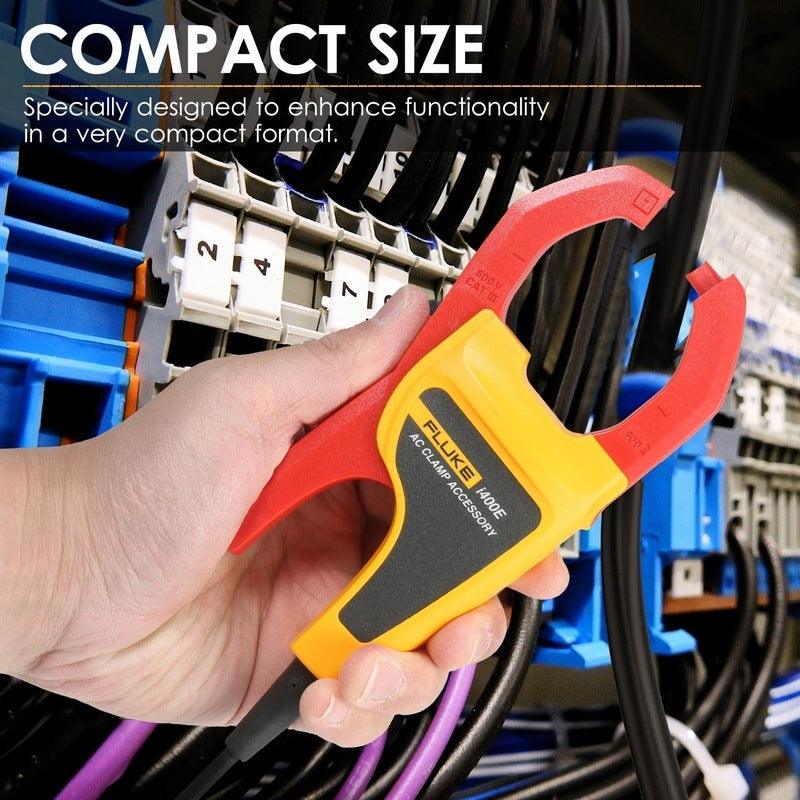

[Compact Structure] Specially designed to enhance functionality in a very compact format.

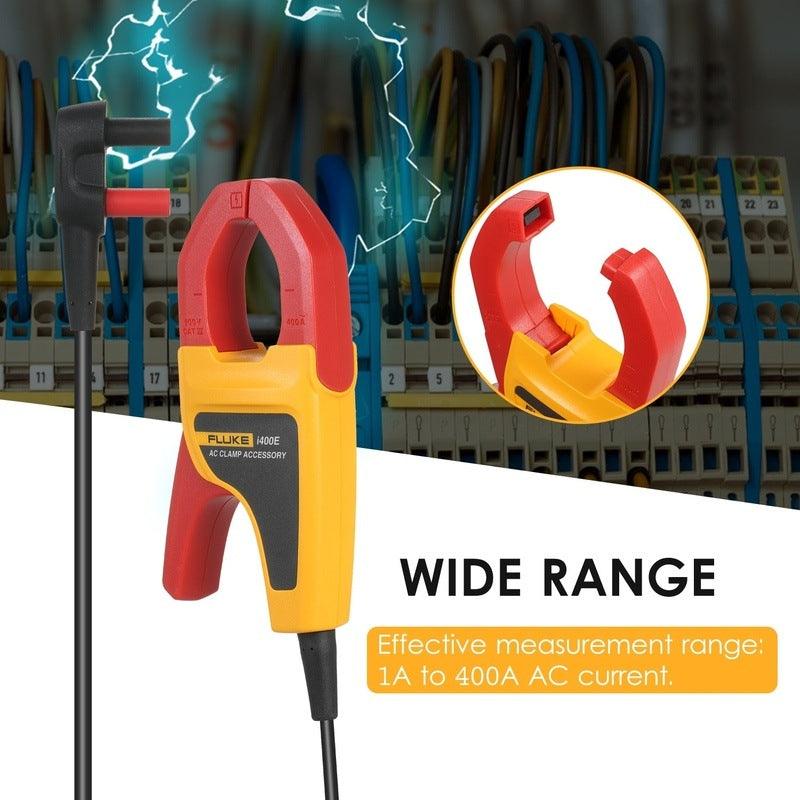

[Wide Range] Effective measurement range: 1A to 400A AC current.
[Accurate Result] The AC frequency range is up to 20kHz, the accuracy of which is up to 2.0%±5digits (45~65Hz) / 2.5%±5digits (65~400Hz).
[Convenient Reading] 1mV/A output for convenient value reading

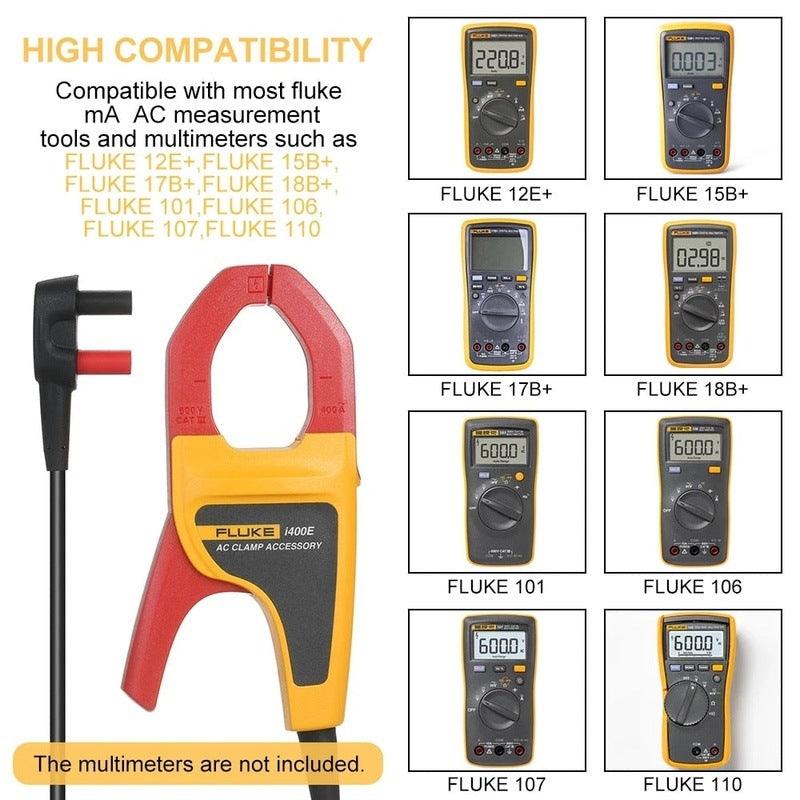

[High Compatibility] Compatible with most FLUKE mV AC measurement tools and multimeters such as F101, F15B+, F17B+, F18B+, 110, 12E+, 106, 107. (SKU: E7960, E7961, E7962, E7963, E15212, E15213, E15216, E15217)
[Wide Applications] The Fluke i400E AC current clamp meter is an ideal tool for extended current measurement. Applicable to power circuit measurement, malfunction analysis, motor drive of frequency converter (or other electronics) measurement, power electronics equipment measurement, etc.

Product overview: Fluke i400E AC current clamp

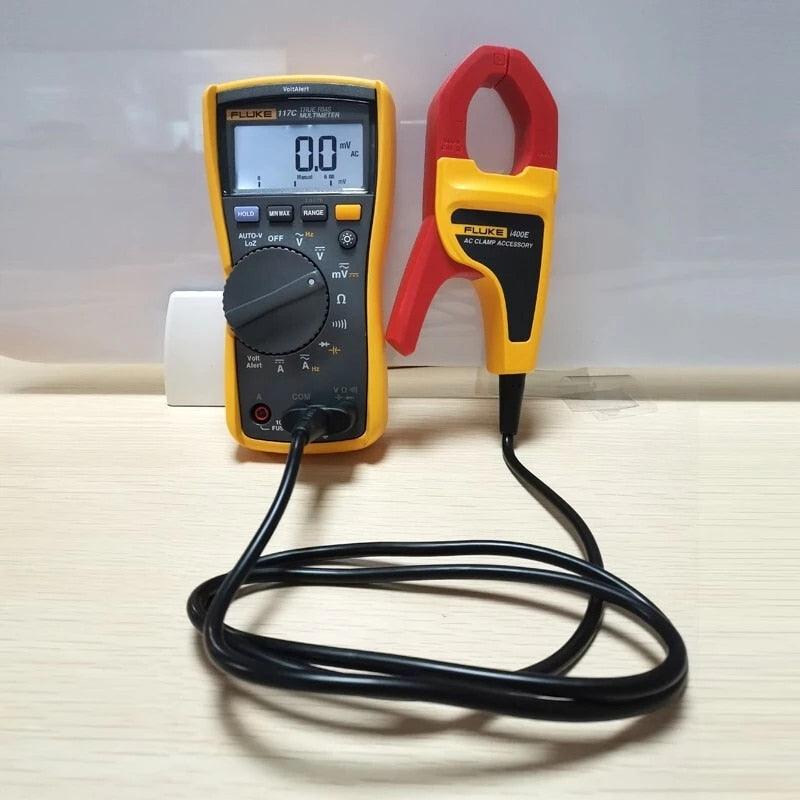

The Fluke i400E AC current clamp is an ideal tool for extended current measurement. It is specially designed to work with the new Fluke 101, 106 and 107 handheld digital multimeters and most Fluke multimeters or support 19.05 mm sheathed banana plugs and have mV AC measurement capabilities Used in conjunction with other voltage measurement tools.
