FLUKE 1503 Handheld High Precision 2500V High Voltage Insulation Tester Digital Multimeter
Couldn't load pickup availability
SPECIFICATIONS
FLUKE 1503 Handheld High Precision 2500V High Voltage Insulation Tester Digital Multimeter
Operating Temperature: -20 °C - 55 °C
Model Number: F1503
Measuring Range: 0.01 MΩ - 2000 MΩ
Display Type: Digital Only
Dimensions: 5.0 x 10.0 x 20.3 cm
DIY Supplies: ELECTRICAL
Certification: CE
Brand Name: FLUKE
Fluke 1503 Digital Insulation Resistance Tester F1503 Megger Meter F-1503 NEW
Description:
Key features
A rugged, compact insulation resistance tester for residential and commercial electricians
Performs insulation tests from 0.01 MΩ to 2000 MΩ
Offers two insulation test voltages: 500 V and 1000 V
Includes live circuit detection to prevent insulation test if voltage >30 V is detected
Measures resistance from 0.01 Ω to 20.00 kΩ

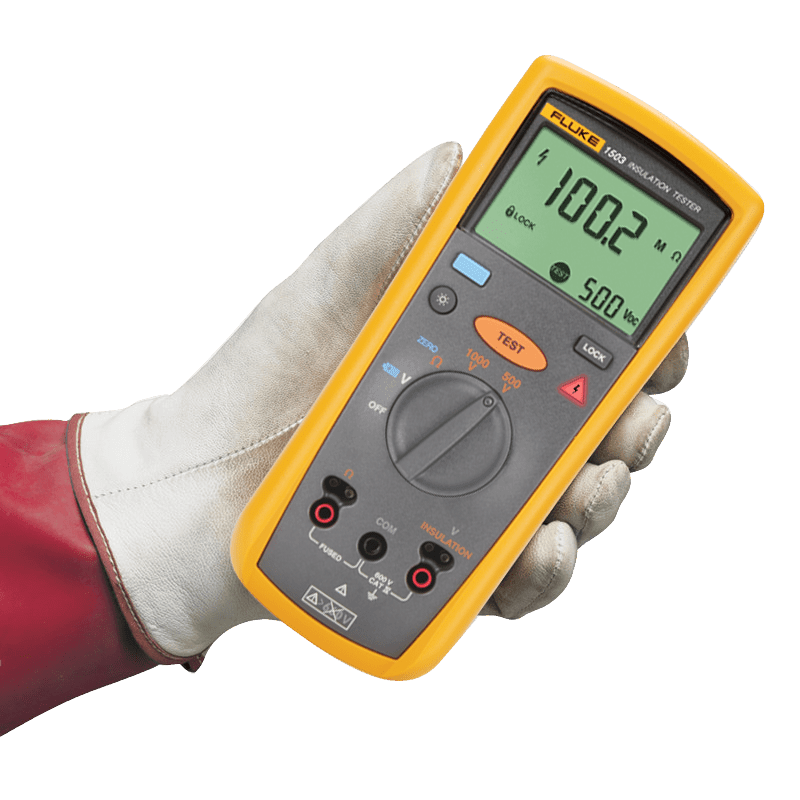

Product overview: Fluke 1503 Insulation Resistance Meter
Fluke 1503 Insulation Resistance Tester handles all the basic insulation testing needs
The Fluke 1503 is a great choice for basic residential and commercial electrical insulation testing. This rugged, compact tool fits in the palm of your hand. The 1503 is the same form factor as the Fluke 1507 but with a few less features. You can count on it to handle the most common tests at a most affordable price. Additional features, like the remote probe, reduce the time needed to perform repetitive testing.
Other useful capabilities:
Measures AC/DC voltage from 0.1 V to 600 V
Includes auto-discharge of capacitive voltage for added user protection
Provides lo-ohms earth-bond continuity (200 mA)
Simplifies repetitive or hard-to-reach testing with the remote test probe
Saves battery power with auto power off
Presents results on a large, backlit display
Features CAT IV 600 V overvoltage category rating
Comes with remote probe, test leads, test probes, alligator clips, and one-year warranty
Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
