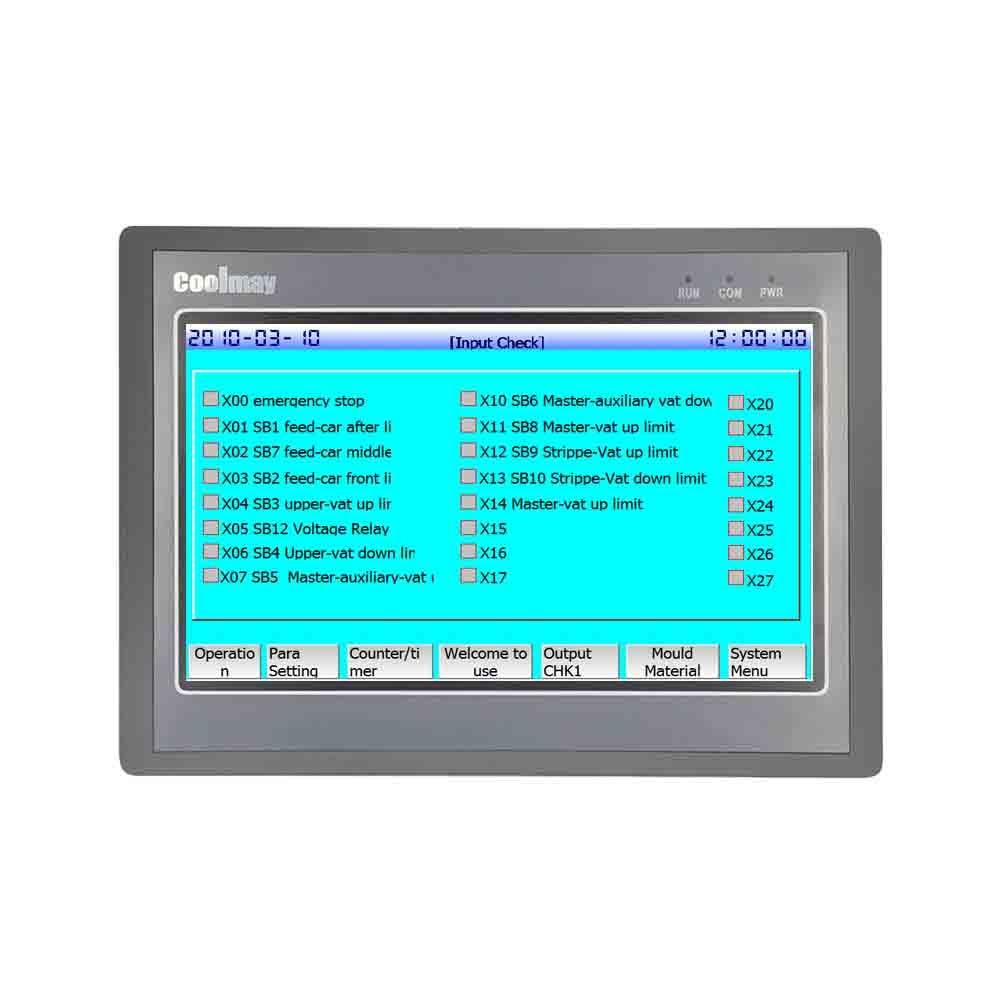

EX3G-100HA | 24DI 24DO Transistor Integrated HMI PLC All in one

Display

Dimension

275*194*36mm

Resolution

1024*600pixels

Type

10.1” TFT

Features

Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register

Memory

RAM

128MB

ROM

128MB

CPU

CORTEX A8 720MHz-1GHz

I/O

DI/DO

12DI/12DO or 20DI/18DO or 24DI/20DO or 30DI/30DO

Input: Passive NPN, public terminal isolated

Transistor output: Low level NPN, COM connect to negative; Relay output: Normally open dry contact

DO type and load

Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT)

MOStube: 2A/point, 4A/4 points COM; MT: 0.5A/point, 0.8A/4 points COM, 1.6A/8 points COM; MR: 2A/point, 4A/4 points COM, 5A/12 points COM.

Analog I/O (optional)

Max 16AI/8AO

AI type (optional)

Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple/

PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

0~10V/ 0~5V/ -5V~5V/ -10V~10V/ 0~20mA/ 4~20mA/ mixed

AO type (optional)

0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/

-5~5V/ -10~10V (2DA for 1 minus voltage)

High-speed function

High-speed counting

6 channels single-phase 60KHz, or 2 channels AB (Z) phase 60KHz + 1 channel AB phase 10KHz

High-speed pulse

8 channels,Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

High-speed counting + high-speed pulse < 480KHz

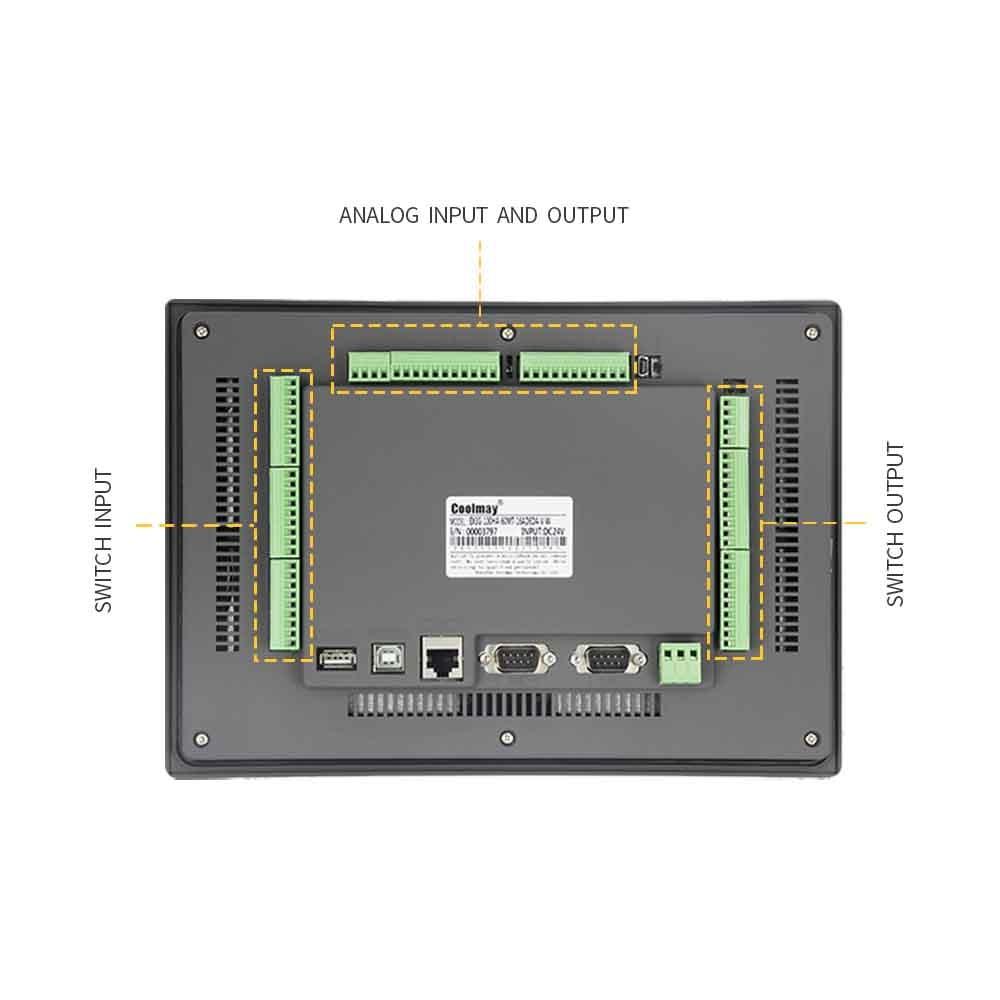

Connection

HMI

1 HMI download port,1 USB 2.0 port

1 RS485 or 1RS232 port

Ethernet port (can not coexist with PLC Ethernet port)

PLC

1 Mini type B USB port, 1 RS232 port (Program port,also can be used as COM port)

1 RS485 or 2 RS485 COM ports (one is changed from the default RS232 port), CAN (2.0A/B), Ethernet port (can not coexist with HMI Ethernet port), WIFI (will occupy the default RS232)

Software

HMI

CoolMayHMI HMI programming software

PLC

Compatible with Mitsubishi GX Developer8.86 and GX WORKS 2
