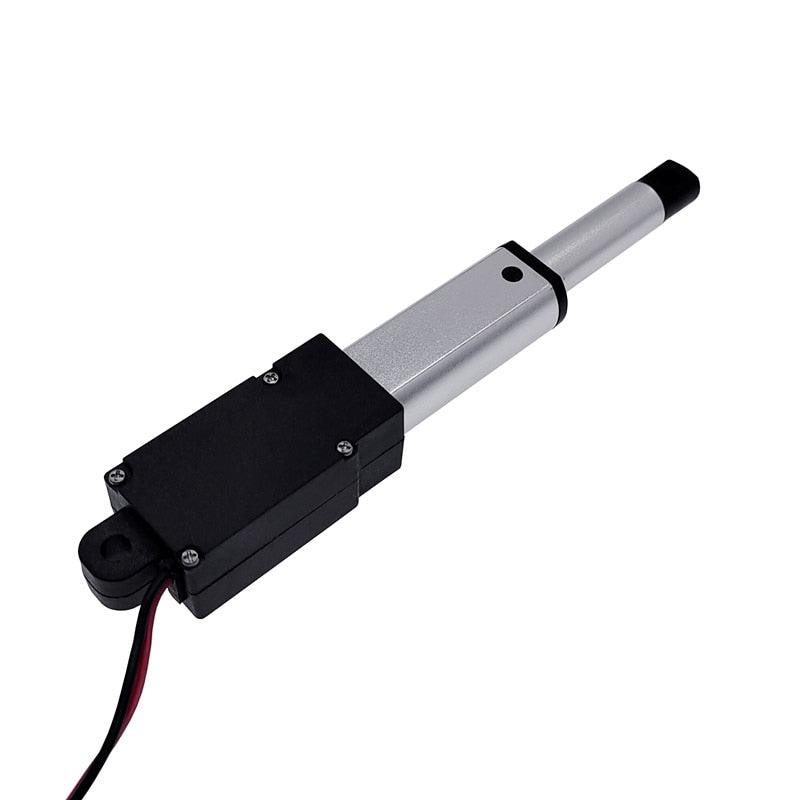

Electric Linear Actuator 30mm 50mm stroke DC 12V linear actuator motor 30N/60N/90N/150N linear motor controller

SPECIFICATIONS

Electric Linear Actuator 30mm 50mm stroke DC 12V linear actuator motor 30N/60N/90N/150N linear motor controller

Usage: Fan

Type: Gear Motor

Torque: 30N/60N/90N/150N

Protect Feature: Totally Enclosed

Output Power: 12V

Model Number: 30mm Stroke/50mm Stroke

Efficiency: IE 1

Construction: Permanent Magnet

Commutation: Brush

Certification: ce

Lmin=54.5mm+Stroke

For example: If Sroke is 50mm,the normal Lmin is 54.5+50=104.5mm.

Lmin means the length when linear actuator 100% fully closed, meanwhile,it will touch the tail limited switch and stop automatically.

Stroke means the movement length of linear actuator.

Lmax=Lmin+Stroke=54.5+2×Stroke

For example: If Sroke is 50mm,the normal Lmin is 54.5+2×50=154.5mm.

Lmax means the length when linear actuator 100% fully open, meanwhile,it will touch the head limited switch and stop automatically.

Stroke 30MM Lmin=54.5+30=84.5MM,Lmax=84.5+30=114.5MM

Stroke 50MM Lmin=54.5+50=104.5MM,Lmax=104.5+50=154.5MM

Linear actuator spec:

Input:12V DC

Load:Max 188N/18.8KG/41.36LBS

Limited switch:With

Duty cycle:10%

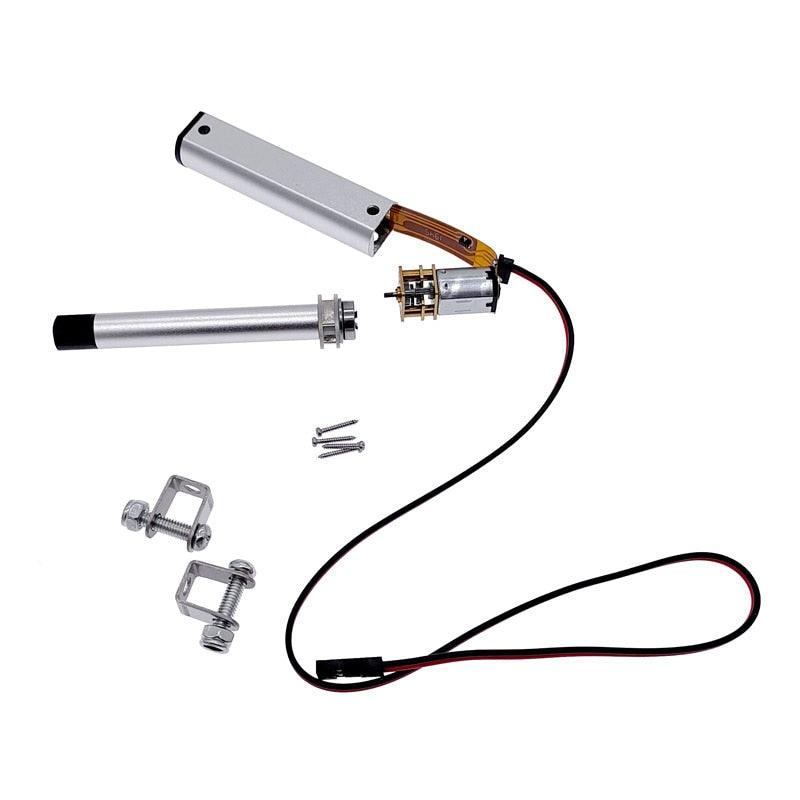

Poduct Material:Metal and plastic

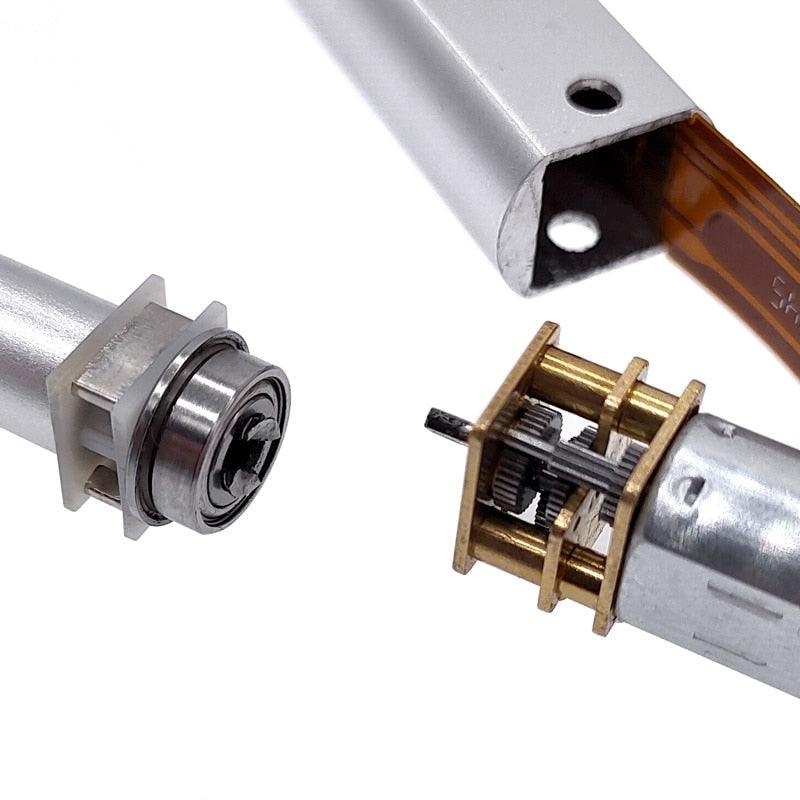

Worm Gear:Metal gear

Color:Black

Operation temperature:-26 ~ +65 degree
